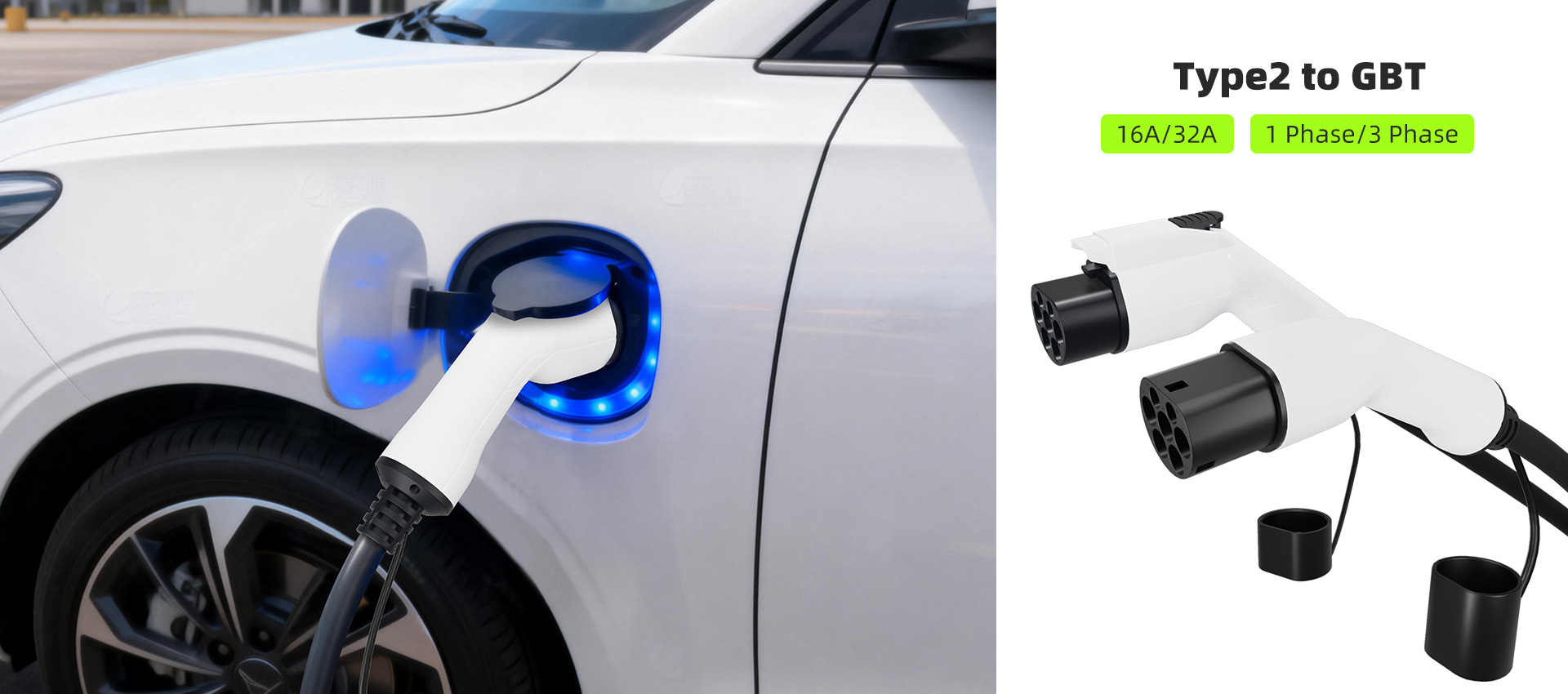

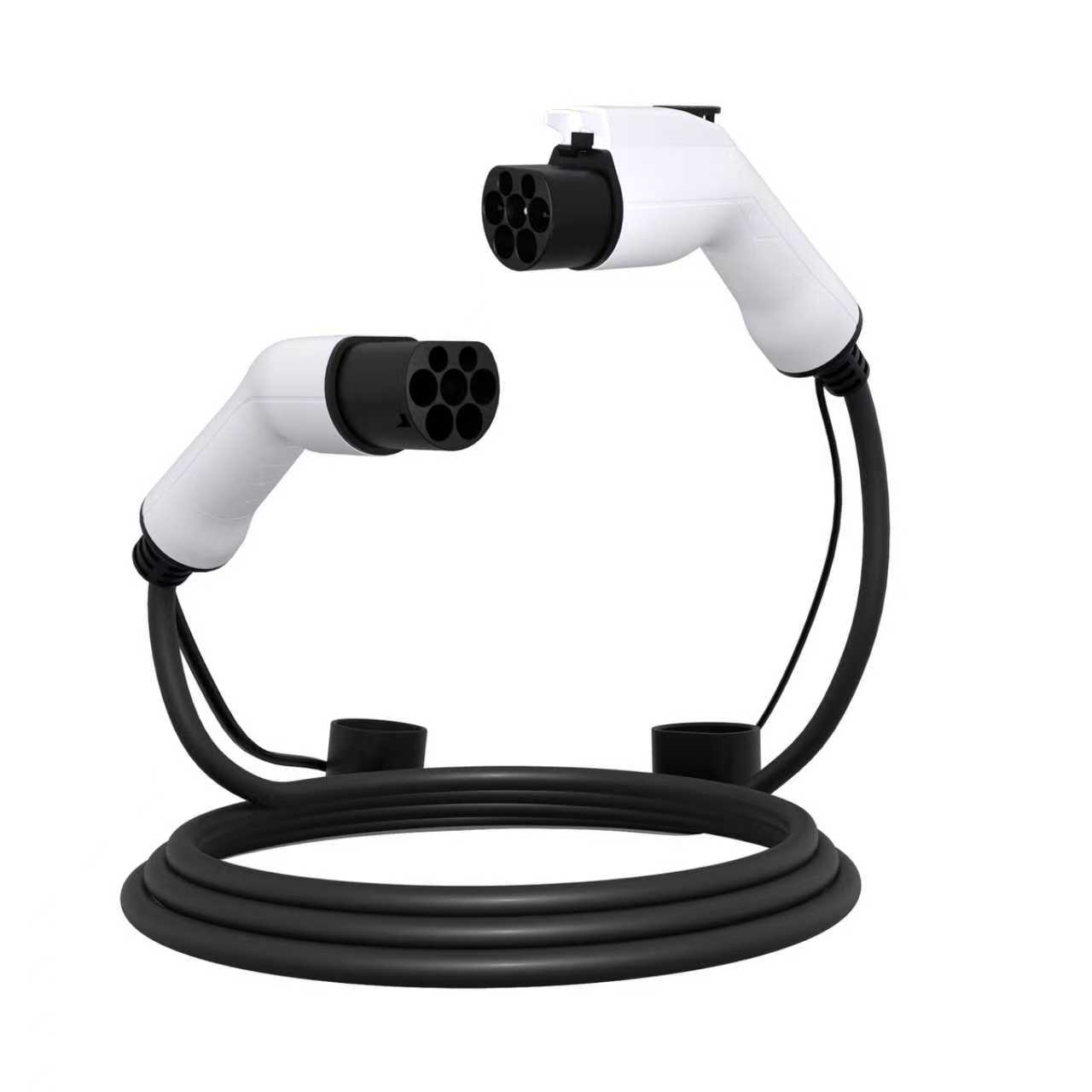

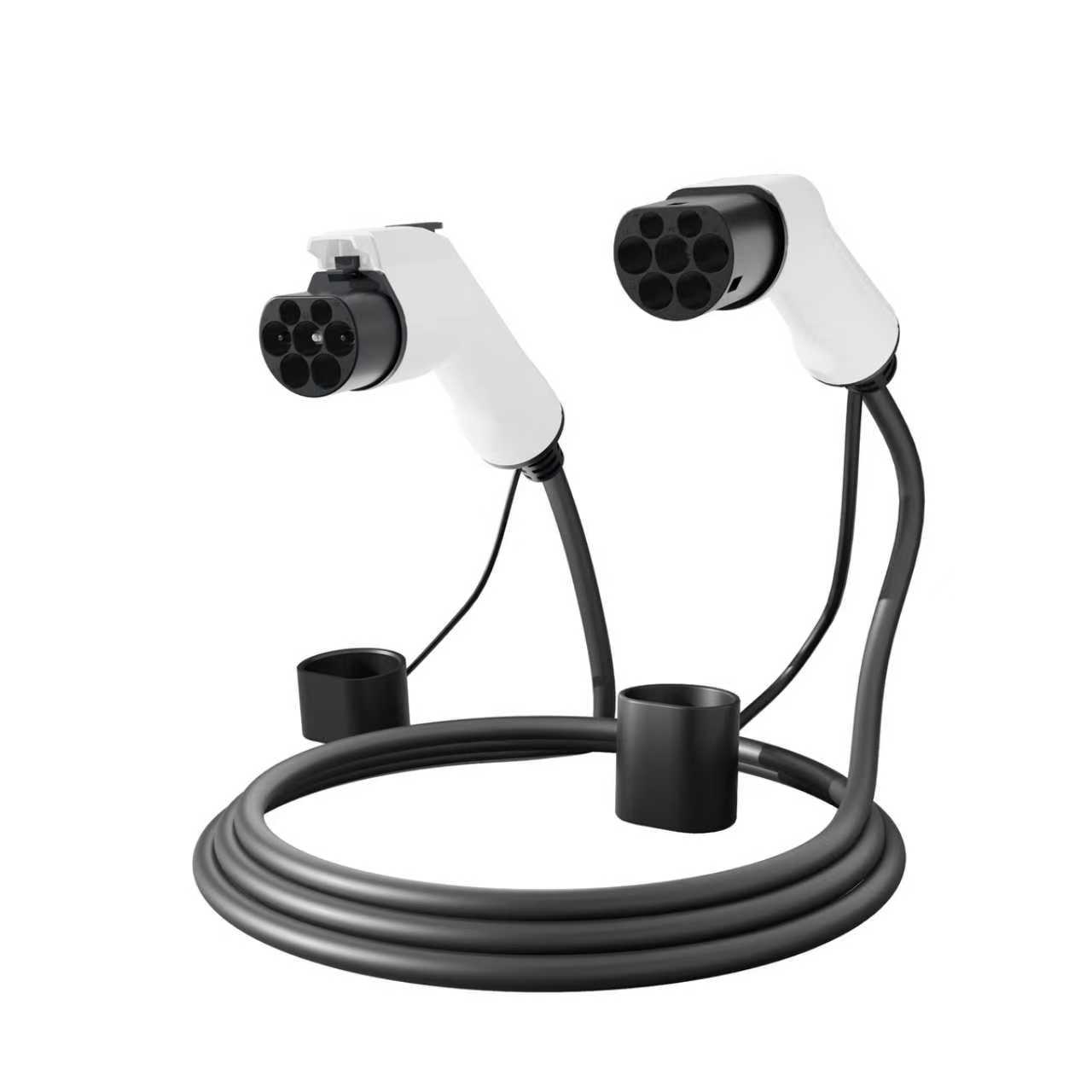

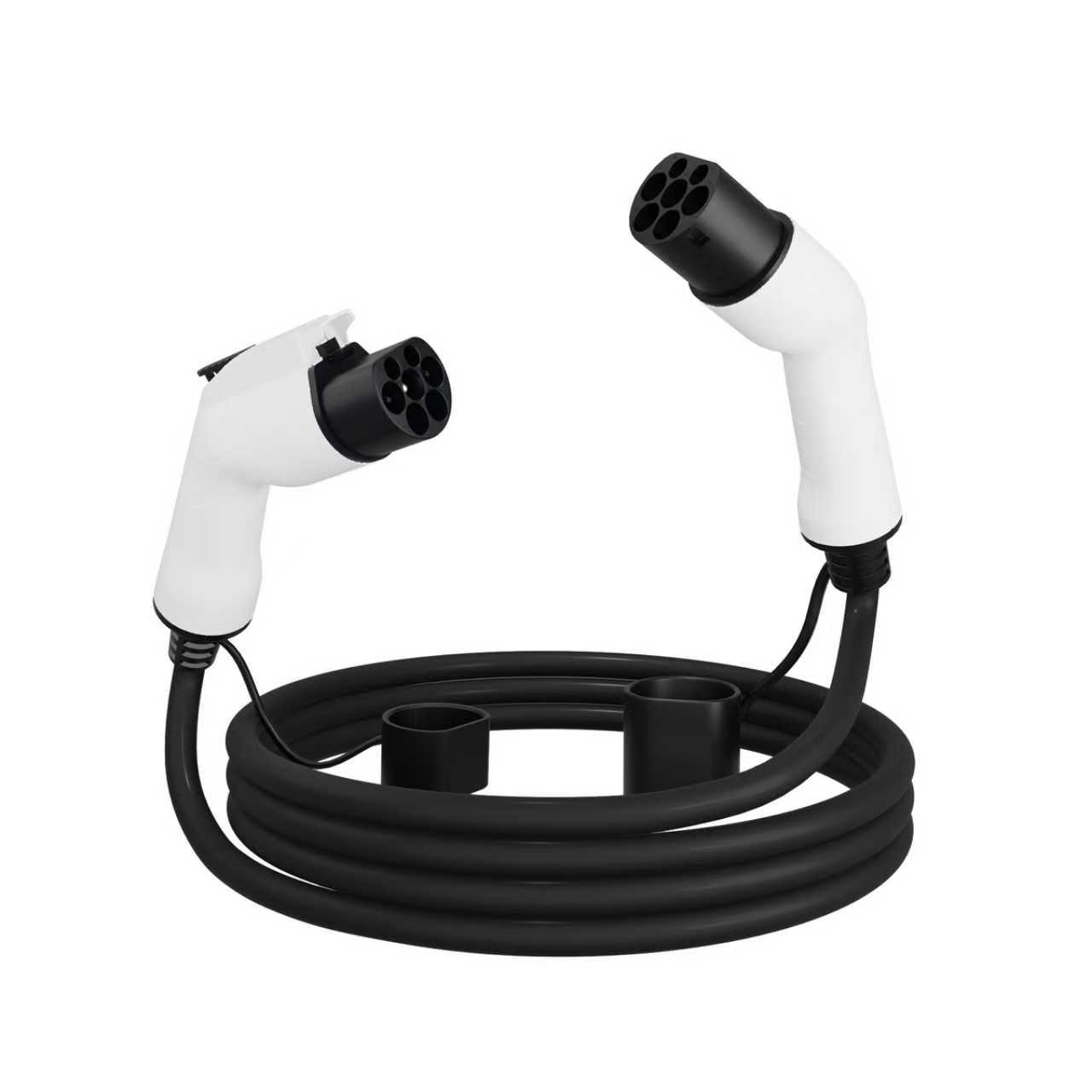

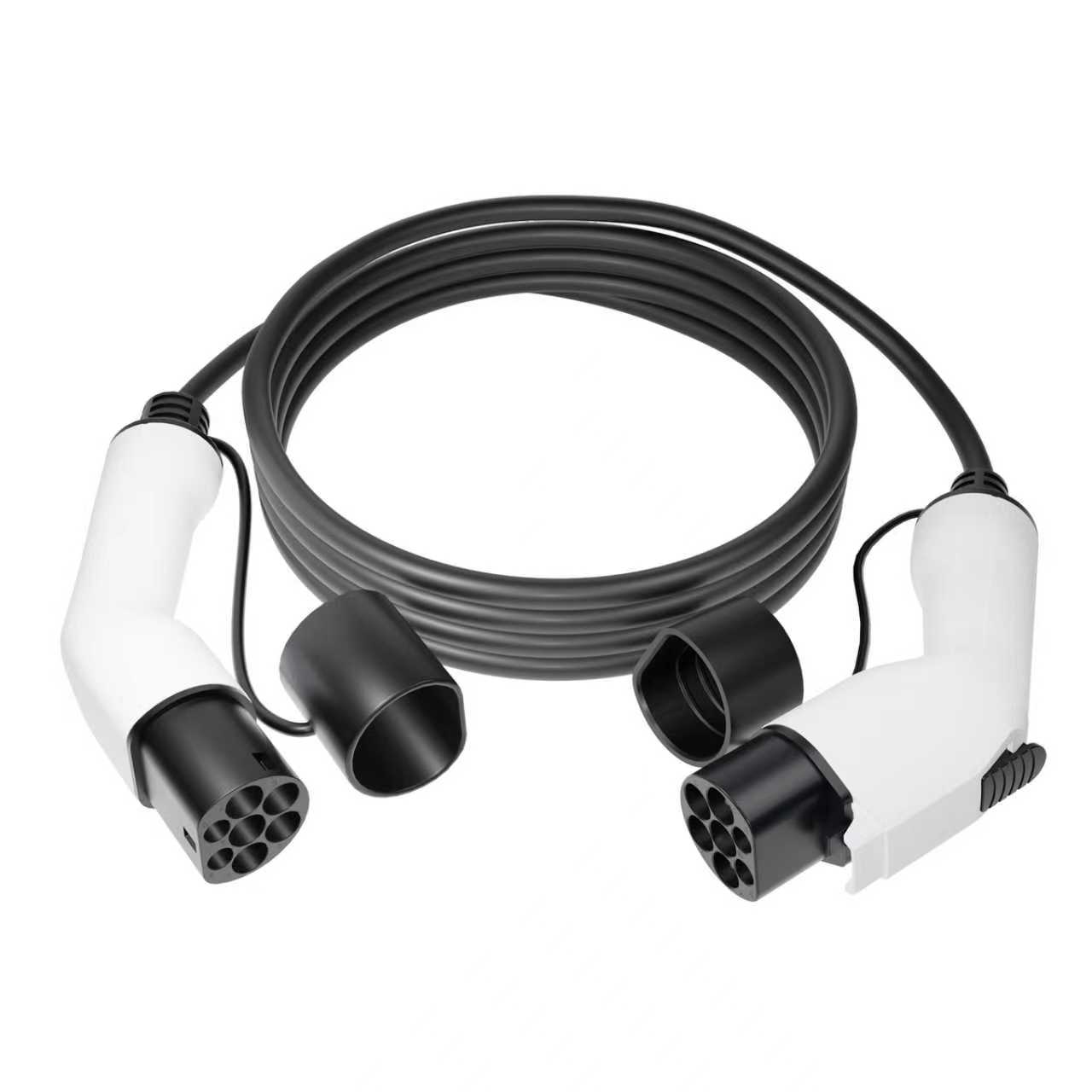

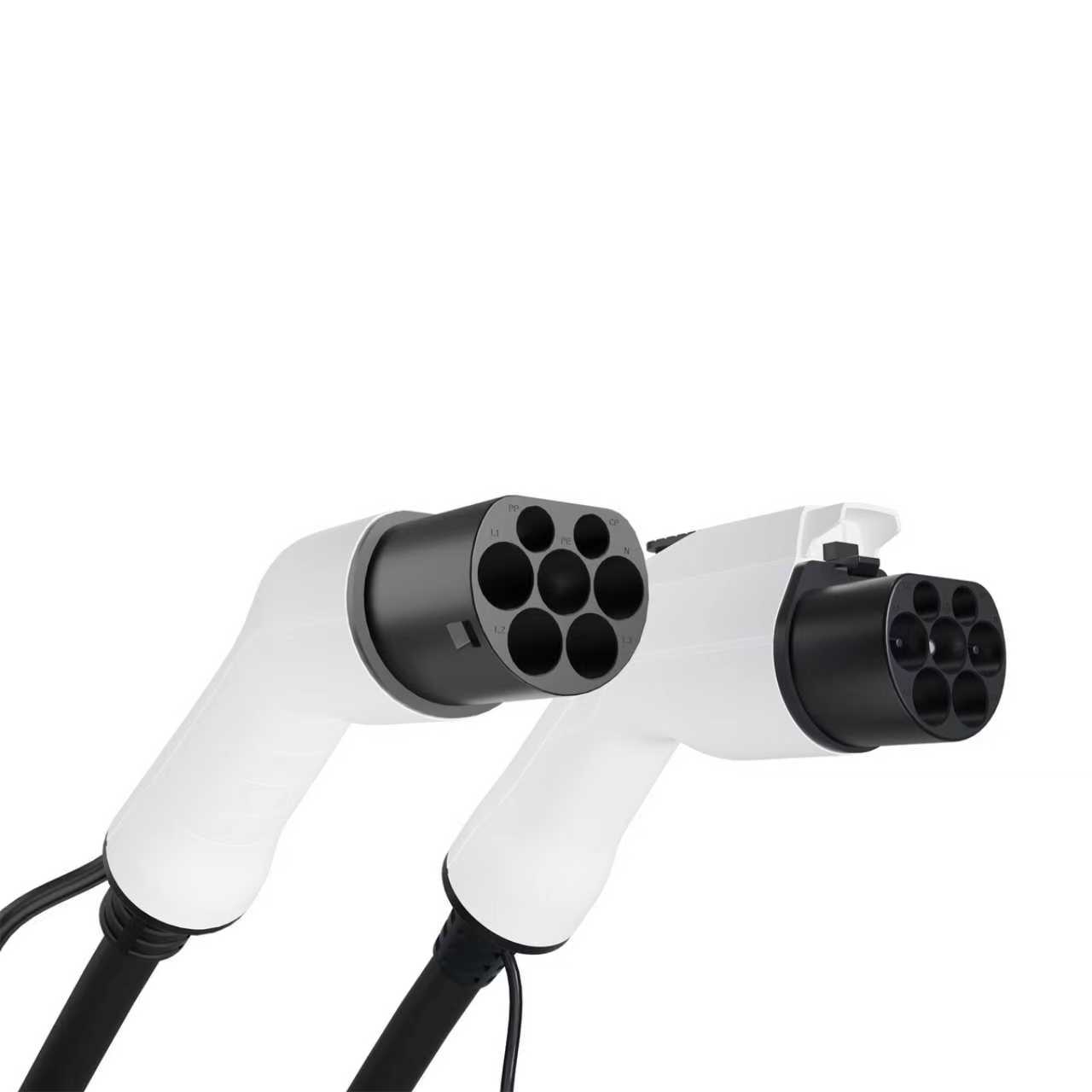

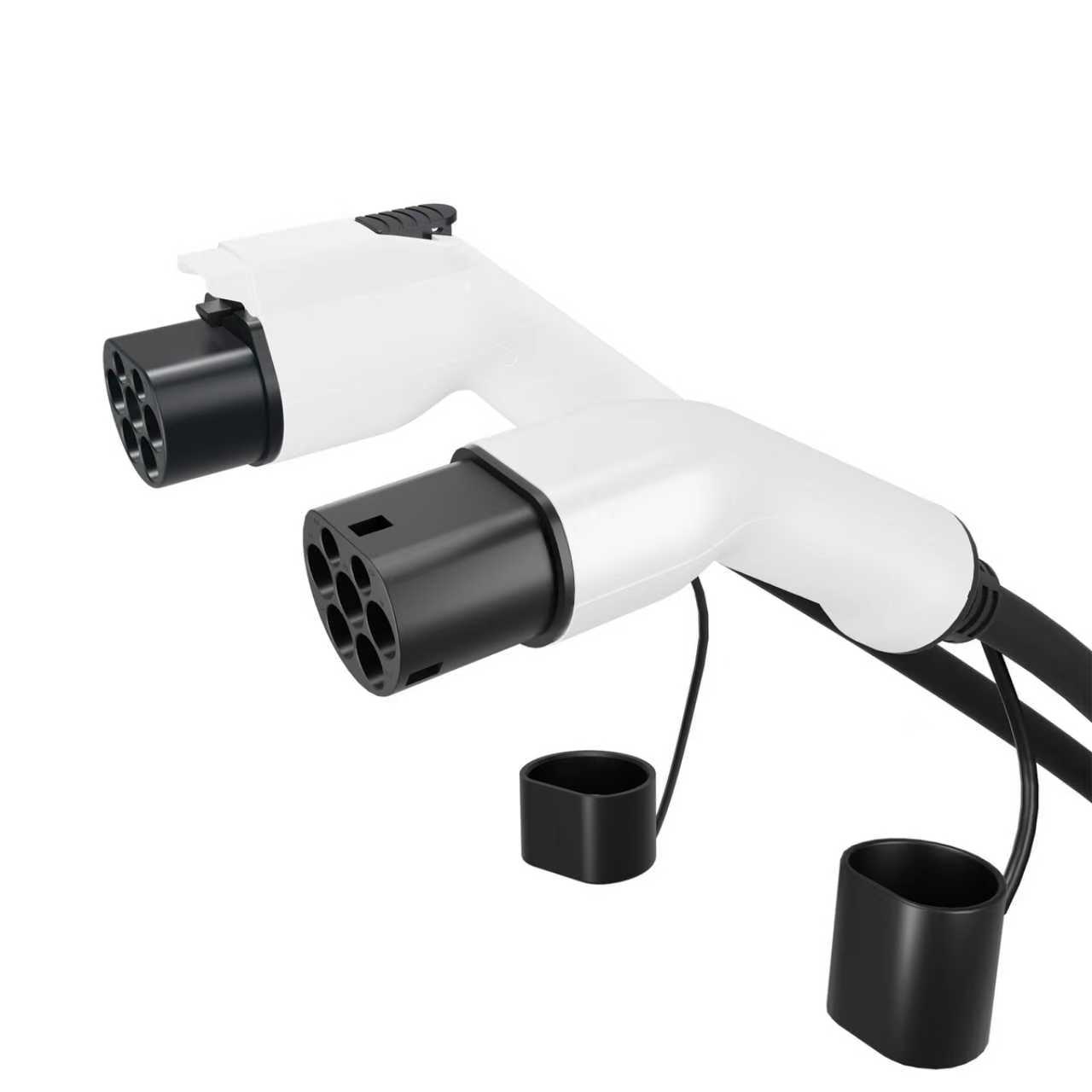

Type 2 to GBT EV Charging Cable

Type 2 to GBT EV Charging Cable

  • Product Introduction

Type 2 to GBT Charging Cable: Bridging European and Chinese Standards
This specialized adapter cable enables seamless charging between Type 2 charging infrastructure and vehicles equipped with GB/T (Guobiao) connectors. Engineered with high-quality materials and robust shielding, it ensures safe and efficient power delivery while maintaining full communication protocol compatibility.

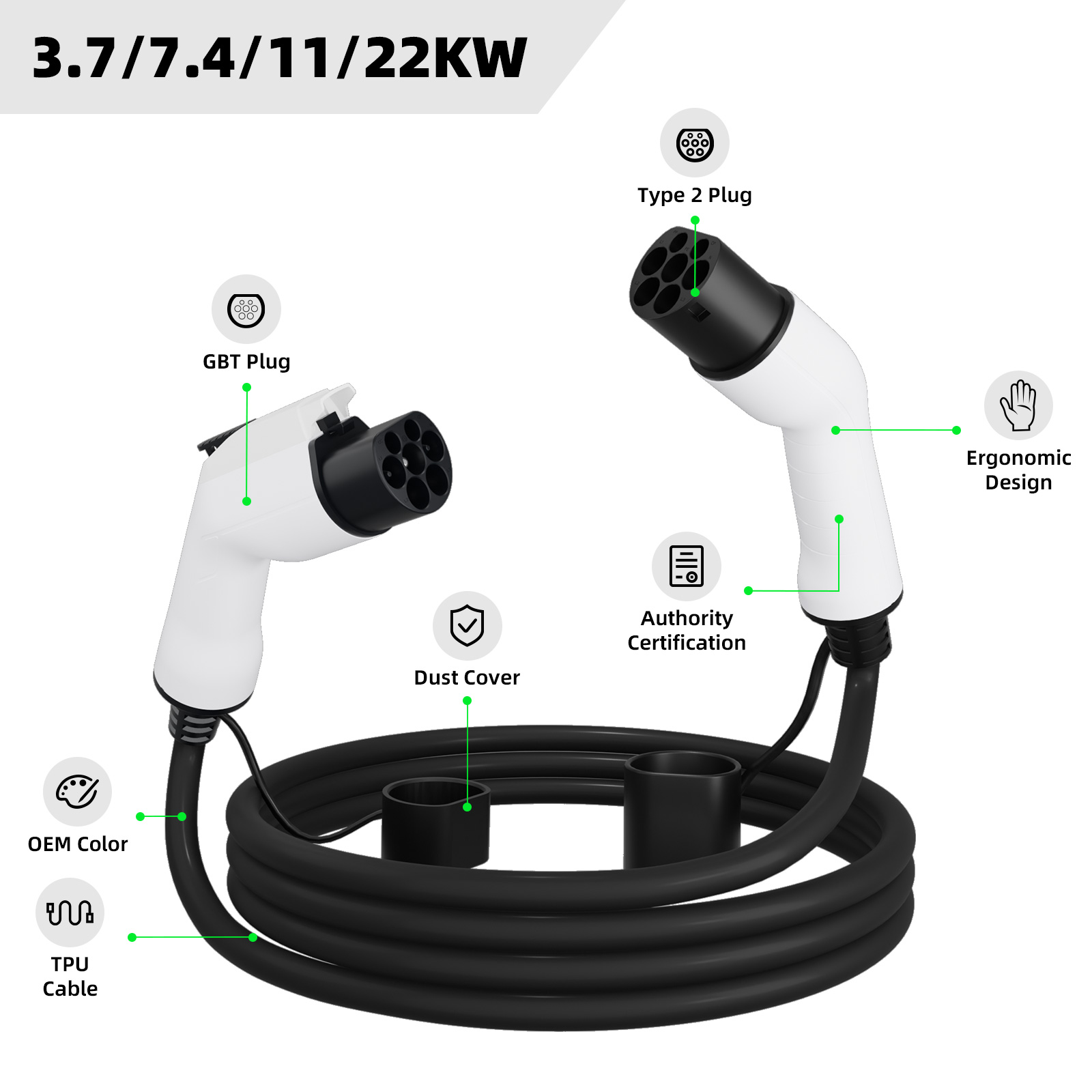

Product diagram and parameters

Rated Current16A/32A
Rated Voltag250V/480V AC
Insulation Resistance2000MΩ(DC2000V)
Contact Resistance0.5MΩMax
Withstand Voltage2000V
Fire-proof RatingUL94V-0

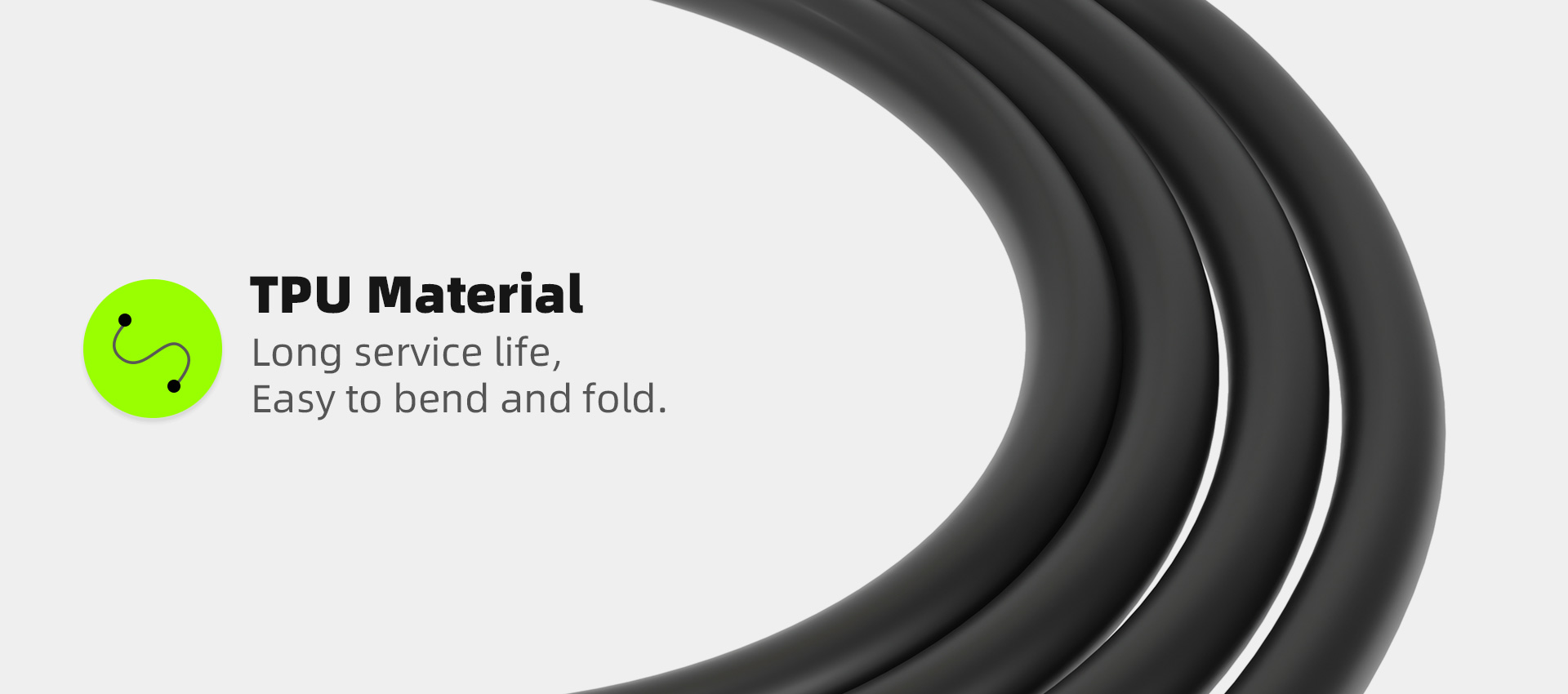

Cable JacketTPU
Mechanical Life>10000 times' plug in/ off

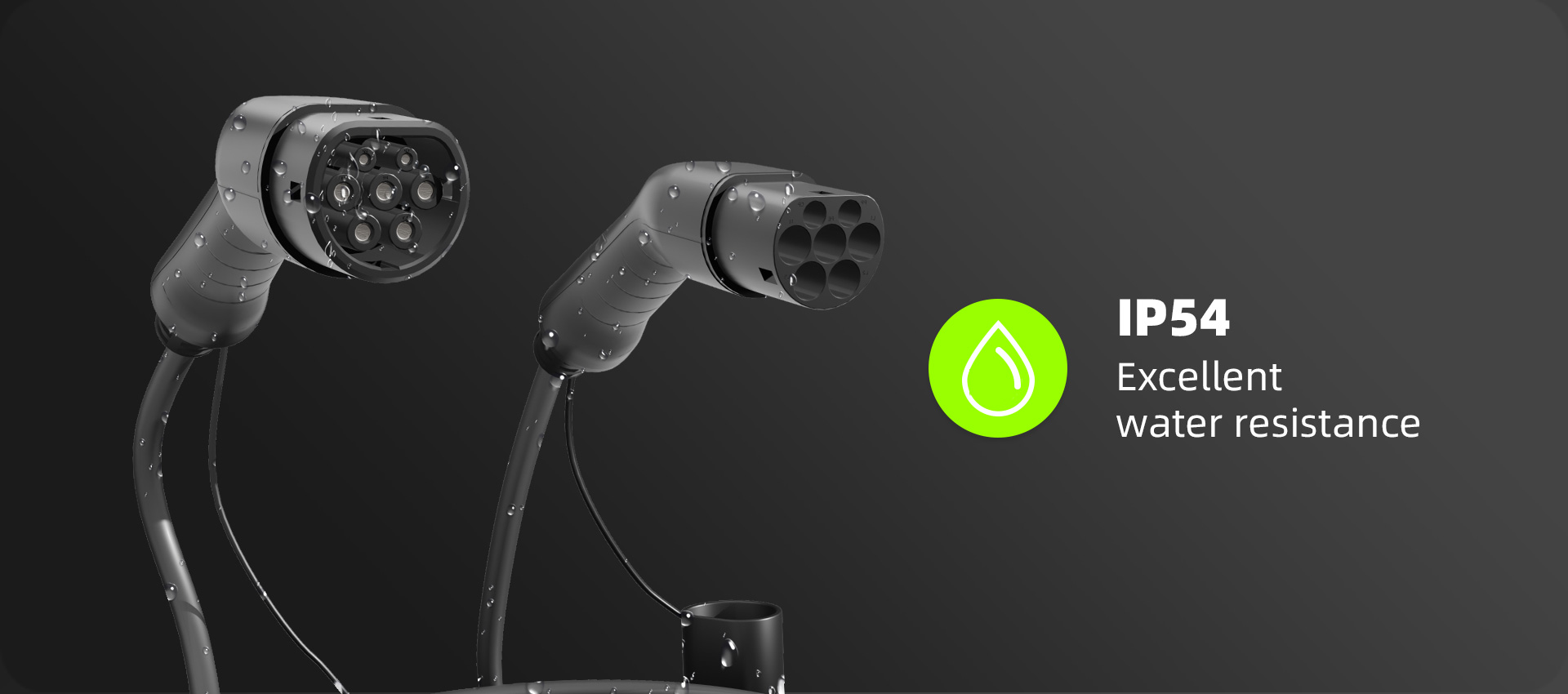

Protection LevelIP54
Enclosure MaterialPC
Terminal PinsSilver-plated copper
Working Temp-30℃~50℃
Cable ColorCustomizable

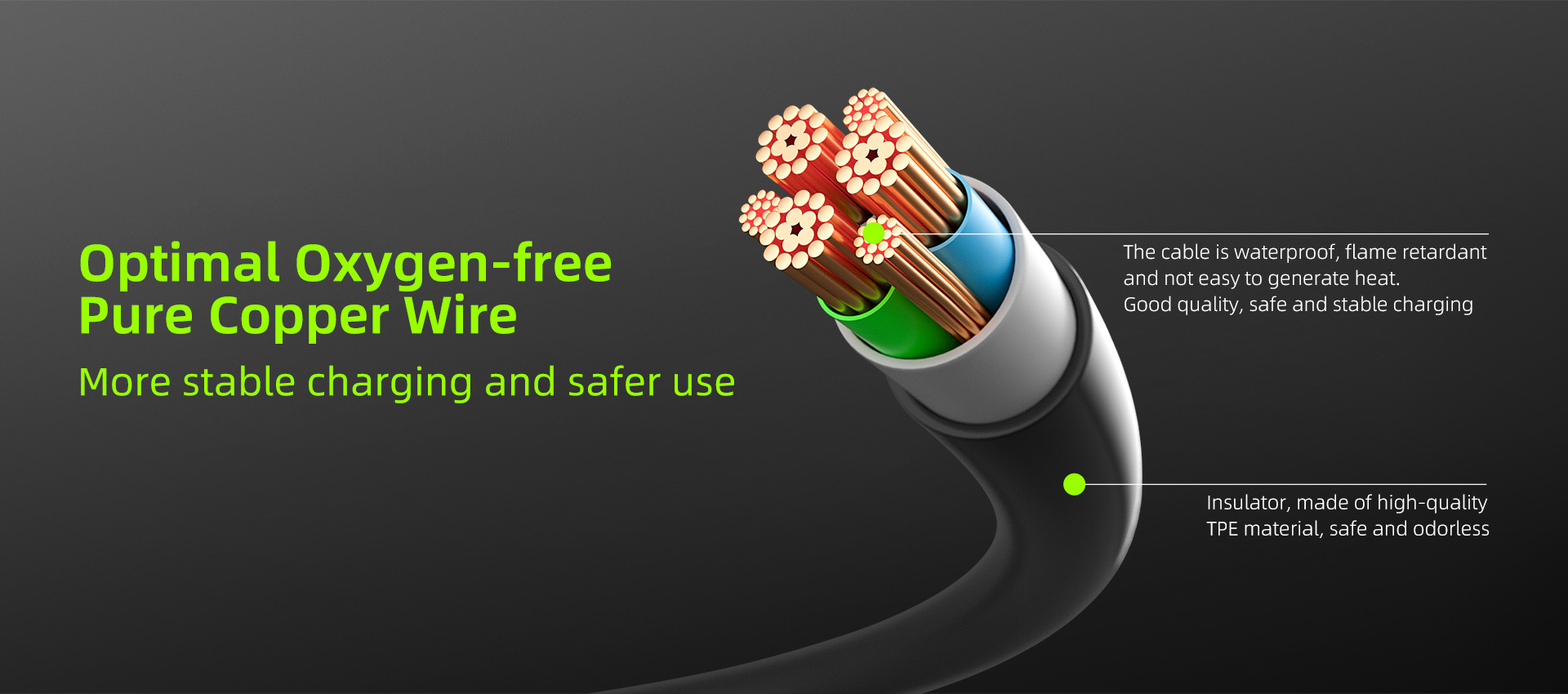

Cable Spec

1 Phase 16A   3*2.5 mm² + 1* 0.5 mm²

1 Phase 32A    3*6 mm² + 1* 0.5 mm²

3 Phase 16A   5*2.5 mm² + 1* 0.5 mm²

3 Phase 32A   5*2.5 mm² + 1* 0.5 mm²

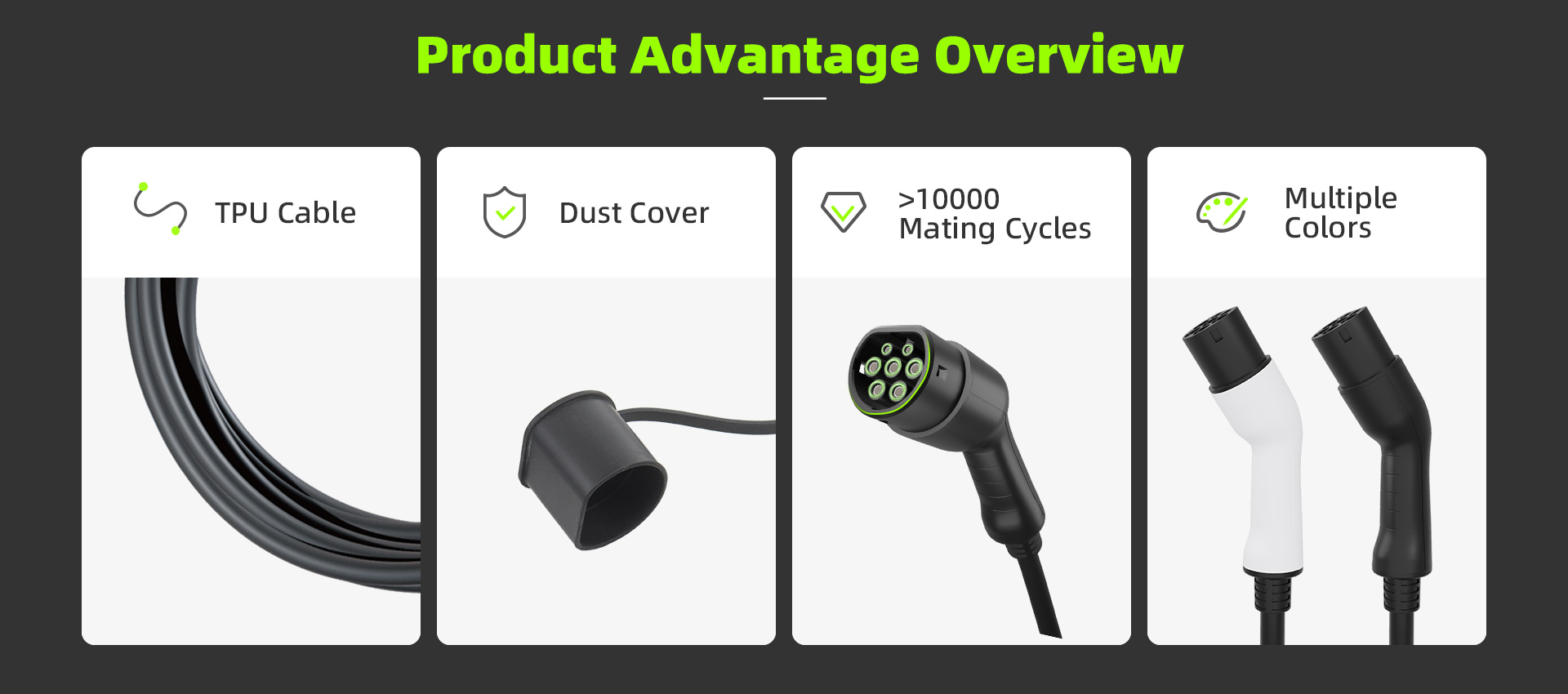

Product Highlights

Type 2 to GBT EV Charging Cable

Special terminals with low resistance and high temperature resistance, suitable for use in the Middle East

Details

  • 双头枪1.0_01
  • 双头枪1.0_02
  • 双头枪1.0_03
  • 双头枪1.0_04
  • 双头枪1.0_05
  • 双头枪1.0_06
  • 双头枪1.0_07
  • 双头枪1.0_08
  • 双头枪1.0_09
  • 双头枪1.0_10
  • 双头枪1.0_11

Notice

Custom cable color, minimum order length 1,500 meters.

OEM unit cable length, meet the cable lengths required for different usage scenarios
