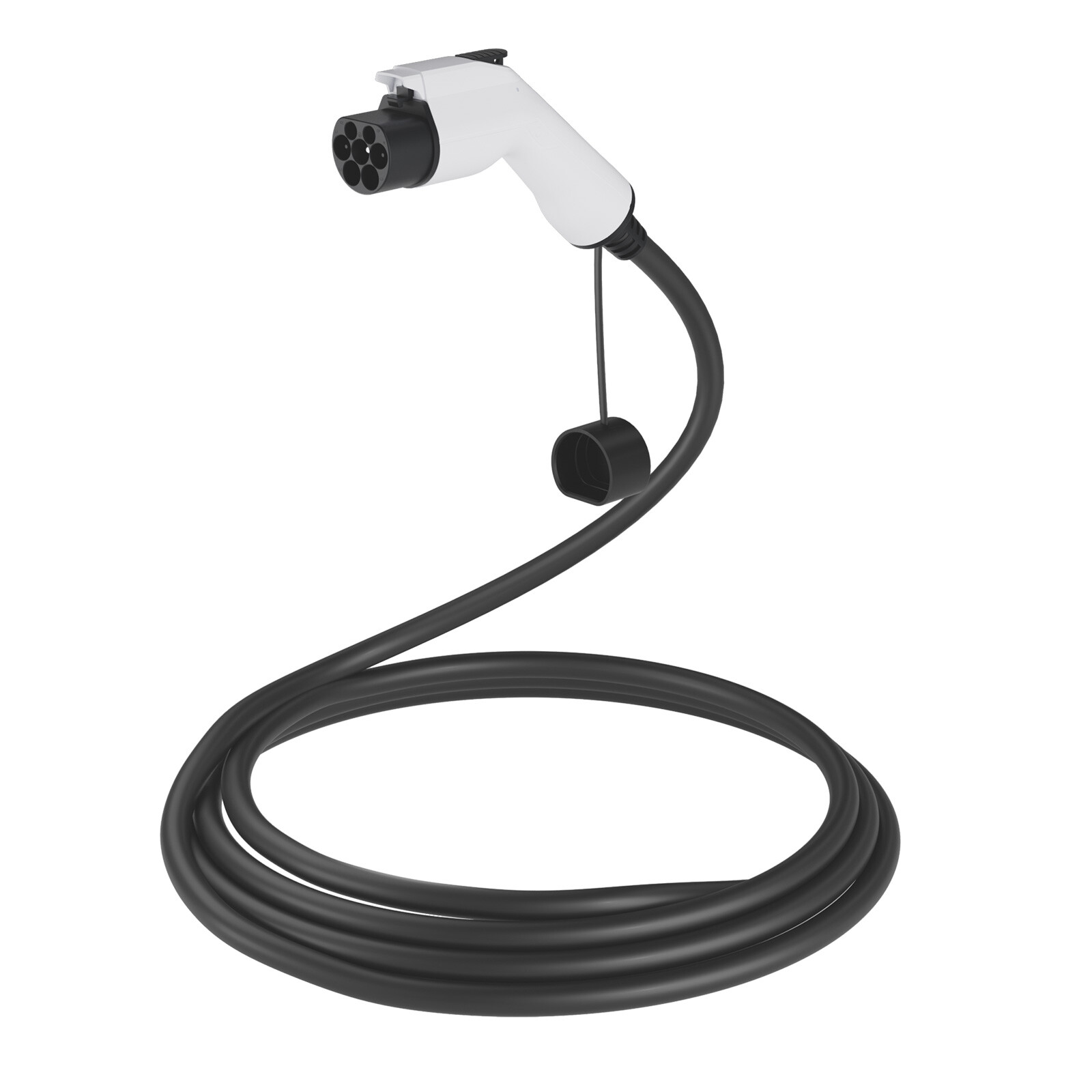

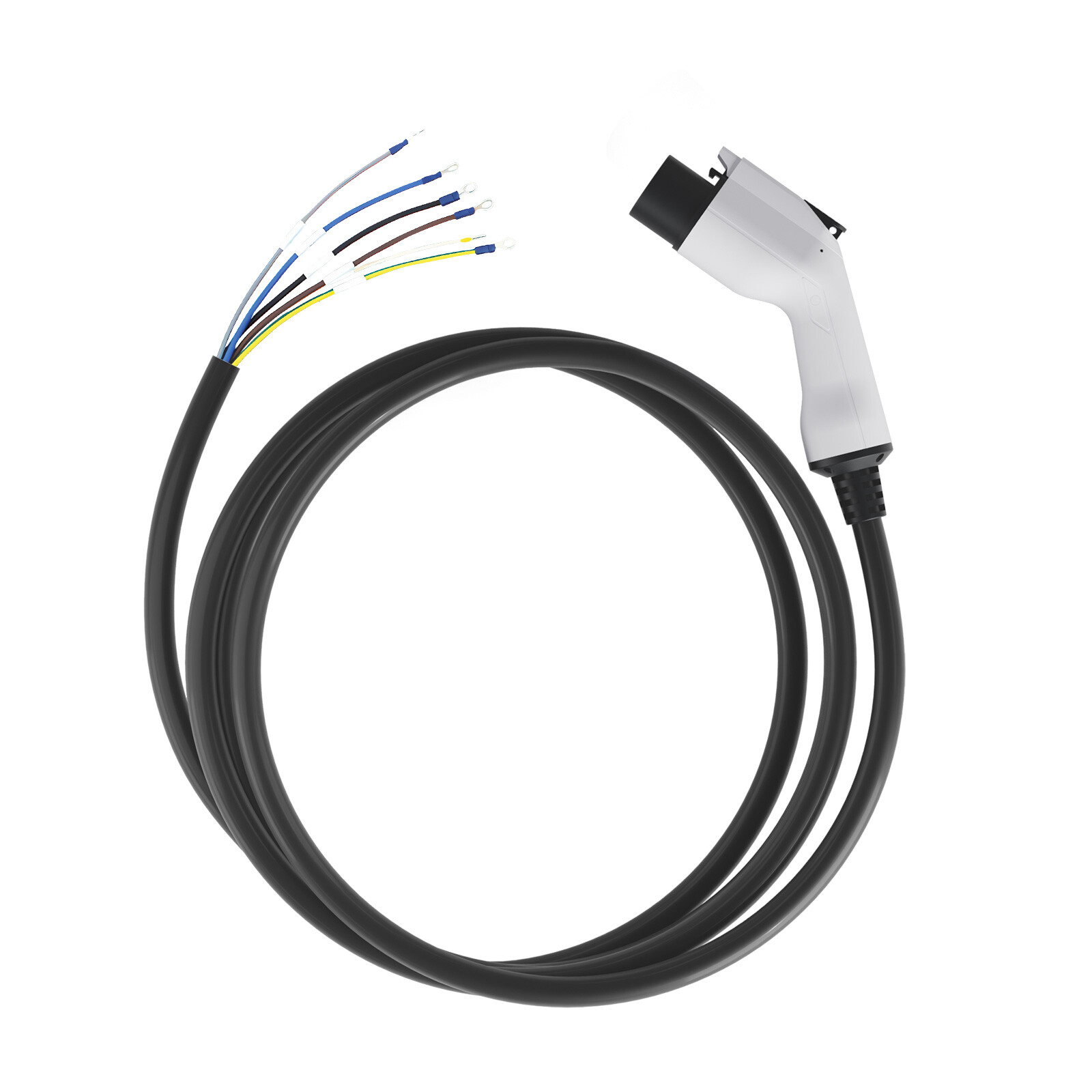

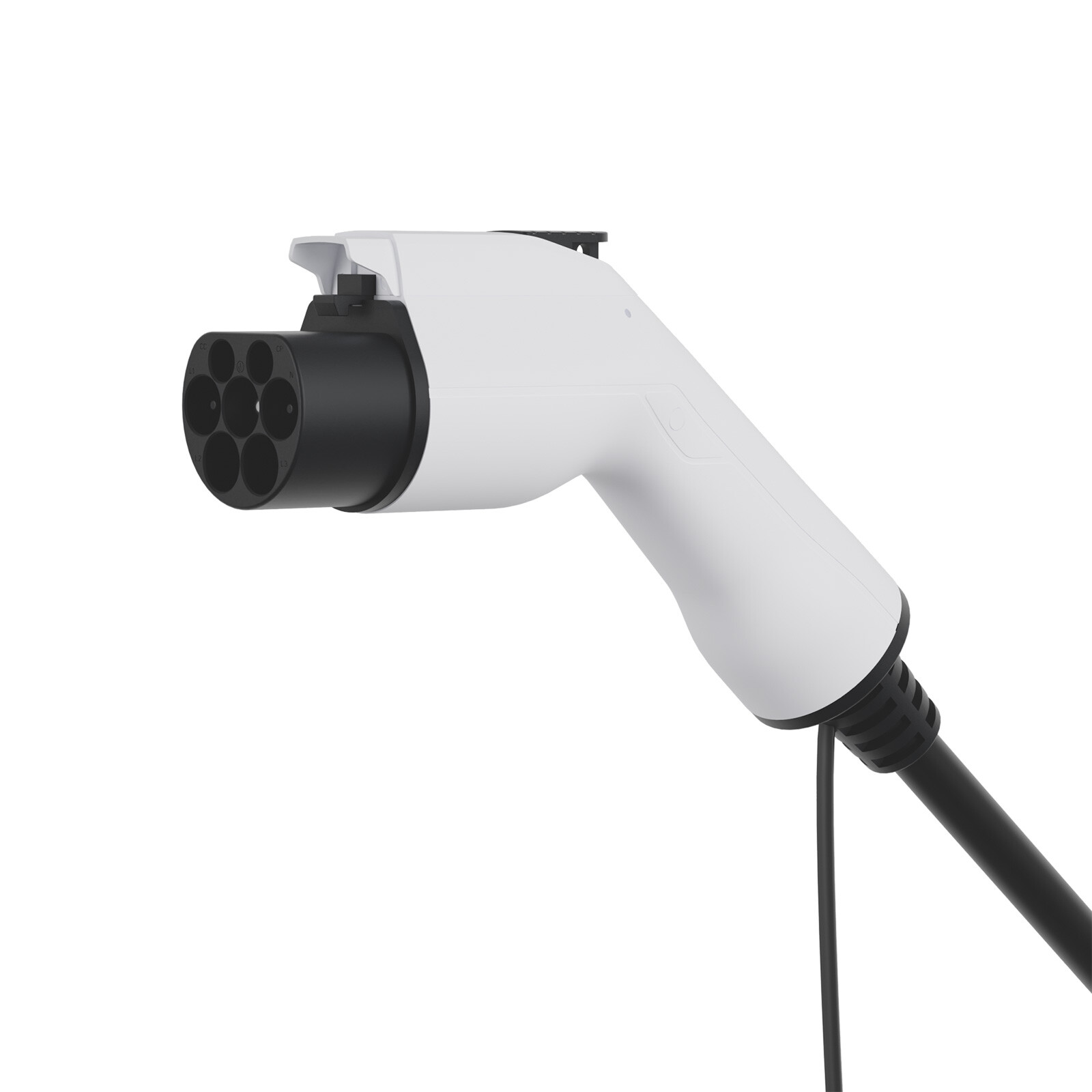

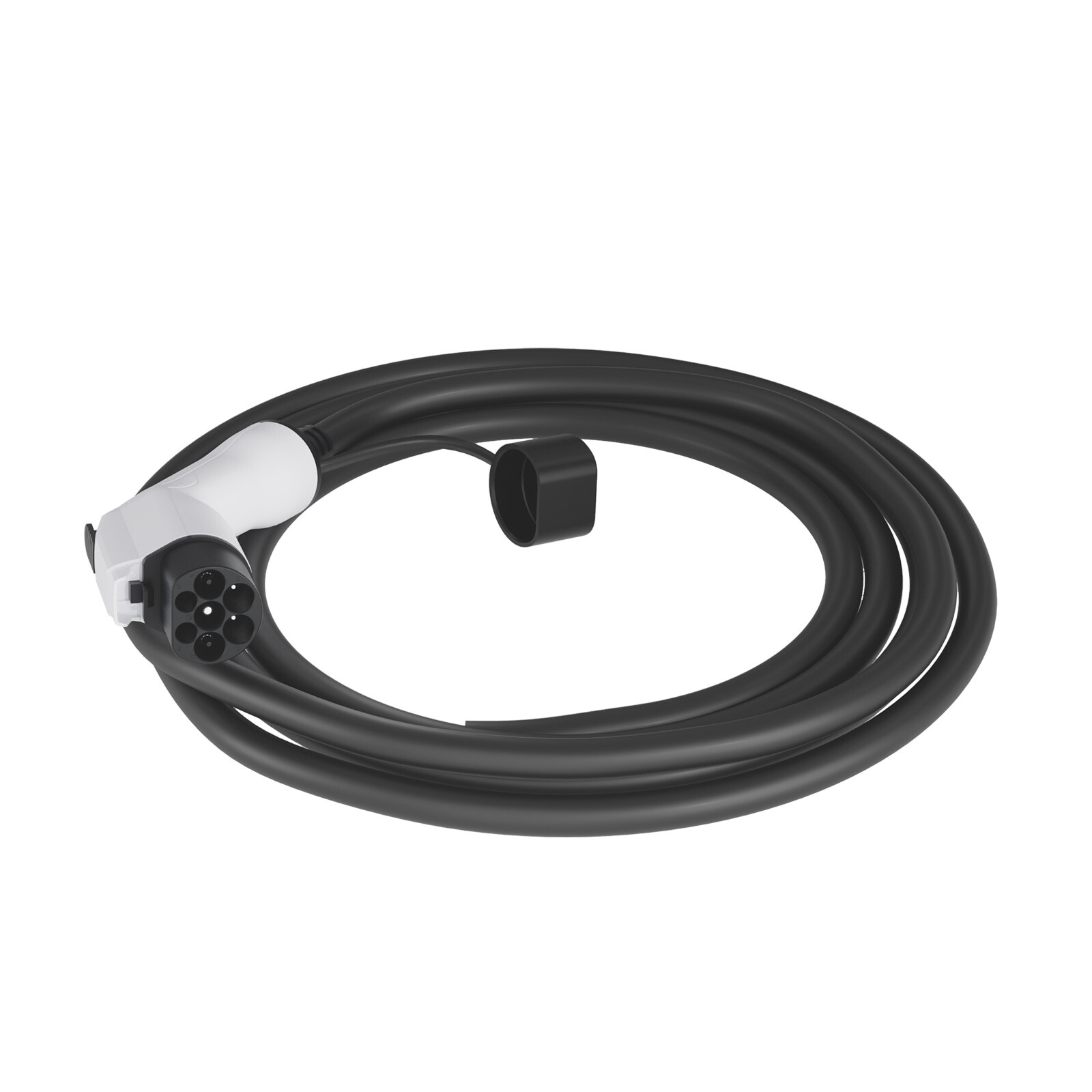

G1.0 GBT to open end EV Cable

Product Introduction

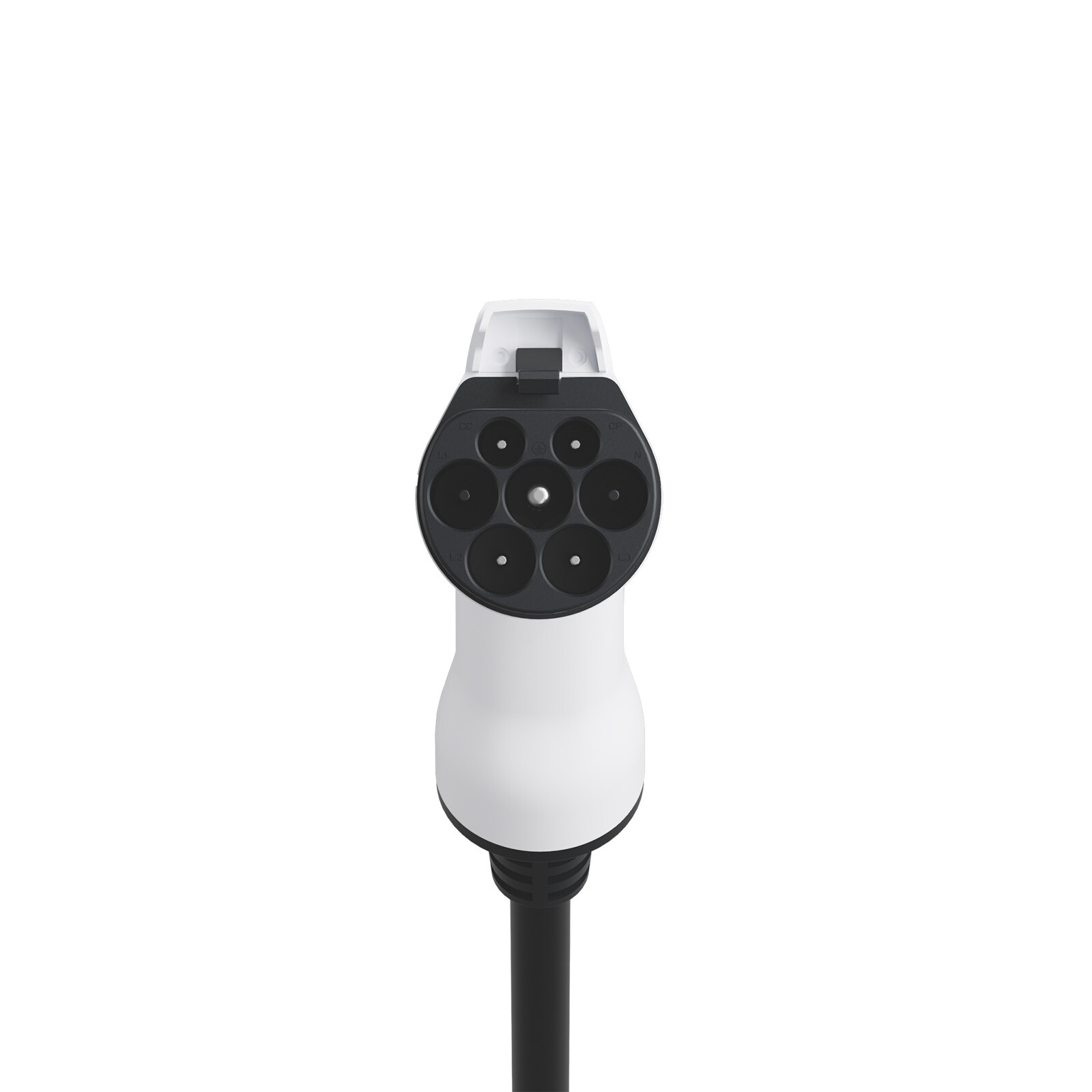

The GBT AC connector is the standard interface for Level 2 charging in China. It is typically a 7-pin design (5 power and 2 signal pins) that supports both single-phase and three-phase AC charging up to 22 kW (250V/32A for single, 440V/32A for three). It features a mechanical lock for safety and relies on the vehicle’s onboard charger to convert the power.

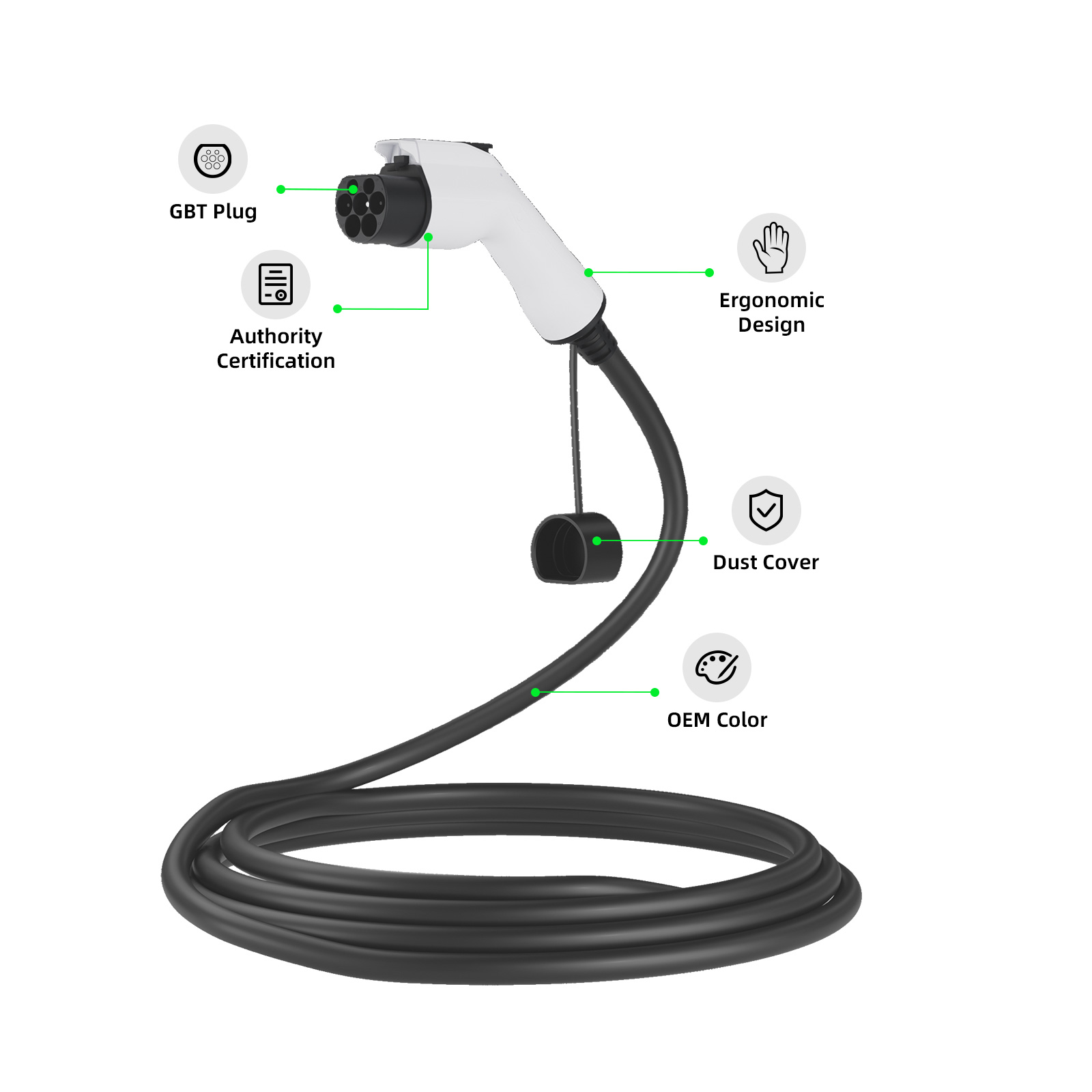

Product diagram and parameters

Current	16A/32
Voltage	250V/440V AC
Pins	cooper alloy, Silver plated.

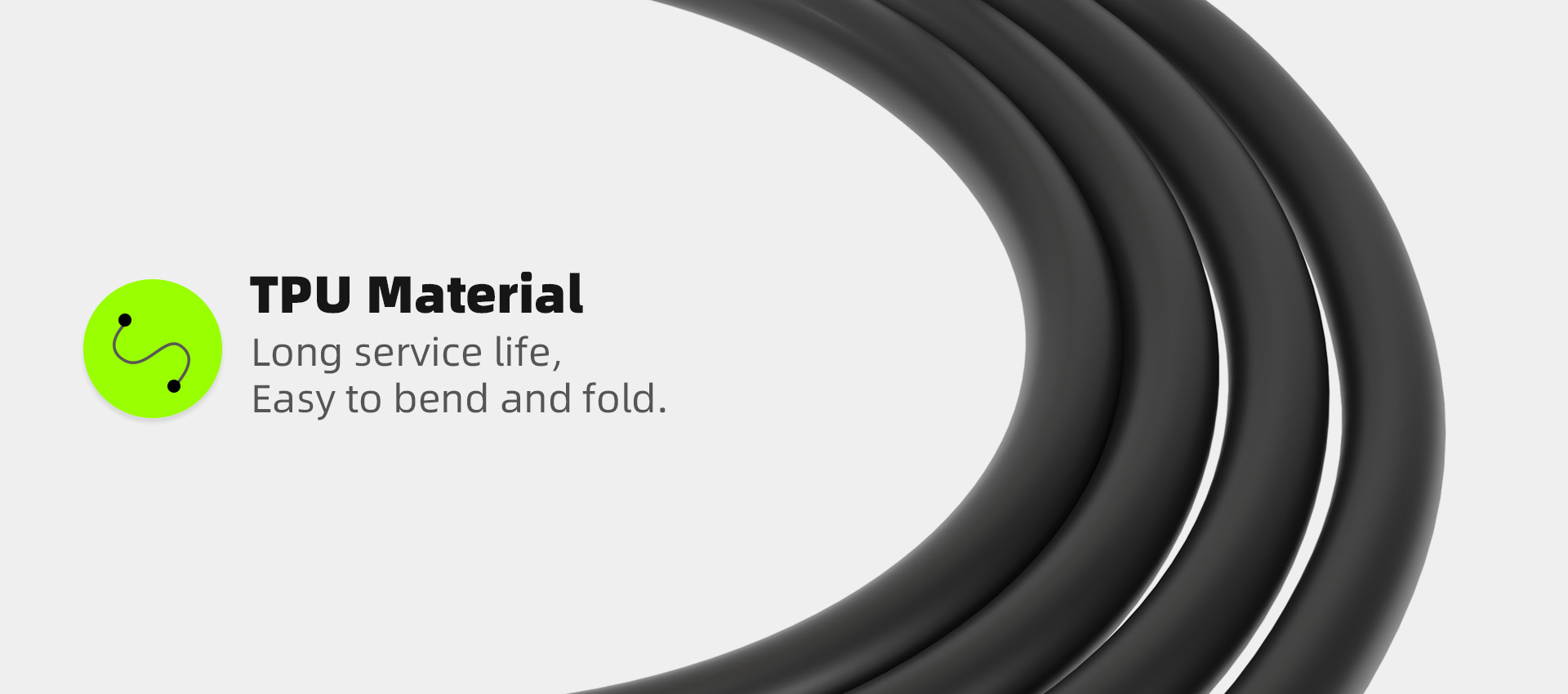

Cable Jacket	TPE
Enclosure Material	PC

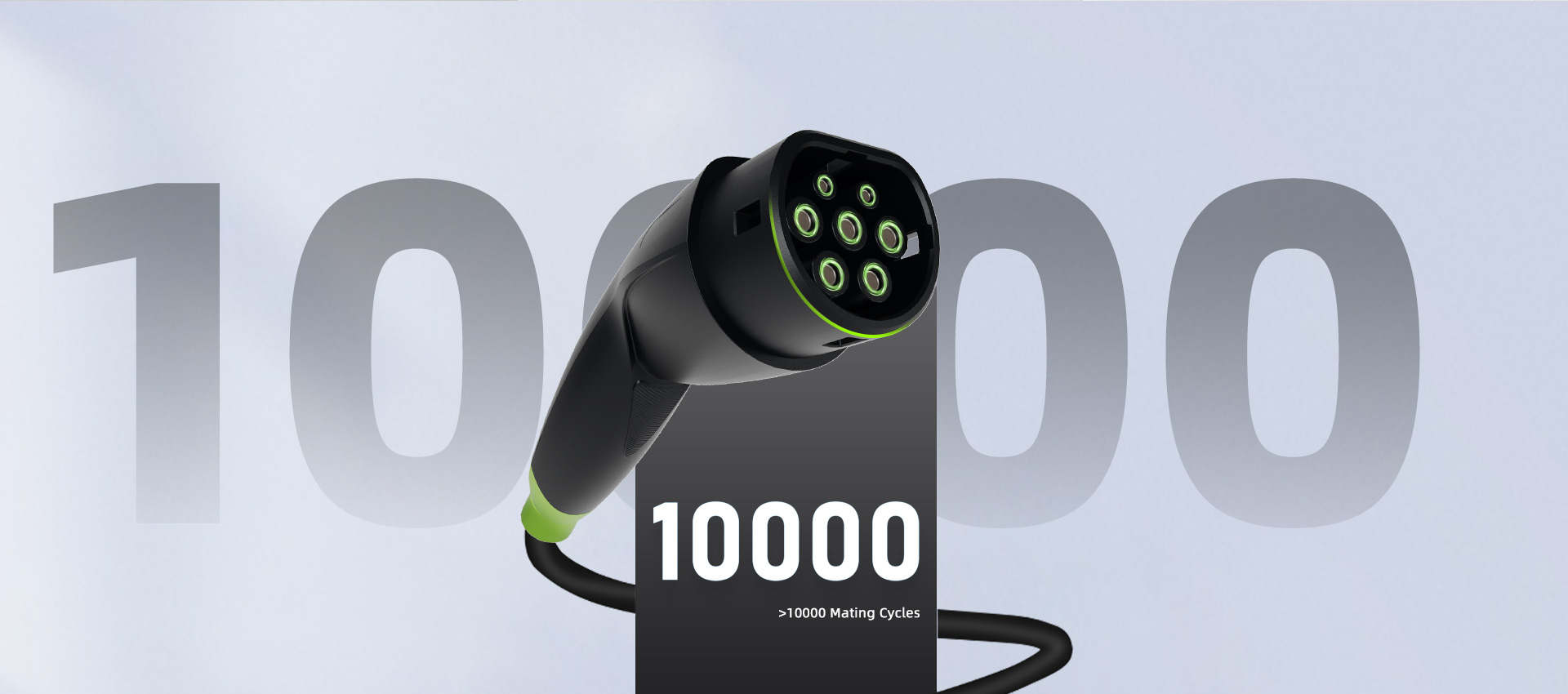

Mechanical Life	＞10000 times
Cable Spec	1 Phase 16A 32.5 mm² + 1 0.5 mm²
	1 Phase 32A 36 mm² + 1 0.5 mm²
	3 Phase 16A 52.5 mm² + 1 0.5 mm²
	3 Phase 32A 52.5 mm² + 1 0.5 mm²
