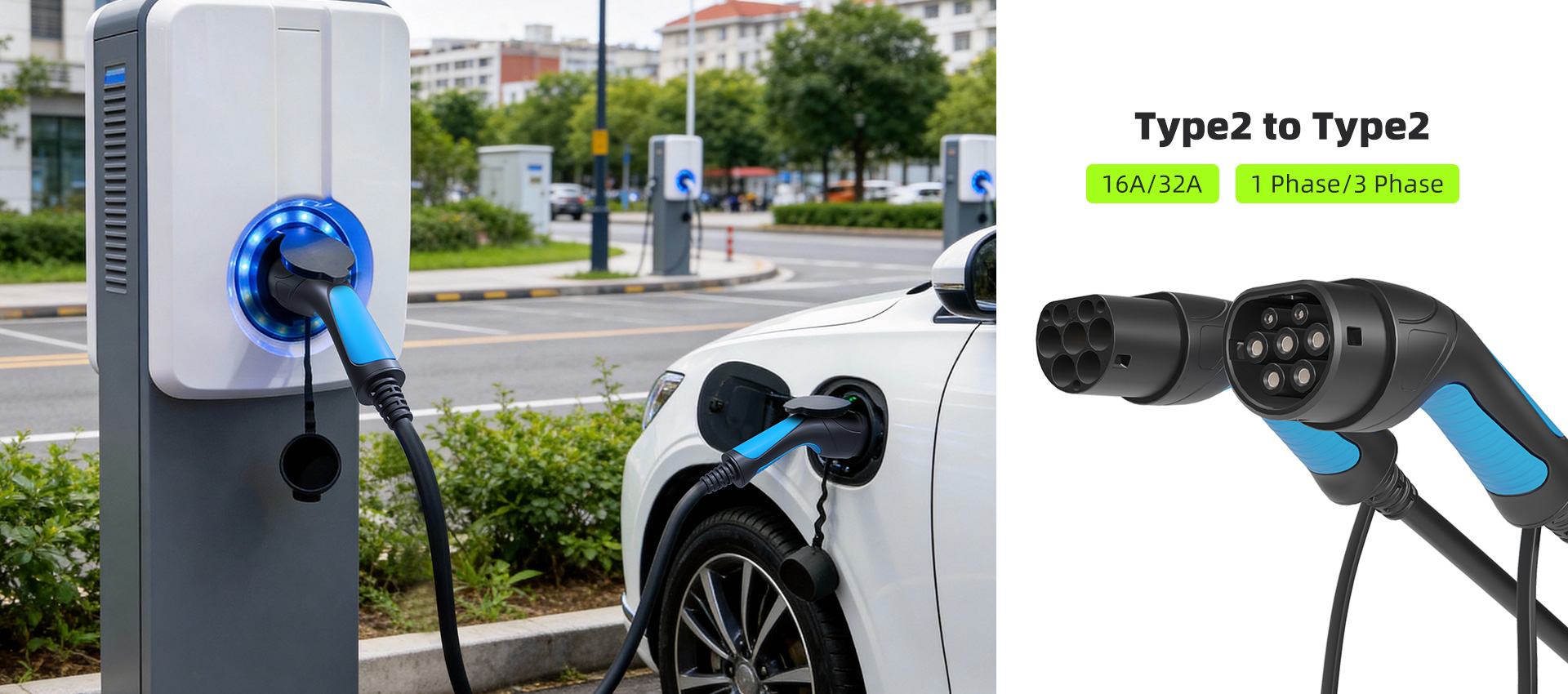

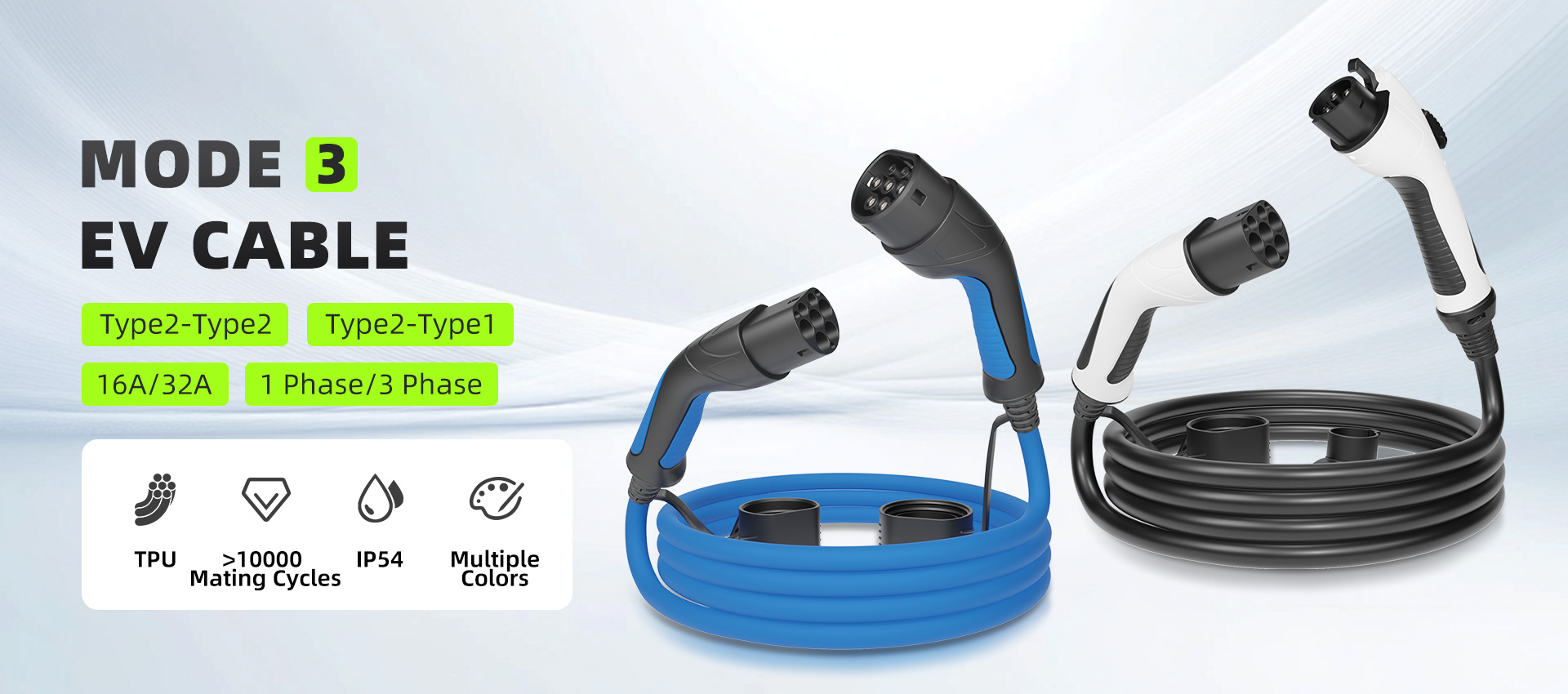

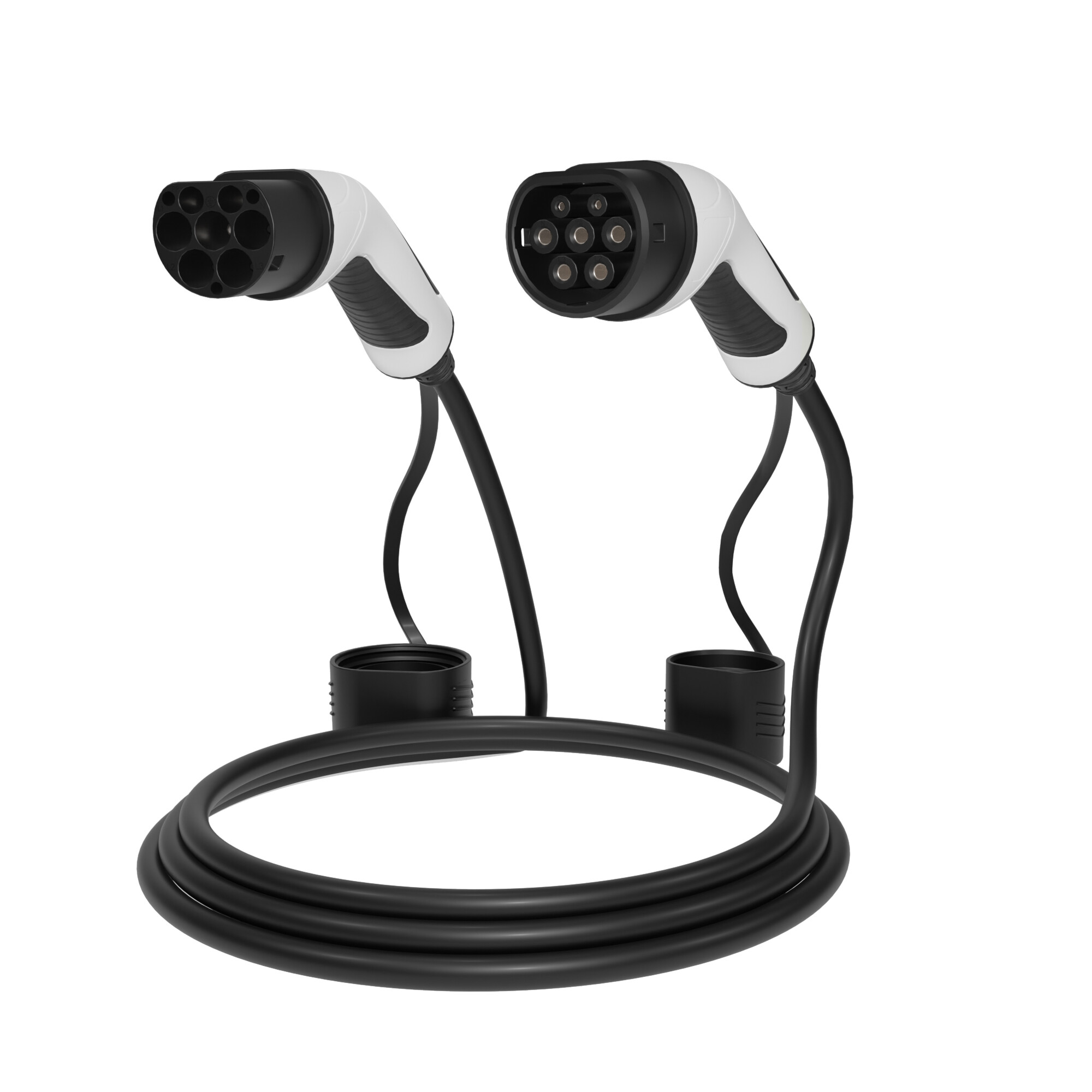

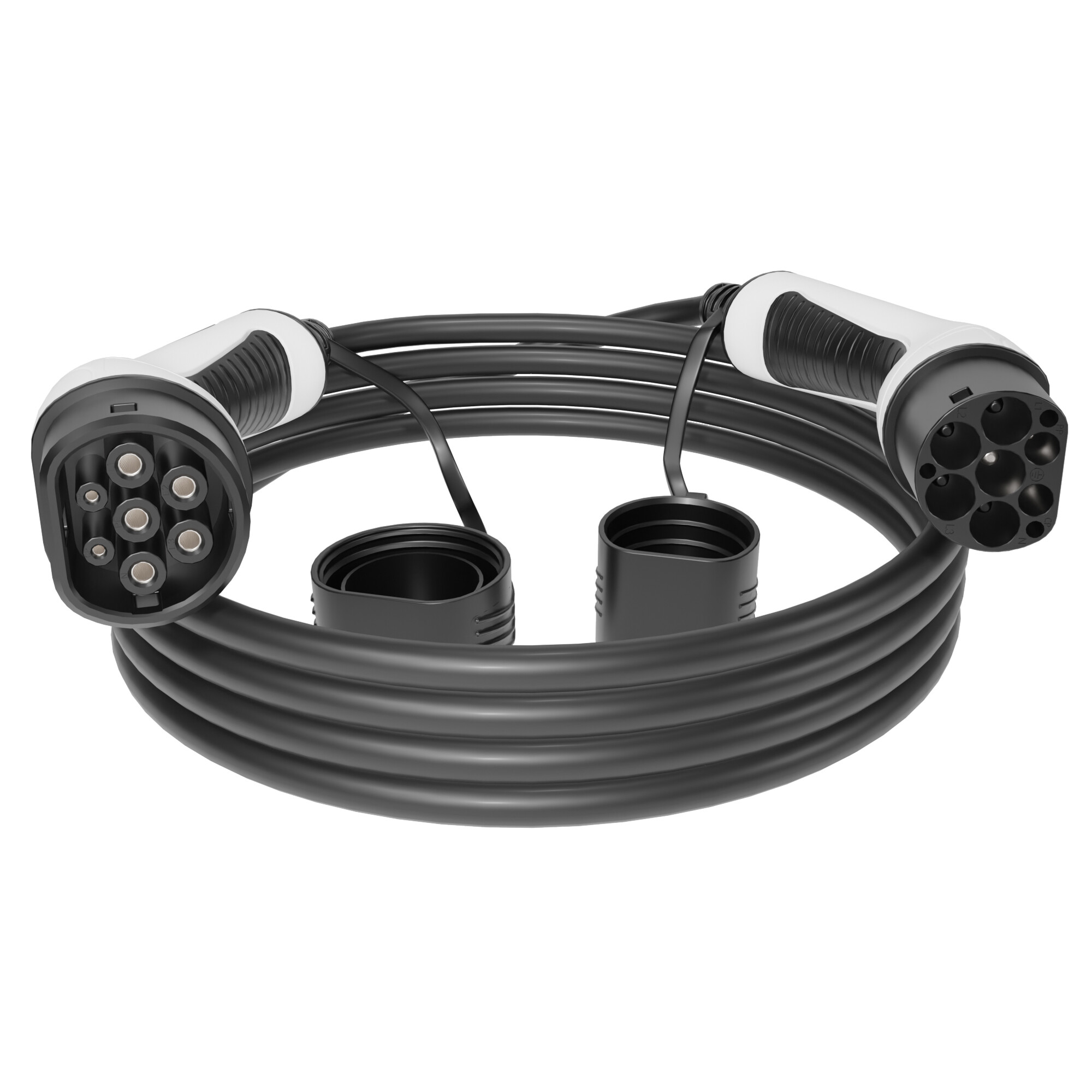

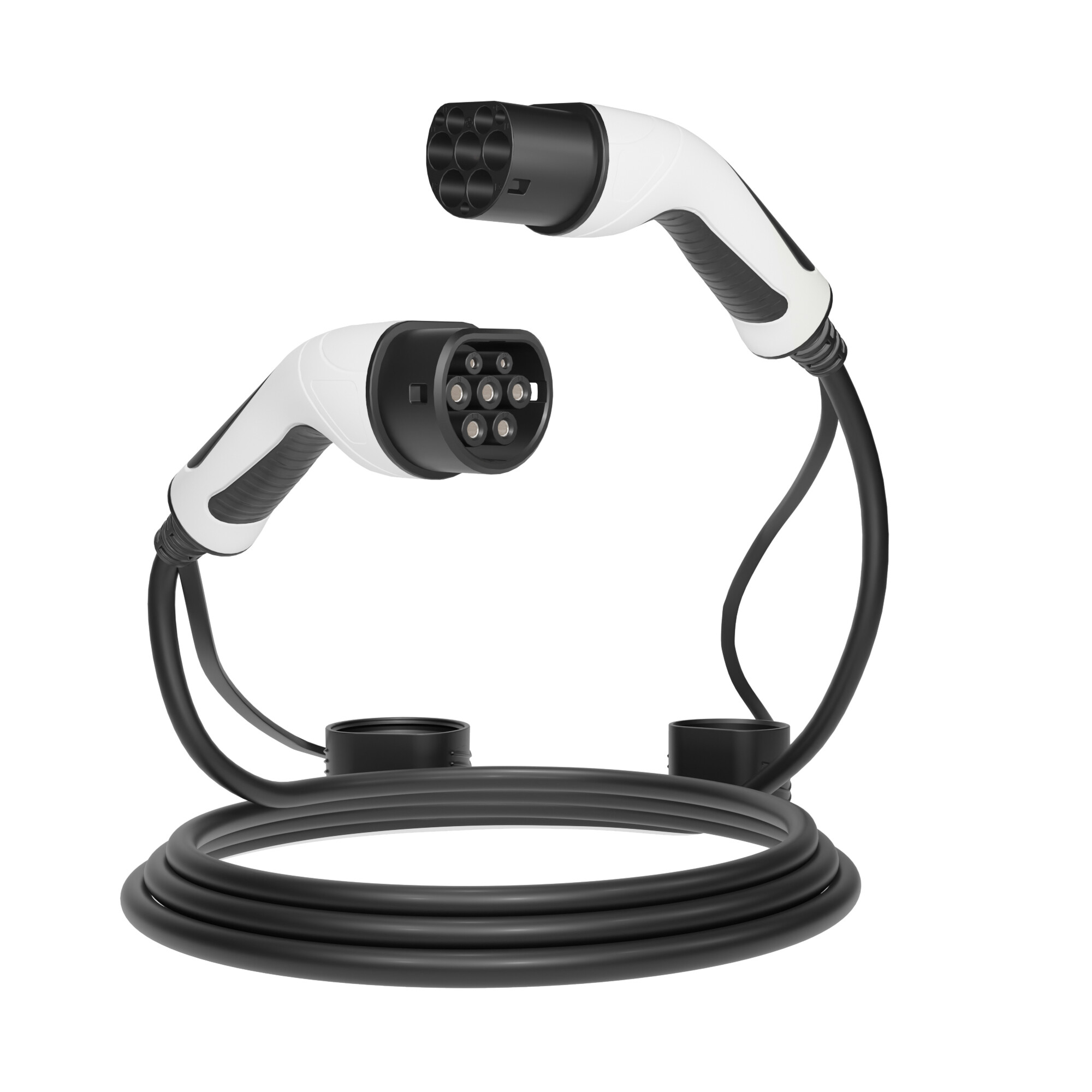

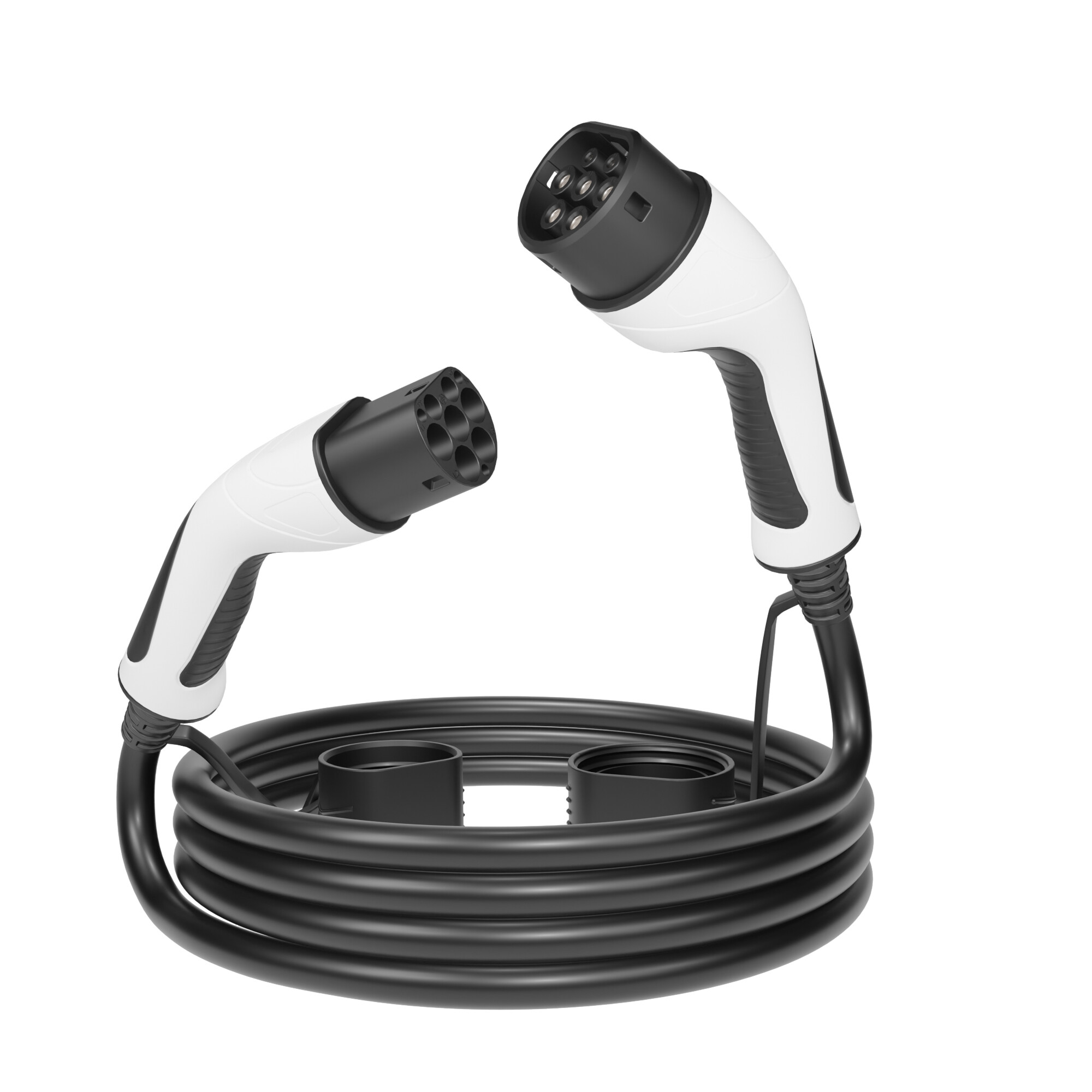

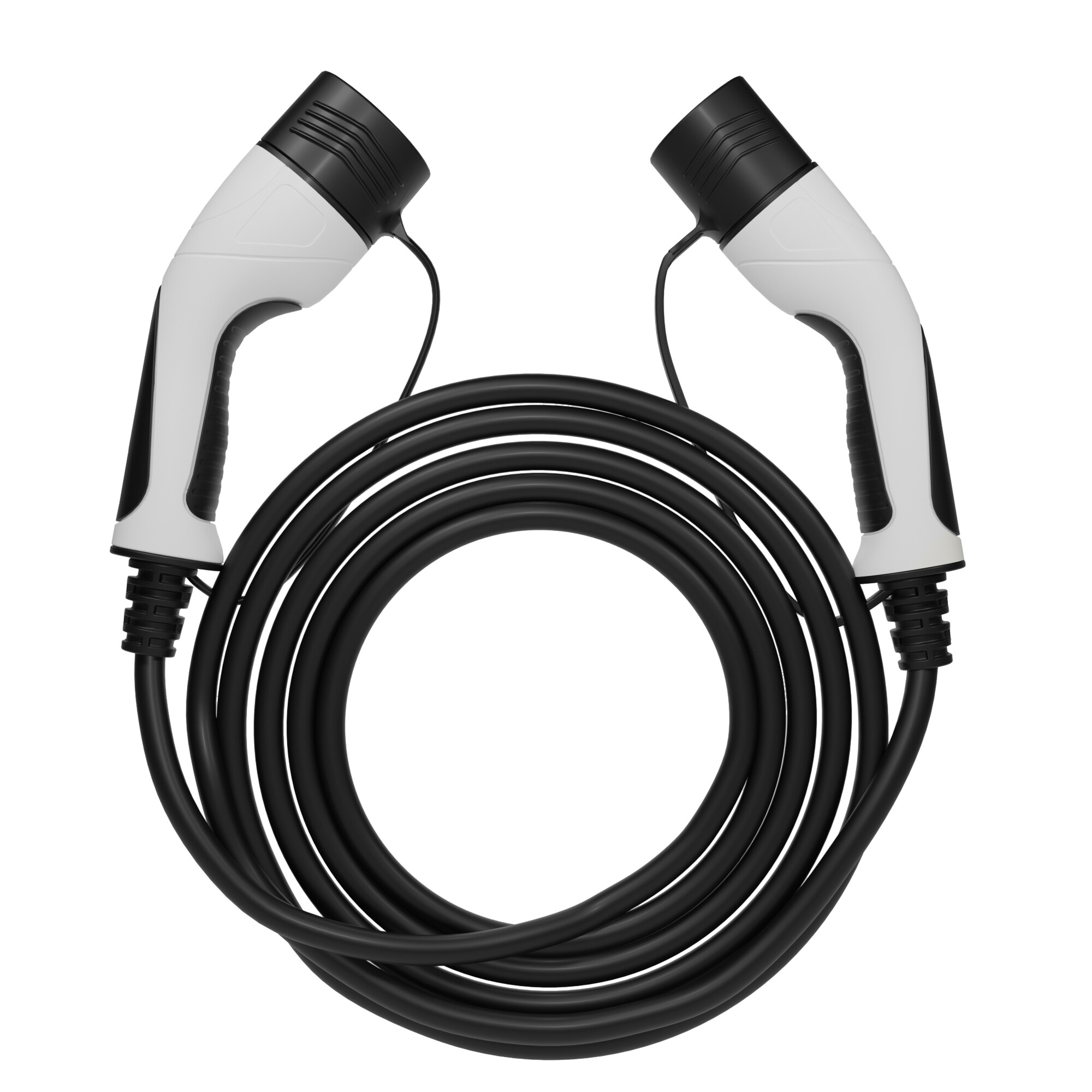

EVSEClub G2.0 Type 2 to Type 2 EV Charging Cable

EVSEClub G2.0 Type 2 to Type 2 EV Charging Cable

  • Product Introduction

Type 2 to Type 2 Charging Cable (G2.0): Enhanced Durability & Customization
This upgraded Type 2 cable features thickened signal conductors to prevent breakage and an ergonomic handle for comfortable use. With full color customization for both cable and connectors, it seamlessly aligns with your brand identity. Designed for demanding applications, its robust construction ensures reliable 22kW charging performance in various environments. The perfect combination of operational reliability and brand representation for charging operators and fleet managers.

Product diagram and parameters

Rated Current16A/32A
Rated Voltag250V/480V AC
Insulation Resistance2000MΩ(DC2000V)
Contact Resistance0.5MΩMax
Withstand Voltage2000V
Fire-proof RatingUL94V-0

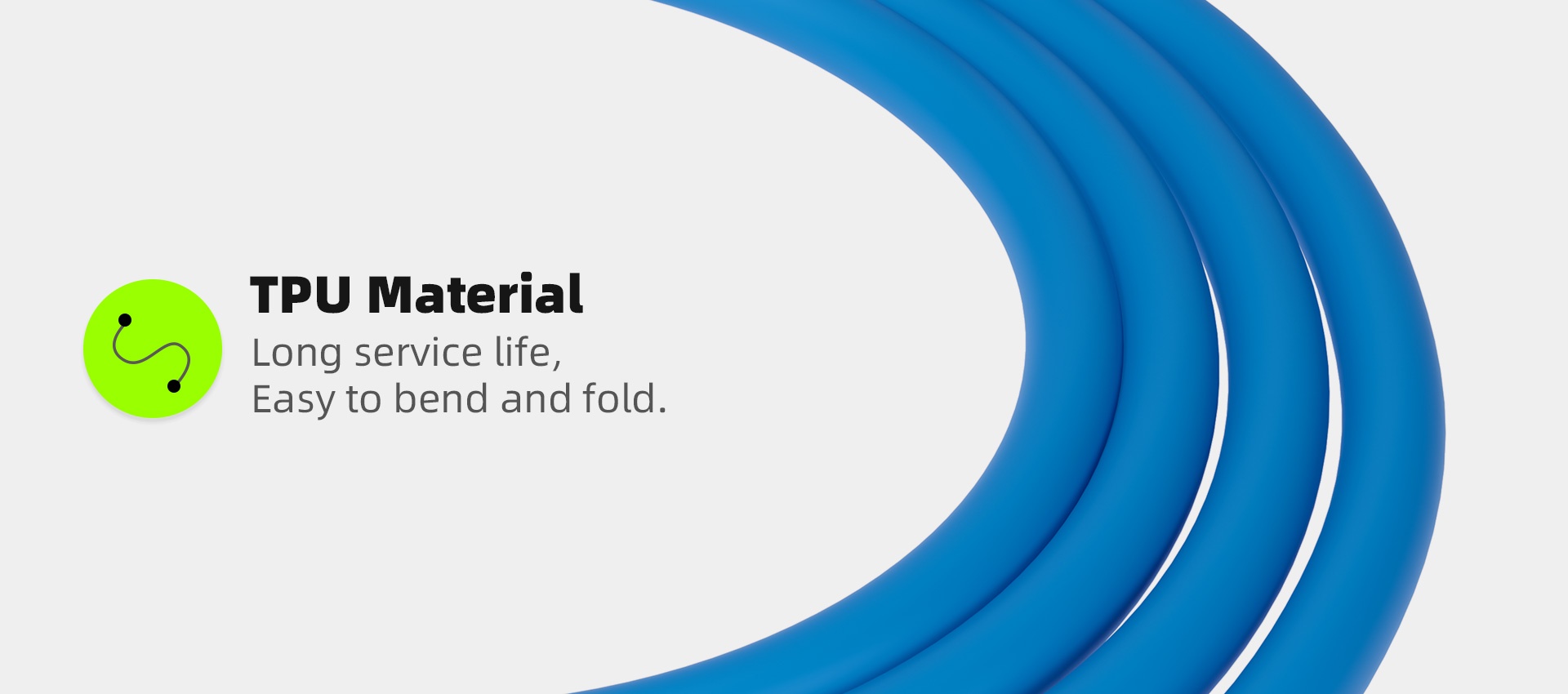

Cable JacketTPU

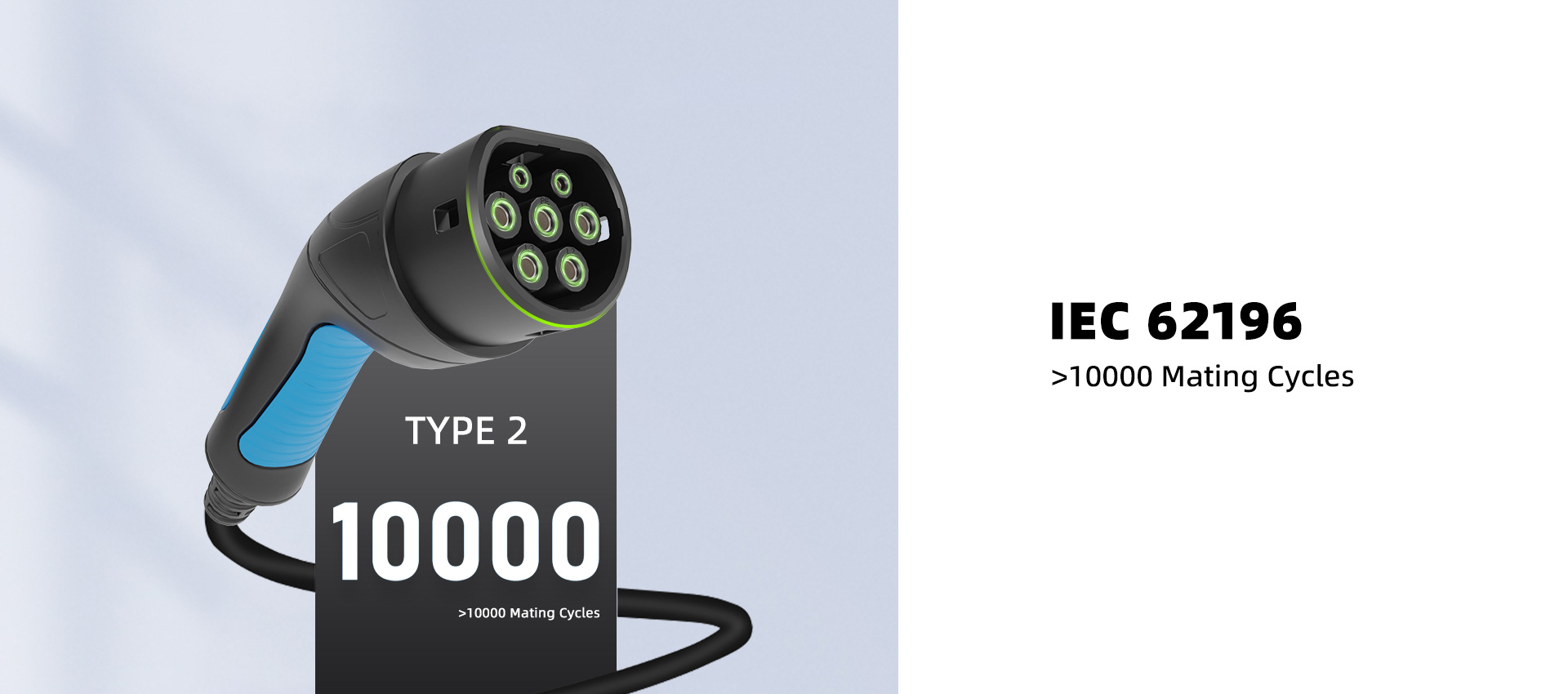

Mechanical Life>10000 times' plug in/ off

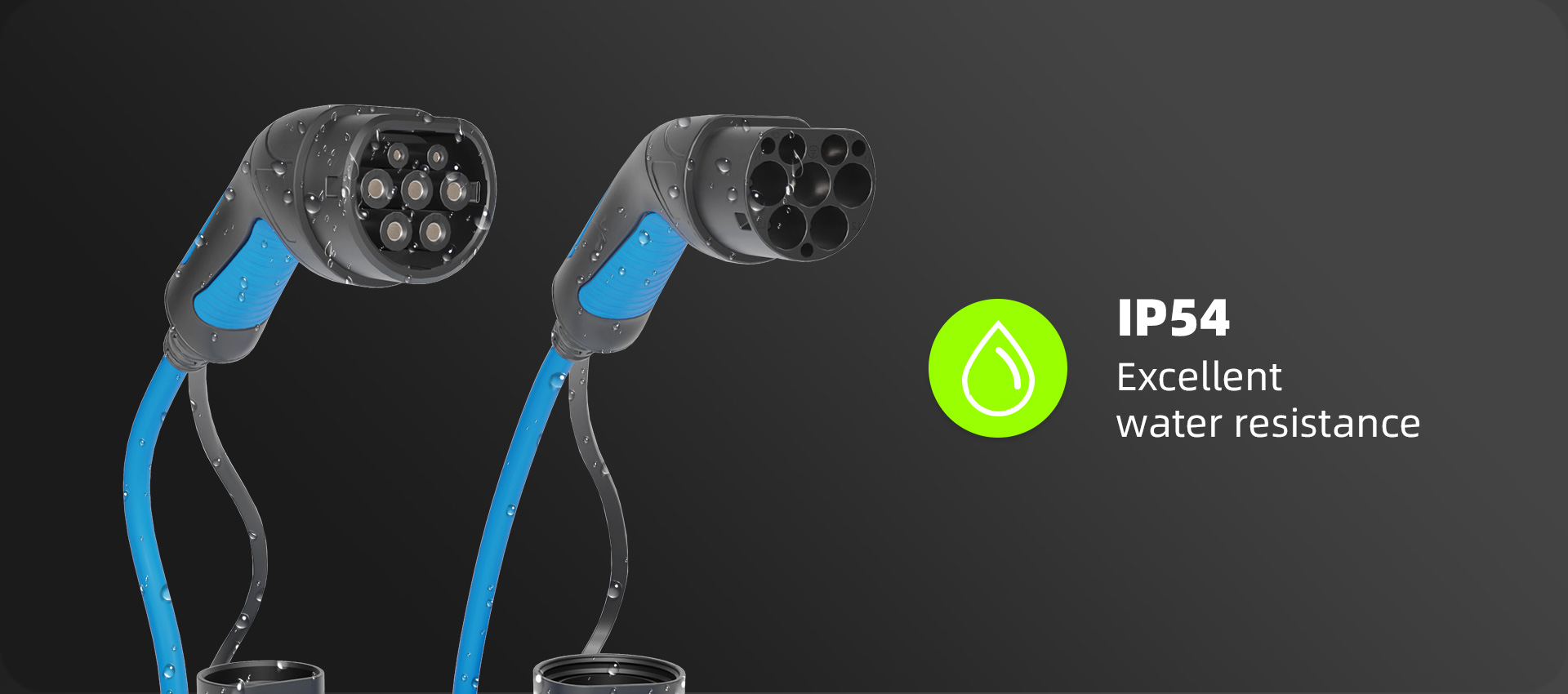

Protection LevelIP54
Enclosure MaterialPC
Terminal PinsSilver-plated copper
Working Temp-30℃~50℃
CertificationTUV/CE/UKCA/CB
Cable ColorCustomizable

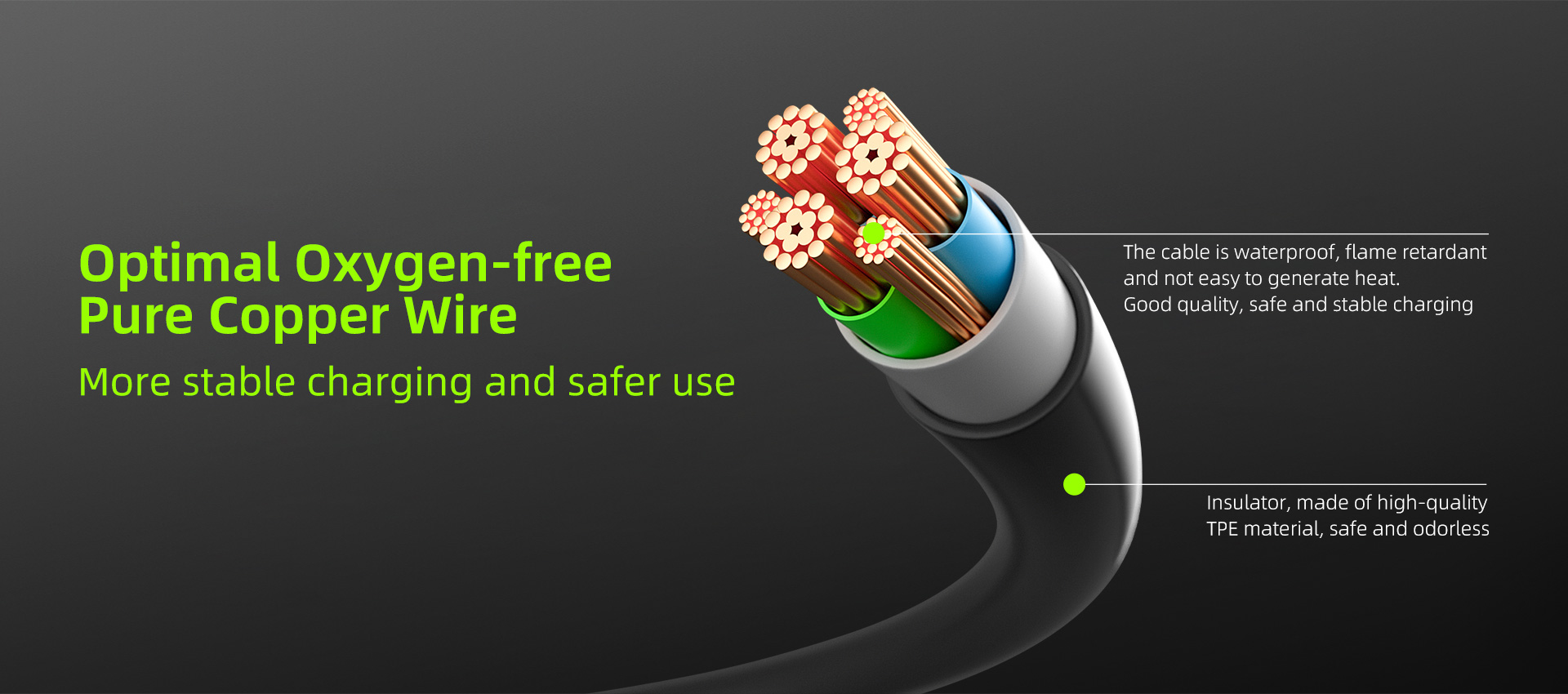

Cable Spec

1 Phase 16A   3*2.5 mm² + 1* 0.75 mm²

1 Phase 32A    3*6 mm² + 1* 0.75 mm²

3 Phase 16A   5*2.5 mm² + 1* 0.75 mm²

3 Phase 32A   5*2.5 mm² + 1* 0.75 mm²

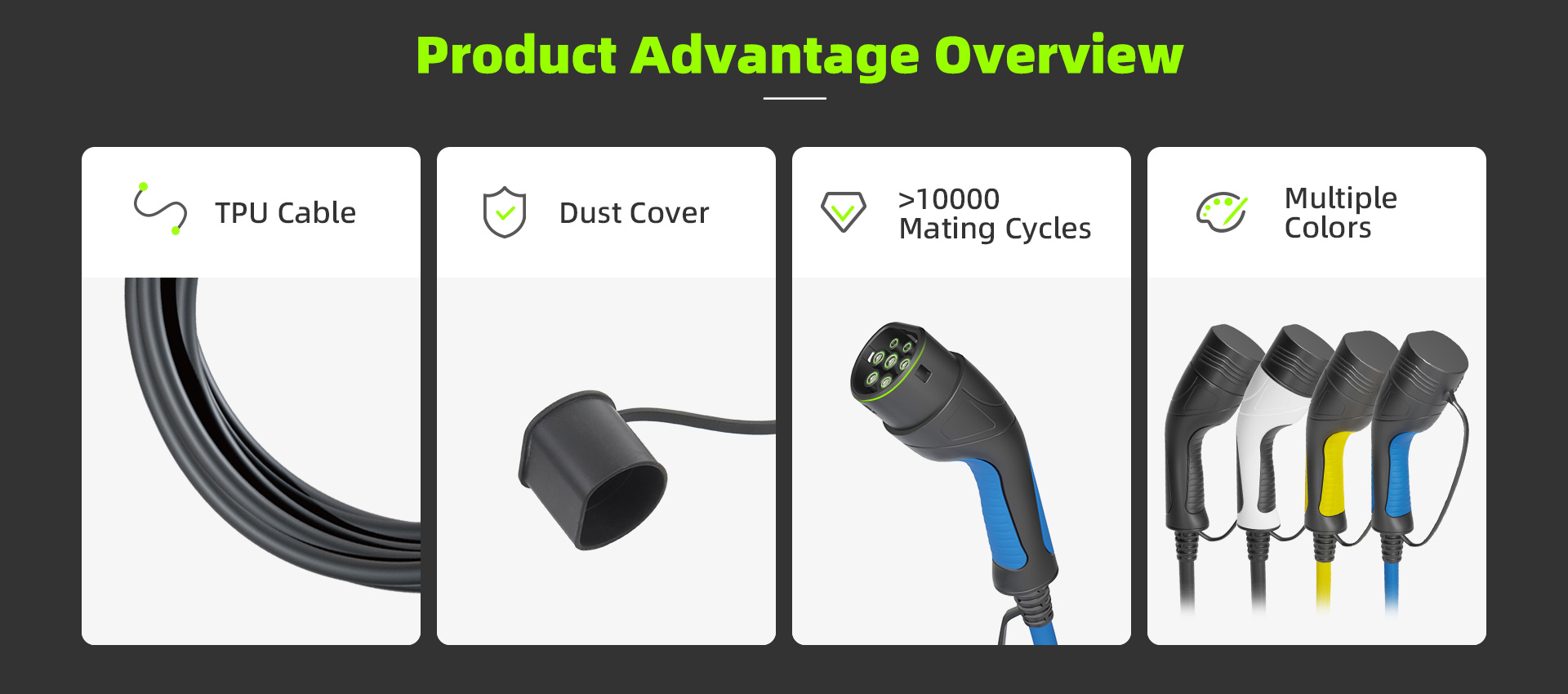

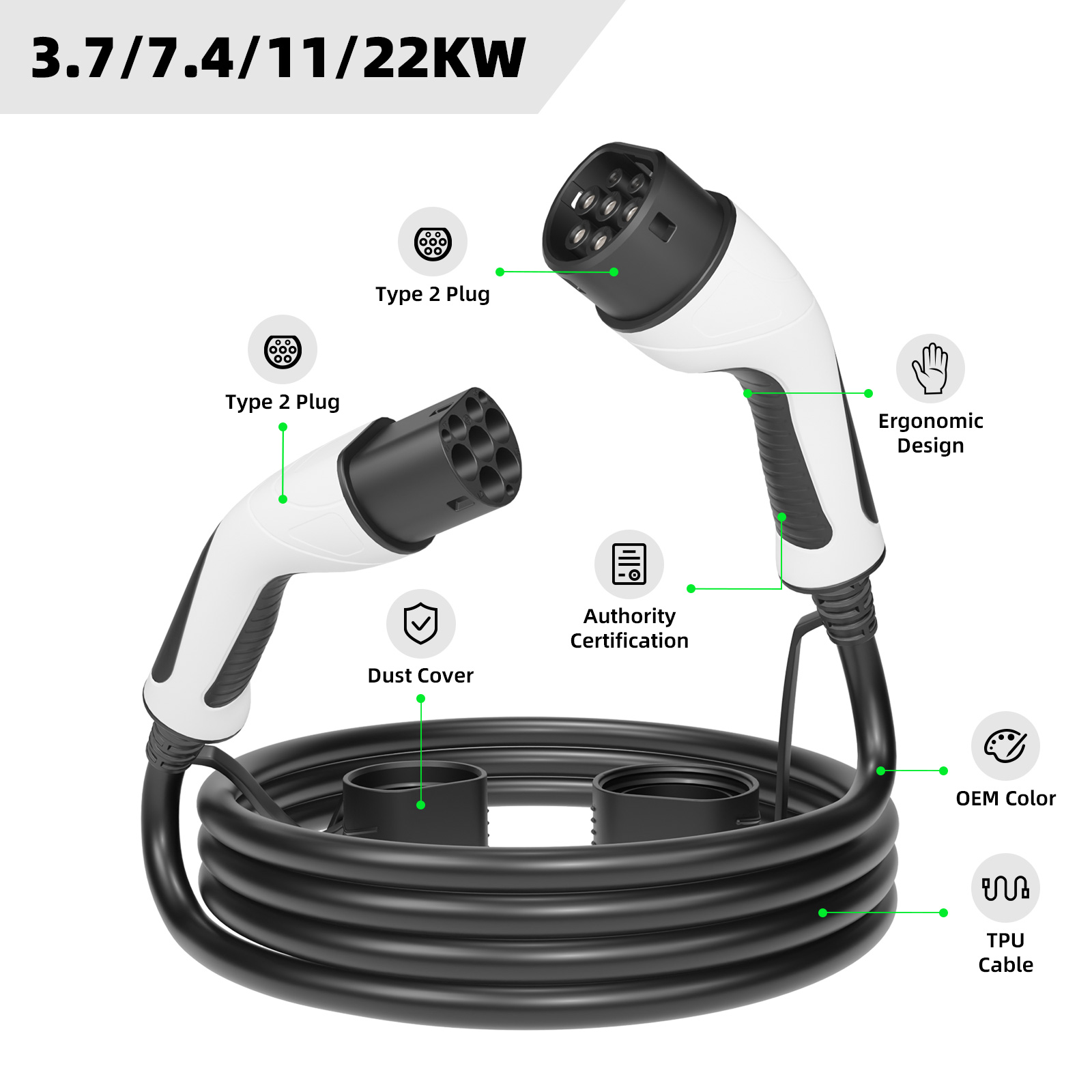

Product Highlights

EVSEClub G2.0 Type 2 to Type 2 EV Charging Cable

  • Seamless compatibility with all Type 2 charging stations

  • Weatherproof design for outdoor use

  • Rubber wrapped,better hand feeling.

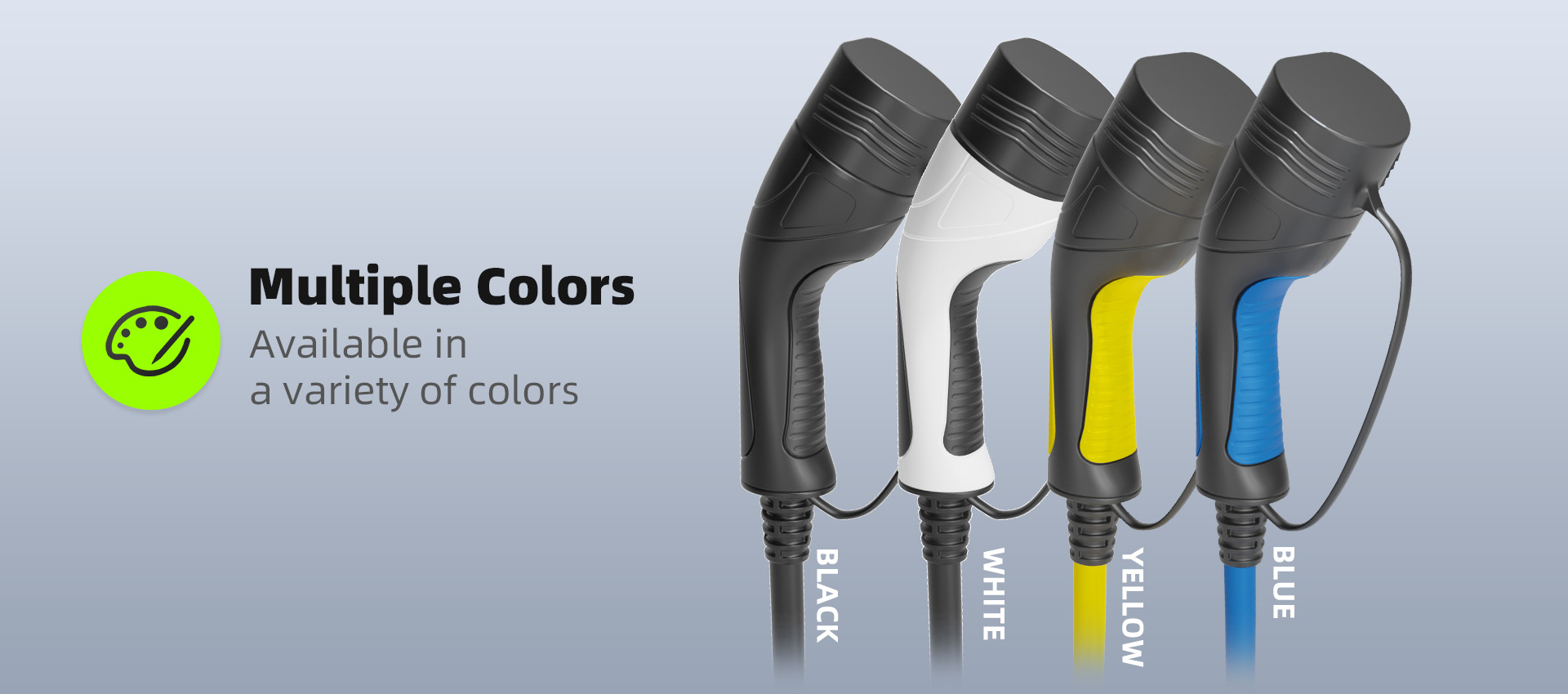

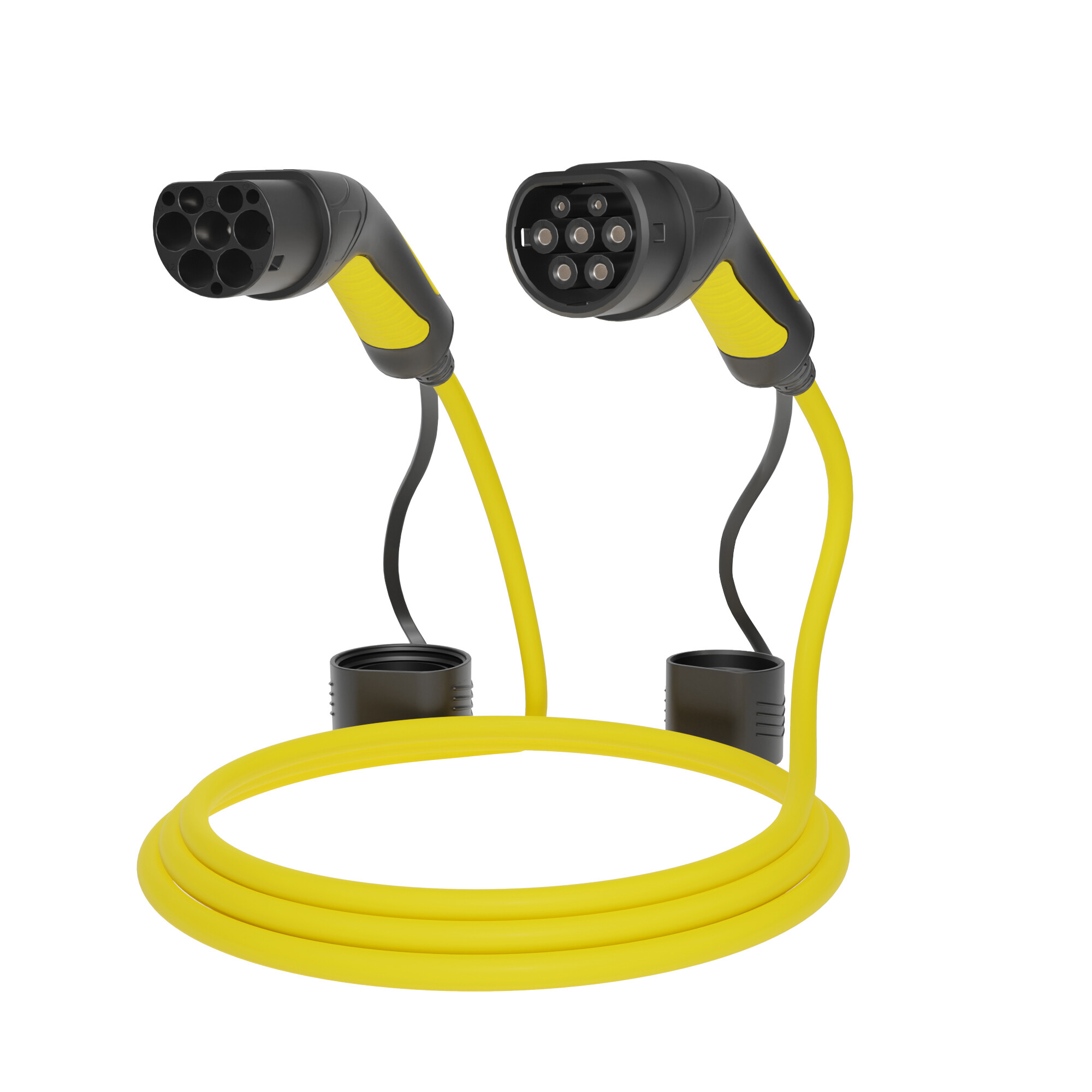

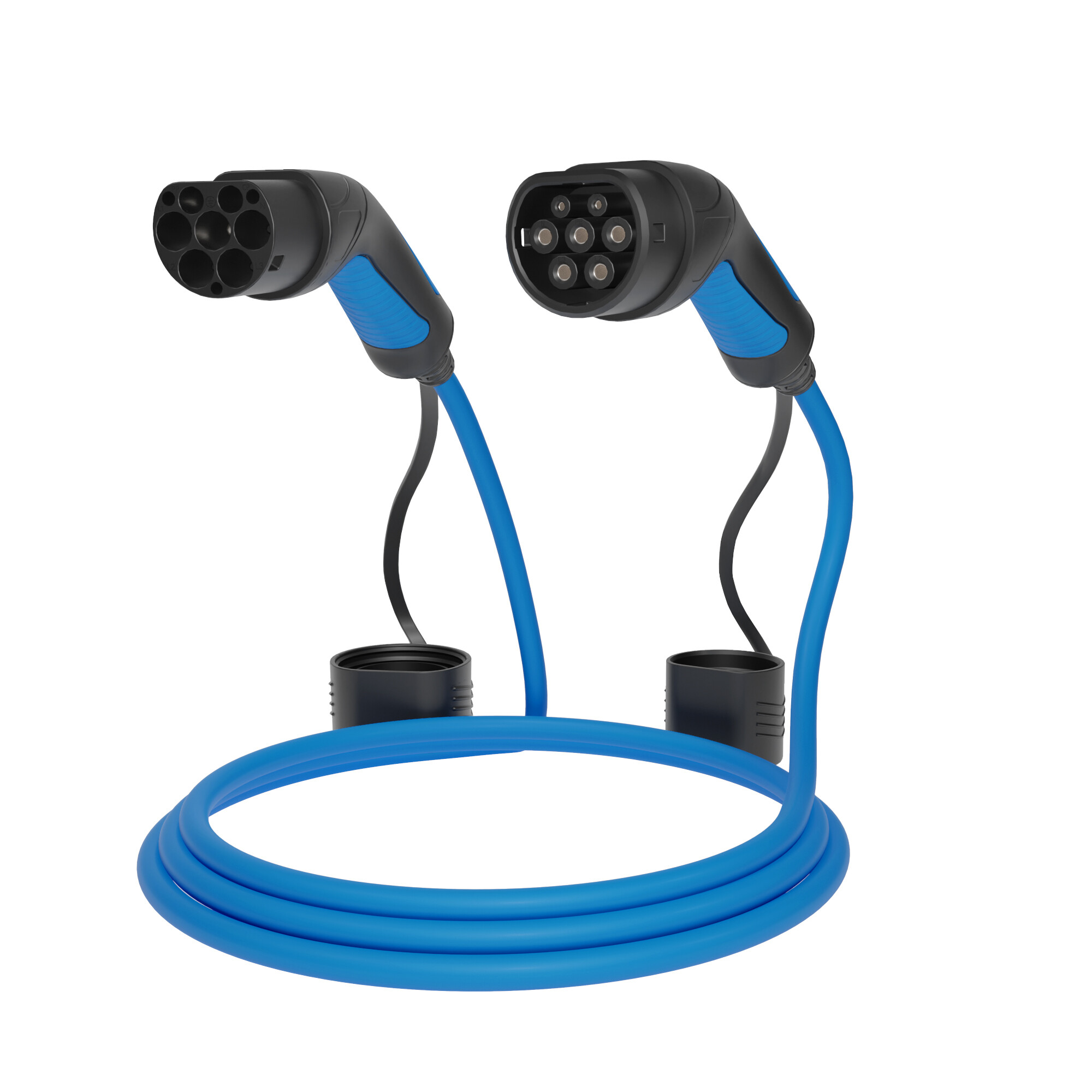

  • Support OEM rubber color and cable color, same with your brand color design, more eye-catching.

Details

  • 双头枪2.0_01
  • 双头枪2.0_02
  • 双头枪2.0_03
  • 双头枪2.0_04
  • 双头枪2.0_05
  • 双头枪2.0_06
  • 双头枪2.0_07
  • 双头枪2.0_08
  • 双头枪2.0_09
  • 双头枪2.0_10
  • 双头枪2.0_11
  • 双头枪2.0_12

Notice

Custom cable color, minimum order length 1,500 meters.

OEM unit cable length, meet the cable lengths required for different usage scenario.
