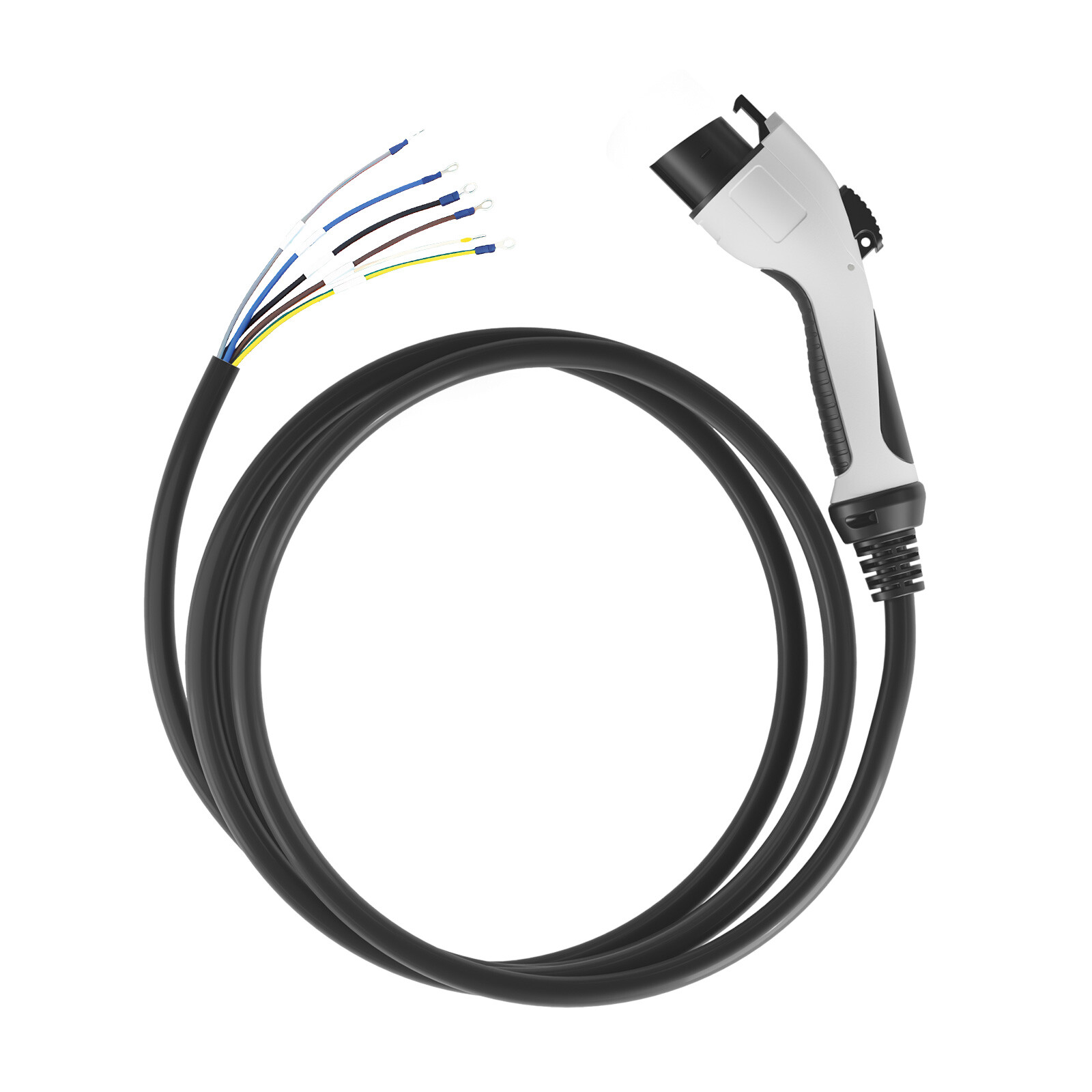

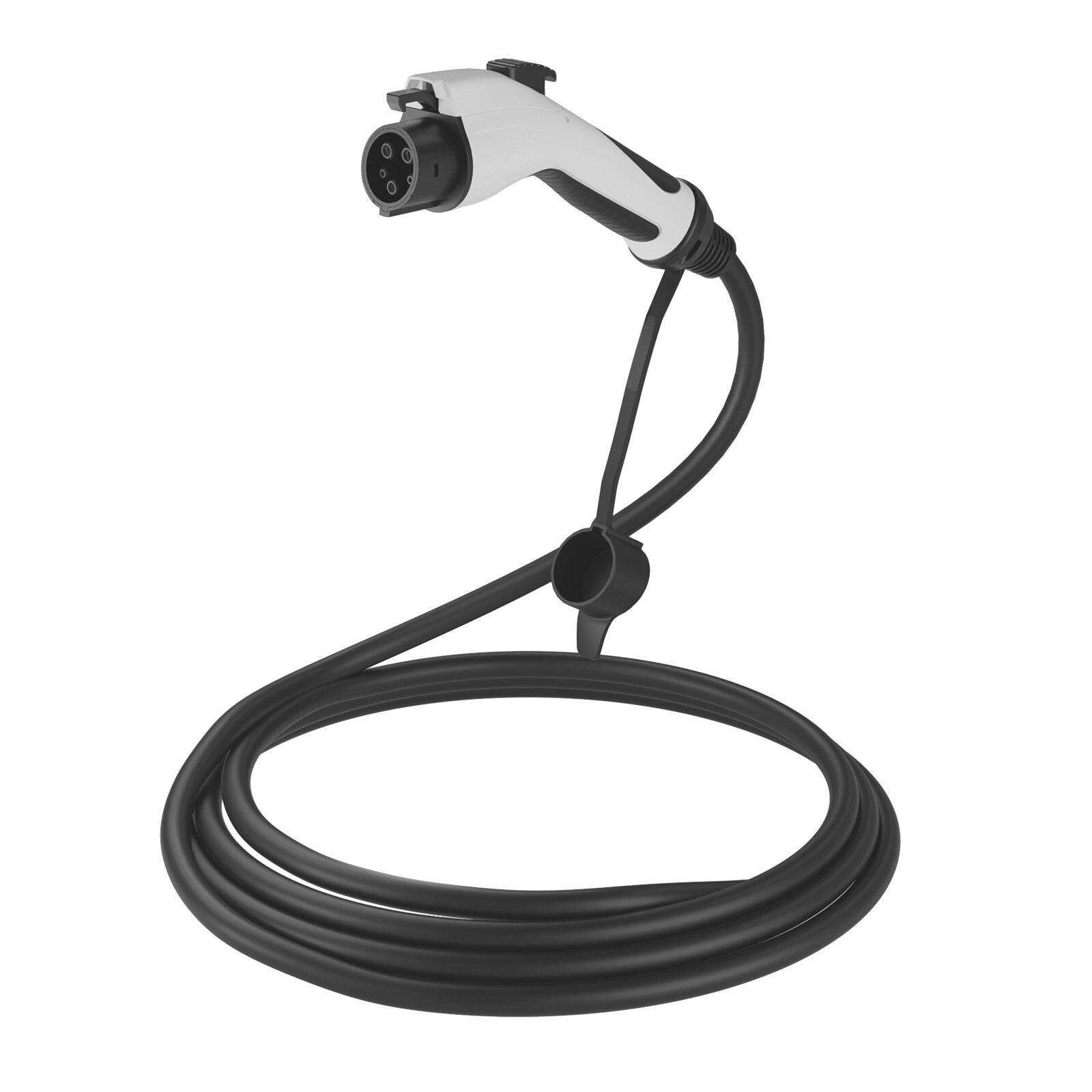

EVSEClub G2.0 Type 1 to open end EV Cable

EVSEClub G2.0 Type 1 to open end EV Cable

  • Product Introduction

Type 1 to open end(G2.0): Premium Design, Superior Feel
Elevate your charging solutions with our next-generation Type 1 to open-end cable. The advanced overmolded shell provides exceptional comfort and a secure grip, while enhancing durability and strain resistance. Its sleek, modern design integrates seamlessly into any charging station, offering both aesthetic appeal and reliable performance. Ideal for manufacturers targeting global markets, this cable ensures perfect compatibility with Type 1 vehicles. Empower your products with a component designed to impress and endure.

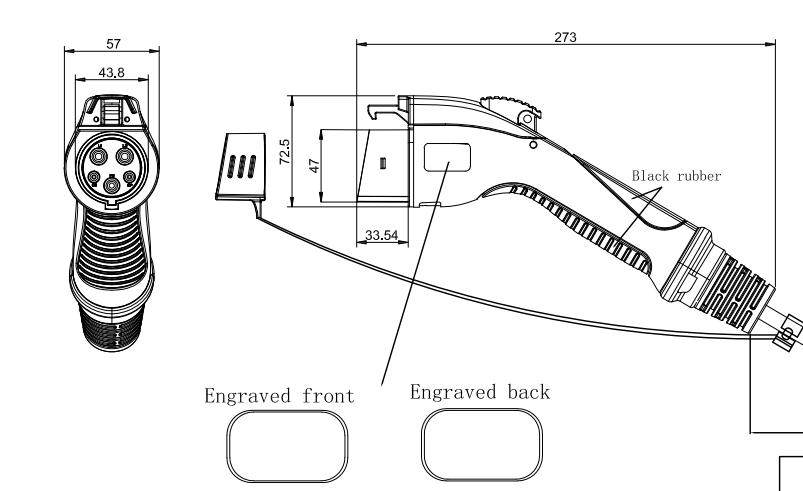

Product diagram and parameters

G2.0 Type 1图纸


Rated Current16A / 32A / 40A / 48A
Rated Voltag240V AC
Insulation Resistance2000MΩ(DC2000V)
Contact Resistance0.5MΩMax
Withstand Voltage2000V
Fire-proof RatingUL94V-0
Cable JacketTPE
Mechanical Life>10000 times' plug in/ off
Protection LevelIP54
Enclosure MaterialPC
Terminal PinsSilver-plated copper

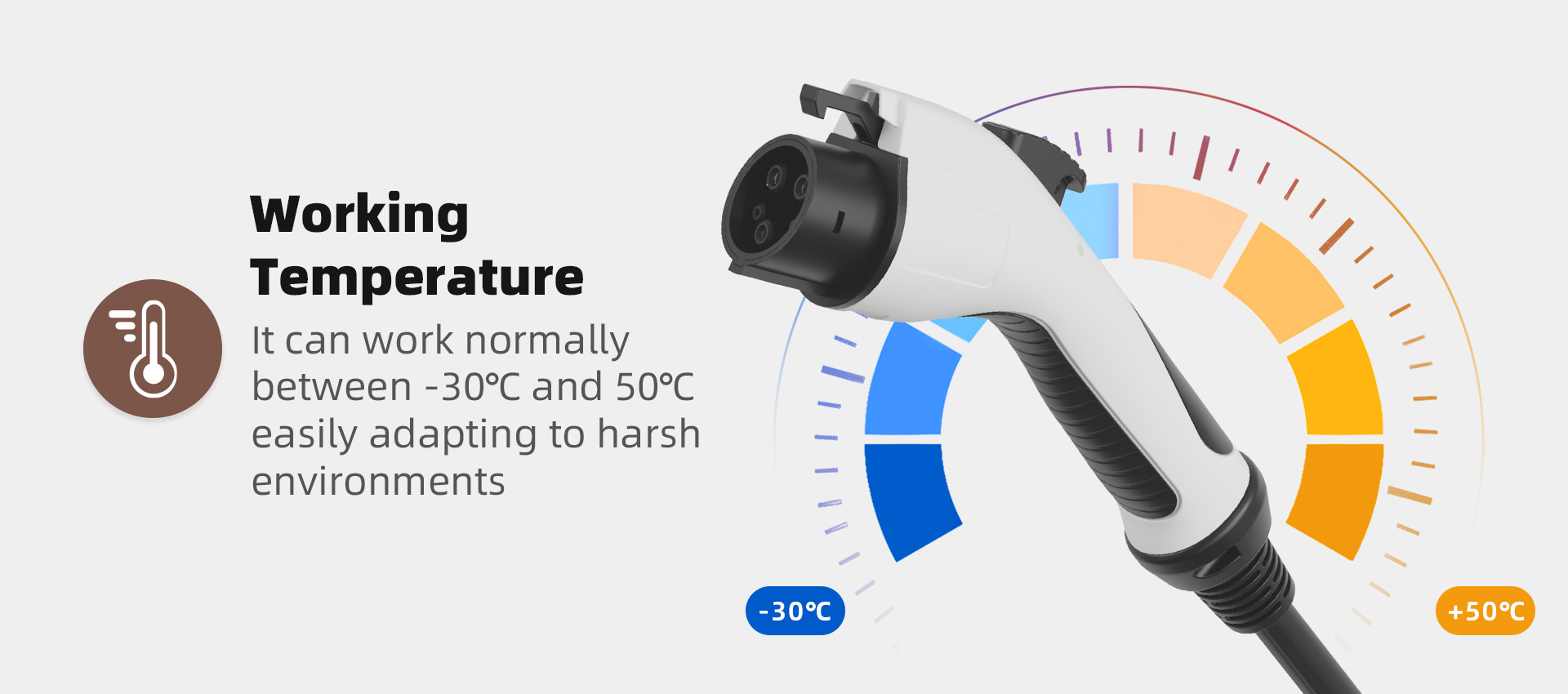

Working Temp-30℃~50℃
CertificationUL
Cable ColorCustomizable
Cable Spec

1 Phase 16A   3*2.5 mm² + 1* 0.75 mm²

1 Phase 32A    3*6 mm² + 1* 0.75 mm²

40A    3*9AWG+1*18AGW
48A    2*8AWG+10AWG+2*18AGW

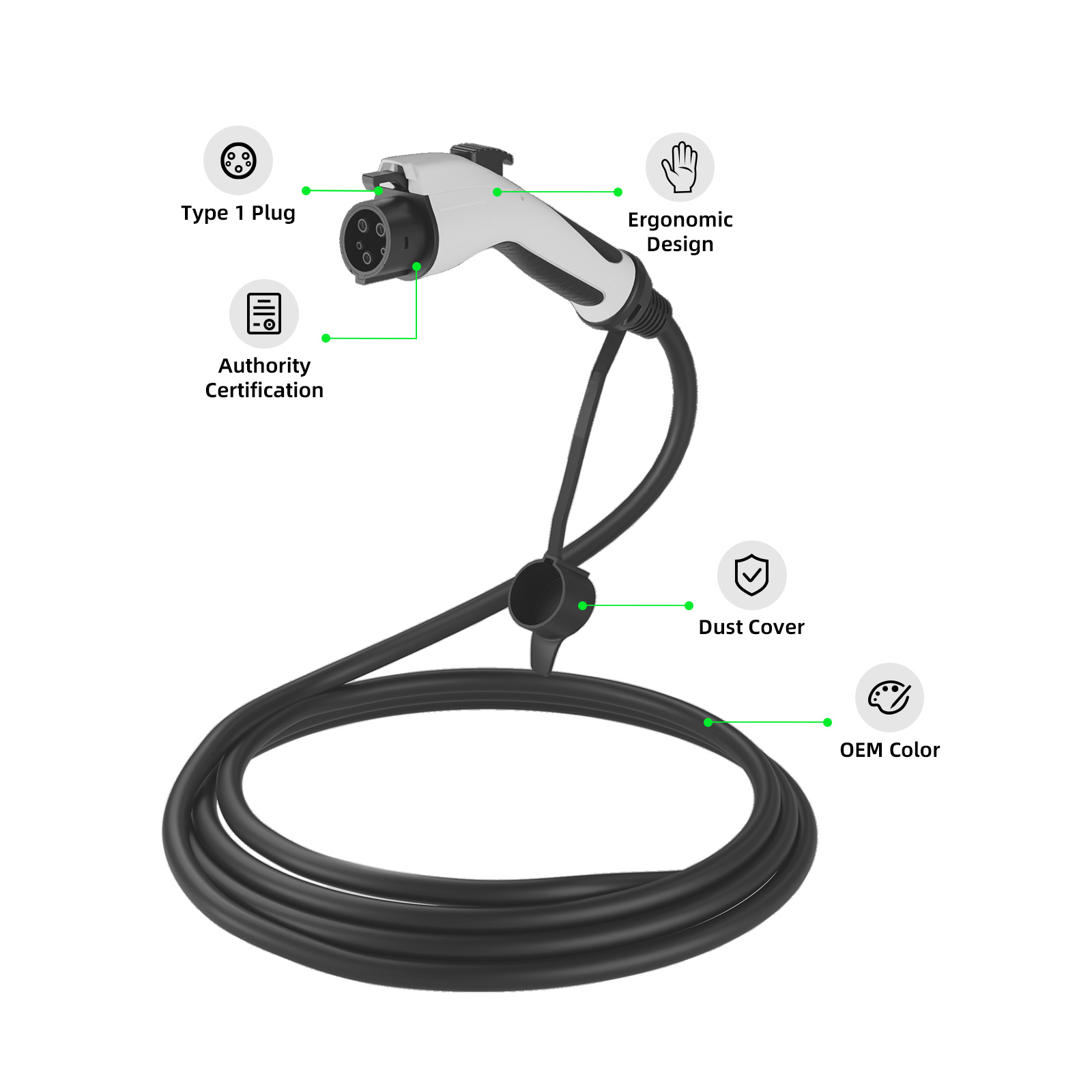

Product Highlights

EVSEClub G2.0 Type 1 to open end EV Cable

  • UL certificate, used for USA market.

  • Rubber wrapped,better hand feeling.

  • Support OEM rubber color and cable color, same with your brand color design, more eye-catching.

Details

  • 枪头2.0_01
  • 枪头2.0_02
  • 枪头2.0_03
  • 枪头2.0_04
  • 枪头2.0_05
  • 枪头2.0_06
  • 枪头2.0_07
  • 枪头2.0_08
  • 枪头2.0_09
  • 枪头2.0_10

Notice

The stripping length and terminal blocks can be customized.

Custom cable color, minimum order length 1,500 meters.
