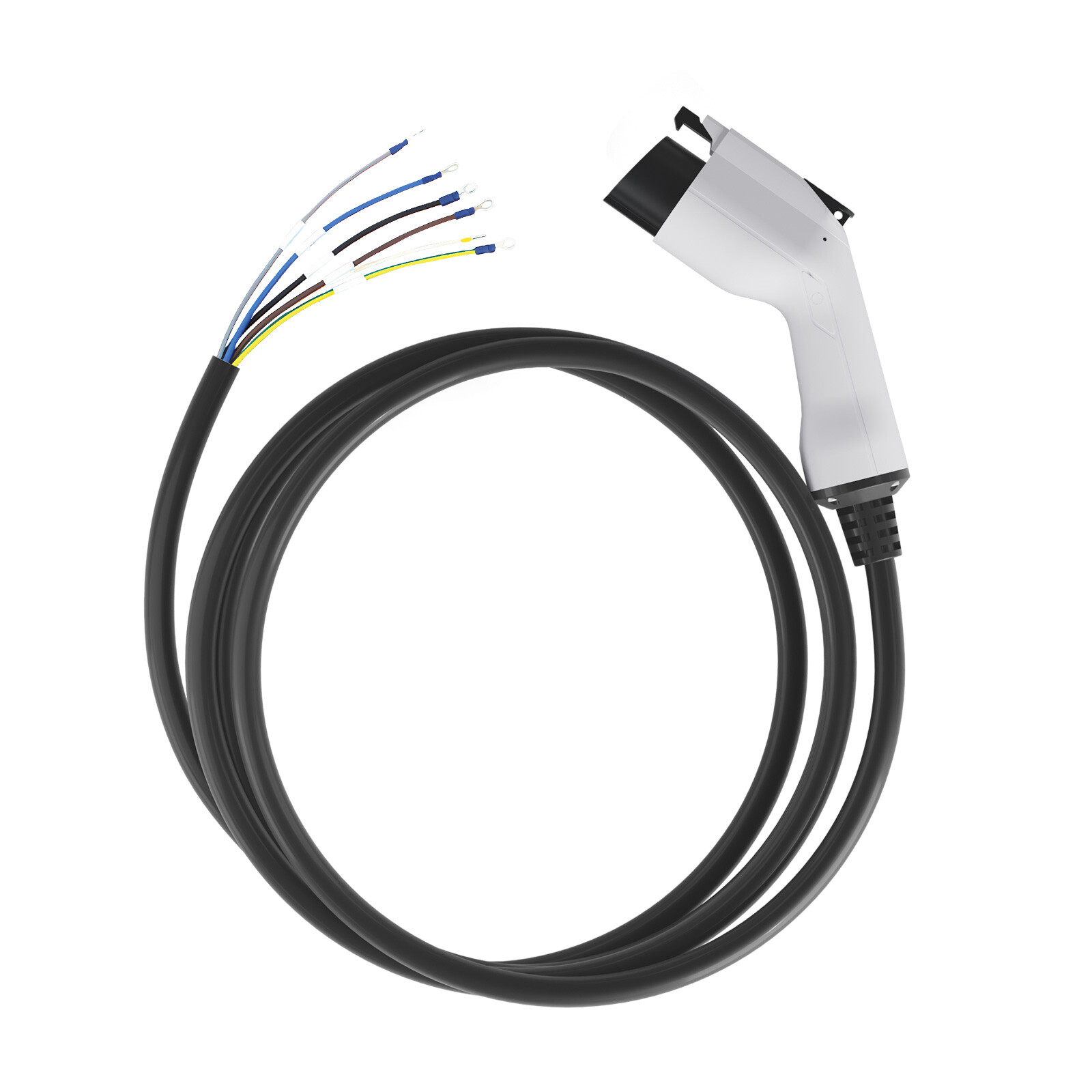

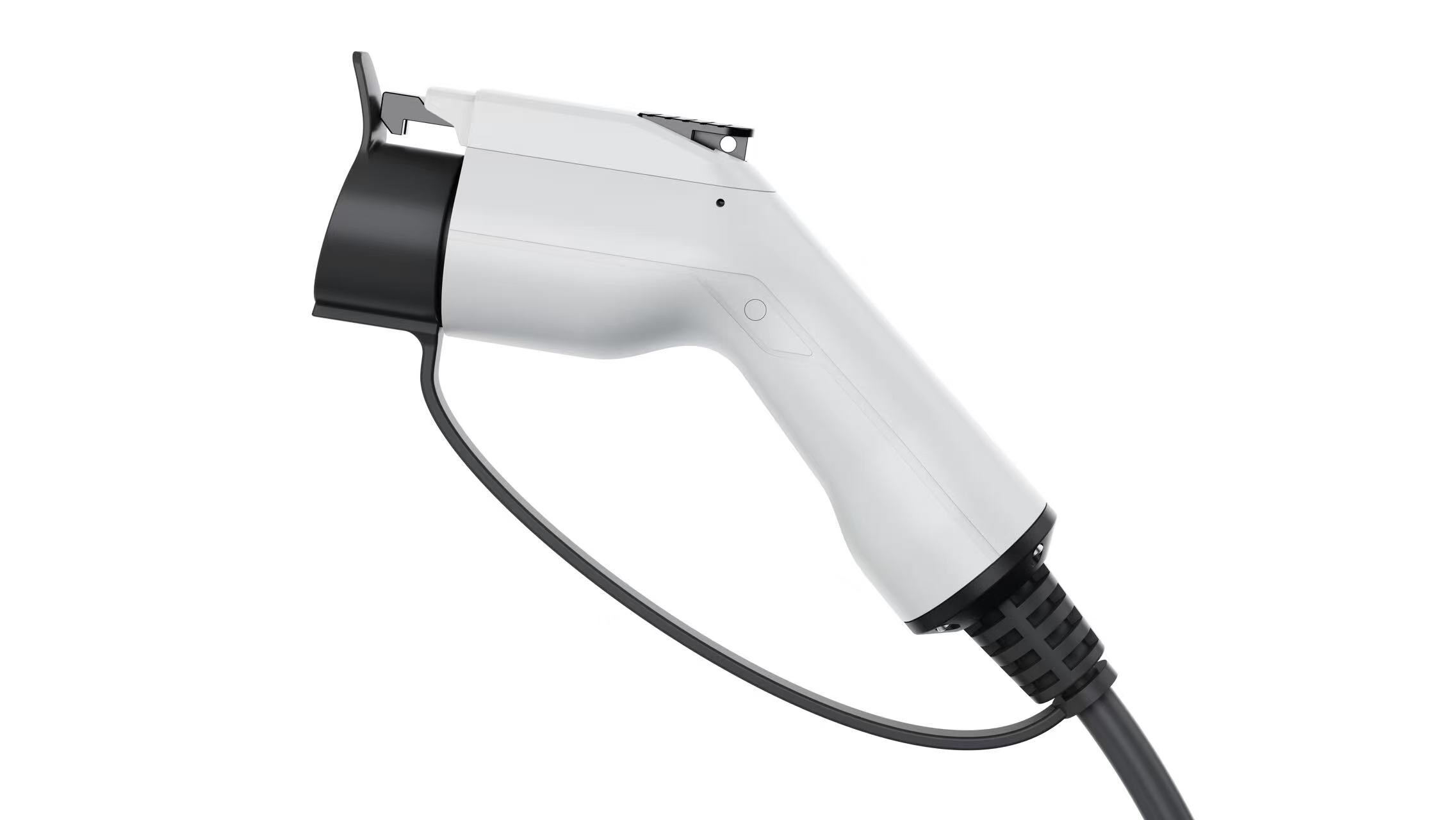

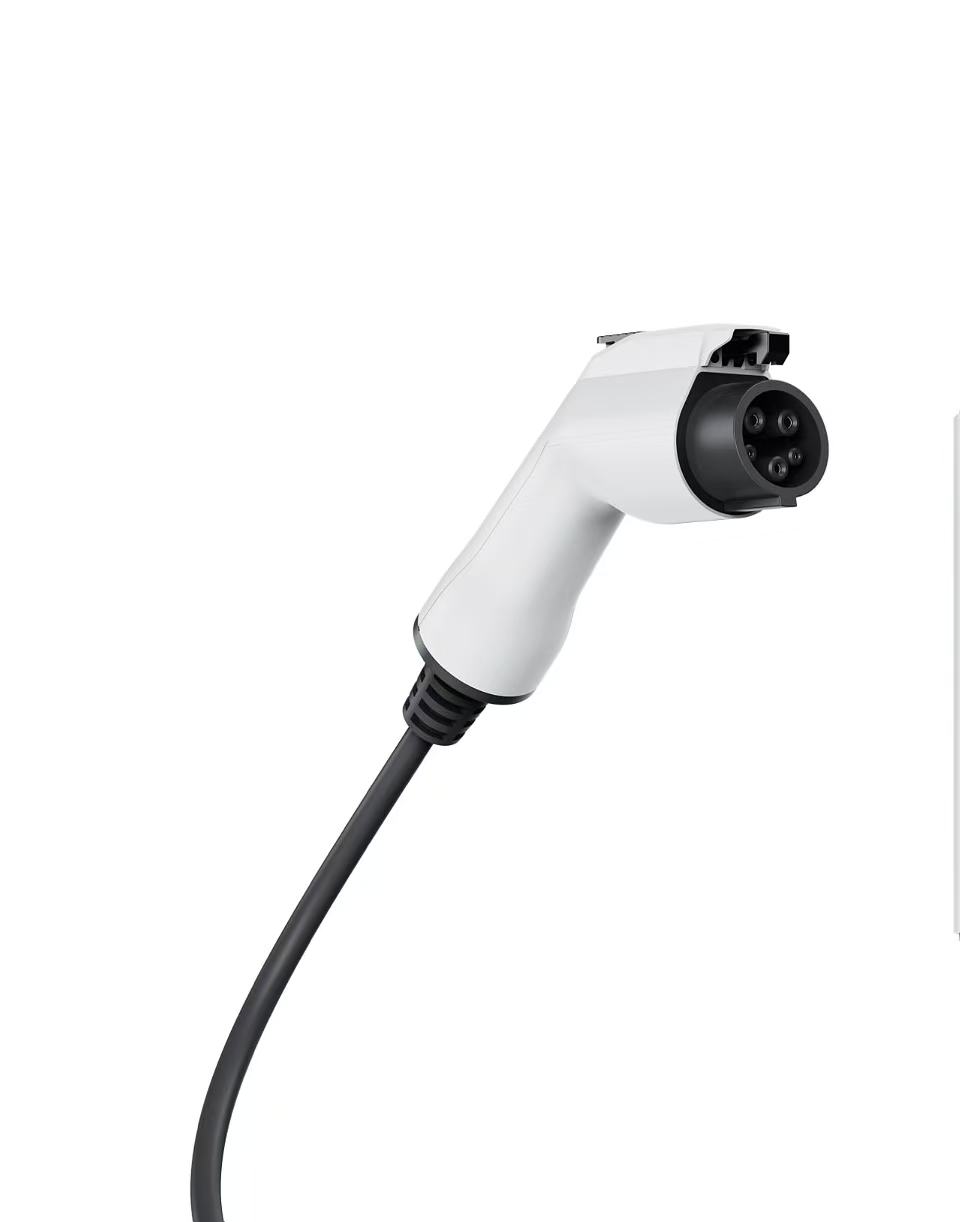

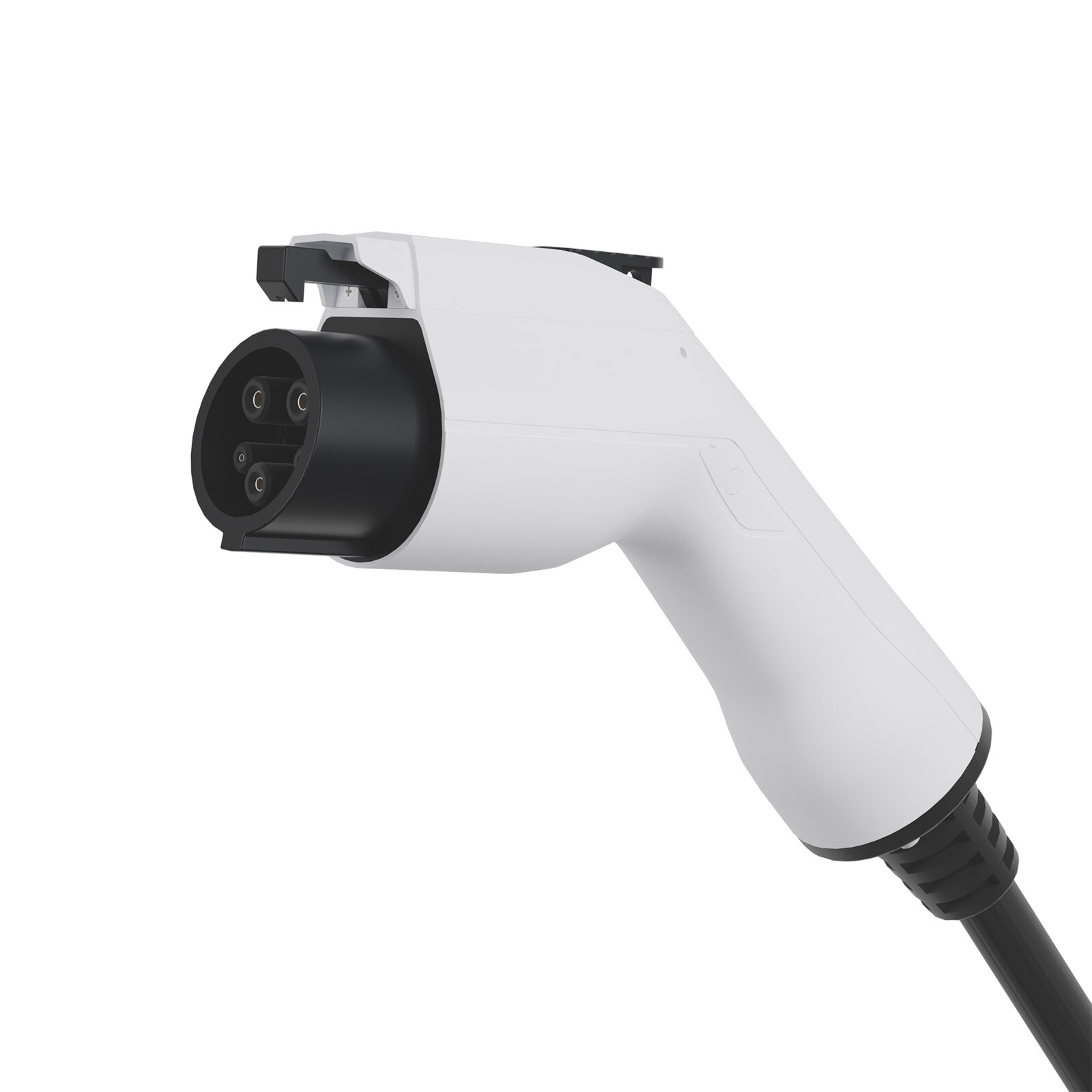

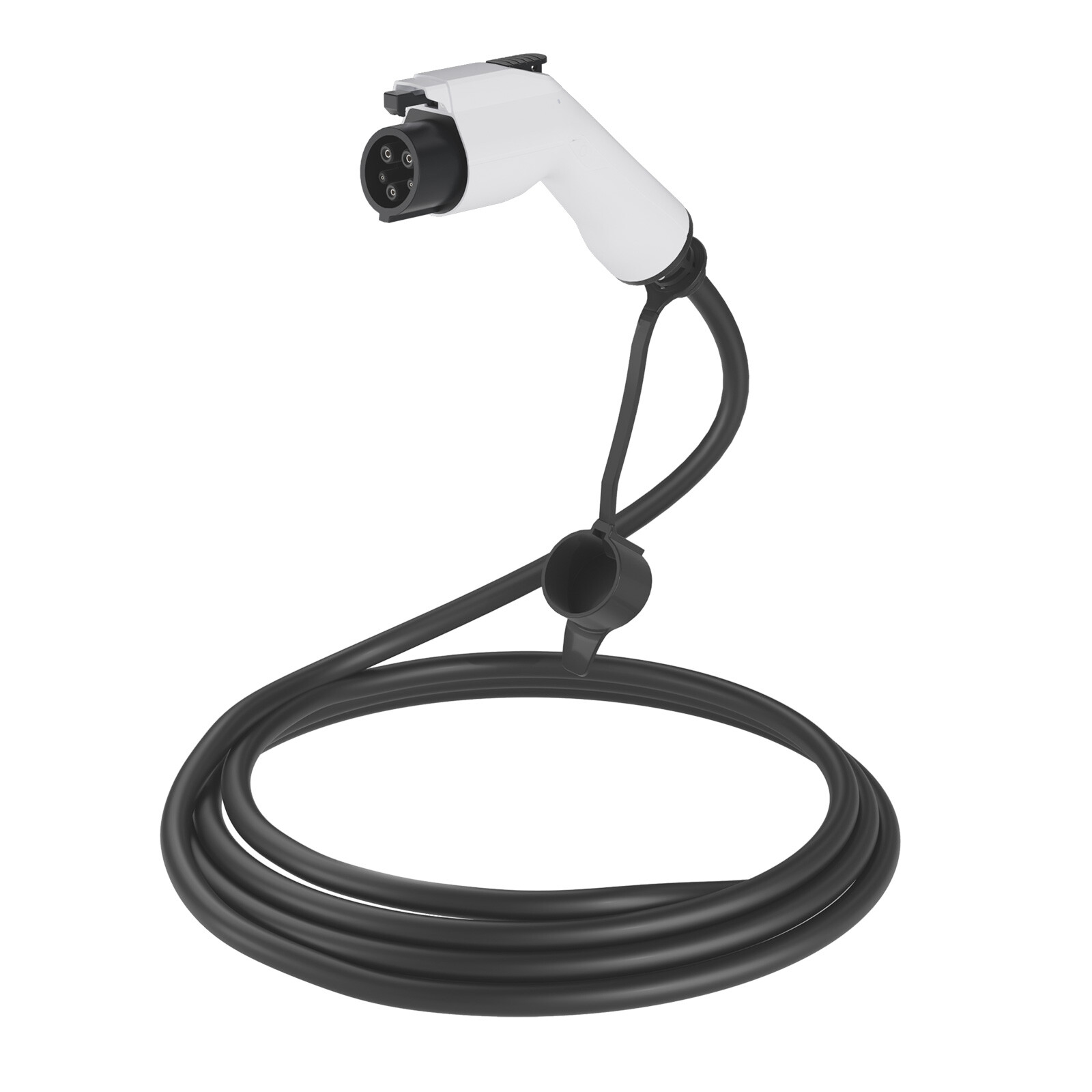

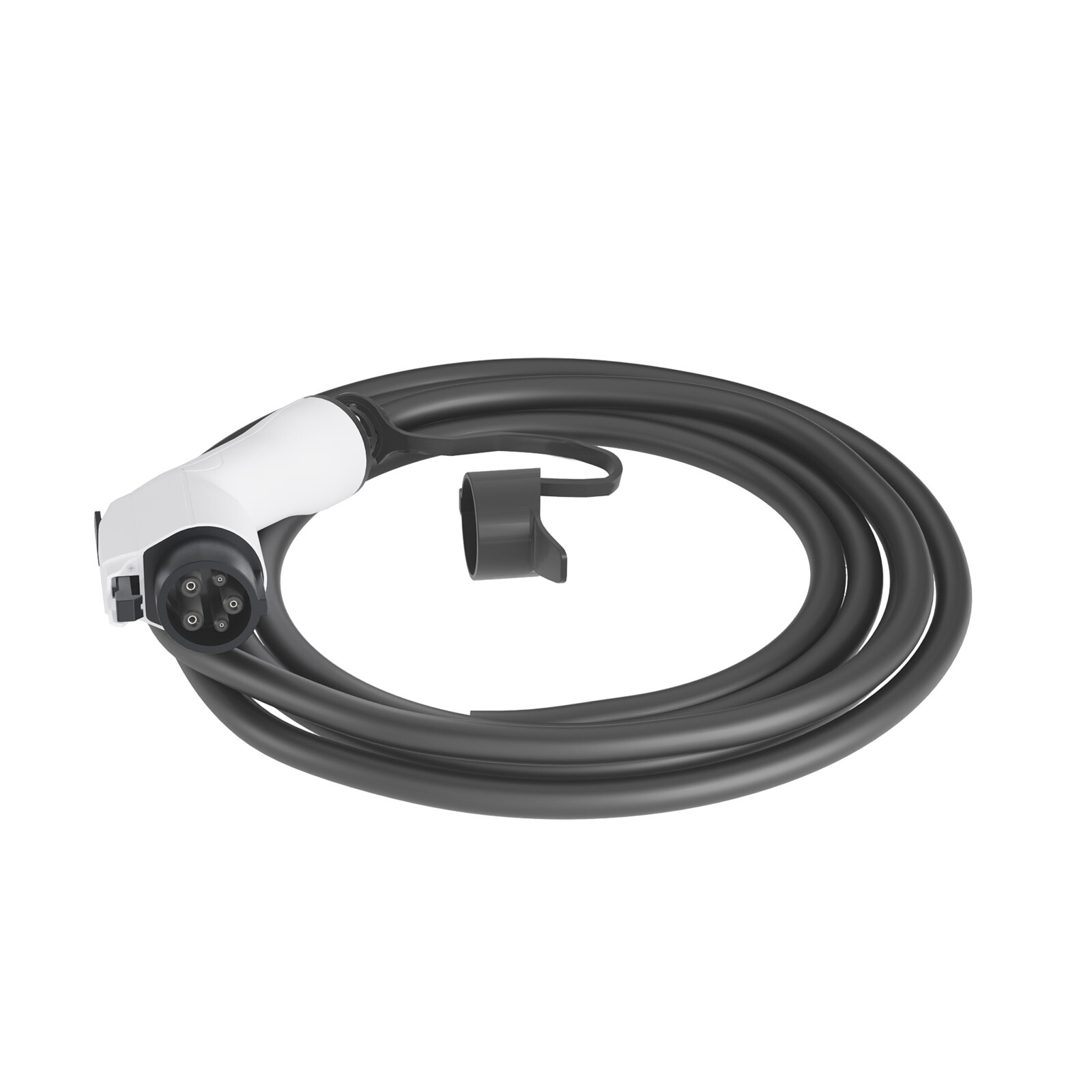

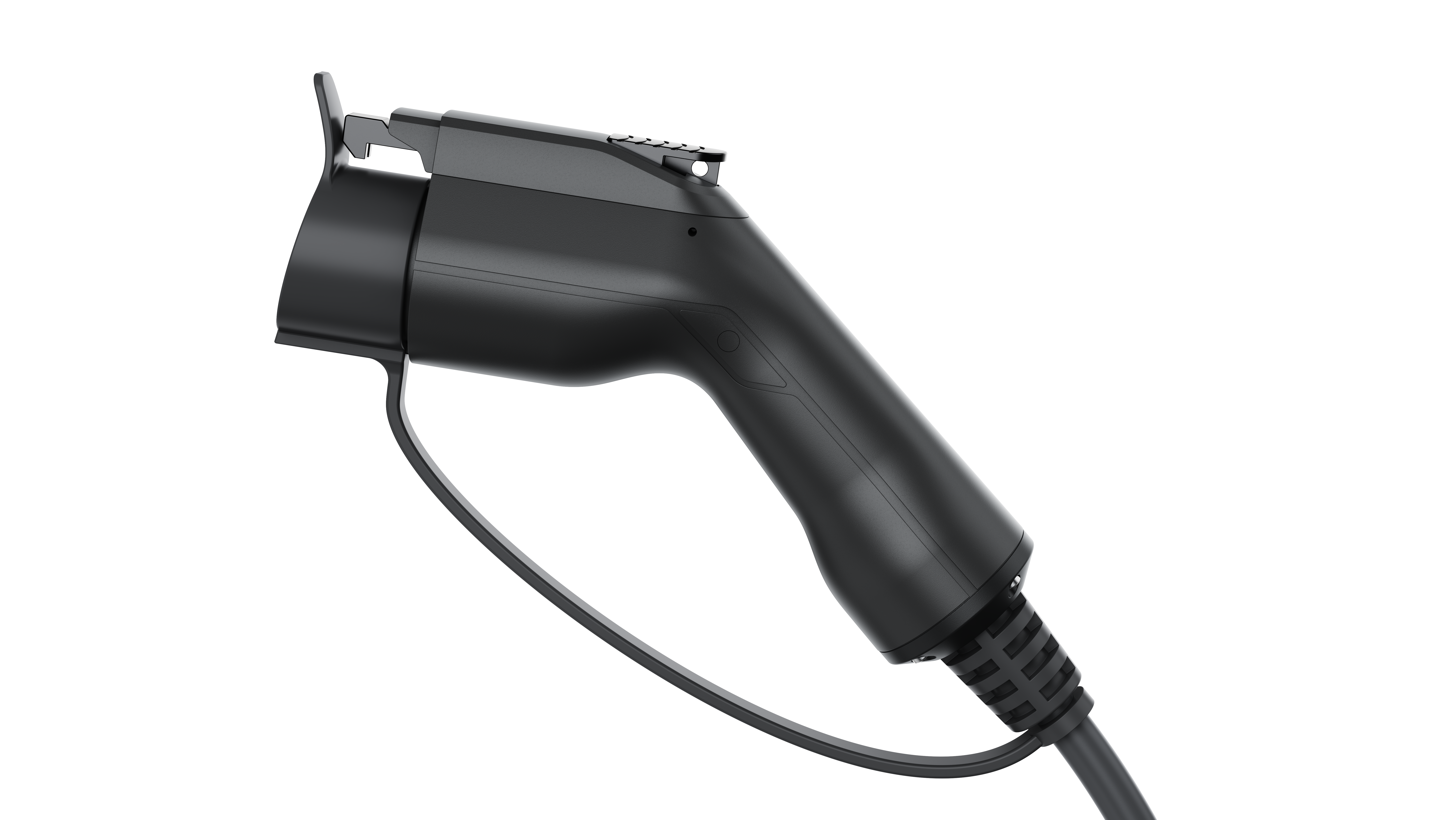

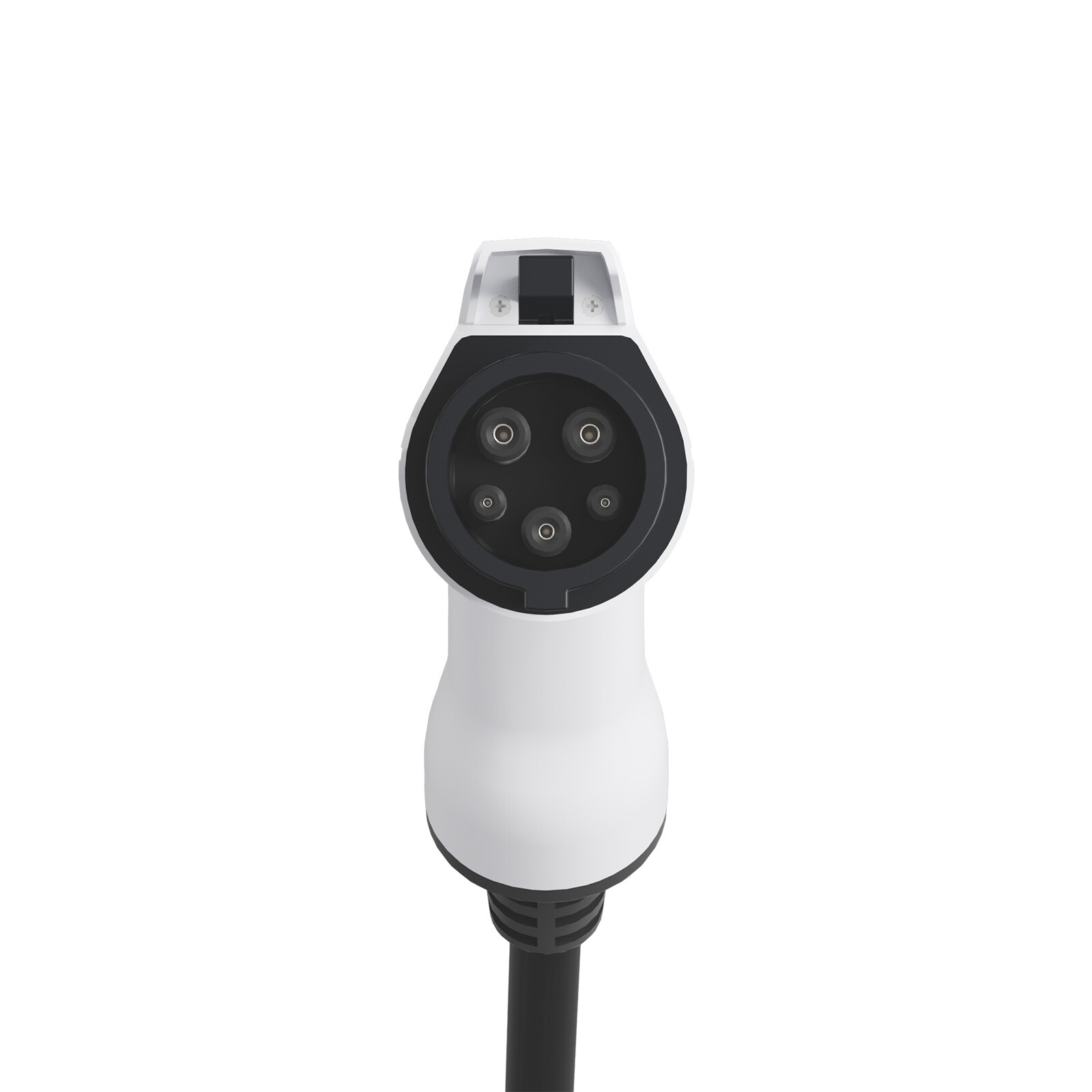

EVSEClub G1.0 Type 1 to open end EV Cable

›

‹

›

EVSEClub G1.0 Type 1 to open end EV Cable

  • Product Introduction

Type 1 to open end: Deliver Proven Reliability to Your OEM and Installation Partners
Engineered for the demands of the Type 1 market (North America, Japan, and others), our open-end charging solution is built for maximum durability and seamless integration. This robust cable core features high-quality, flexible jacketing and superior copper conductors, ensuring long-term performance in both public and private charging stations. The open-end design provides the essential flexibility required by manufacturers to integrate directly into EVSE wall boxes, charging columns, and custom solutions. By sourcing this reliable, high-duty-cycle component, you empower your partners to build superior charging products for a vast and established vehicle ecosystem, minimizing failures and maximizing satisfaction.

Download

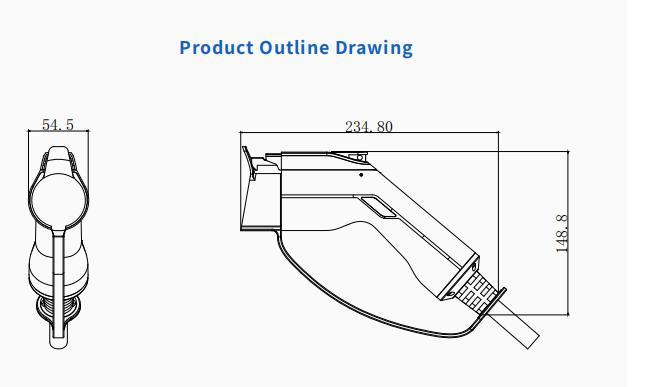

    Product diagram and parameters

    type 1 to open end

    Rated Current16A / 32A
    Rated Voltage240V AC
    Insulation Resistance2000MΩ(DC2000V)
    Contact Resistance0.5mΩMax
    Withstand Voltage2000V
    Fire-proof RatingUL94V-0
    Cable JacketTPU
    Mechanical Life>10000 times' plug in/ off
    Protection LevelIP54
    Enclosure MaterialPC
    Terminal PinsSilver-plated copper
    Working Temp-30℃~50℃
    CertificationCE TUV CB
    Cable ColorCustomizable
    Cable Spec16A   3*2.5 mm² + 1* 0.5 mm²

    32A    3*6 mm² + 1* 0.5 mm²

    40A    3*9AWG+1*18AGW
    48A    2*8AWG+10AWG+2*18AGW

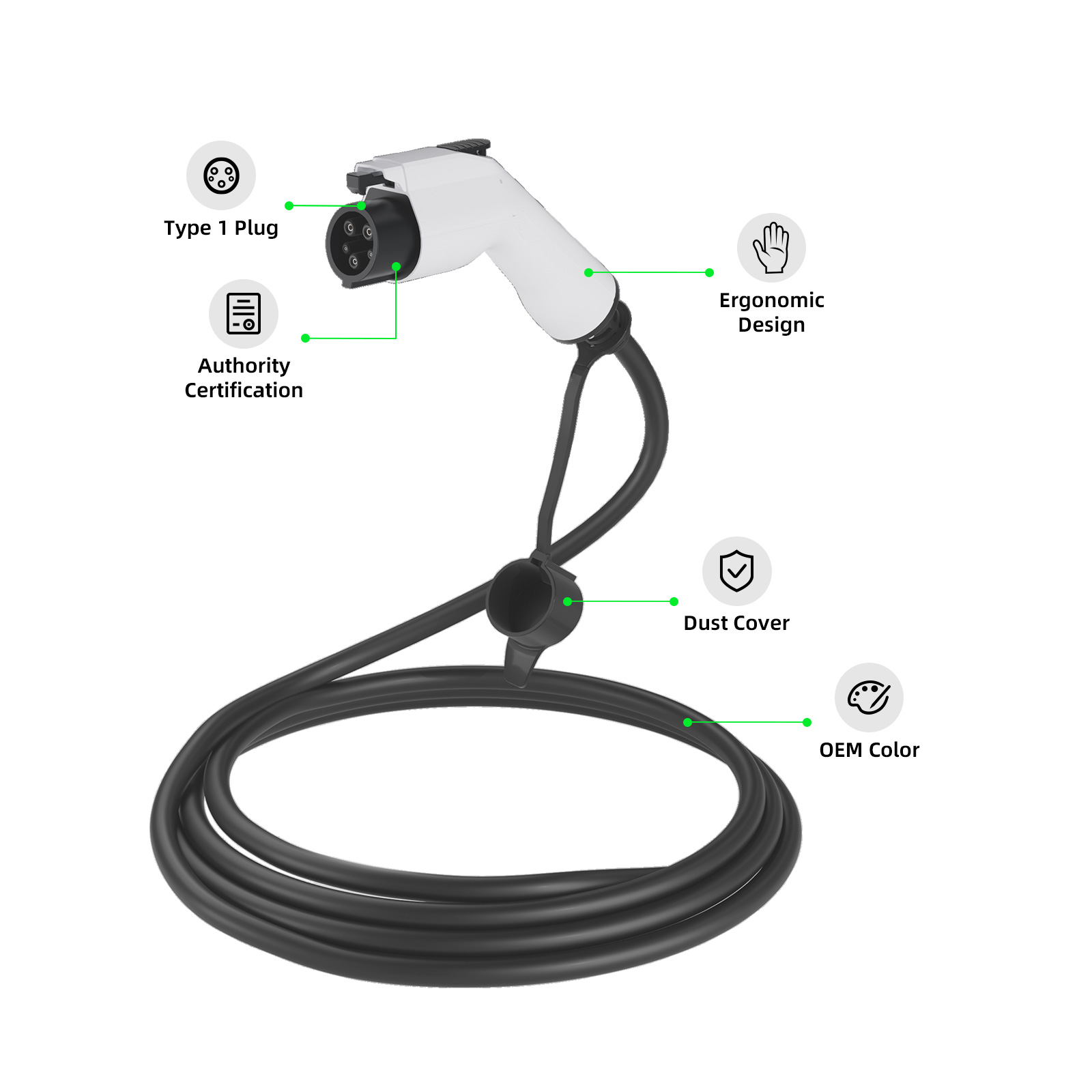

    Product Highlights

    EVSEClub G1.0 Type 1 to open end EV Cable

    • CE TUV CB Certificated, used for EU and Asia market.

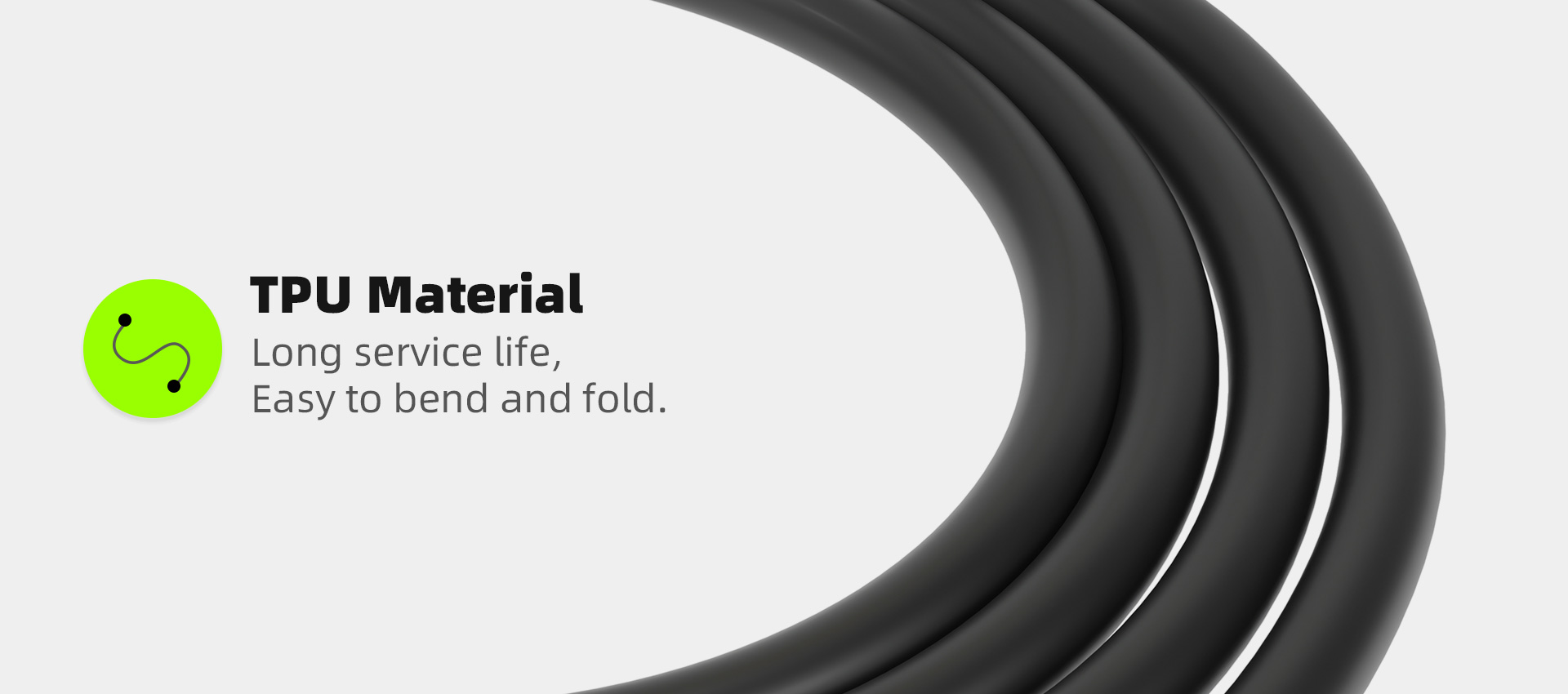

    • TPU Cable, it remains soft even at low temperature.

    • Low temperature rise and high durability.

    Details

    • 枪头1.0_01
    • 枪头1.0_02
    • 枪头1.0_03
    • 枪头1.0_04
    • 枪头1.0_05
    • 枪头1.0_06
    • 枪头1.0_07
    • 枪头1.0_08
    • 枪头1.0_09
    • 枪头1.0_10

    Notice

    The stripping length and terminal blocks can be customized.

    Custom cable color, minimum order length 1,500 meters
