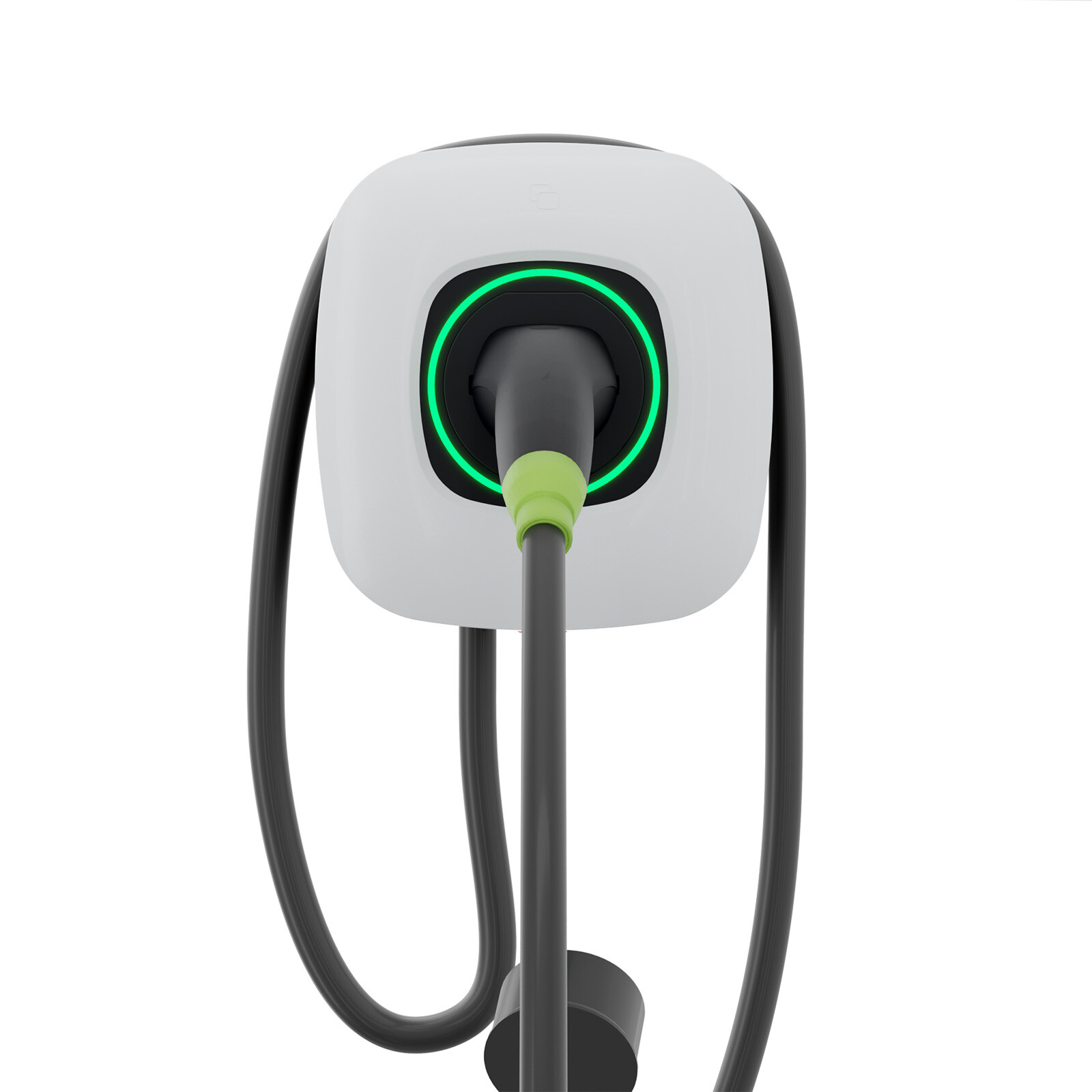

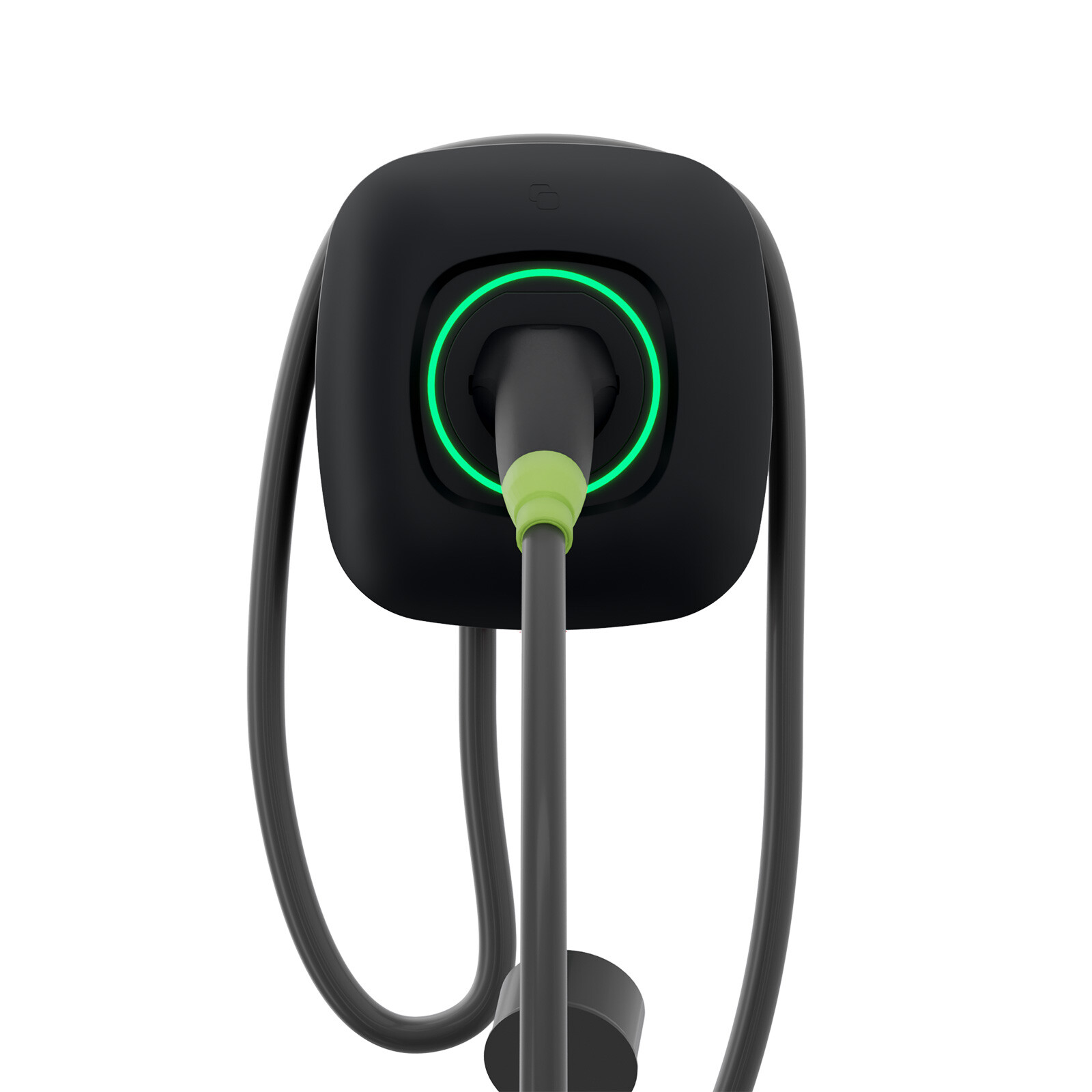

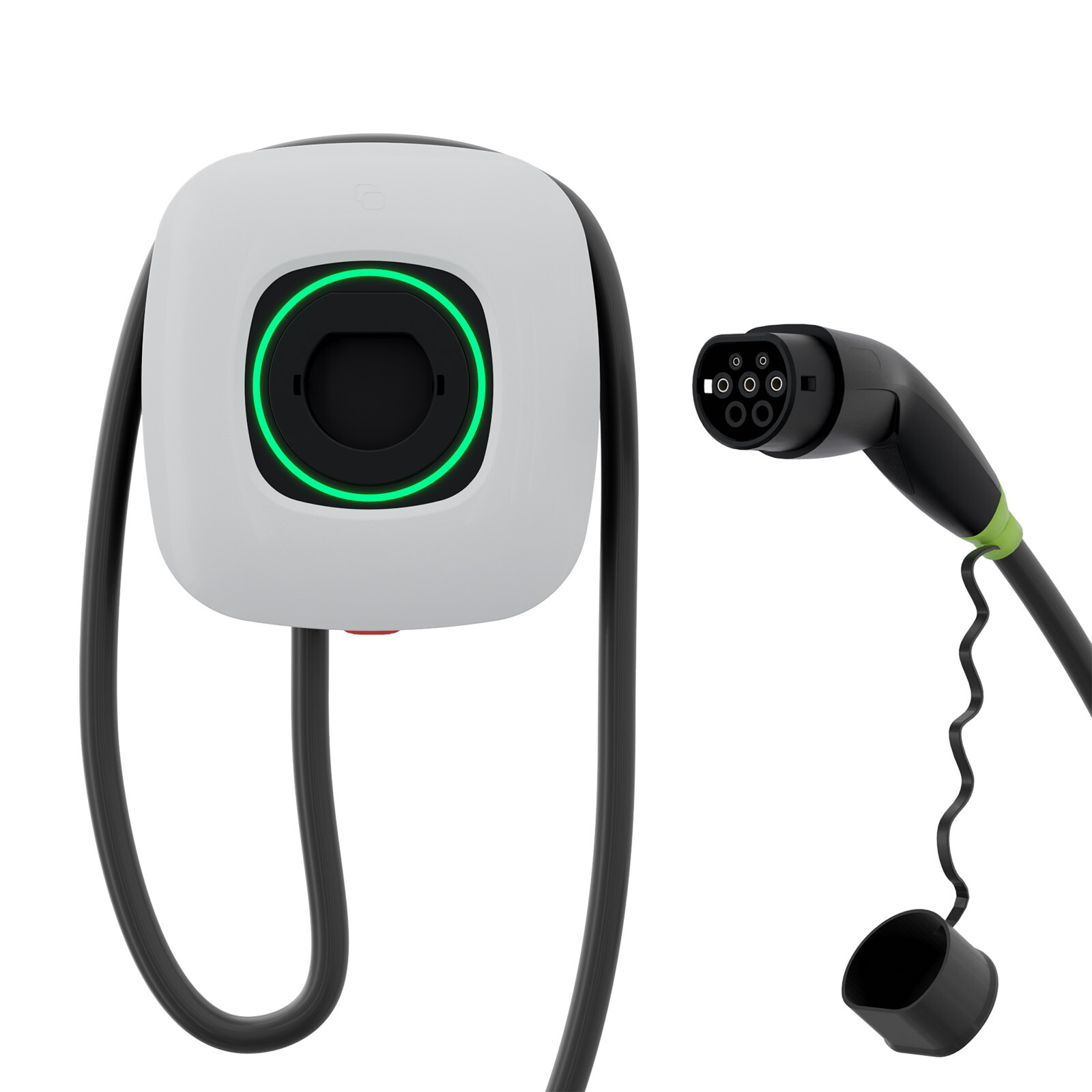

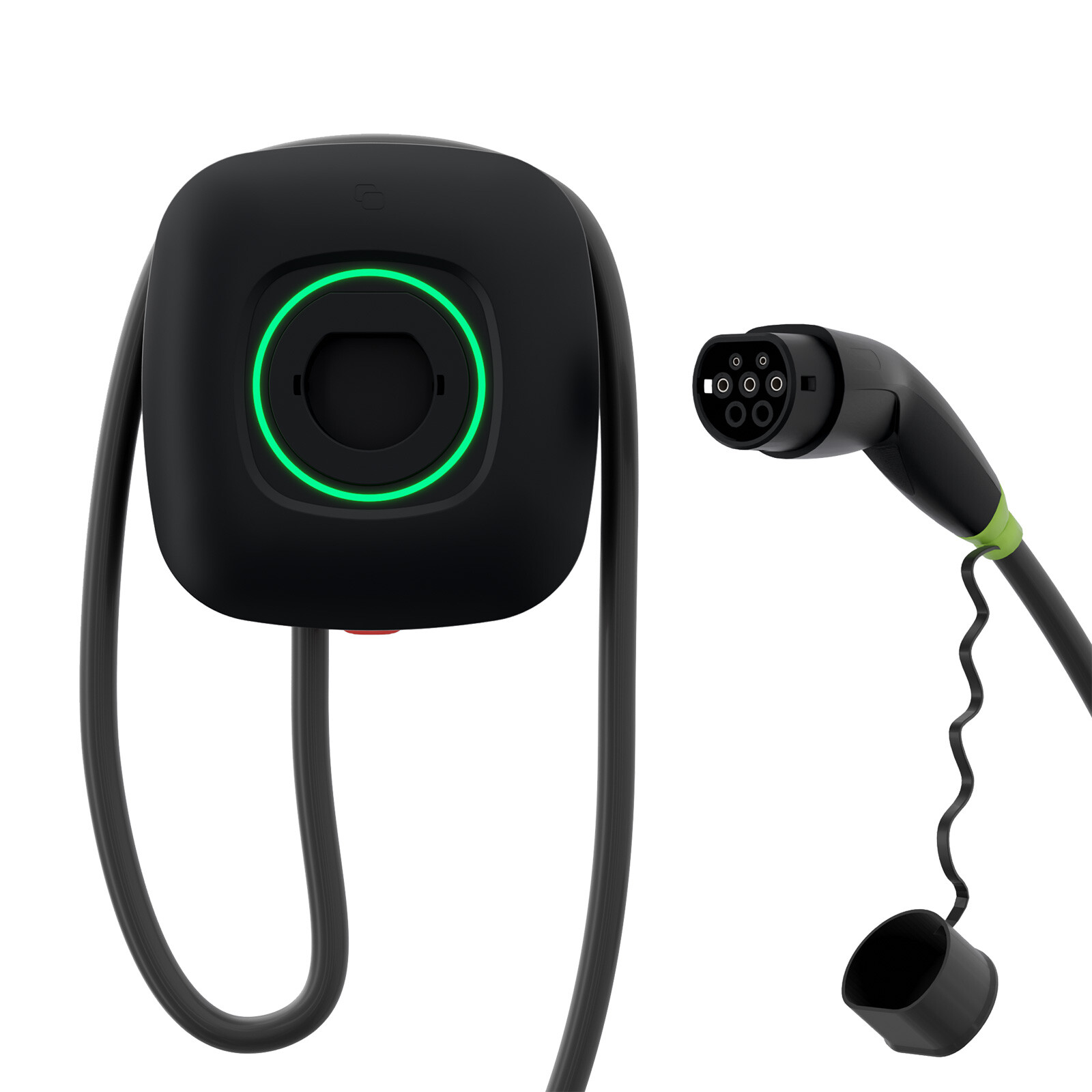

Type 2 Wallbox Charger 22kw 5m

Type 2 Wallbox Charger 22kw 5m

  • Product Introduction

This Type 2 wallbox features a minimalist, no-display design for discreet and reliable EV charging. Built for durability, it is available with an integrated 5m cable for convenience or as a socket version for use with your own lead. An optional RFID card reader is available, enabling secure user authentication and controlled access—ideal for shared driveways, workplaces, or fleets. Supporting charging power up to 22kW, it combines essential safety protections with a straightforward "plug-and-charge" or "card-to-charge" operation. Its compact, robust build and flexible configuration make it a smart, future-proof choice for both residential and commercial environments seeking simplicity with the option of access control.

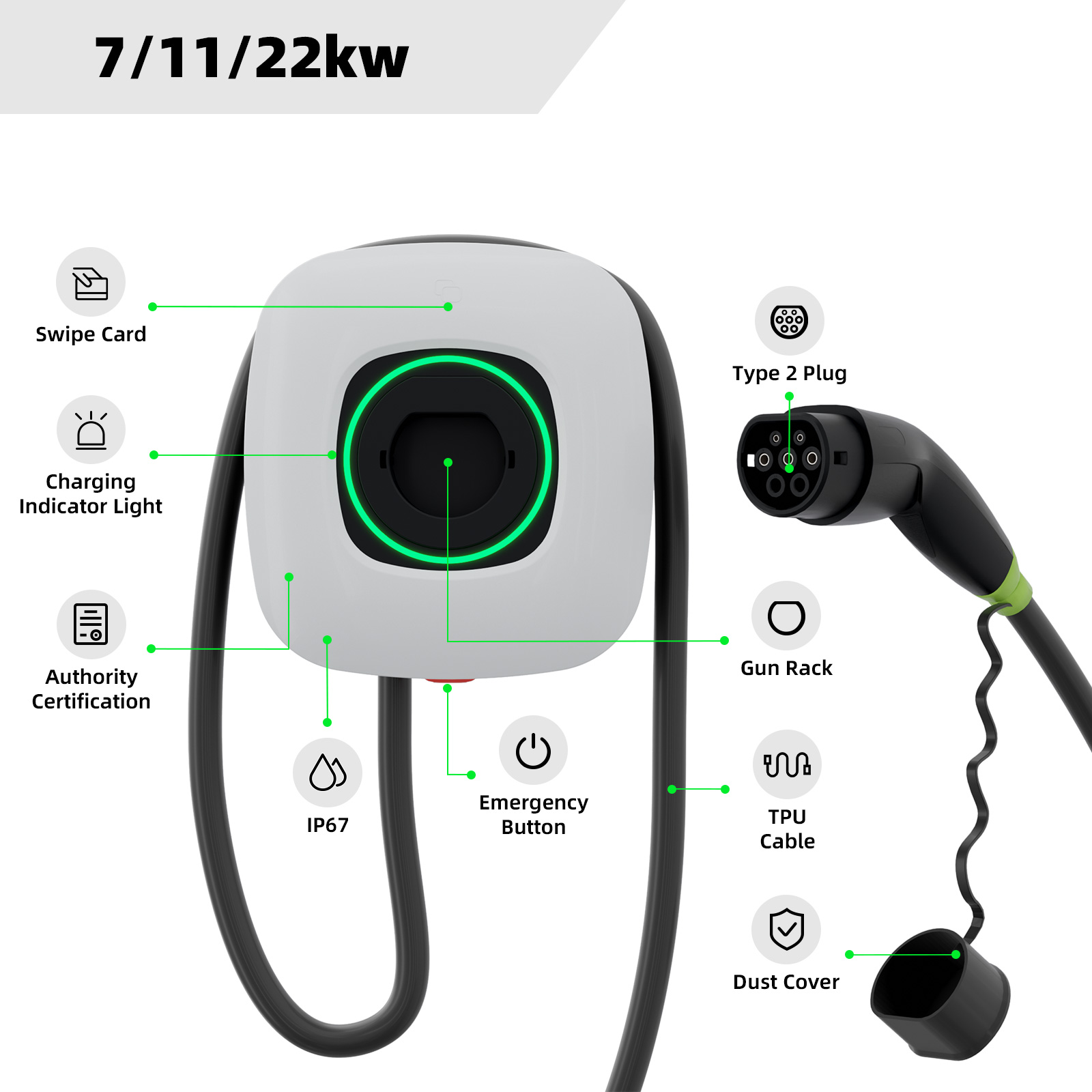

Product diagram and parameters

Main Product22kW
Dimensions(mm)L210 x W210 x D200max.
Weight≤6 kg
Operating Temperature-30℃ to +50℃
Storage Temperature-40℃ to +85℃
MaterialPC
CertificationsCE
Charging PowerUp to 22kW
Charging Current32A
Voltage380-440V (3-phase, 50-60Hz)
Installation NetworkIT, TT, TN-C-S
Charging ModeMode 3
Charging Cable5m
Charging TypeType 2
Energy Metering(±2 %) accuracy metering chip
Charging StatusDynamic LED ring for charging status
AuthenticationRFID/NFC reader or app
Cloud Connection/NetworkN/A
OCPPN/A
Installer App and ConfigurationN/A
Installation CircuitMax 40A circuit breaker
Input Cableup to 6mm²
Upstream RCDRCCB Type A and MCB or RCBO
Overvoltage CategoryIII
Insulation ClassI
Fire ClassificationUL94
IP RatingIP55
Impact ResistanceIK05
Temperature MonitoringInternal sensors
O-PEN DetectionN/A


Product Highlights

Type 2 Wallbox Charger 22kw 5m

  • Intelligent Temperature Control

Smart temperature control strategy,effective protection for safety charging

  • Easy Installation

  • Multiple Authentication Models

RFID, NFC,  plug and charge

  • Multiple Protection

Multiple protection makes charging safer

  • option

Customized design available for ODM

Details

  • 壁挂充电桩-1920850_01
  • 壁挂充电桩-1920850_02
  • 壁挂充电桩-1920850_03
  • 壁挂充电桩-1920850_04
  • 壁挂充电桩-1920850_05
  • 壁挂充电桩-1920850_06
  • 壁挂充电桩-1920850_07
  • 壁挂充电桩-1920850_08
  • 壁挂充电桩-1920850_09
  • 壁挂充电桩-1920850_10

Notice

  • Cable length and color support OEM

  • Support function and appearance customization.

  • Please do not disassemble the product yourself.

  • We provide 2 years warranty, no worry about after-sales.
