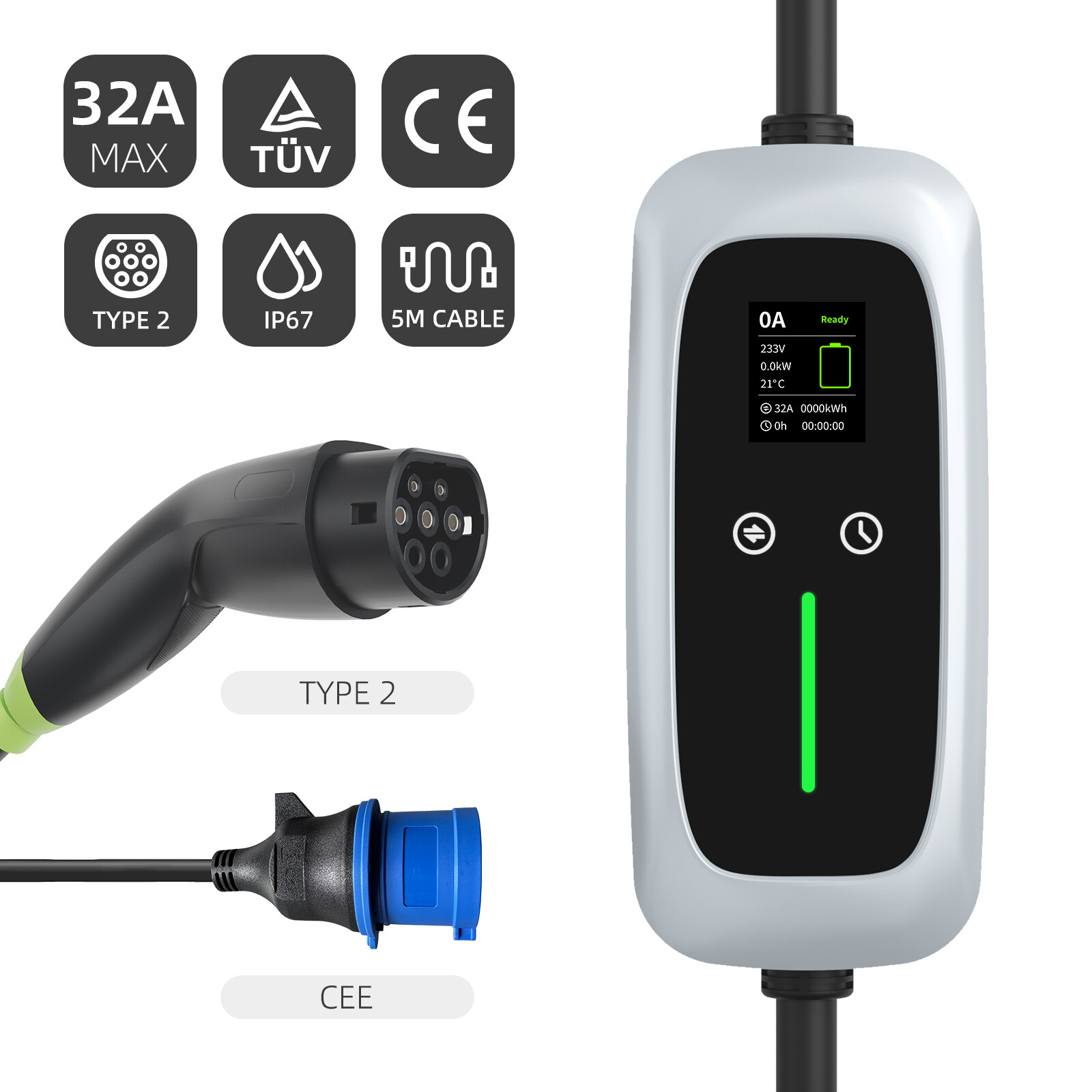

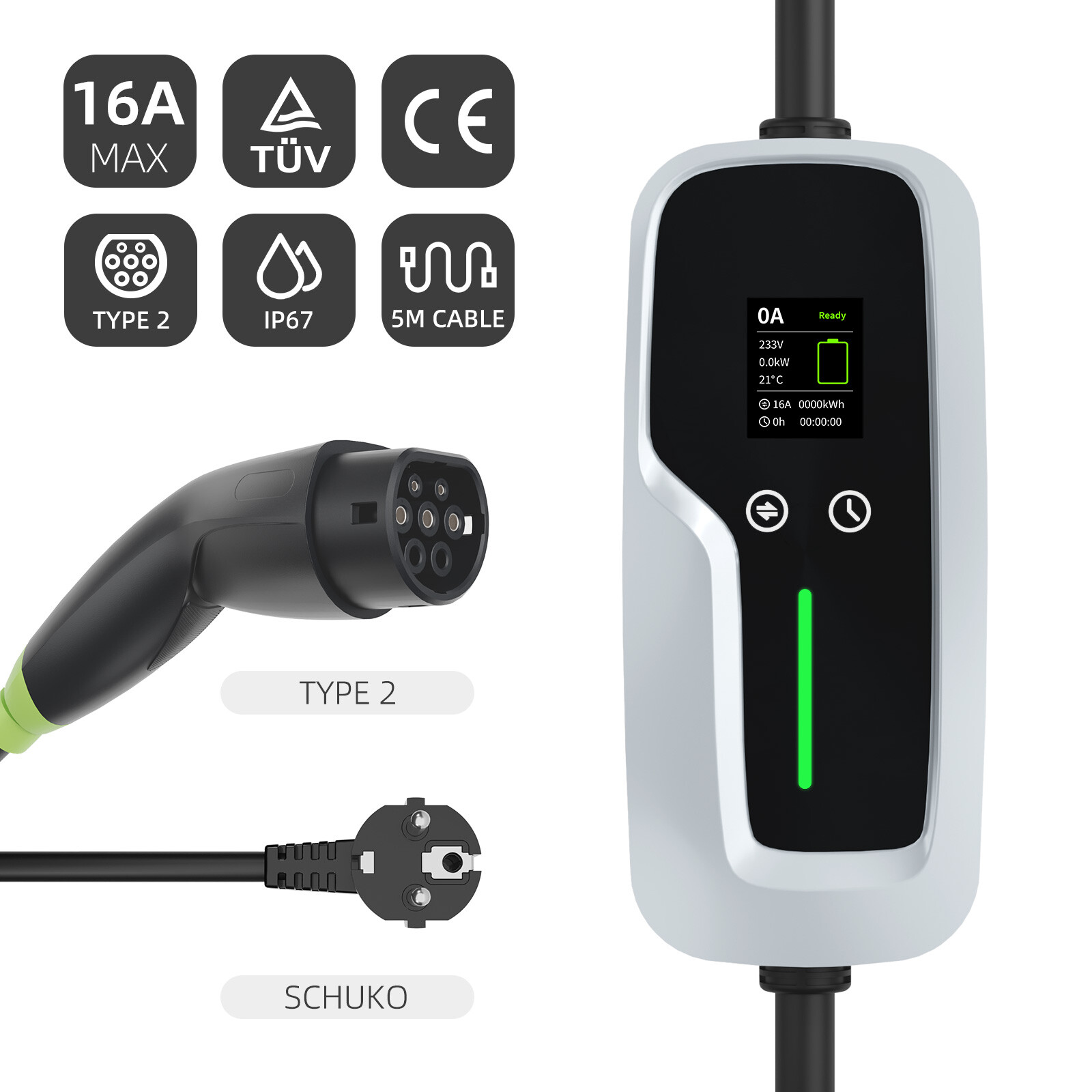

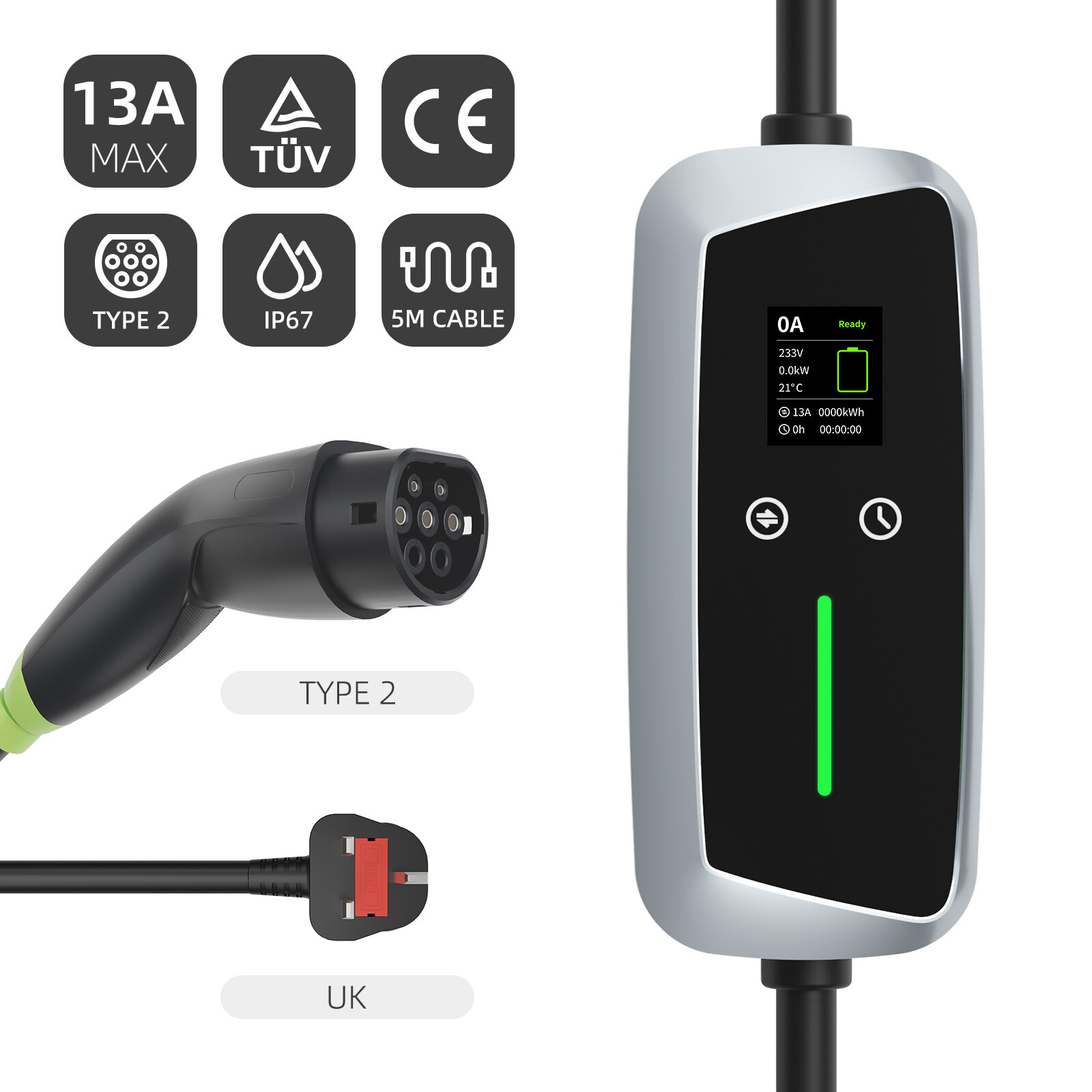

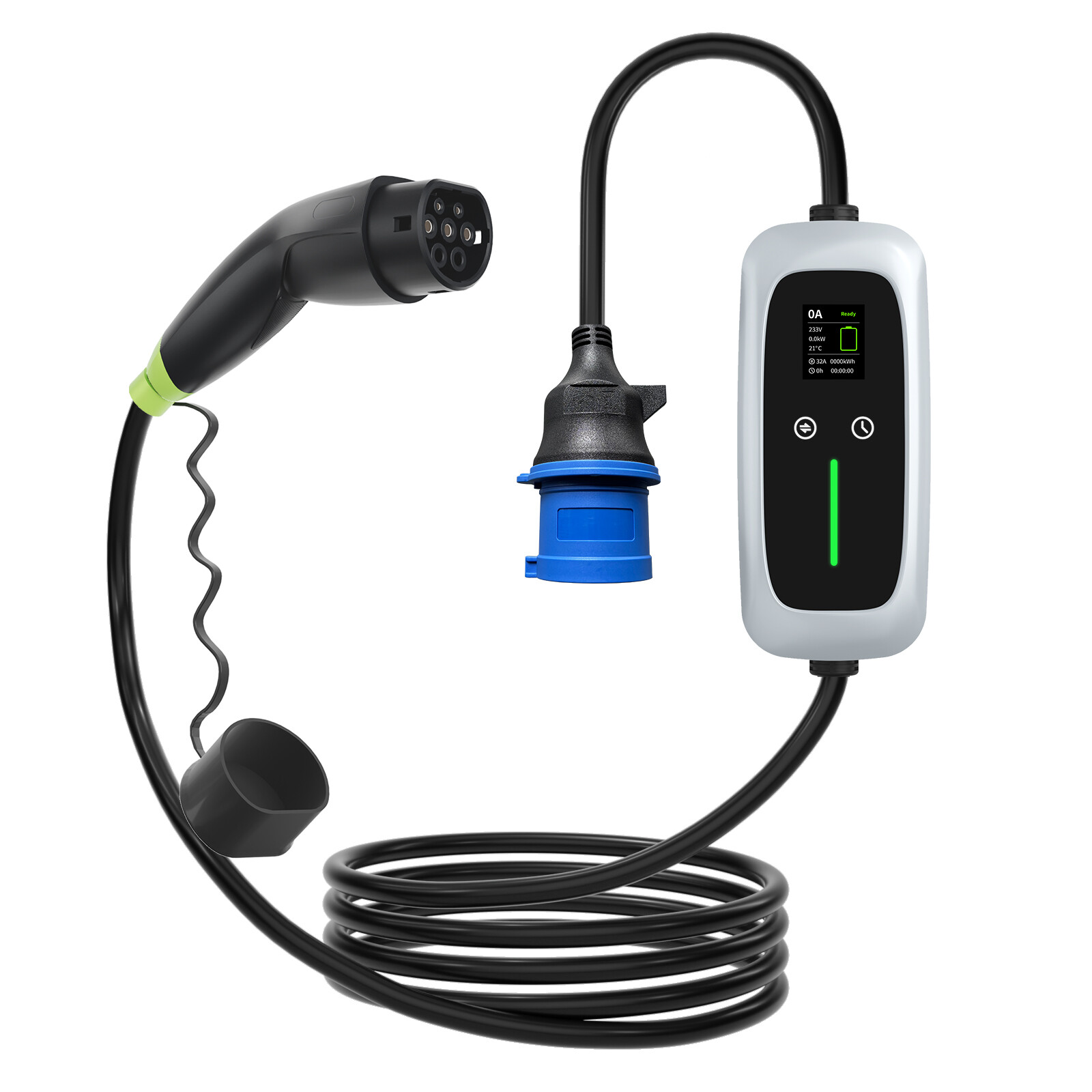

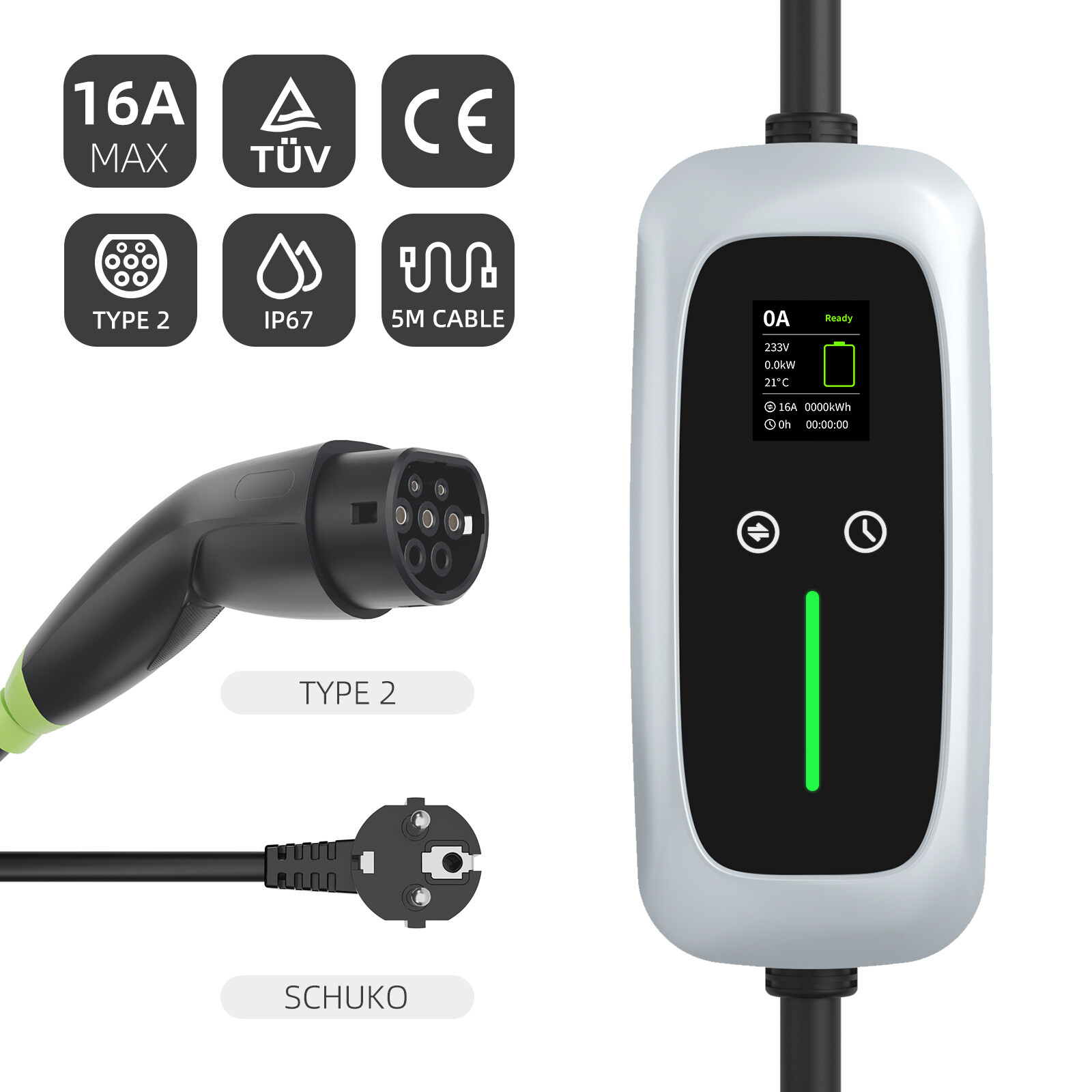

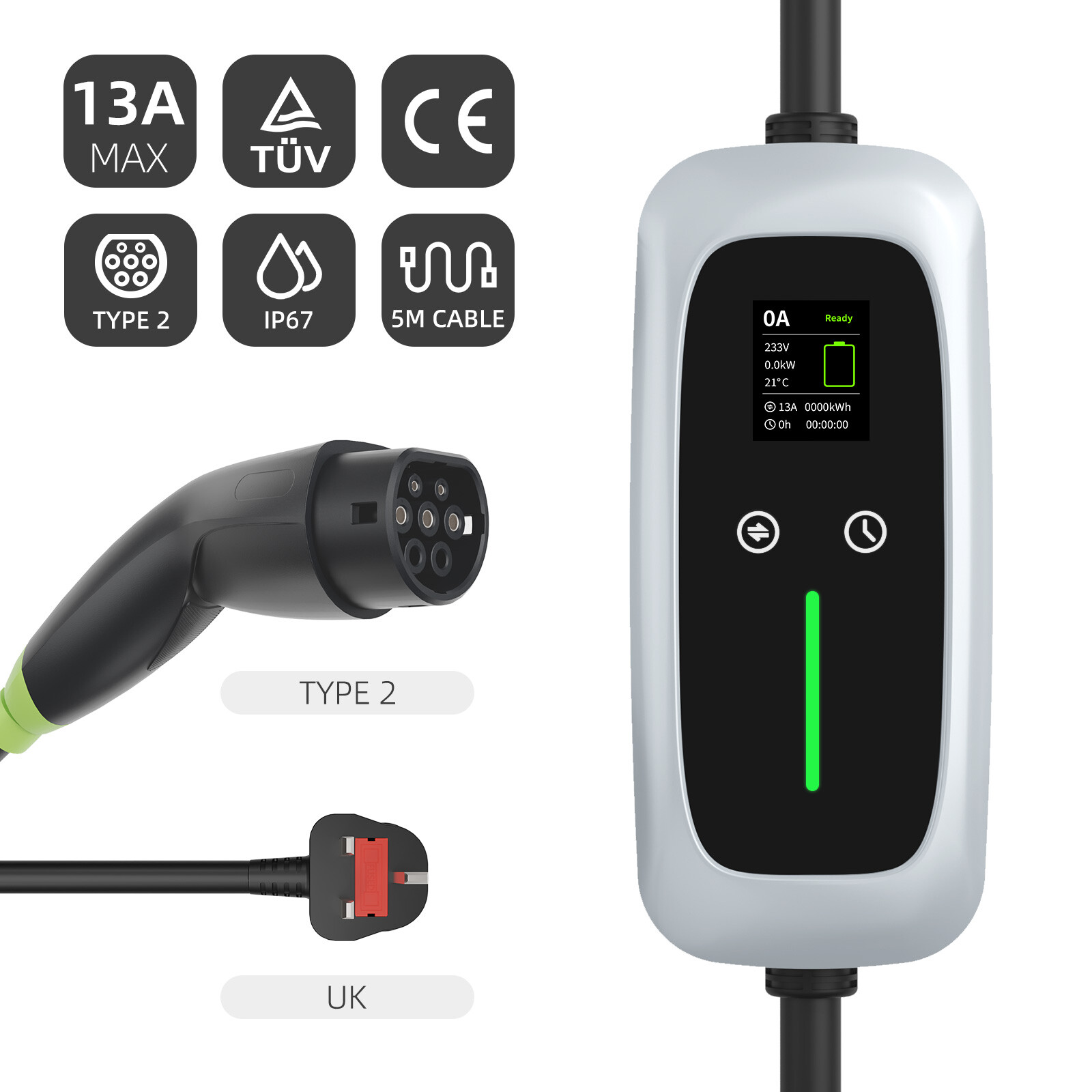

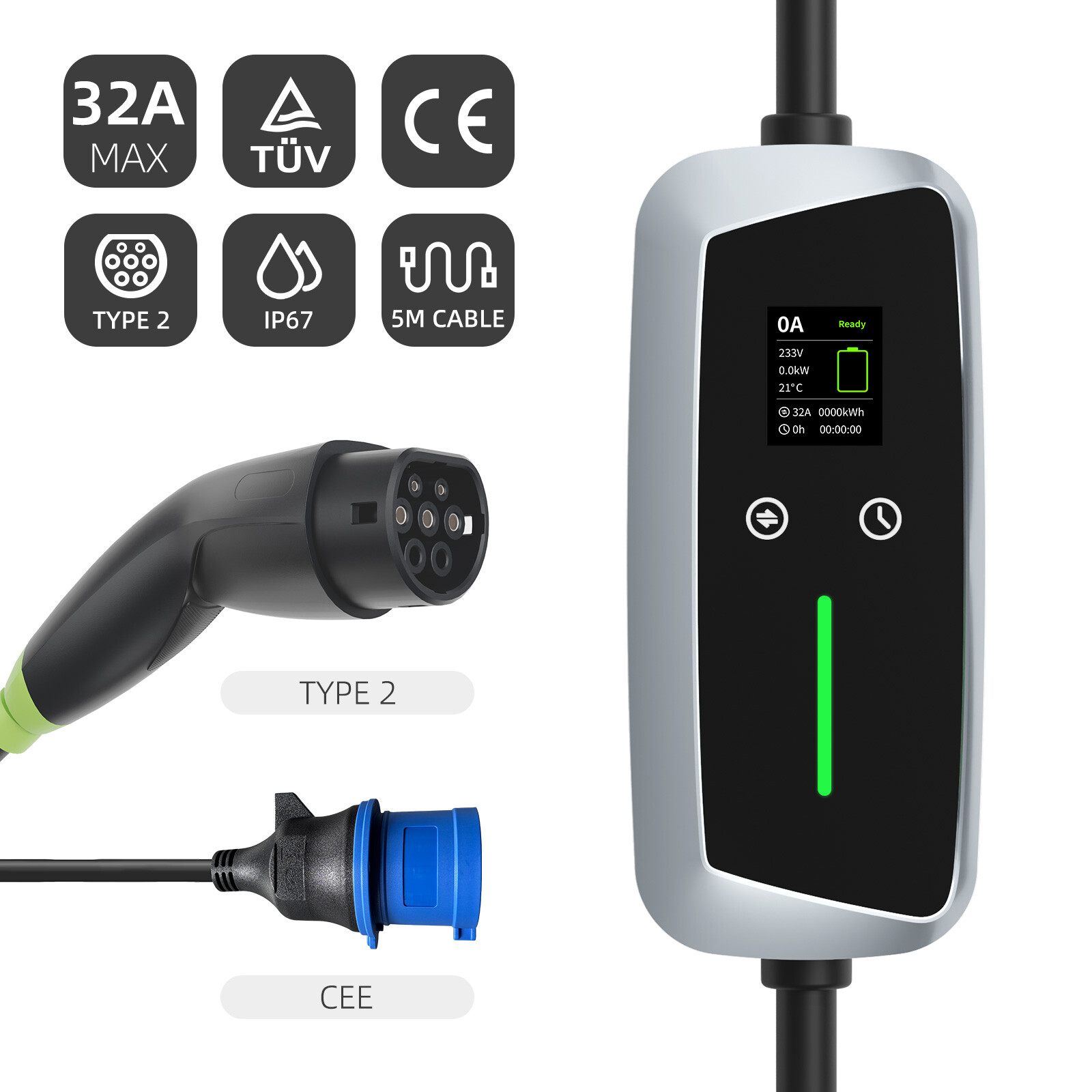

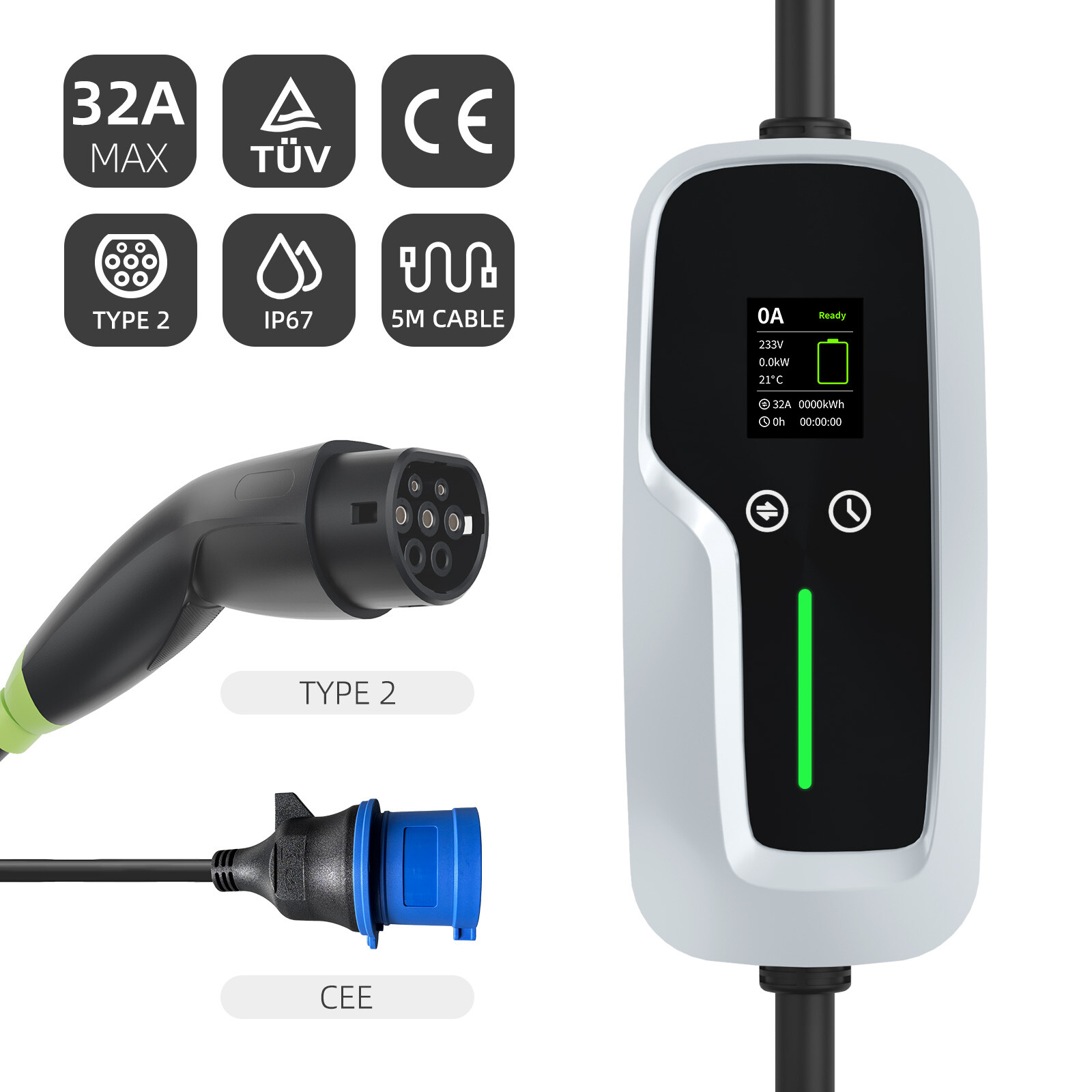

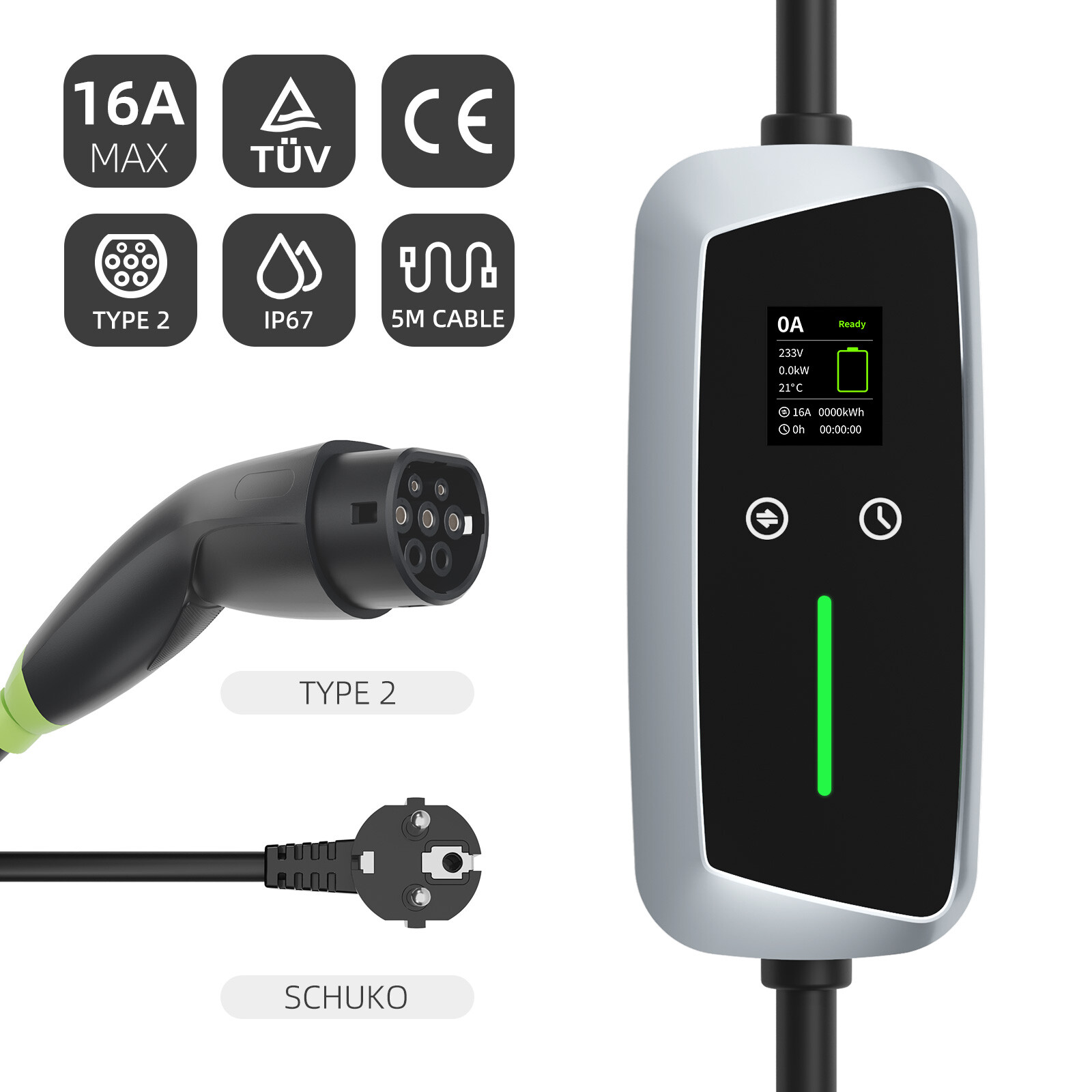

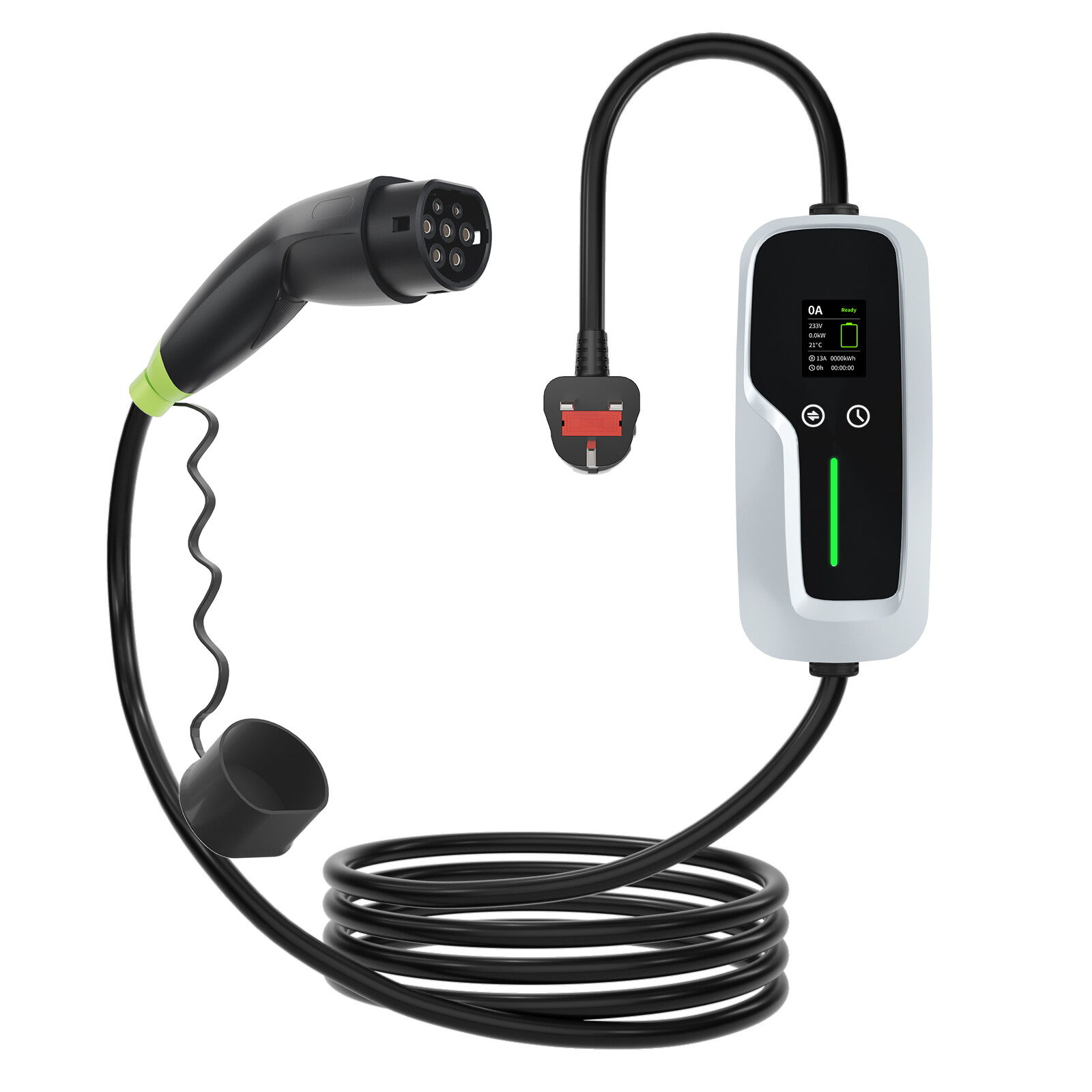

Type 2 Portable EV Charger 7.4kw with LCD Screen

›

‹

›

Type 2 Portable EV Charger 7.4kw with LCD Screen

  • Product Introduction

Portable EV Charger can be equiped with different power plug for different market. It is mainly for home use, as long as you got socket in your home.
Sometimes, you have to go somewhere far away and there maybe no EV Charger in the countryside, at this time, portable EV charger can support your car charging. If your car runs out of power on the road, you can use a discharger + portable charger for emergency use.

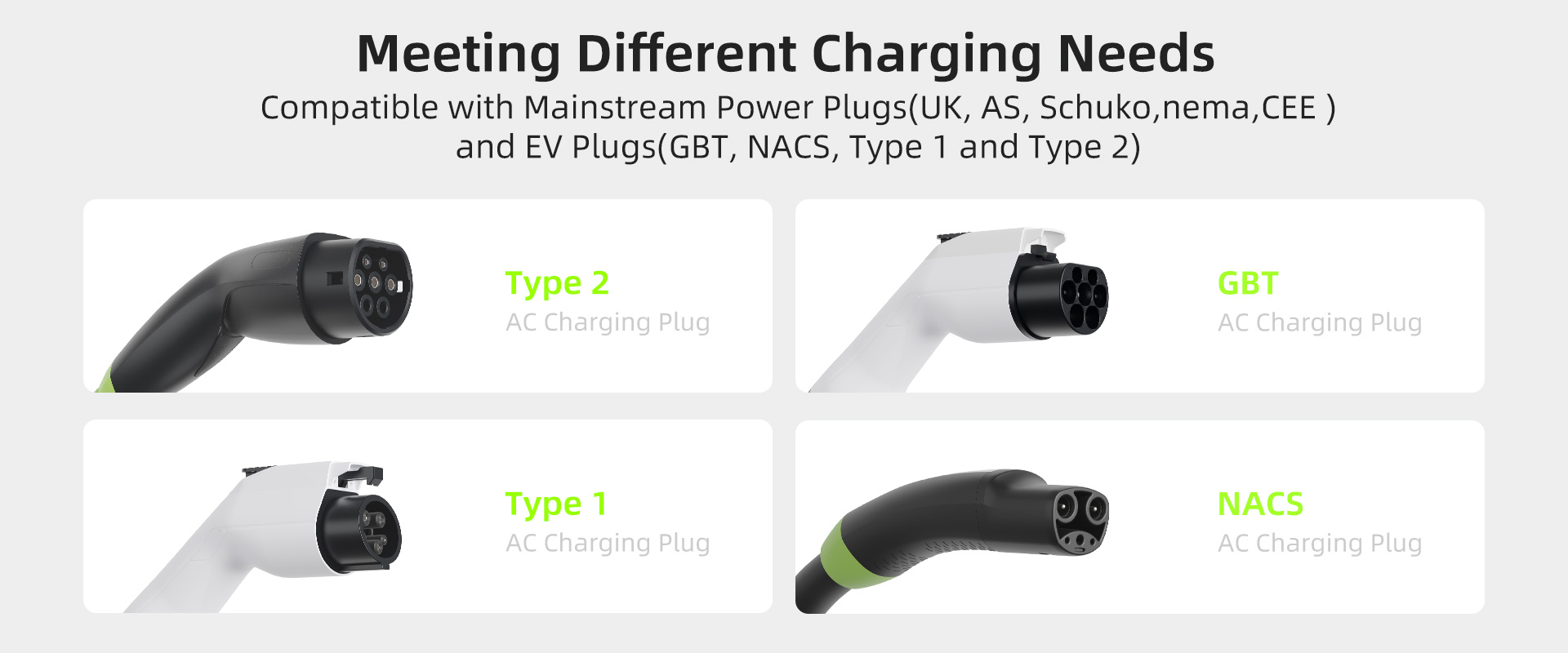

The products has extra functions option: Tesla UHF, support all Tesla cars, once you press the button on the charger connector, the charging socket of the car will open. Only Type 2 / NACS Portable EV Charger available.
Also we can add a Led on the connector, so you do not worry about use in the dark.

Download

    Product diagram and parameters

    Ac input voltageL250V (1 Phase )
    Ac Power Frequency (Hz)50-60Hz
    Rated Current13A/16A/32A
    Output Power Range1.4~3.6KW/2~7KW
    Cable LengthTotal length 5 meters

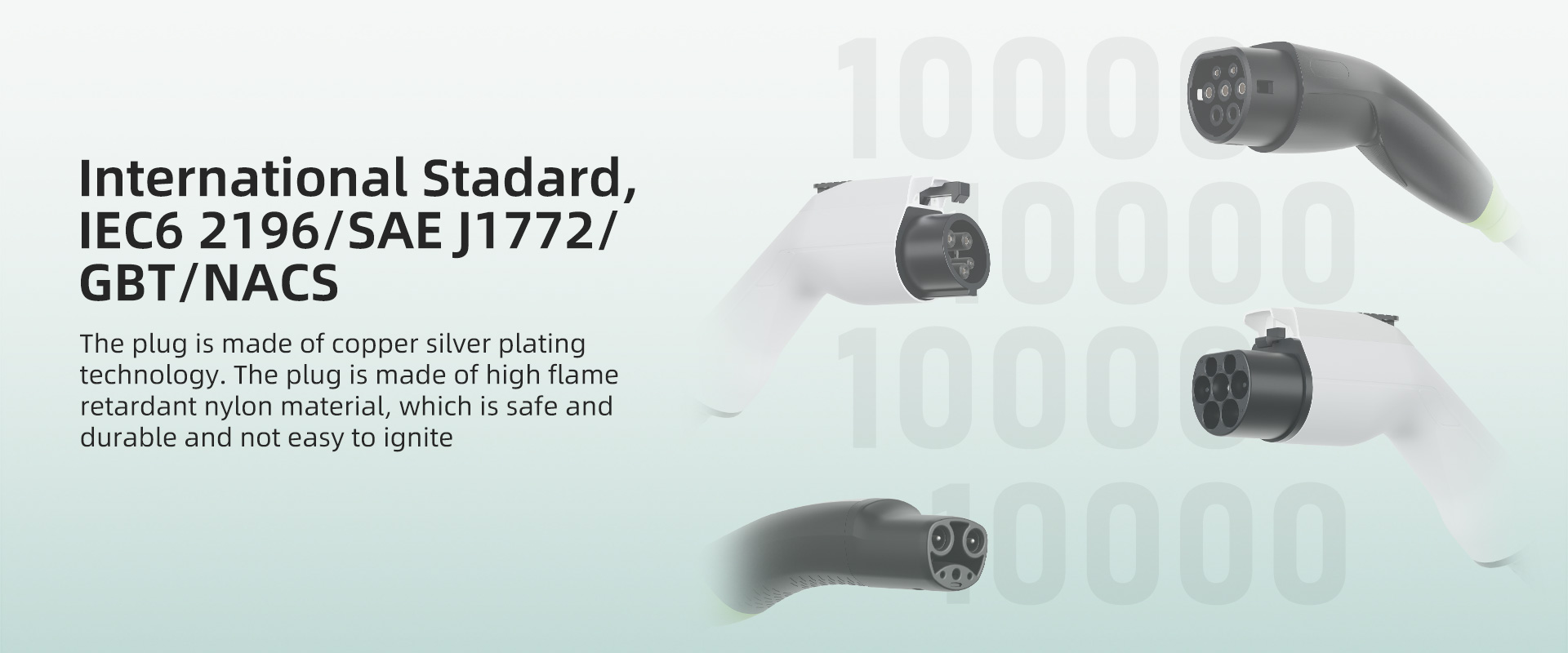

    Output Plug TypeIEC 62196 Type 2
    Status DisplayLED indicator +LCD screen
    InteractionPlug and charge,Bluetooth option
    Accessories and Packaging Optionstorage bag, user manul, control box wall hanging bracket, winding combination gun head storage bracket, mounting screw bag.
    Protection GradeIP67 for the control box and IP54 for the output plug.
    Product Packaging SpecificationsPizza box  (rectangular box)
    CertificatesTUV CE、UKCA、CB、 ROHS

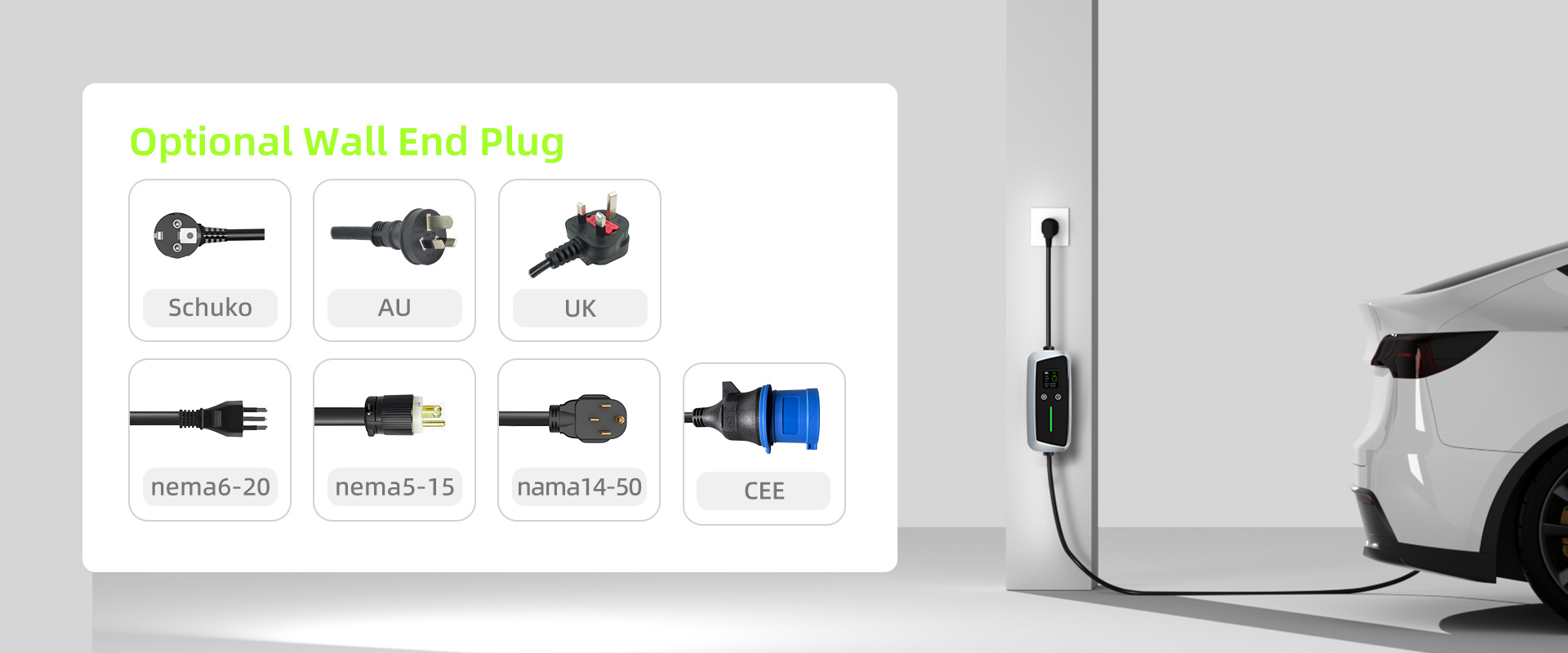

    Input PlugUK power plug(10A)、Schuko power plug(16A)、India/South Africa power plug(16A)、Nema series power plug、CEE  power plug(32A) etc.
    Output Plug ColorBlack/White

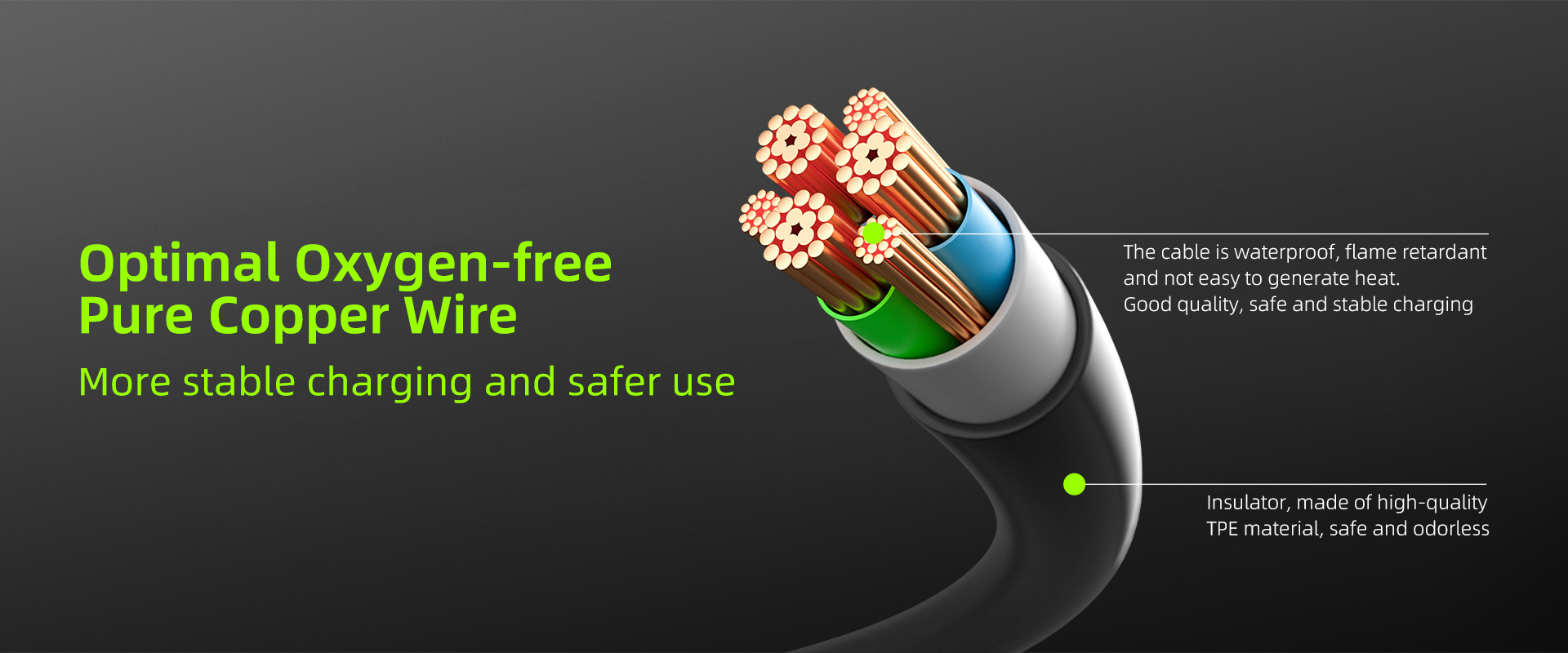

    Cable JacketTPU
    Cable ColorBlack
    Wire Gauge16A:   3*2.5mm²+1*0.5mm²
    32A: 3*6mm²+1*0.5mm²²

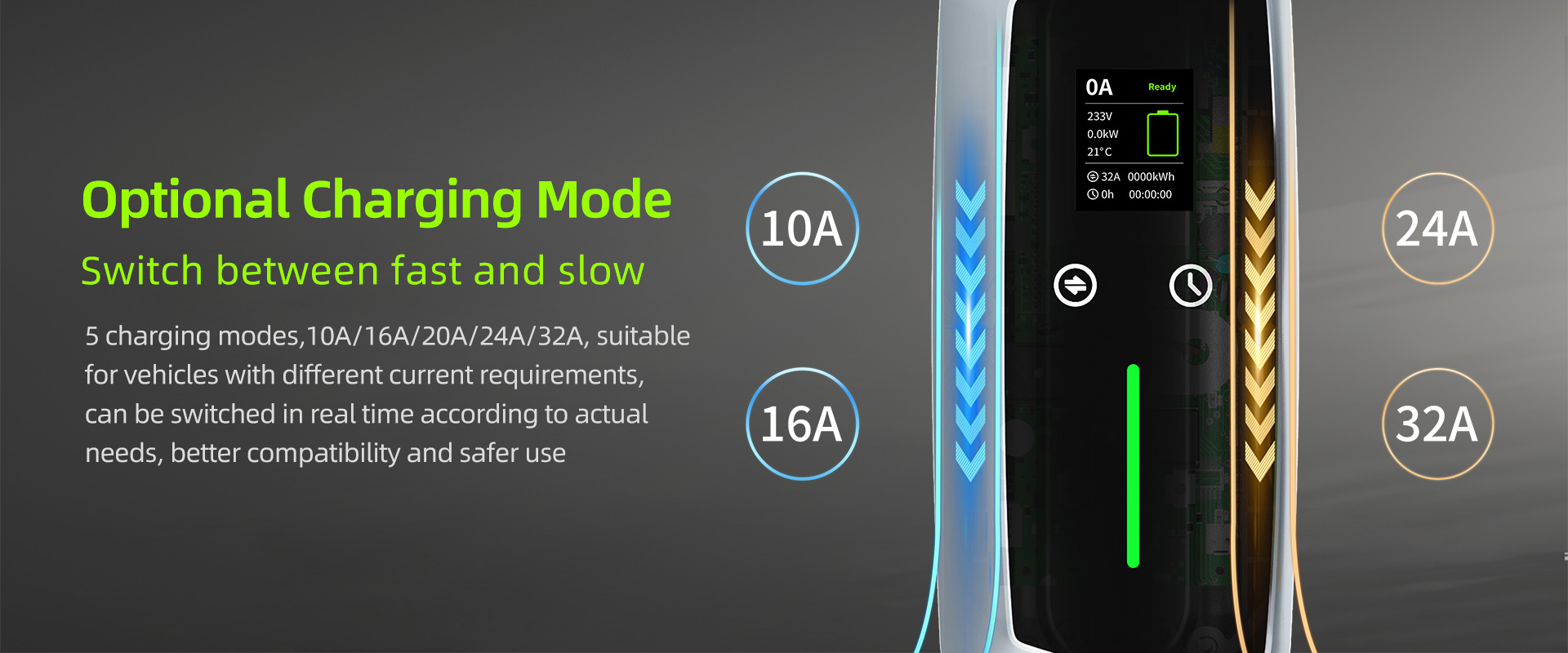

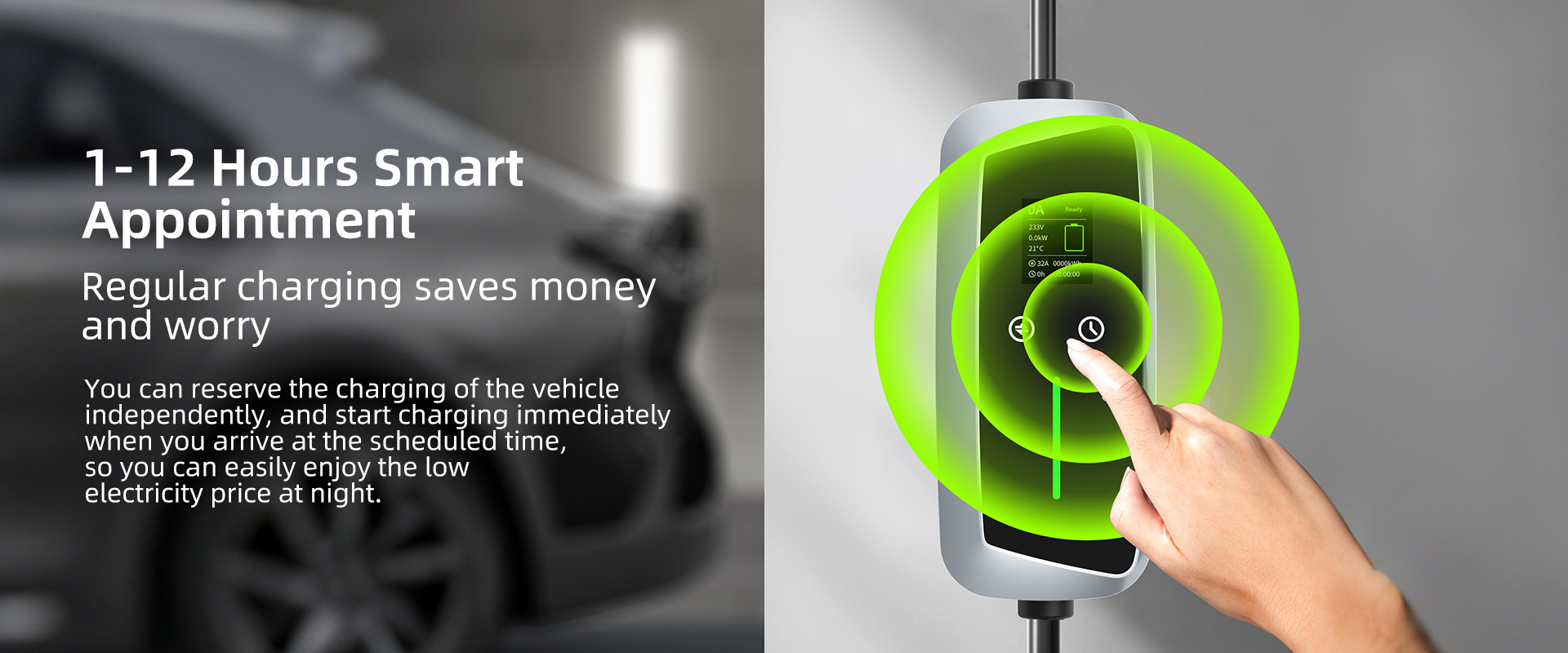

    Control Box Button2 - current adjustment button, delay charging button

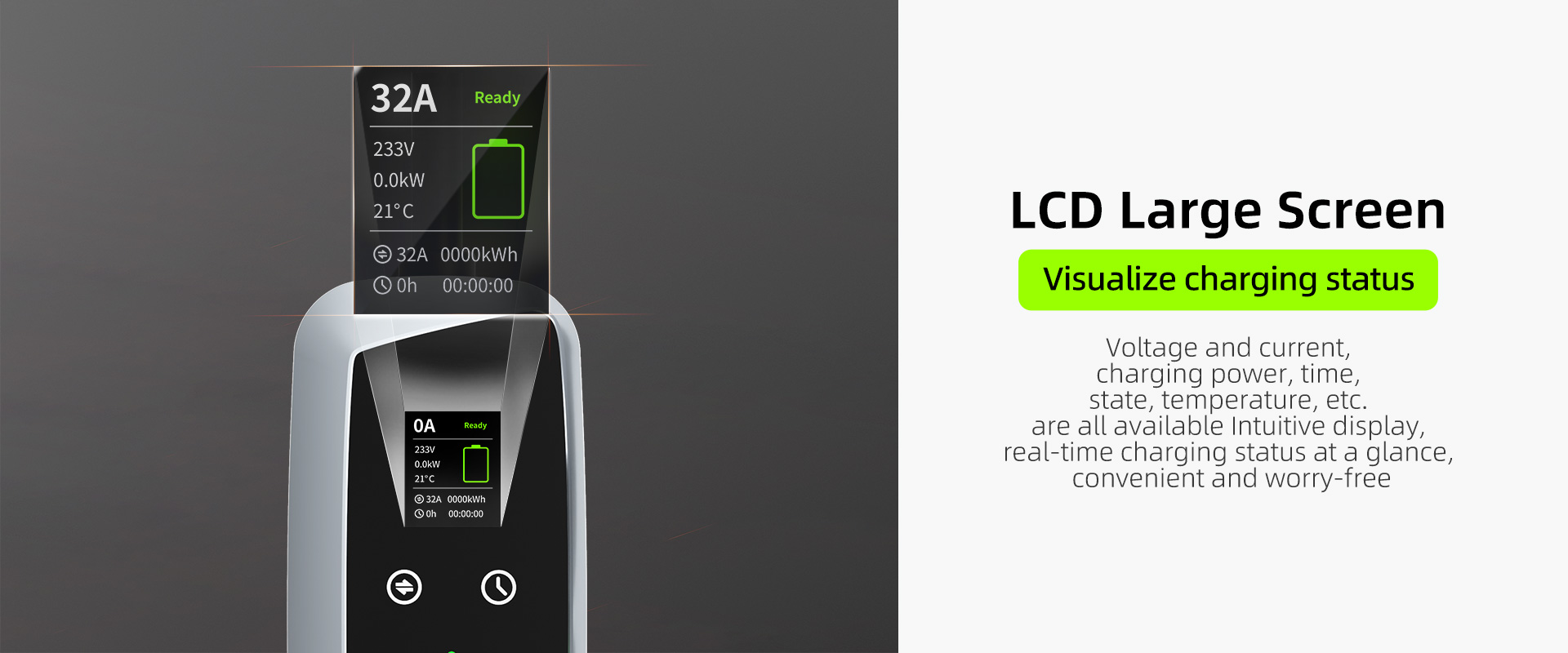

    Screen Size1.8 inches
    Screen Display Contentset rated current, real-time current, real-time voltage, real-time power, charging time, control box temperature, charging degree, charging state
    ProtectionOverload Protection,Overtemperature Protection,Short circuit Protection,Lightning Protection,Overvoltage protection/Undervoltage Protection,Ground Protection
    Leakage Protection Device (mA)TypeA (AC 30mA)  or  TypeA+ DC 6mA
    Operating ambient temperature condition﹣30℃   -   55℃
    Working environment humidity conditions5%-95%
    Drop ResistanceIt can withstand being crushed by 2T cars and falling from a height of 1 meter

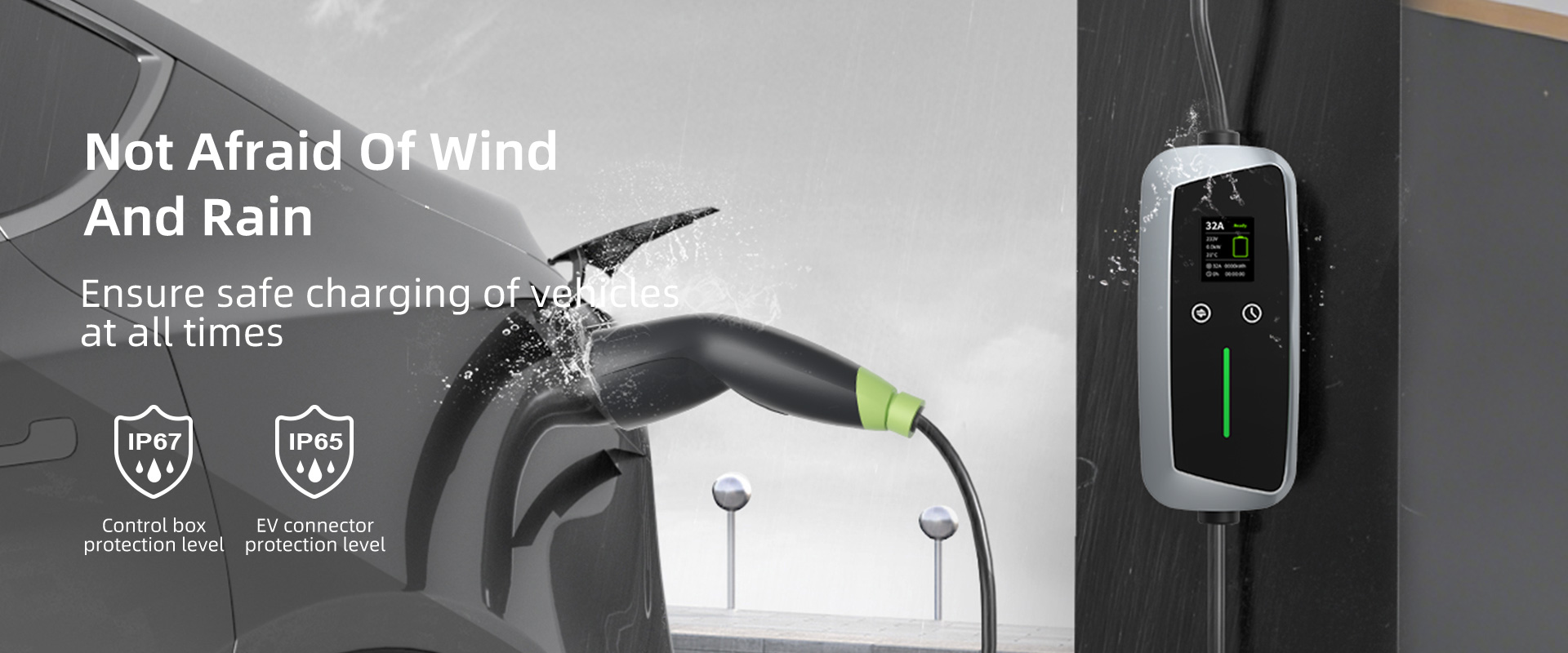

    Protection LevelControl box IP67, Connector IP54

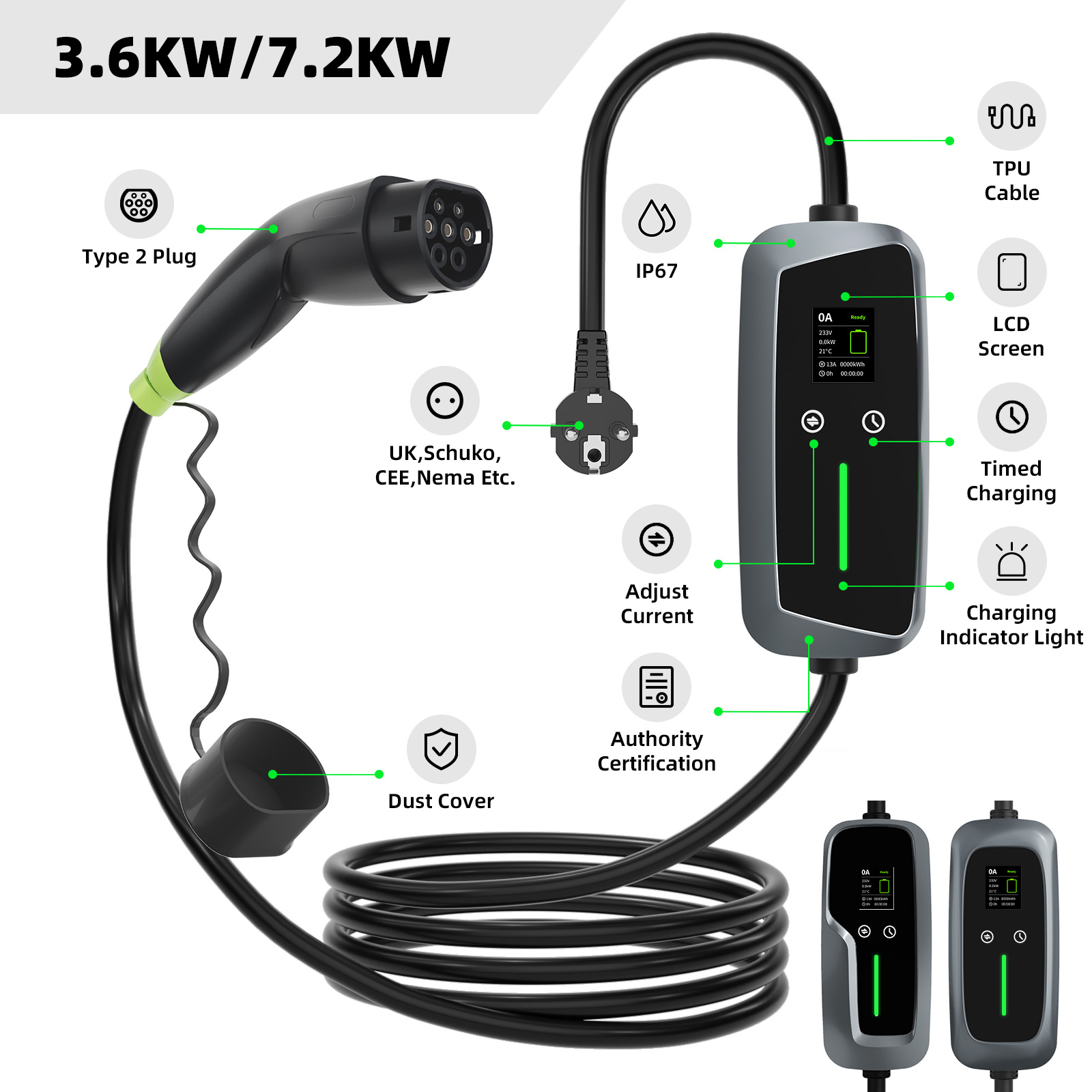

    Product Highlights

    Type 2 Portable EV Charger 7.4kw with LCD Screen

    • Portable, convenient to use

    • High digit screen

    • High protection level, IP67, no worry about rainy day.

    • Multiple circuit protections, maximum safety

    • App control / Tesla UHF / Led light function option.

    Details

    • Nova详情页-1920800_01
    • Nova详情页-1920800_02
    • Nova详情页-1920800_03
    • Nova详情页-1920800_04
    • Nova详情页-1920800_05
    • Nova详情页-1920800_06
    • Nova详情页-1920800_07
    • Nova详情页-1920800_08
    • Nova详情页-1920800_09
    • Nova详情页-1920800_10
    • Nova详情页-1920800_11
    • Nova详情页-1920800_12
    • Nova详情页-1920800_13
    • Nova详情页-1920800_14
    • Nova详情页-1920800_15
    • Nova详情页-1920800_16

    Notice

    • Cable length and color support OEM

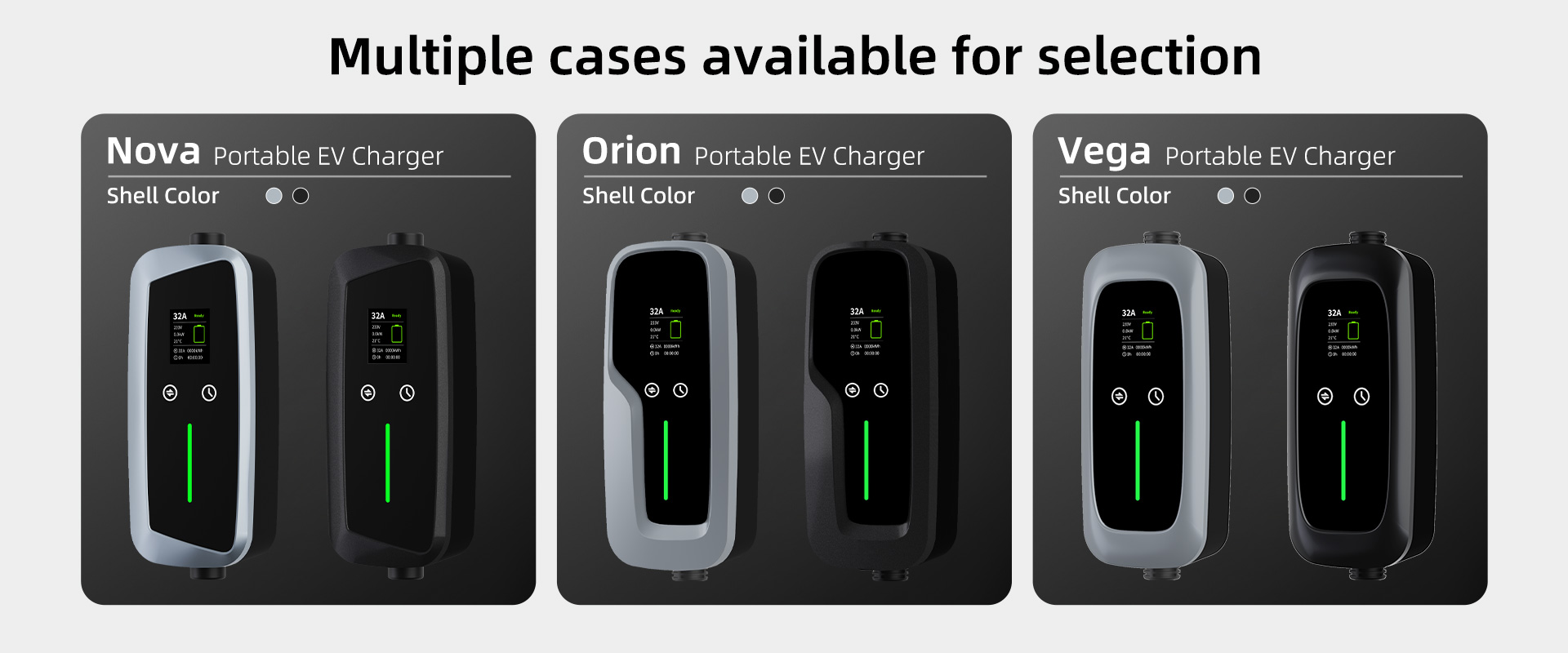

    • Support function and appearance customization.

    • Please do not disassemble the product yourself.

    • We provide 2 years warranty, no worry about after-sales.
