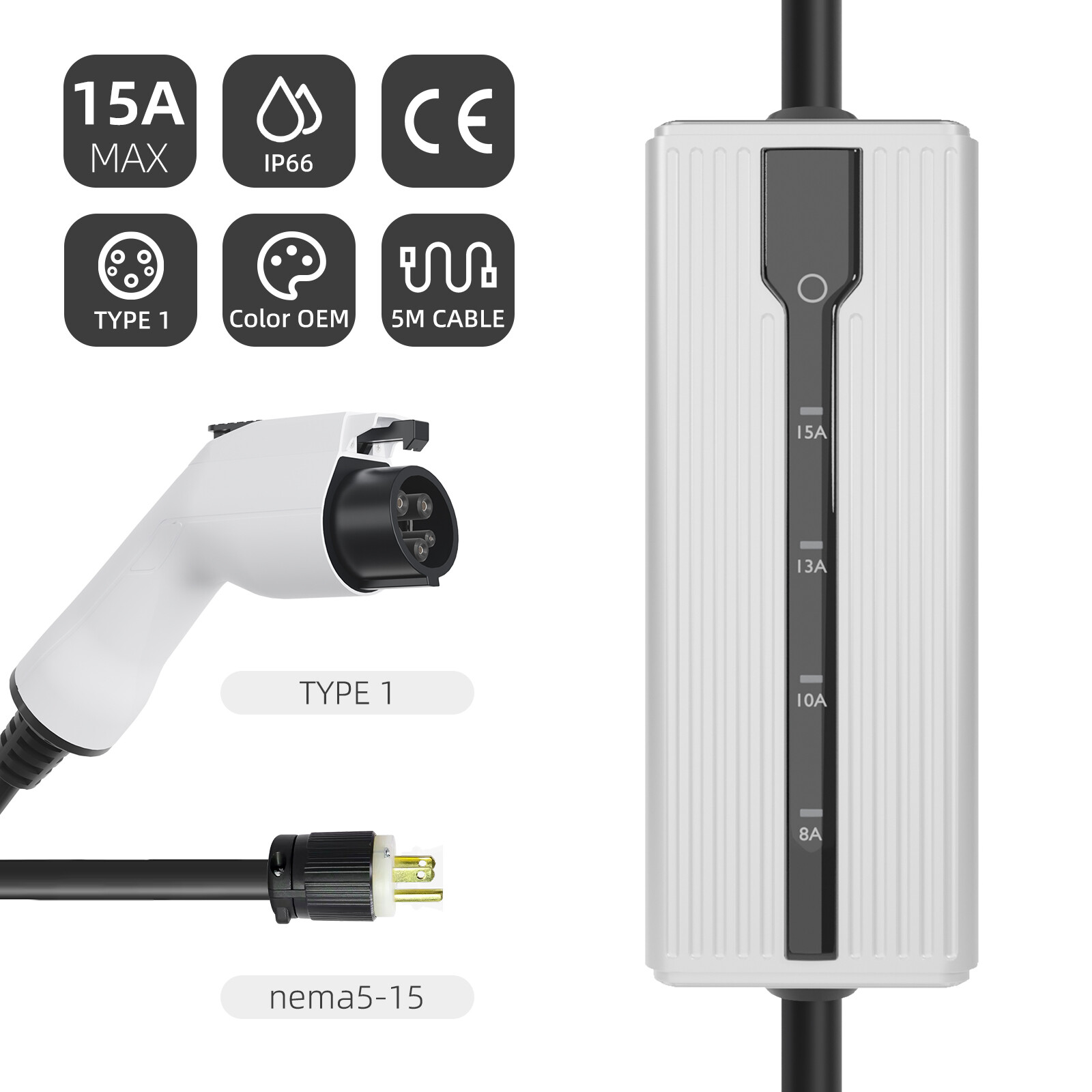

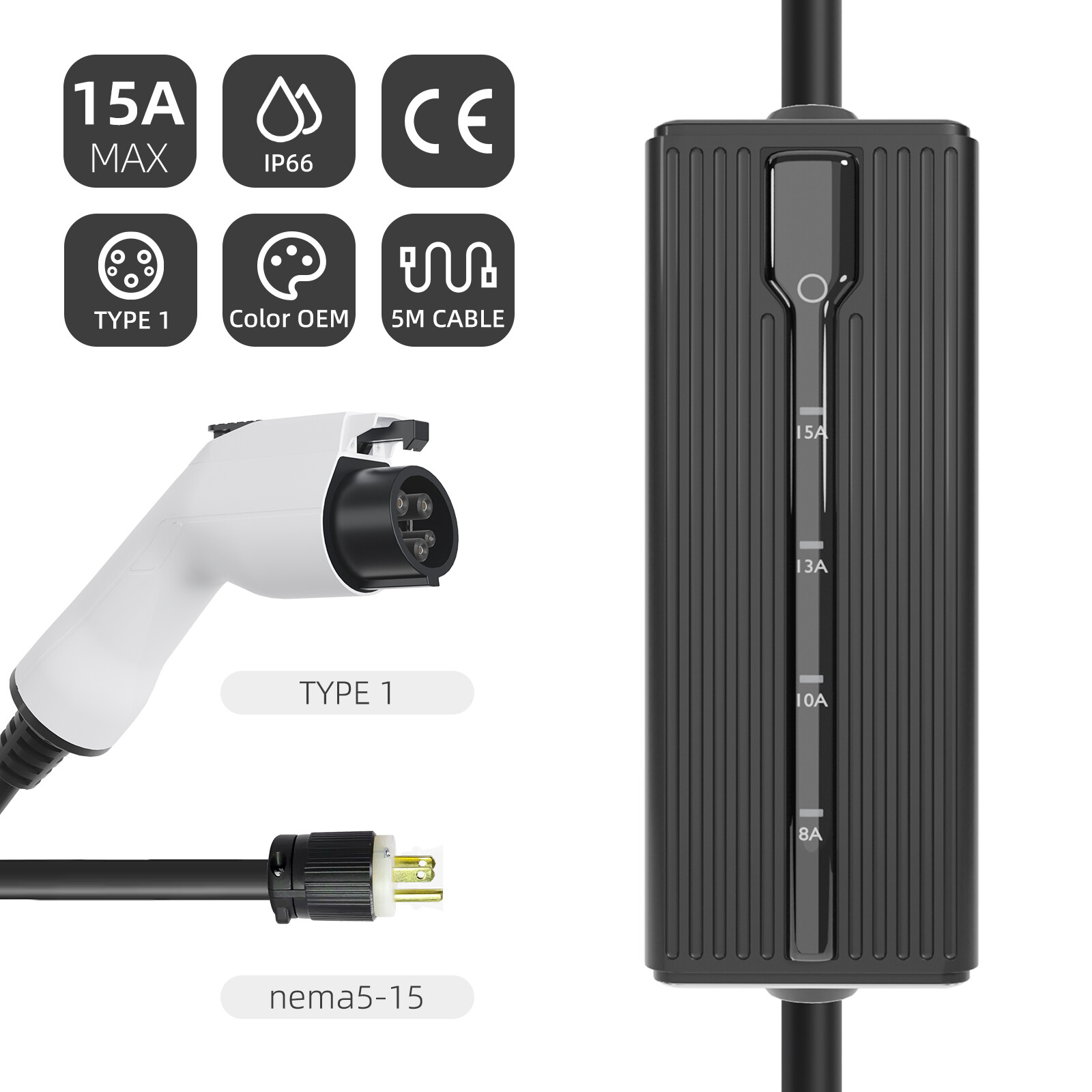

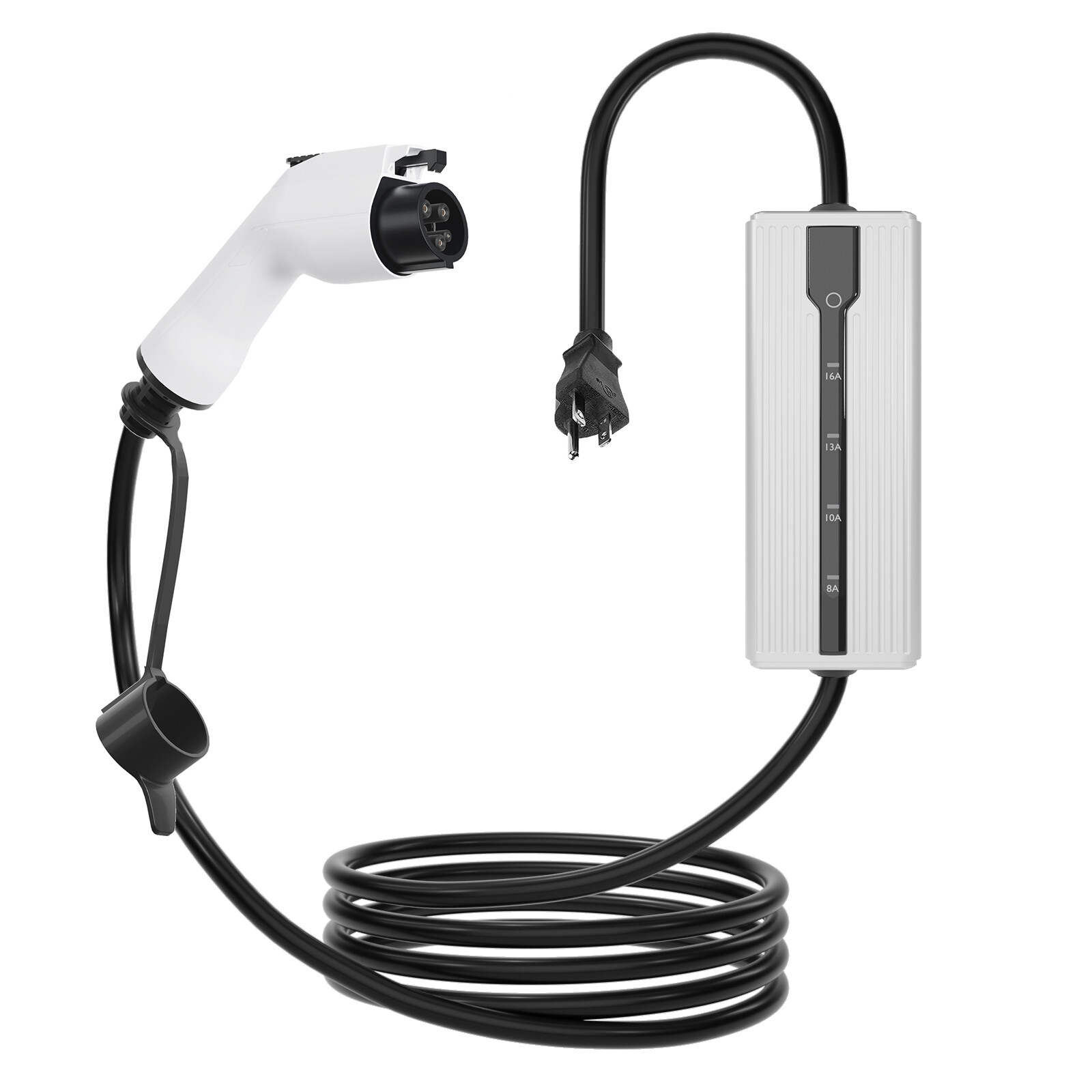

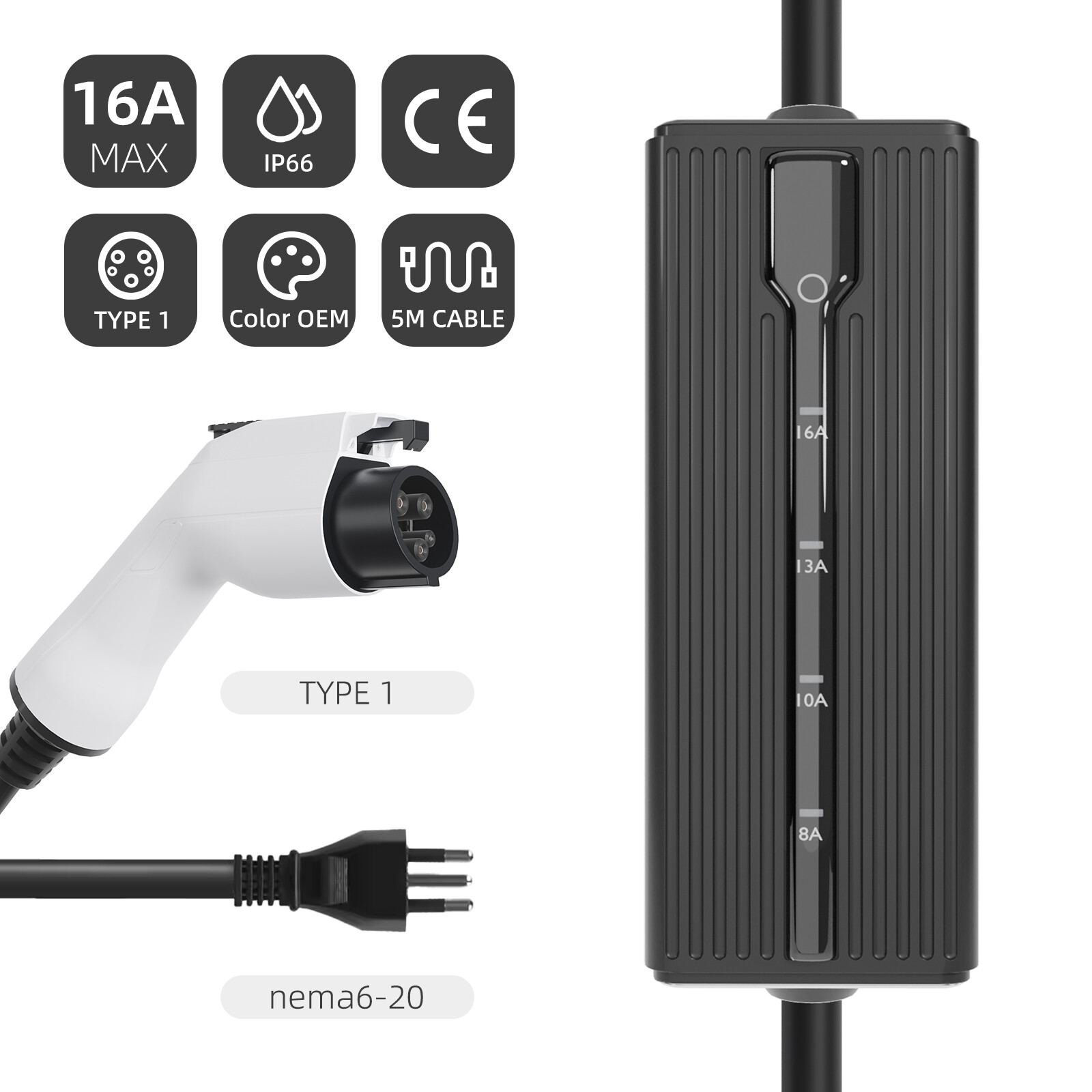

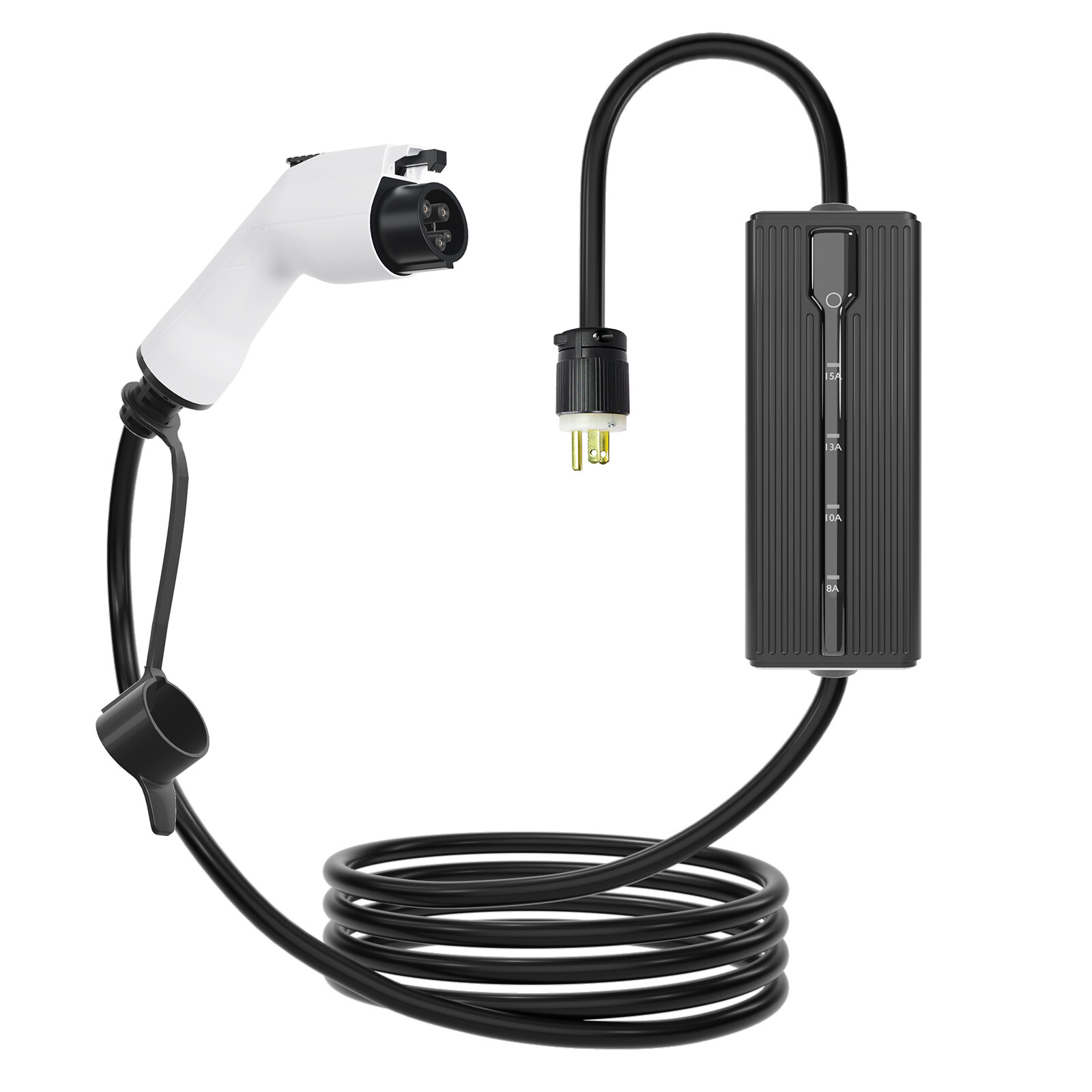

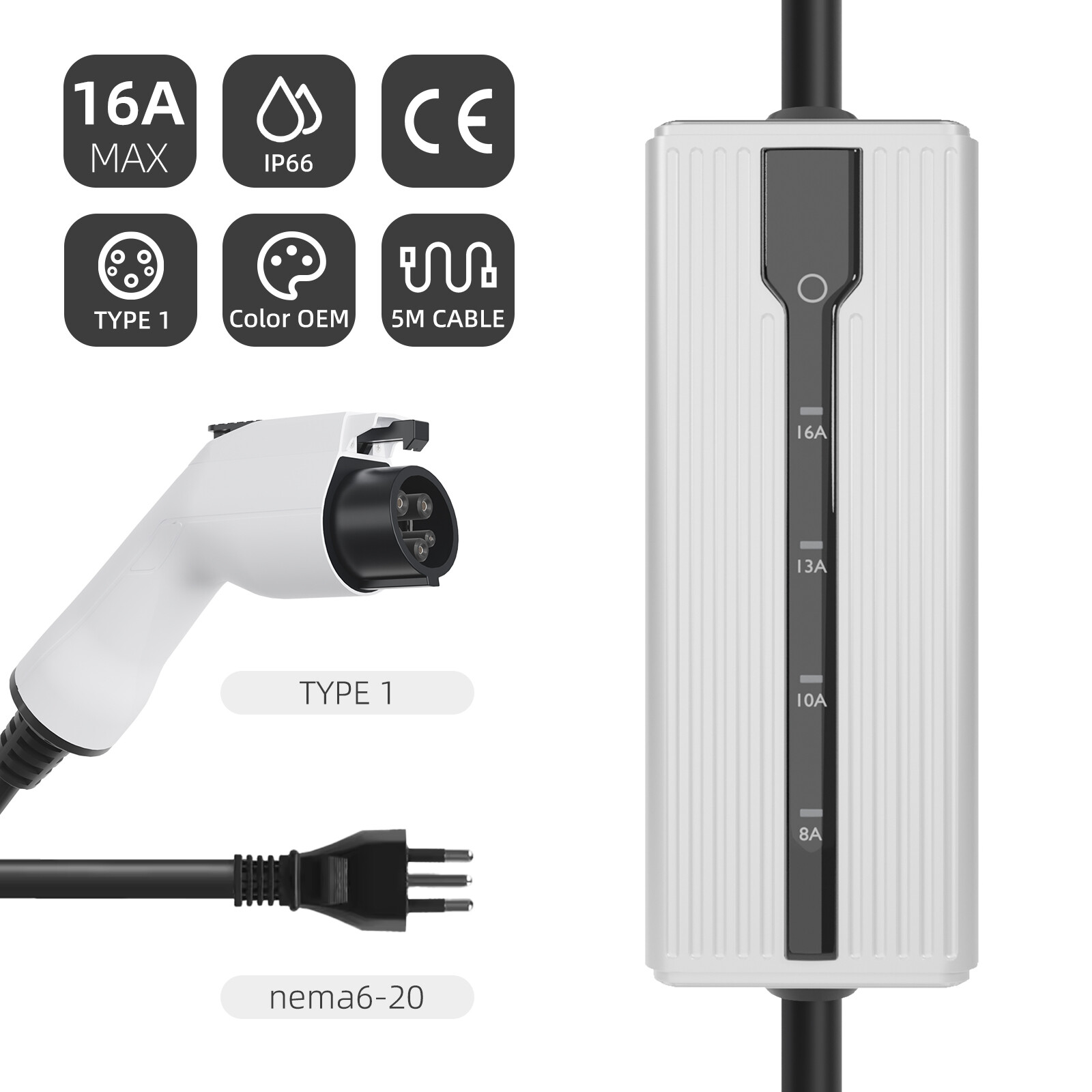

Type 1 Portable EV Charger without Screen - SoapBox

Product Introduction

Engineered for durability and safety, Its core intelligence lies in adjustable current output and comprehensive protection suite—guard against over-temperature, over-current, over-voltage, and leakage. The robust, no-frills design in Black or White ensures lower maintenance and easy integration. A consistently stable product, built to support your business growth with every unit. Compatible with all Type 1 electric vehicles

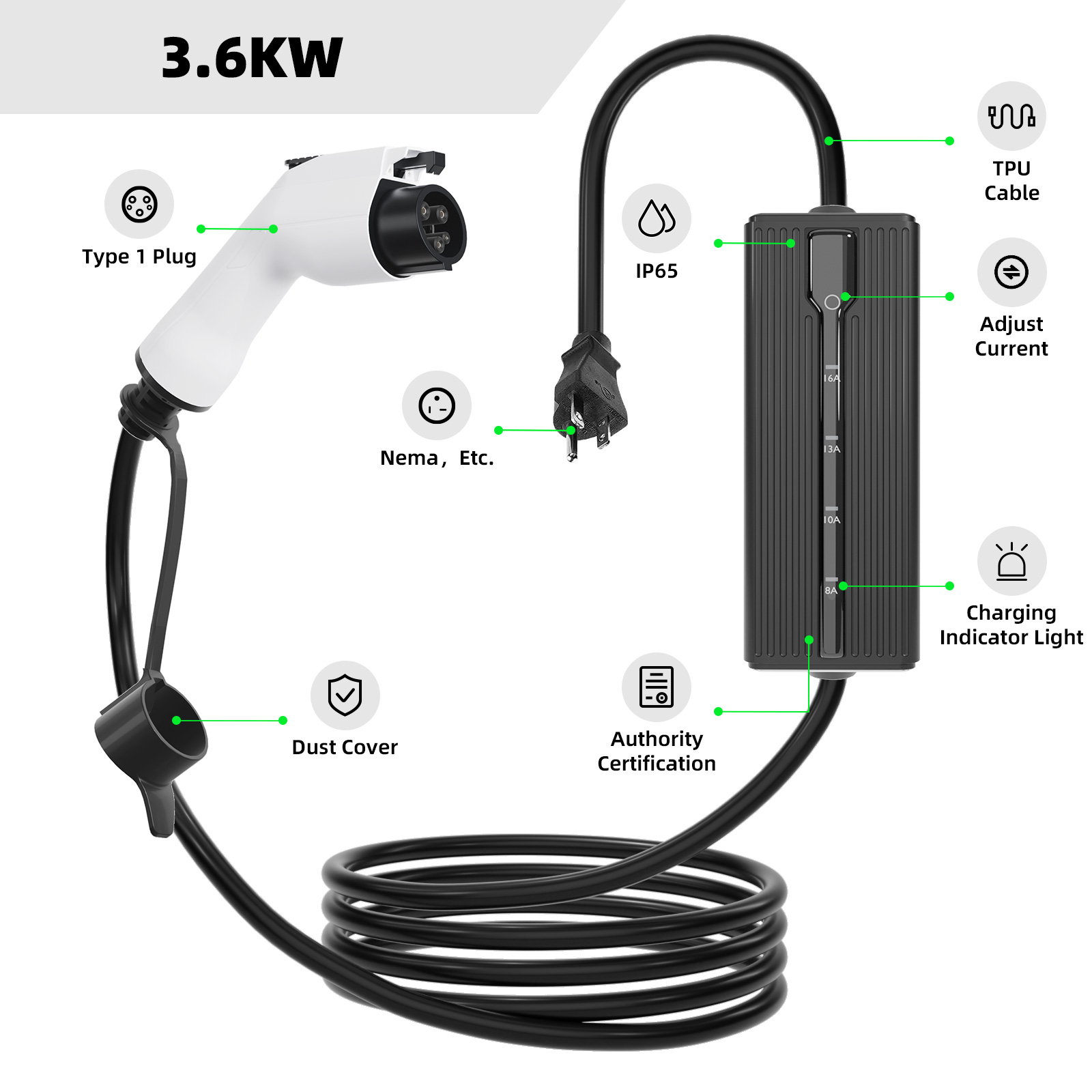

Product diagram and parameters

Ac input voltageL	240V (1 Phase )
Ac Power Frequency (Hz)	50-60Hz
Rated Current	Fixed 6A/8A/10A/13A/16A
Output Power Range	1.38KW/1.84KW/2.3KW/3KW/3.6KW
Cable Length	Total length 5 meters

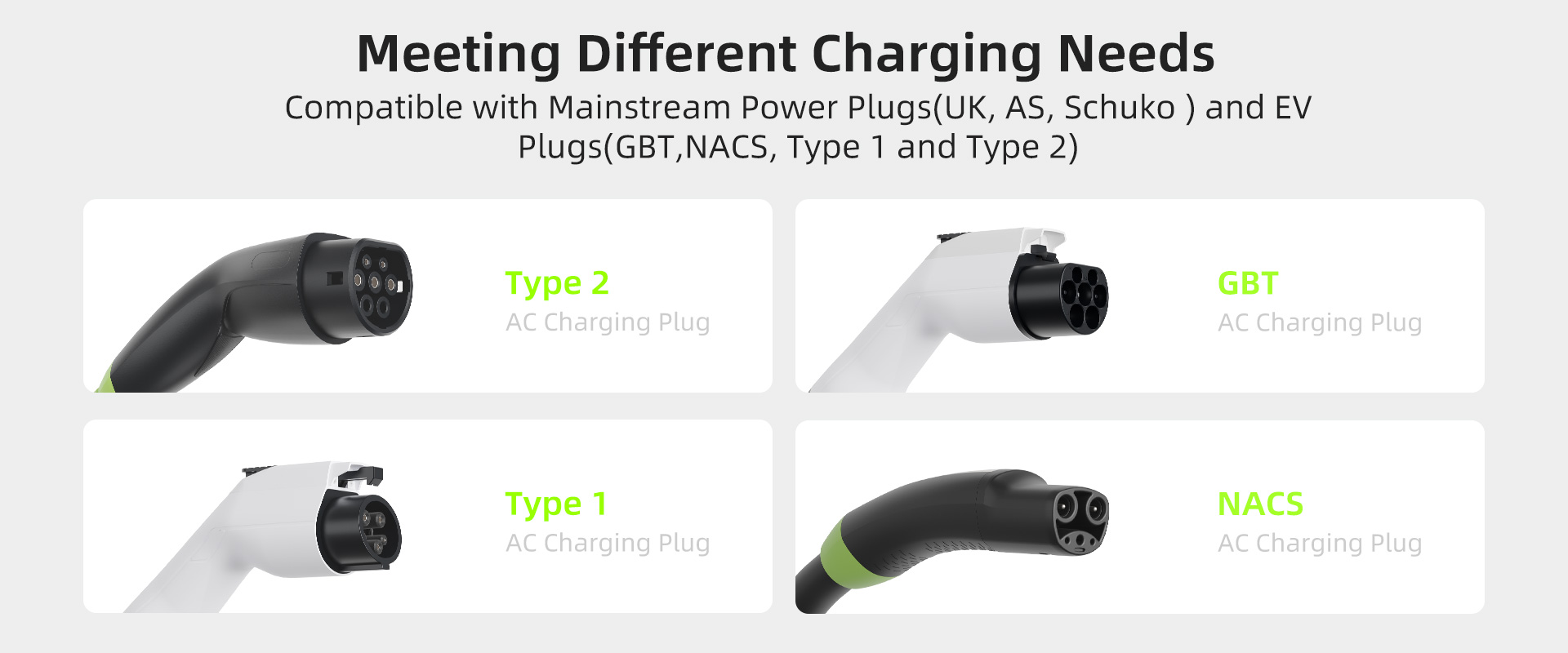

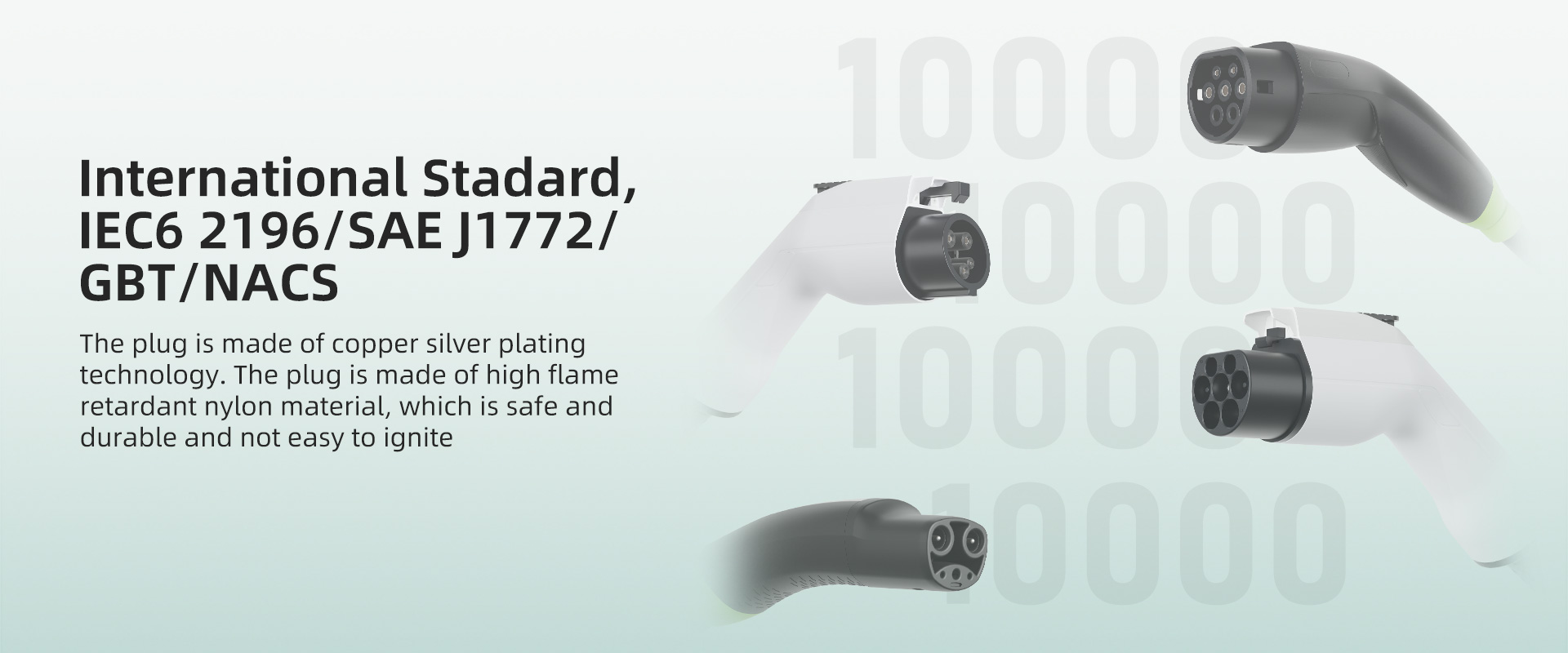

Output Plug Type	SAE J1772 Type 1
Status Display	LED indicator
Interaction	Plug and play
Accessories and Packaging Option	storage bag, user manul, winding combination gun head storage bracket, mounting screw bag

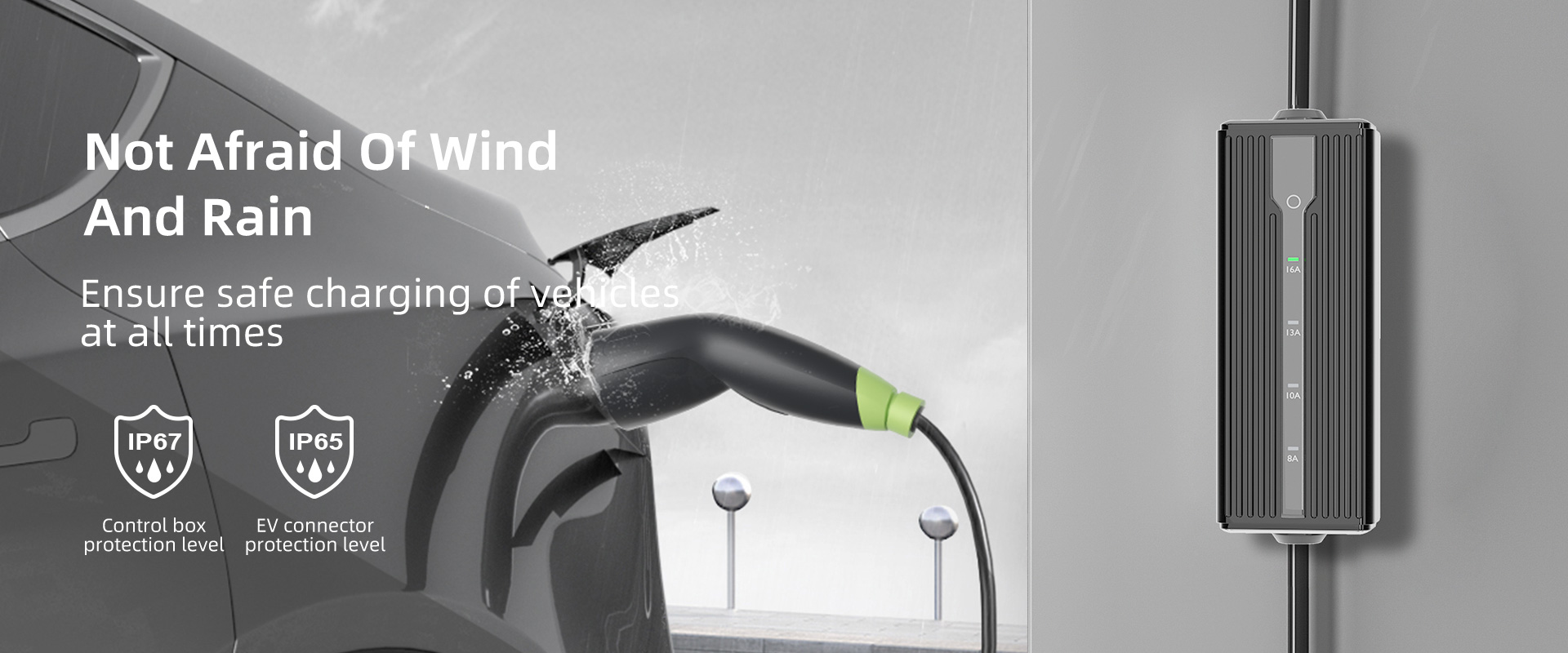

Protection Grade	IP65 for the control box and IP55 for the output plug.
Product Packaging Specifications	aircraft box neutral packaging (rectangular box)
Certificates	CE

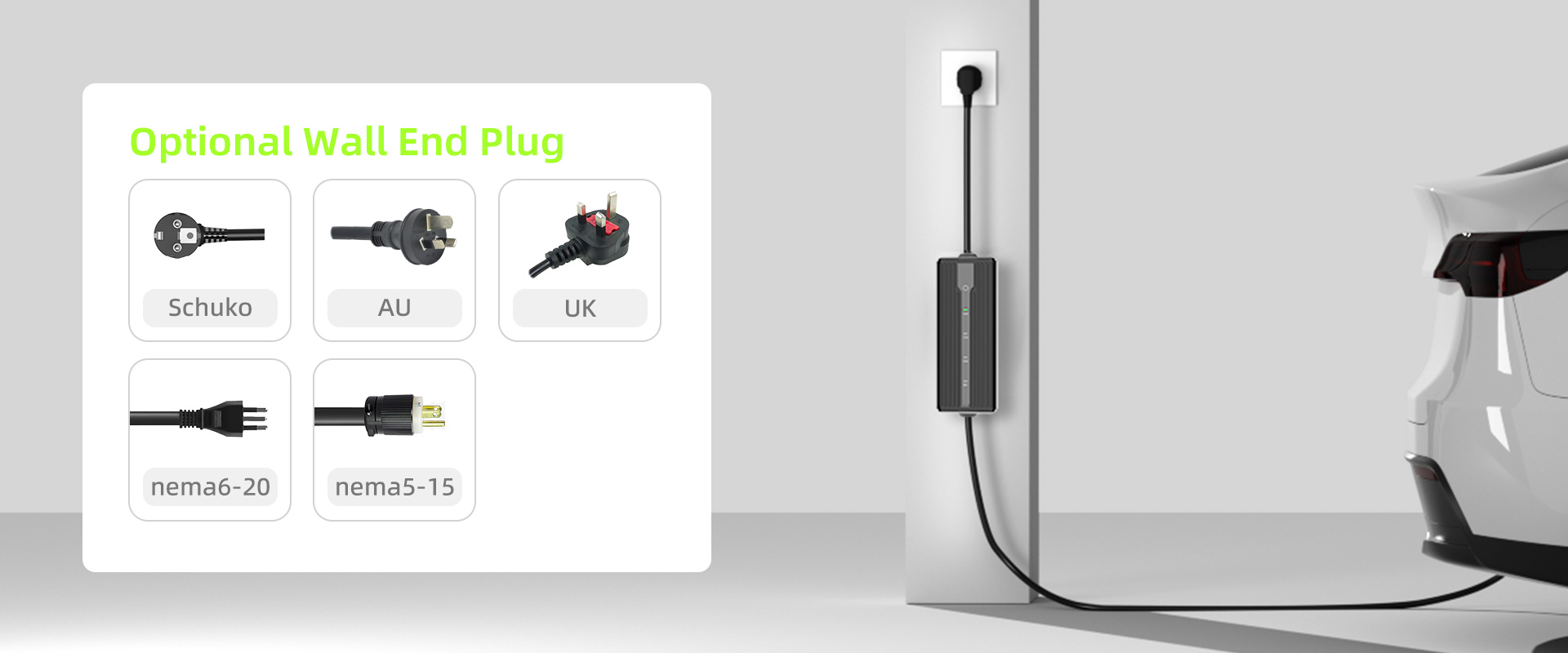

Input Plug	UK power plug（10A）、Schuko power plug（16A）、India/South Africa power plug（16A）、Nema series power plug、CEE power plug(32A) etc.
Output Plug Color	Black/White

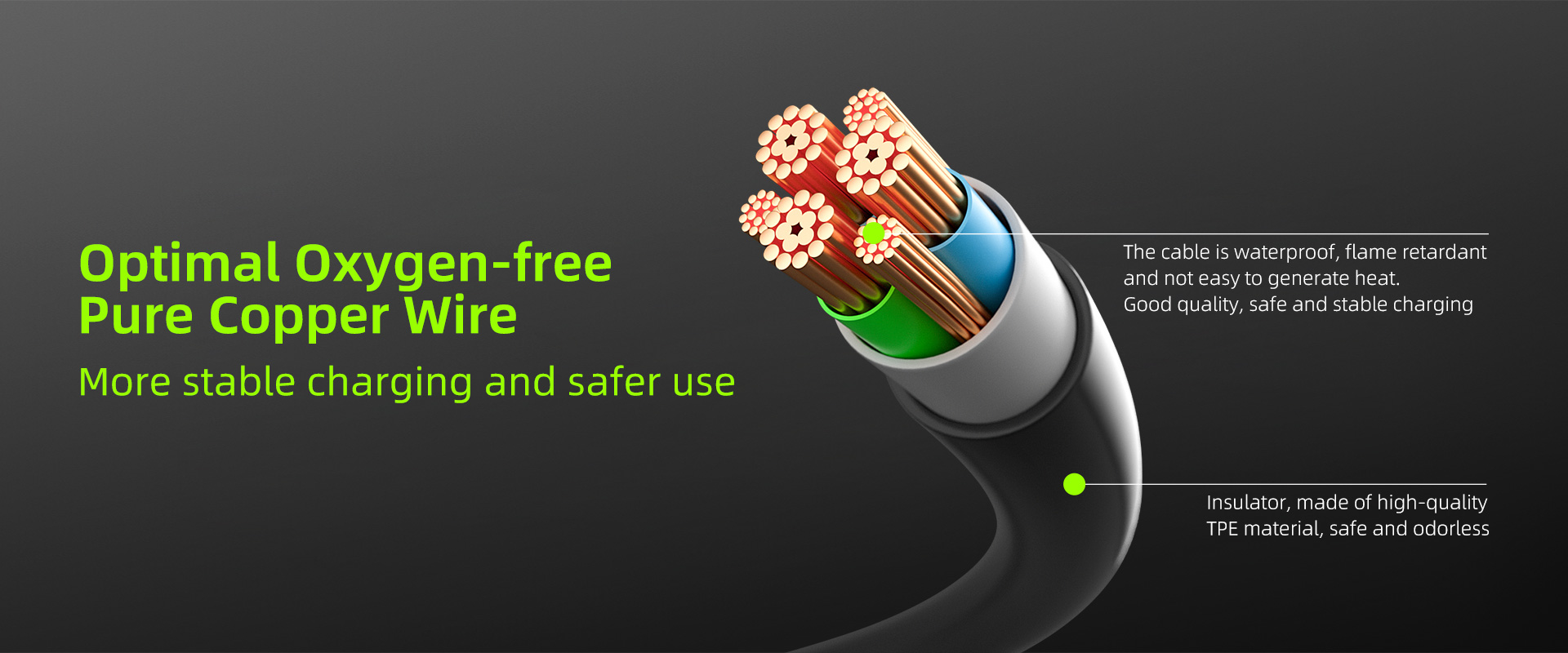

Cable Jacket	TPE/TPU
Cable Color	Black
Wire Gauge	32.5mm²+10.5mm²

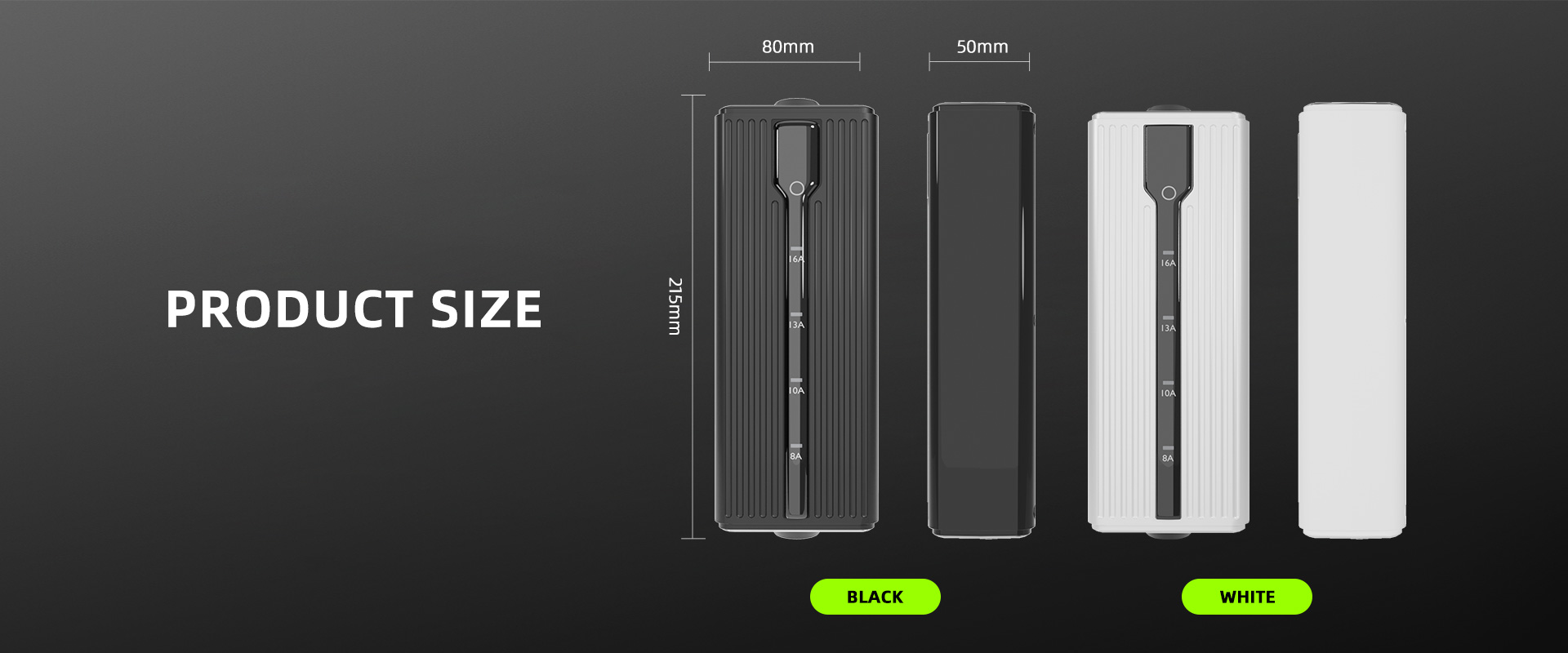

Control Box Size	188*76mm
Contrl Box Color	Black/ White

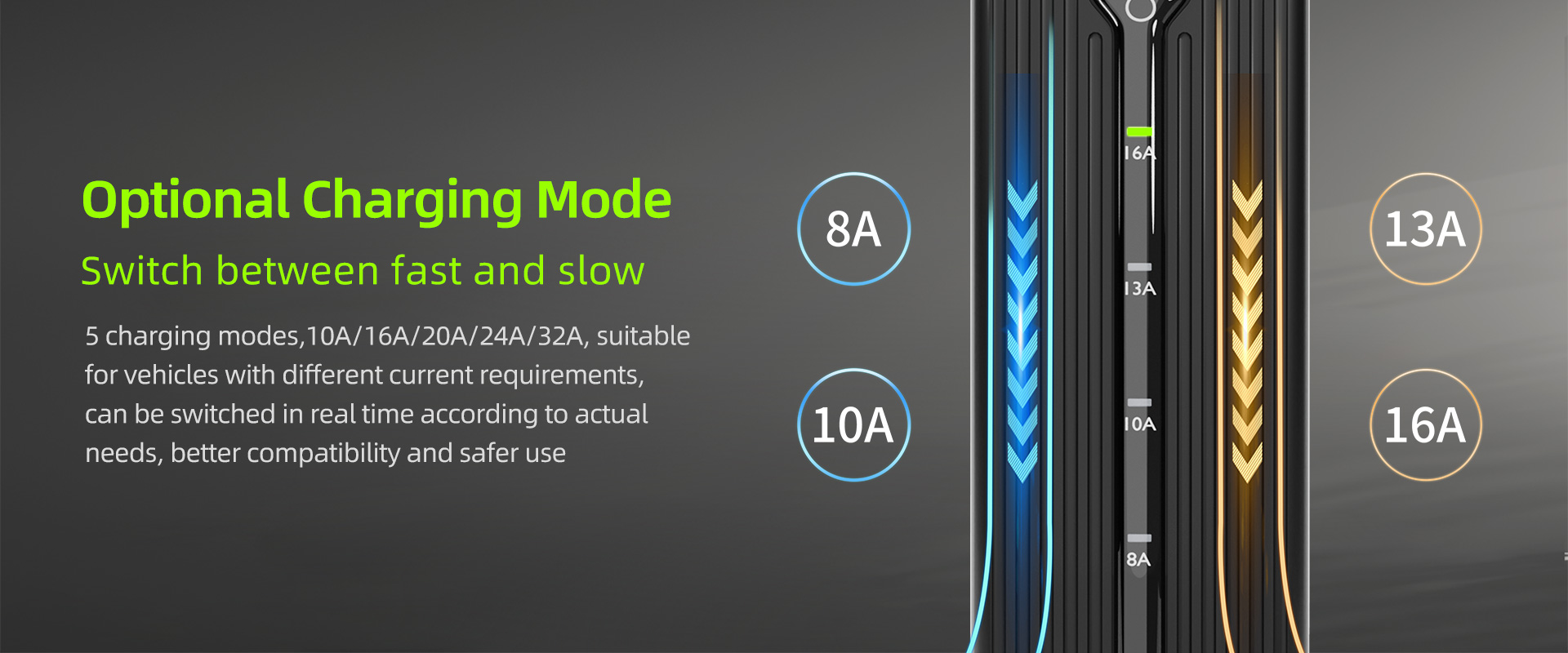

Control Box Button	1 - current adjustment button
Indicator light	2
Protection	Overload Protection,Overtemperature Protection,Short circuit Protection,Lightning Protection,Overvoltage protection/Undervoltage Protection,Ground Protection
Leakage Protection Device (mA)	TypeA
Operating ambient temperature condition	﹣30℃ - 55℃
Working environment humidity conditions	5%-95%
Drop Resistance	It can withstand being crushed by 2T cars and falling from a height of 1 meter
Protection Level	Control box IP65, Connector IP54
