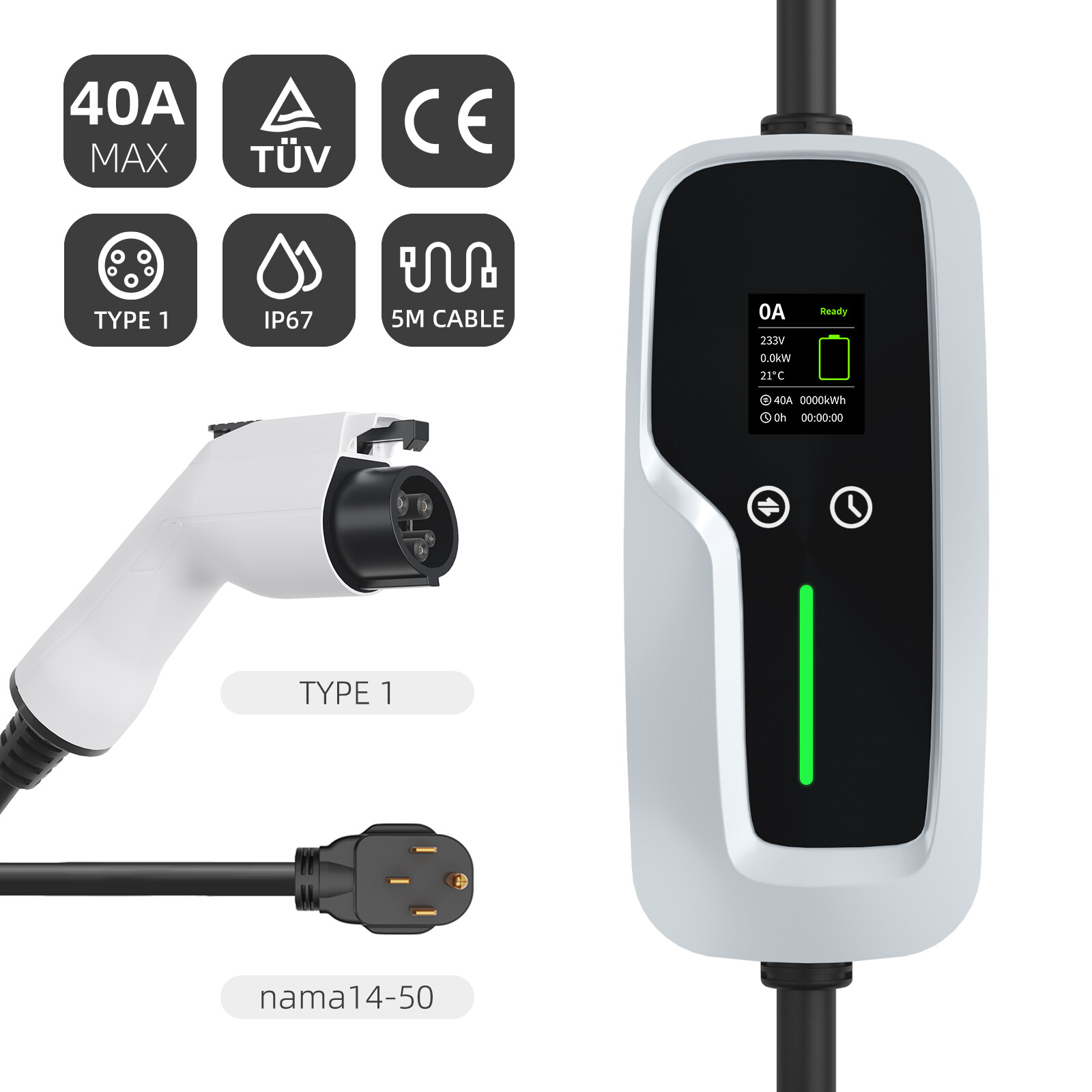

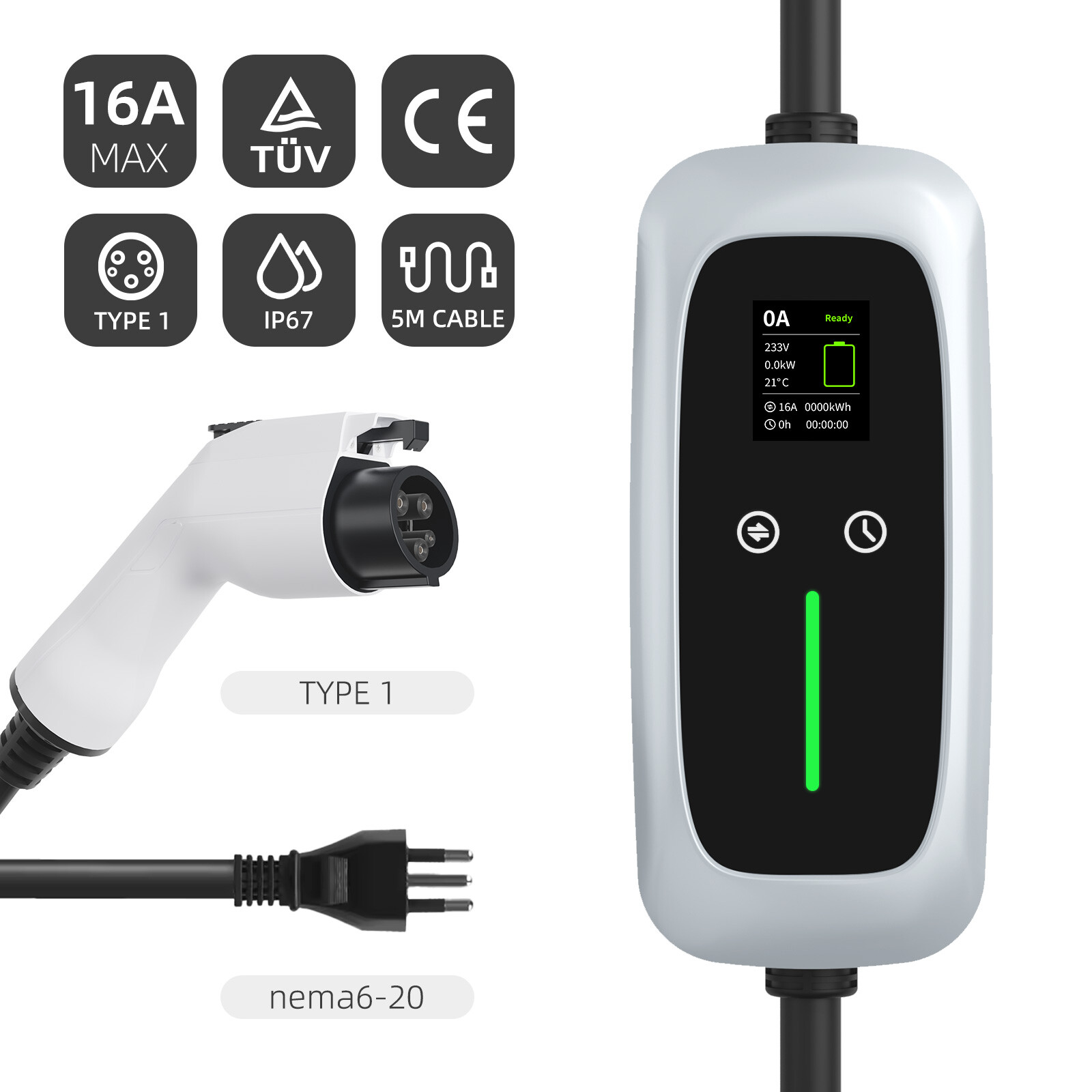

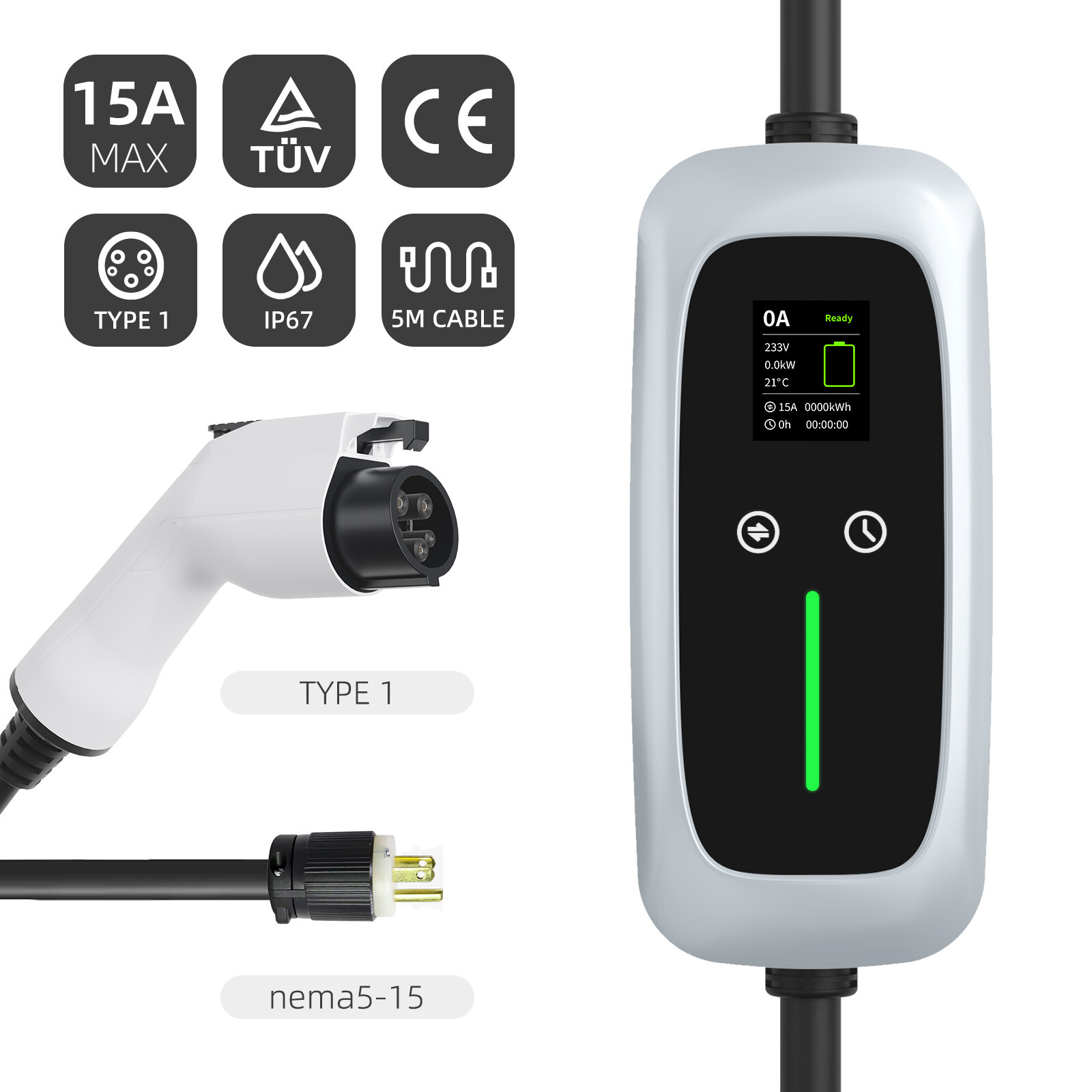

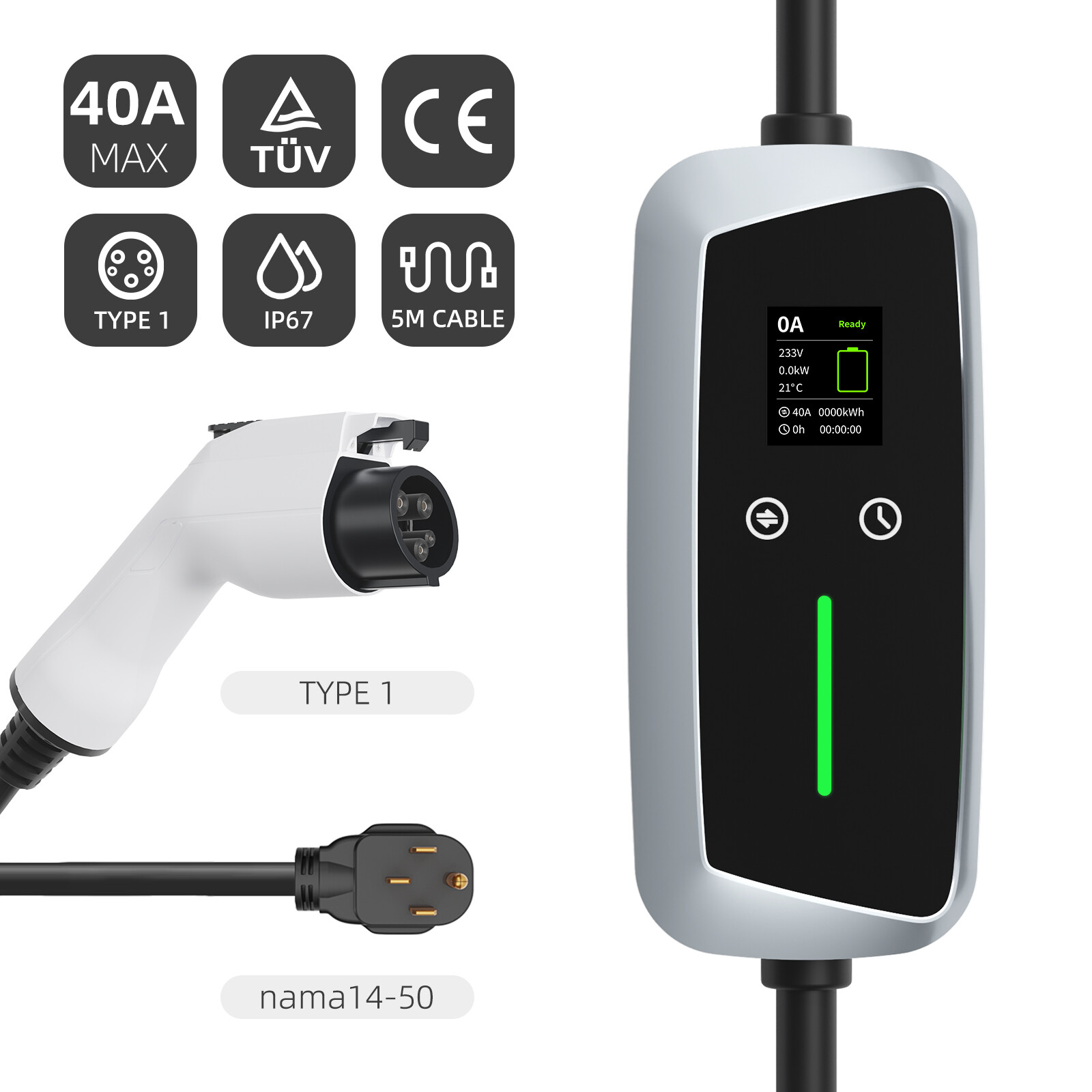

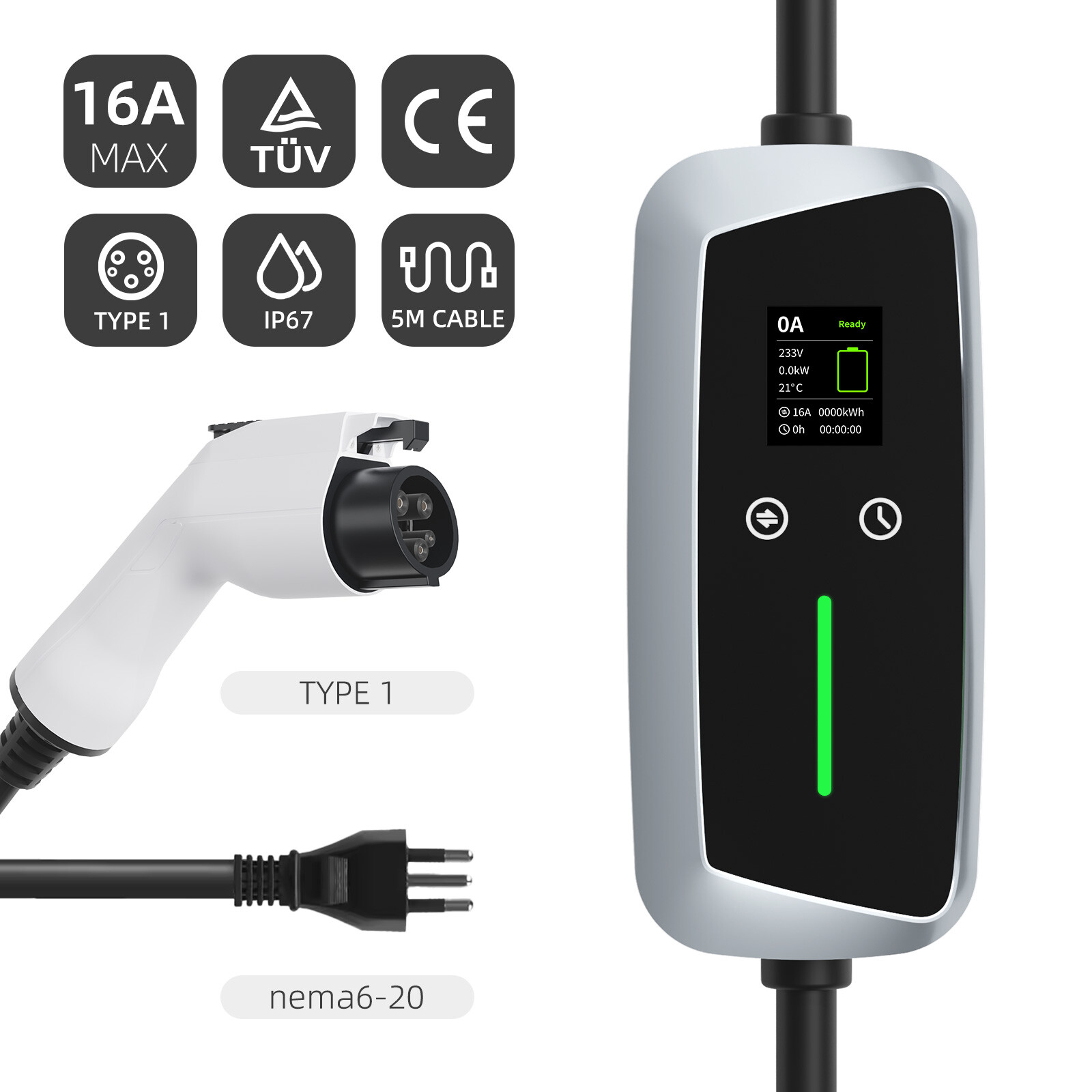

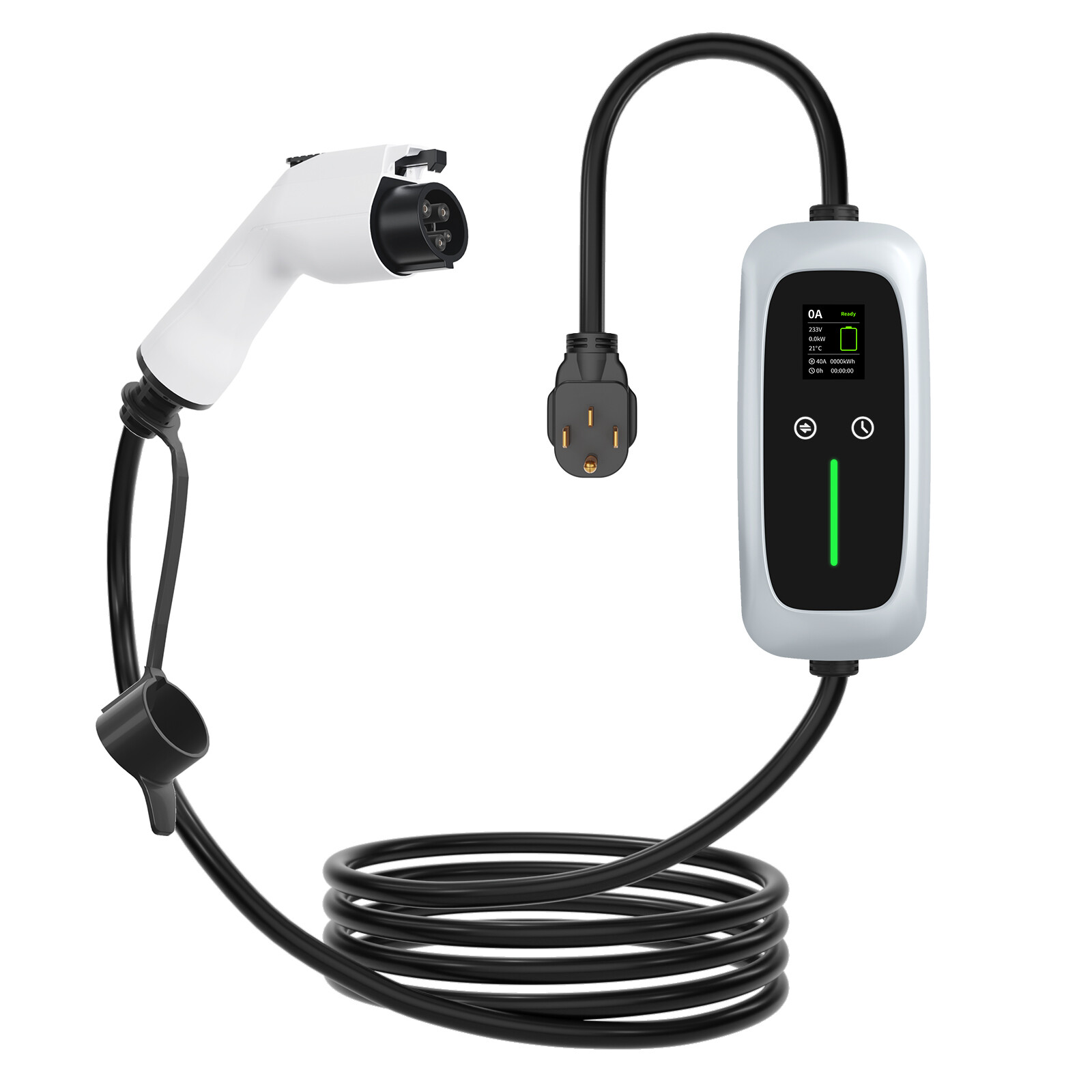

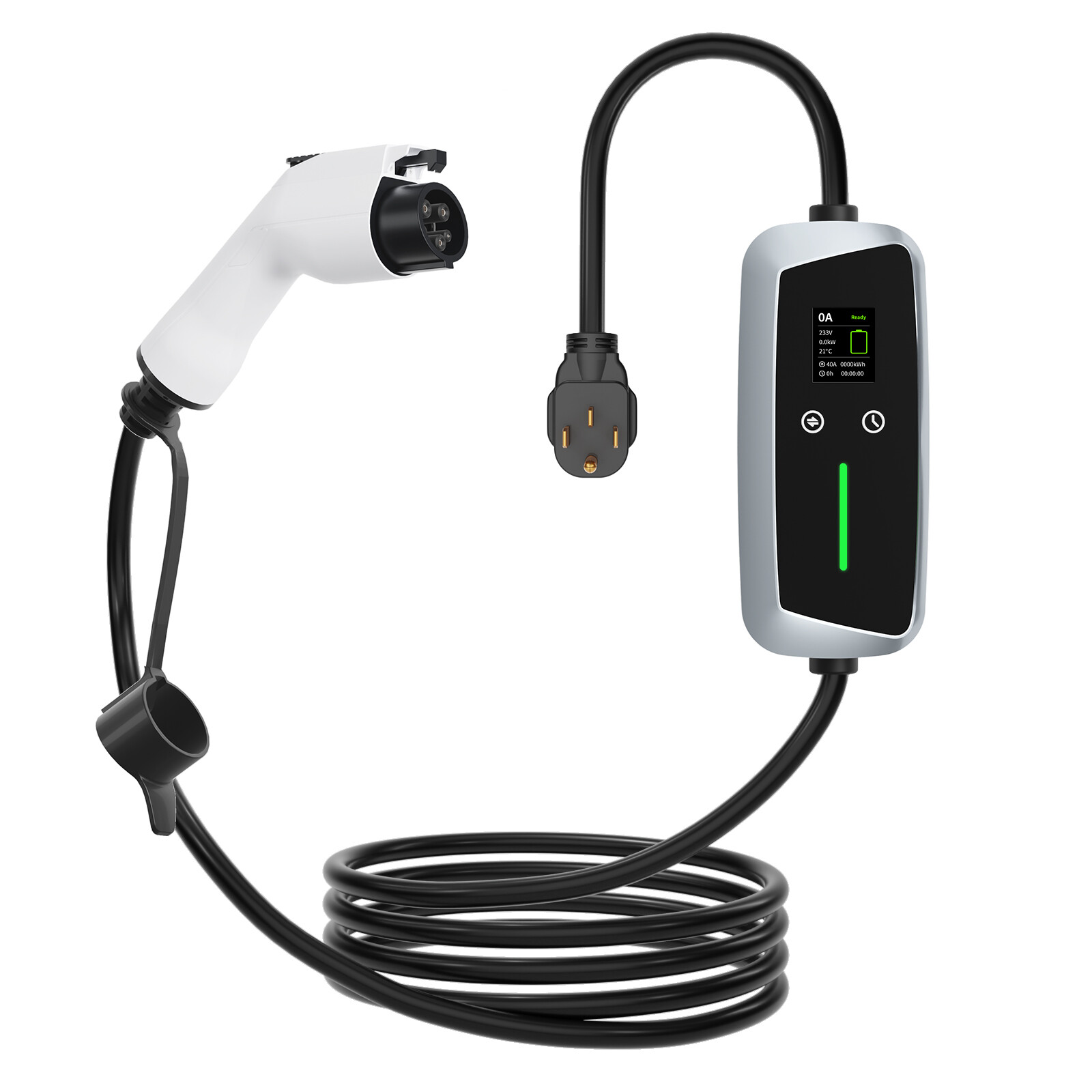

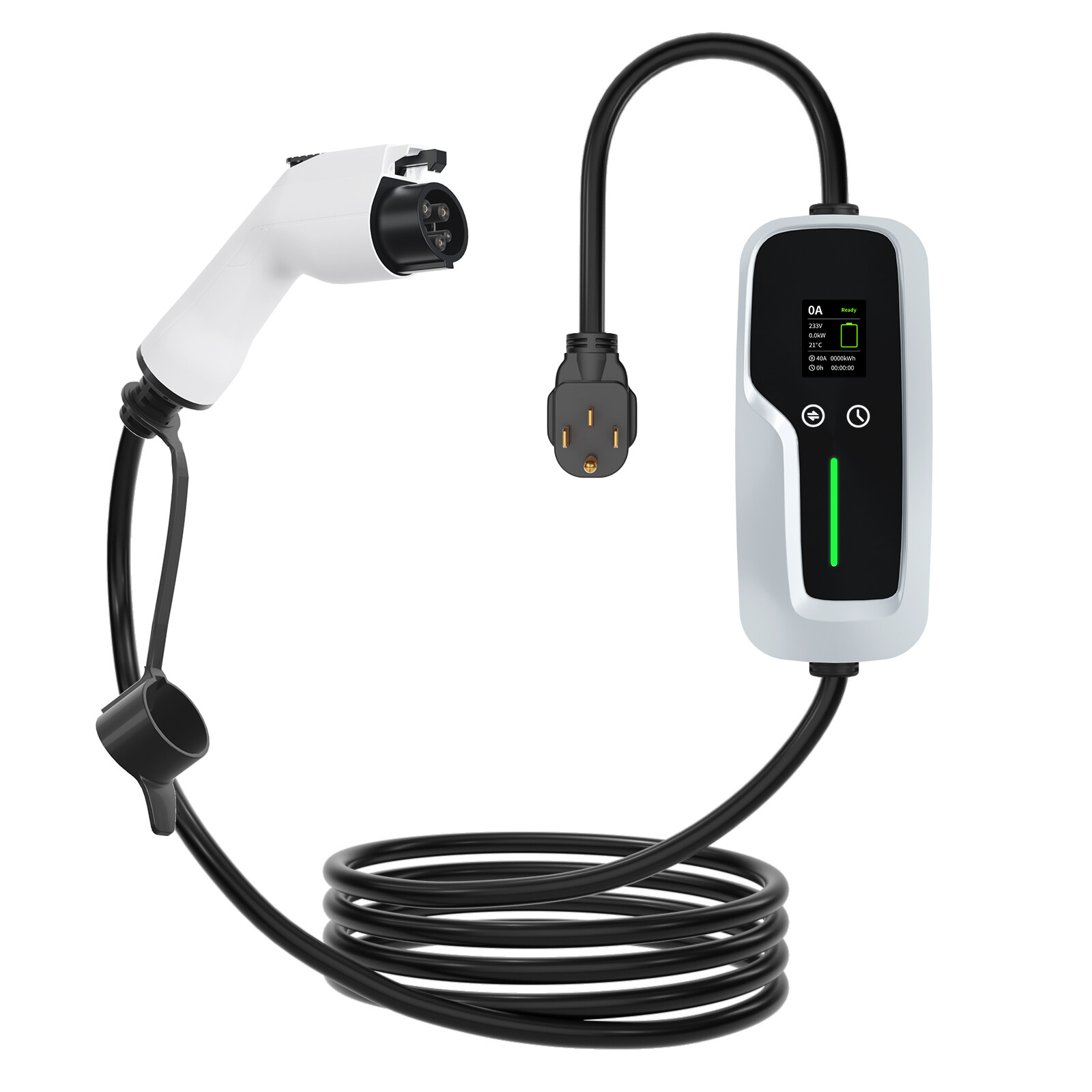

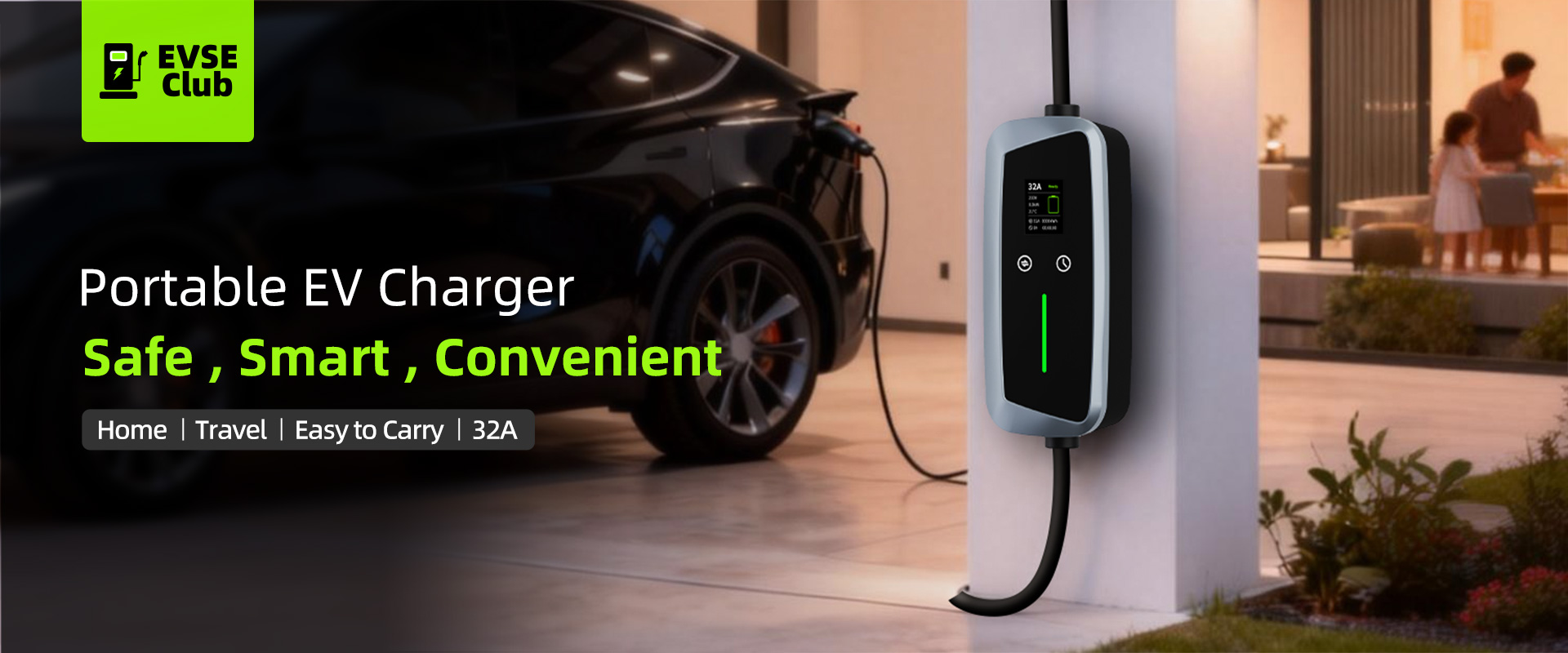

Type 1 Portable EV Charger 7.4kw with LCD Screen

Product Introduction

Portable EV Charger can be equiped with different power plug for different market. It is mainly for home use, as long as you got socket in your home.
Sometimes, you have to go somewhere far away and there maybe no EV Charger in the countryside, at this time, portable EV charger can support your car charging. If your car runs out of power on the road, you can use a discharger + portable charger for emergency use.

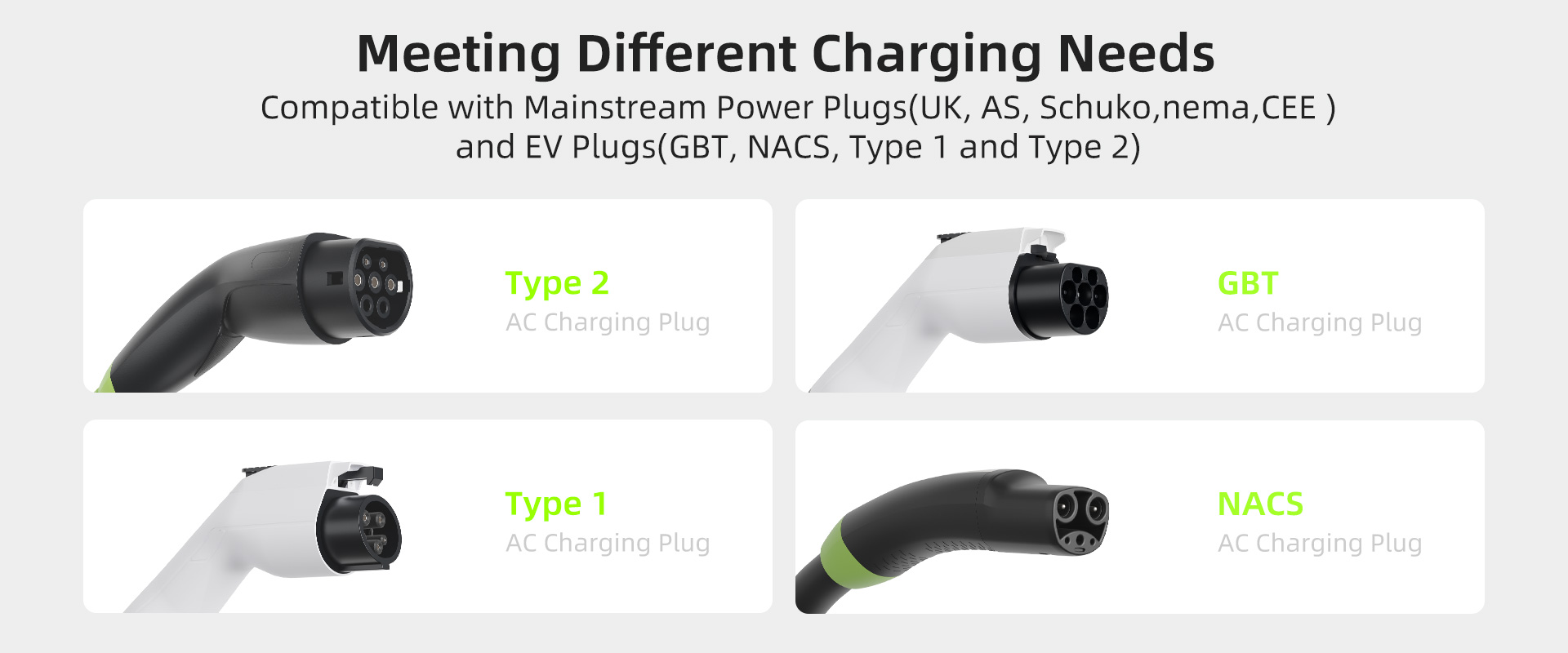

The products has extra functions option: Tesla UHF, support all Tesla cars, once you press the button on the charger connector, the charging socket of the car will open. Only Type 2 / NACS Portable EV Charger available.
Also we can add a Led on the connector, so you do not worry about use in the dark.

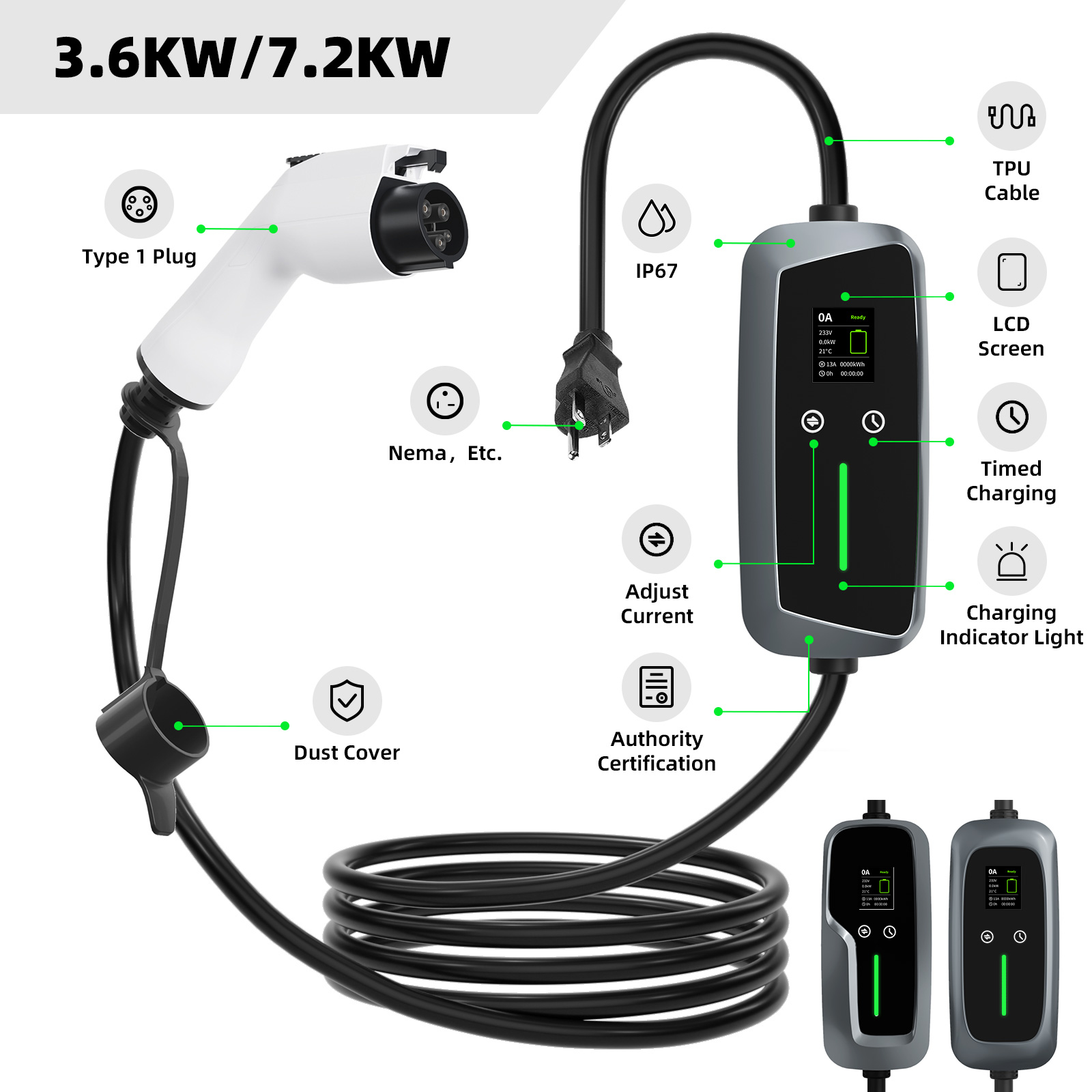

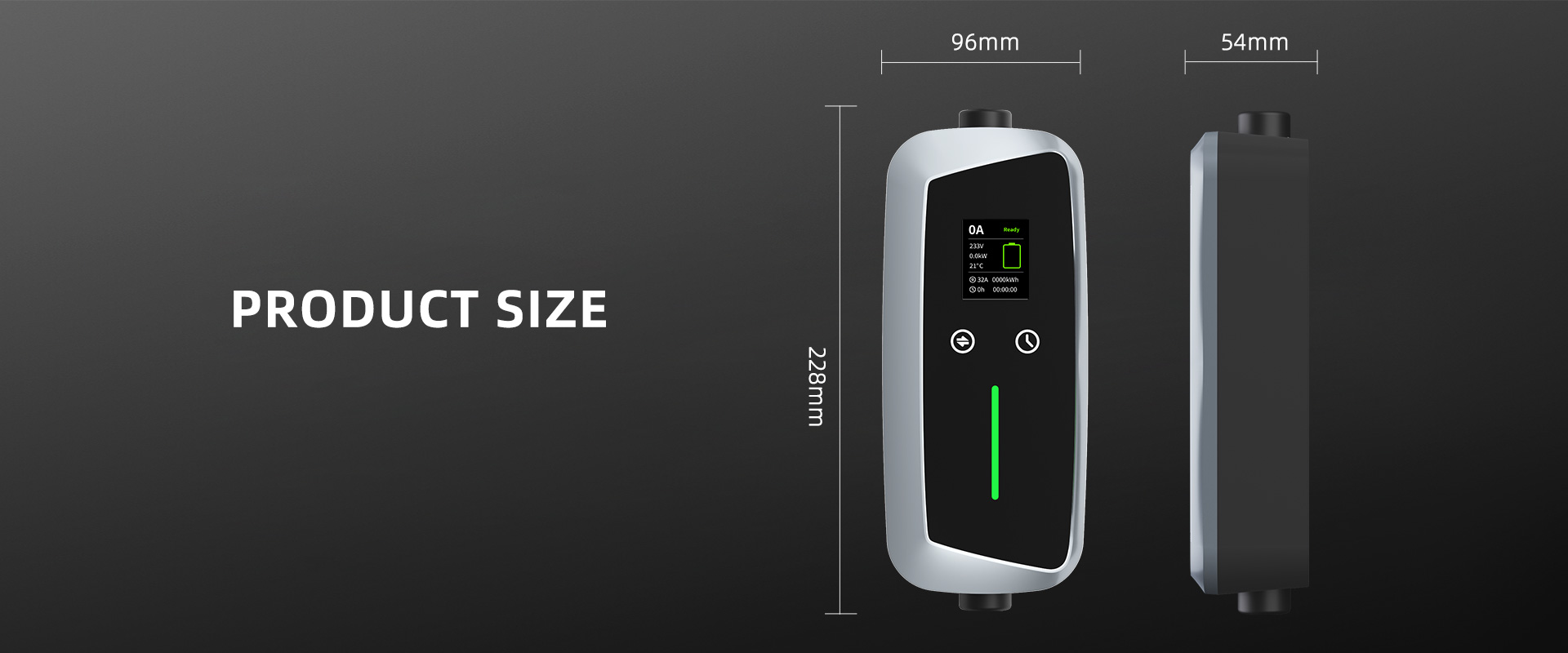

Product diagram and parameters

Ac input voltage	240V AC
Ac Power Frequency (Hz)	50-60Hz
Rated Current	13A/16A/32A
Output Power Range	1.4~3.6KW/2~7KW
Cable Length	Total length 5 meters

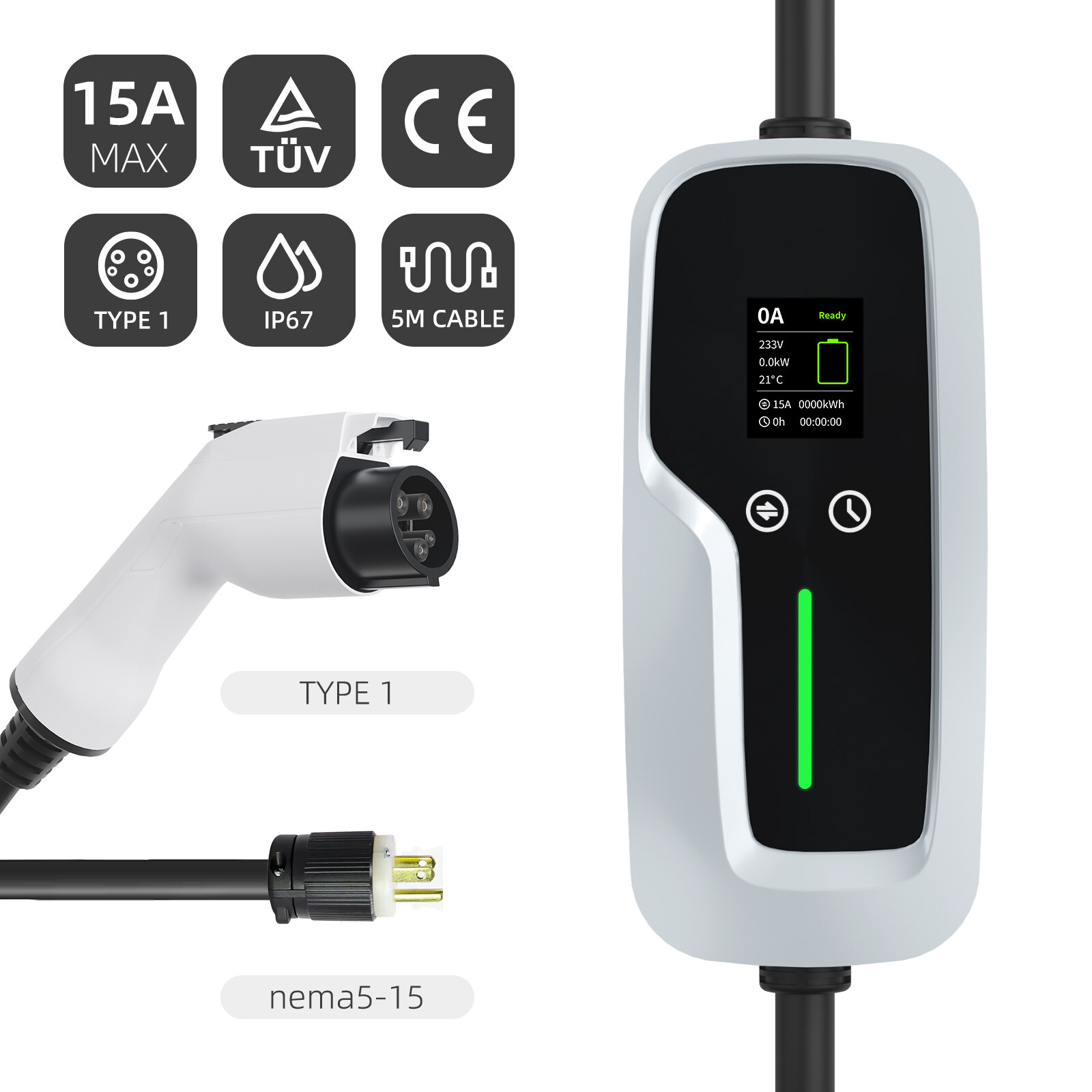

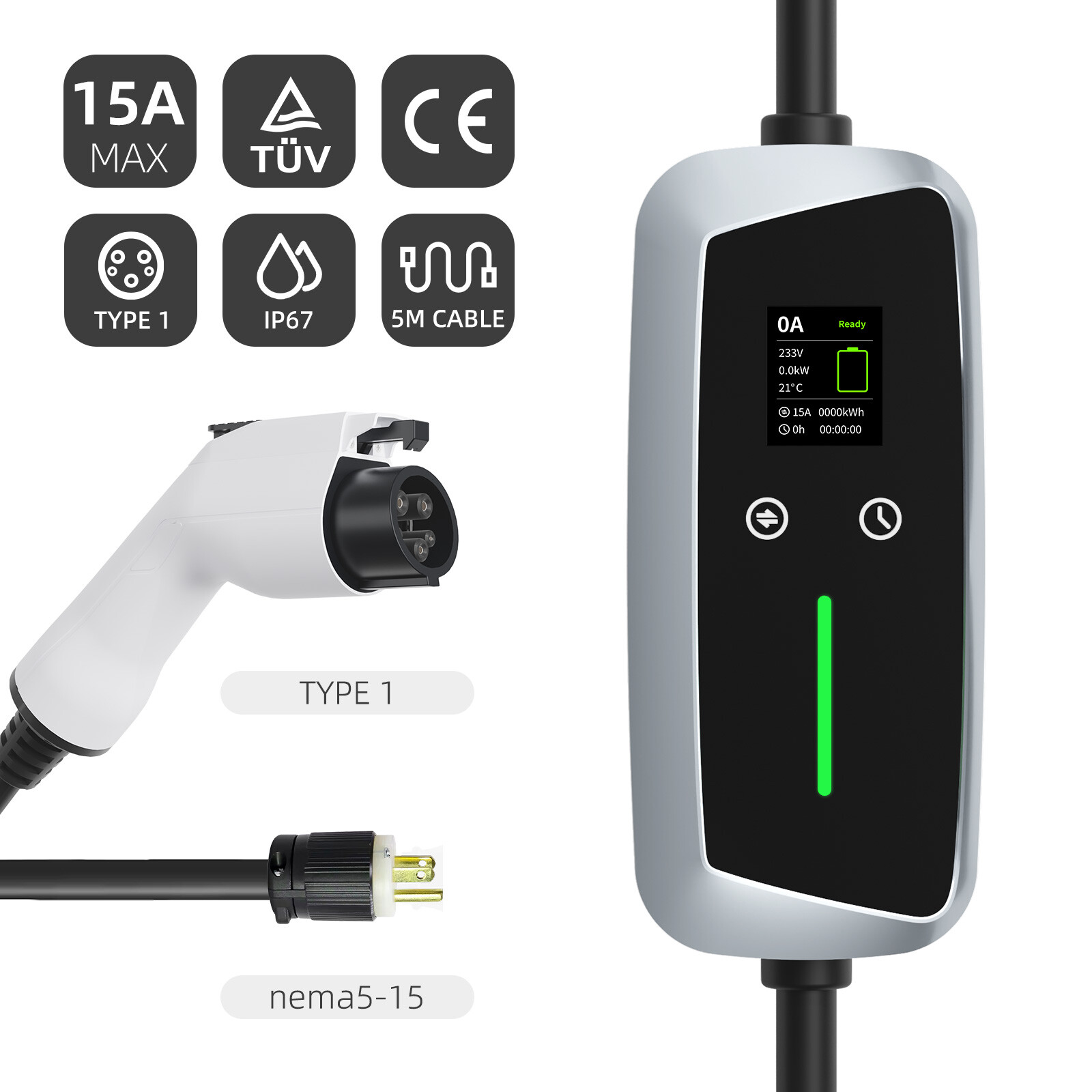

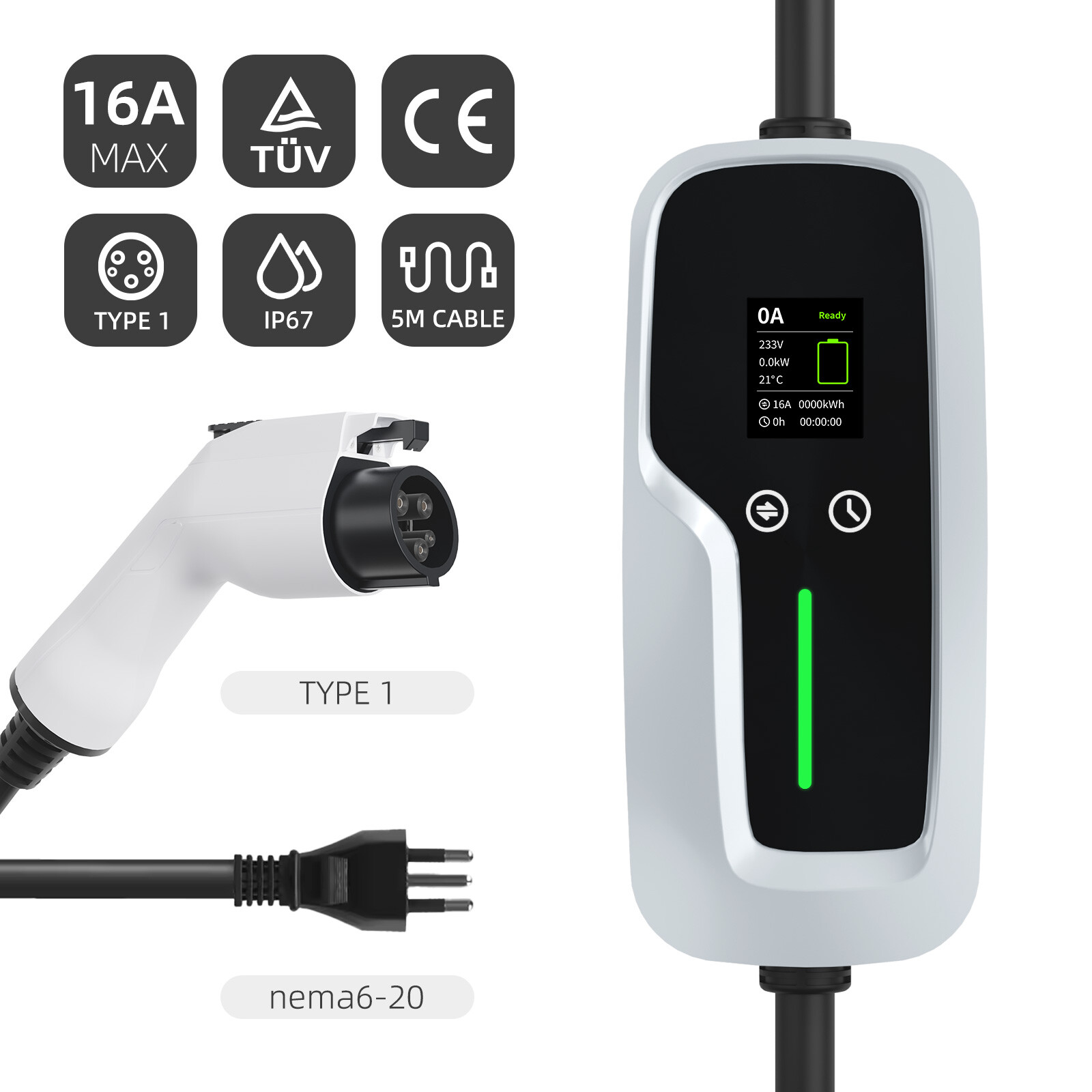

Output Plug Type	SAE J1772 Type 1
Status Display	LED indicator +LCD screen
Interaction	Plug and charge，Bluetooth option
Accessories and Packaging Option	storage bag, user manul, control box wall hanging bracket, winding combination gun head storage bracket, mounting screw bag.
Protection Grade	IP67 for the control box
Product Packaging Specifications	Pizza box (rectangular box)
Certificates	CE

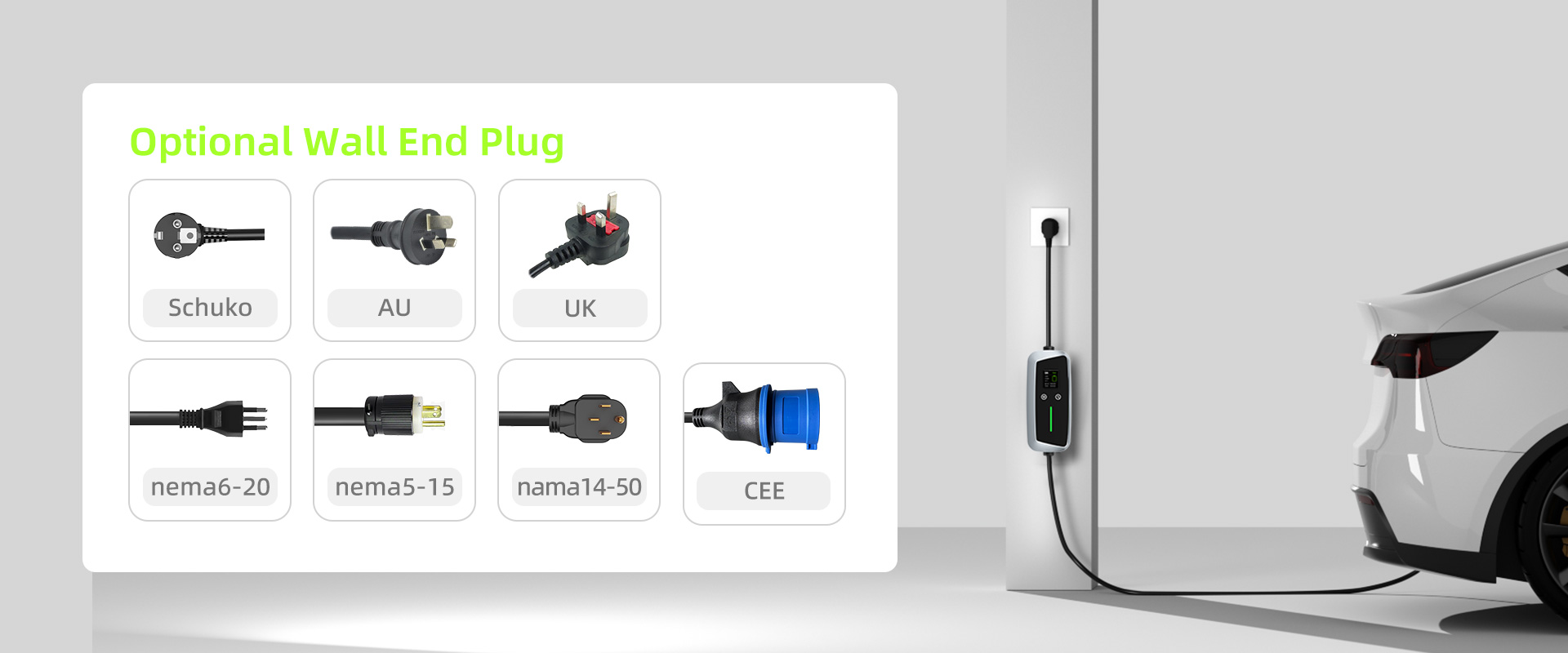

Input Plug	UK power plug（10A）、Schuko power plug（16A）、India/South Africa power plug（16A）、Nema series power plug、CEE power plug(32A) etc.
Output Plug Color	Black/White
Cable Jacket	TPE (UL Certificated) /TPU
Cable Color	Black
Wire Gauge	TPU: 32.5mm²+10.5mm²(16A), 36mm²+10.5mm²(32A/40A) TPE: 314AWG+118AWG(16A), 310AWG+118AWG(32A), 39AWG+118AWG(40A)

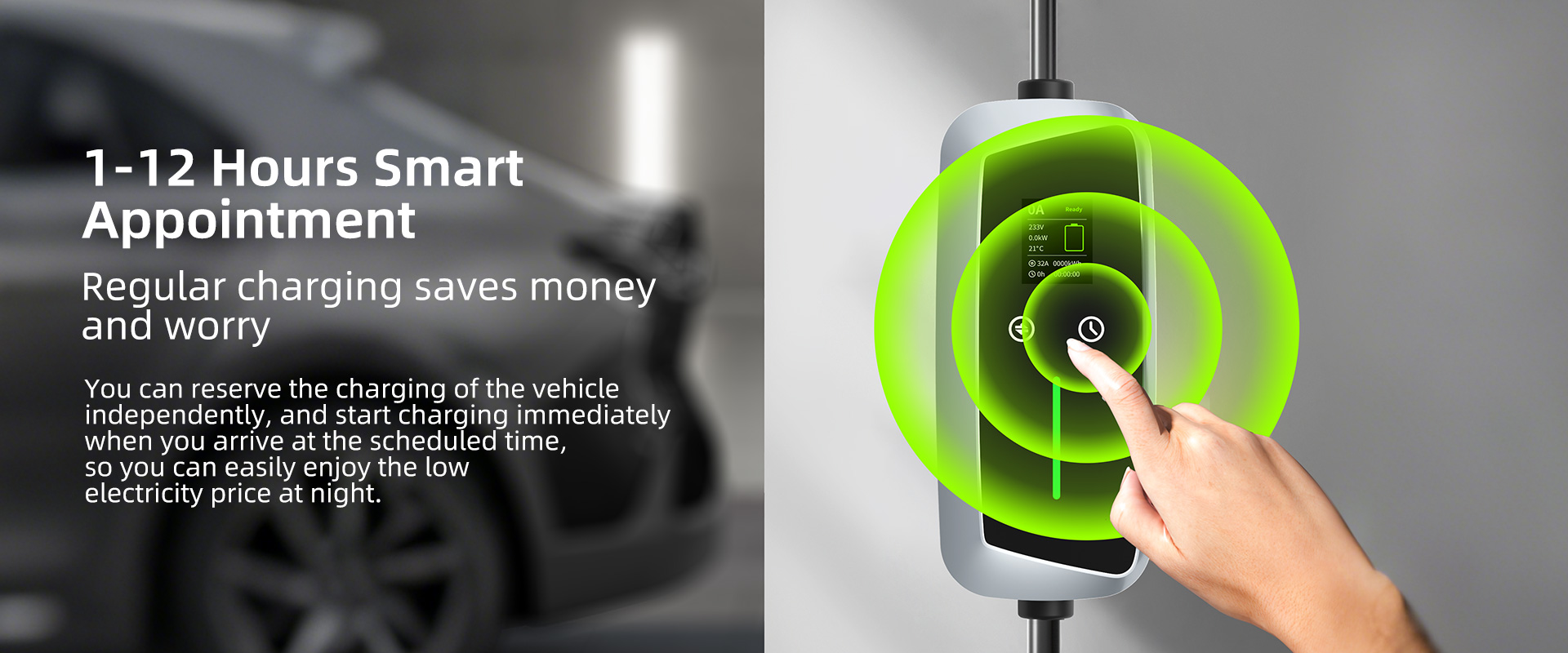

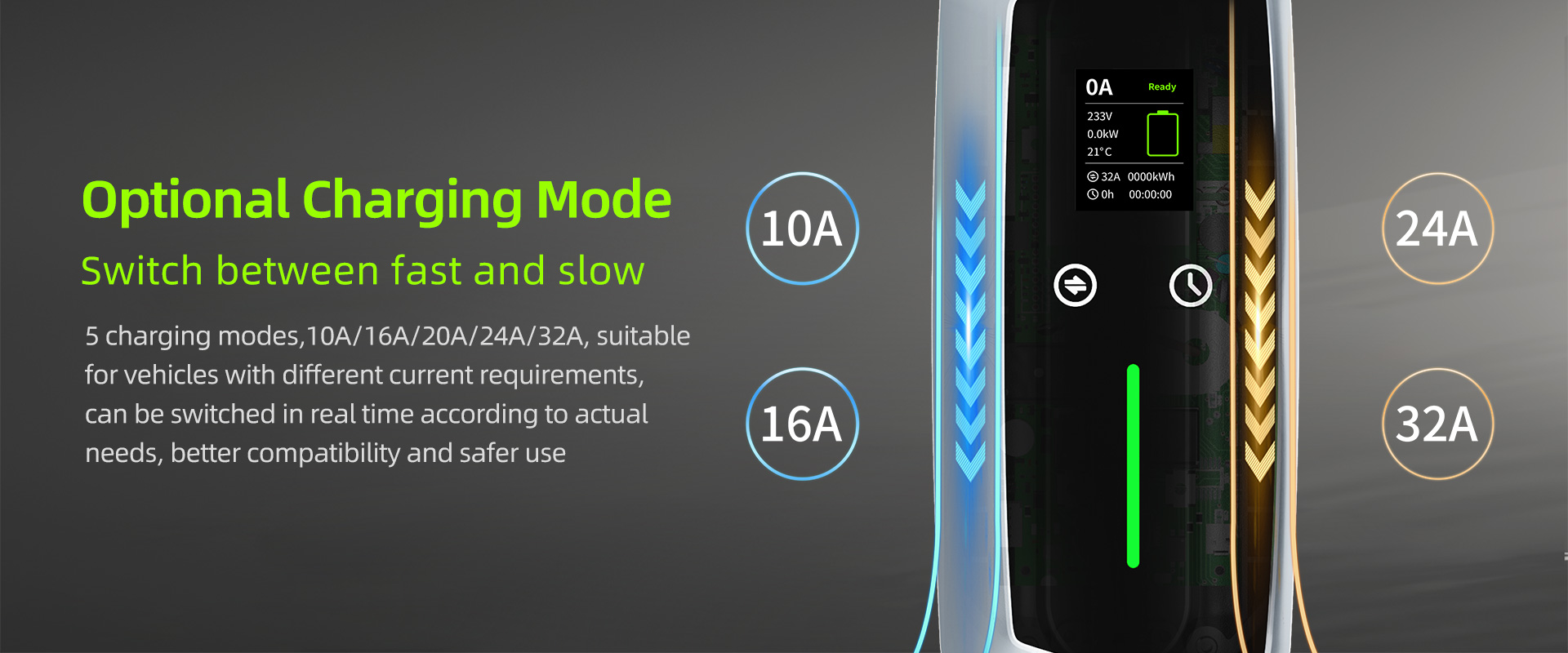

Control Box Button	2 - current adjustment button, delay charging button
Screen Size	1.8 inches

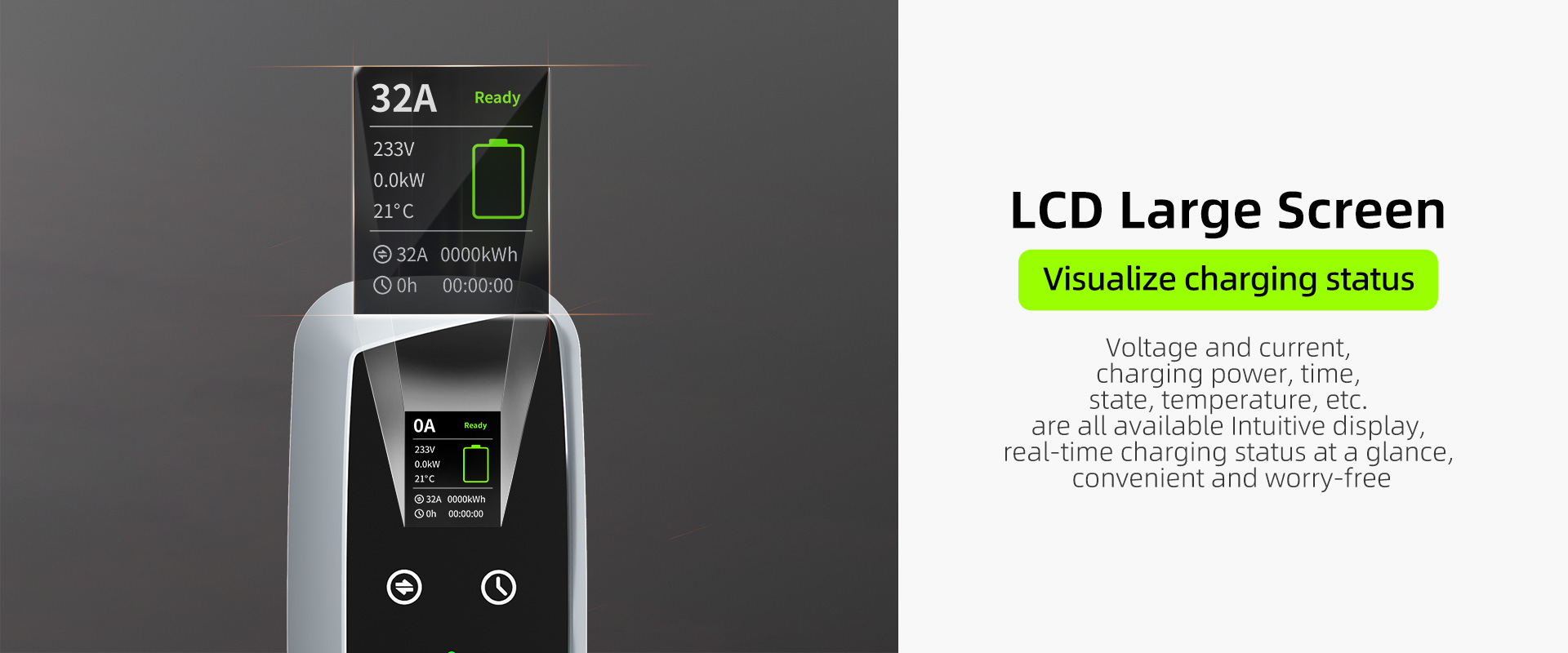

Screen Display Content	set rated current, real-time current, real-time voltage, real-time power, charging time, control box temperature, charging degree, charging state
Protection	Overload Protection,Overtemperature Protection,Short circuit Protection,Lightning Protection,Overvoltage protection/Undervoltage Protection,Ground Protection
Leakage Protection Device (mA)	TypeA
Operating ambient temperature condition	﹣30℃ - 55℃
Working environment humidity conditions	5%-95%
Drop Resistance	It can withstand being crushed by 2T cars and falling from a height of 1 meter

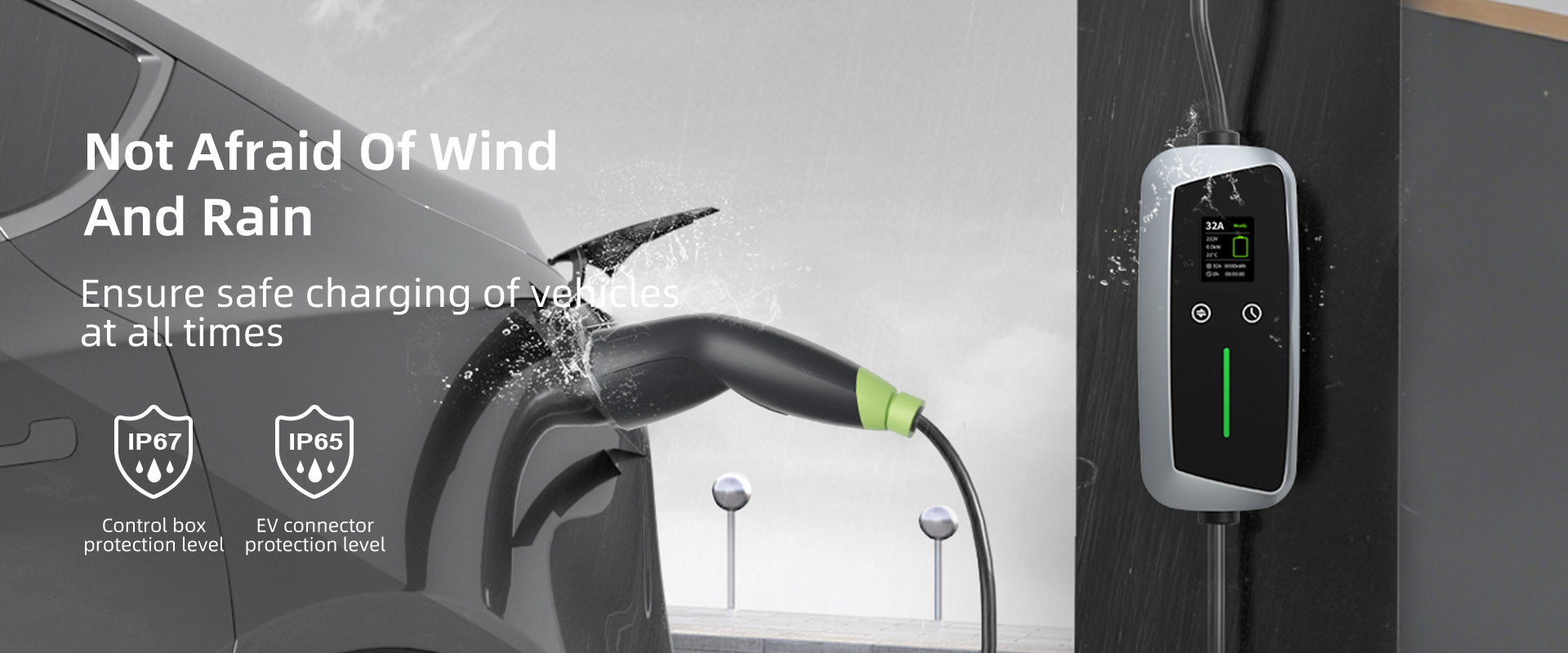

Protection Level	Control box IP67, Connector IP54
