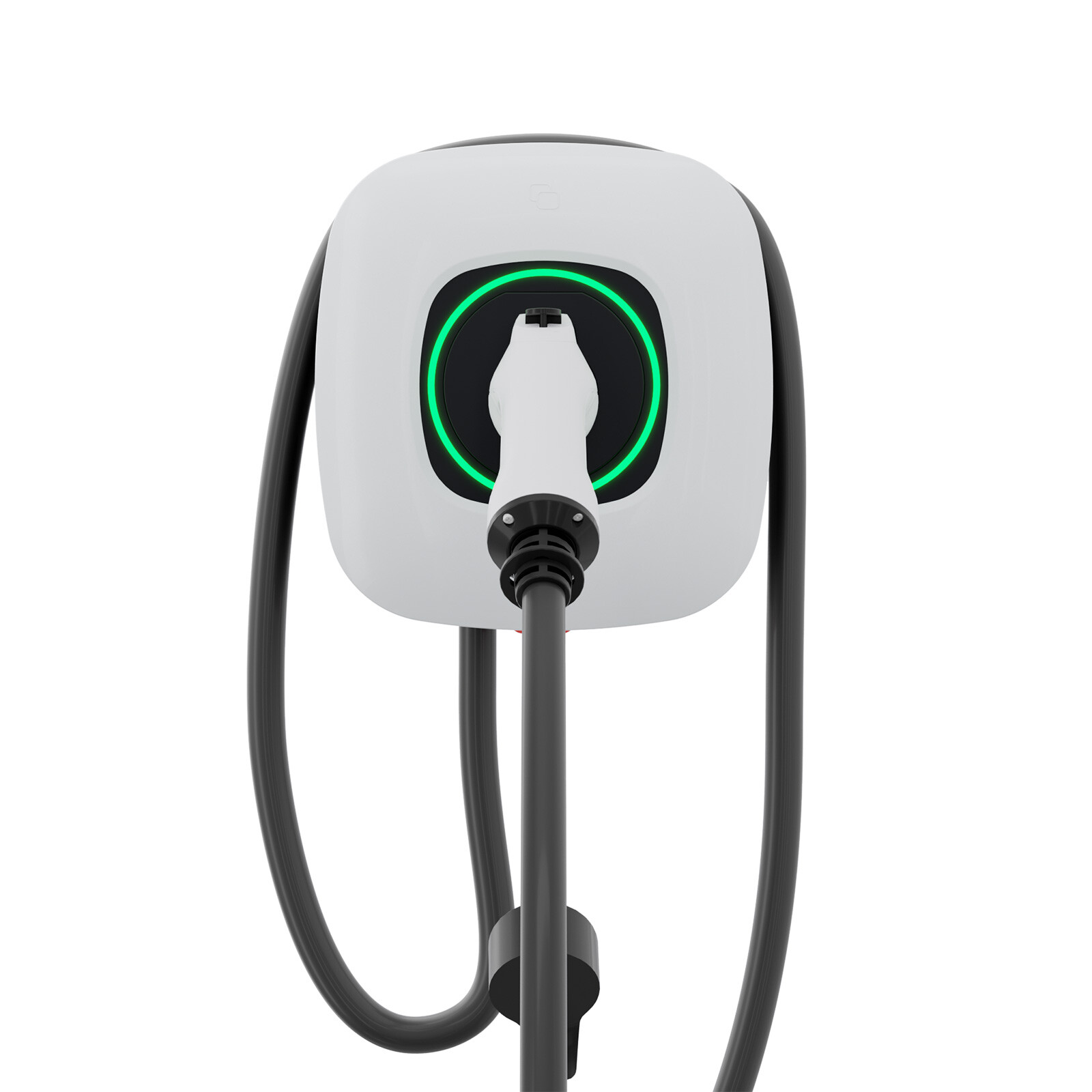

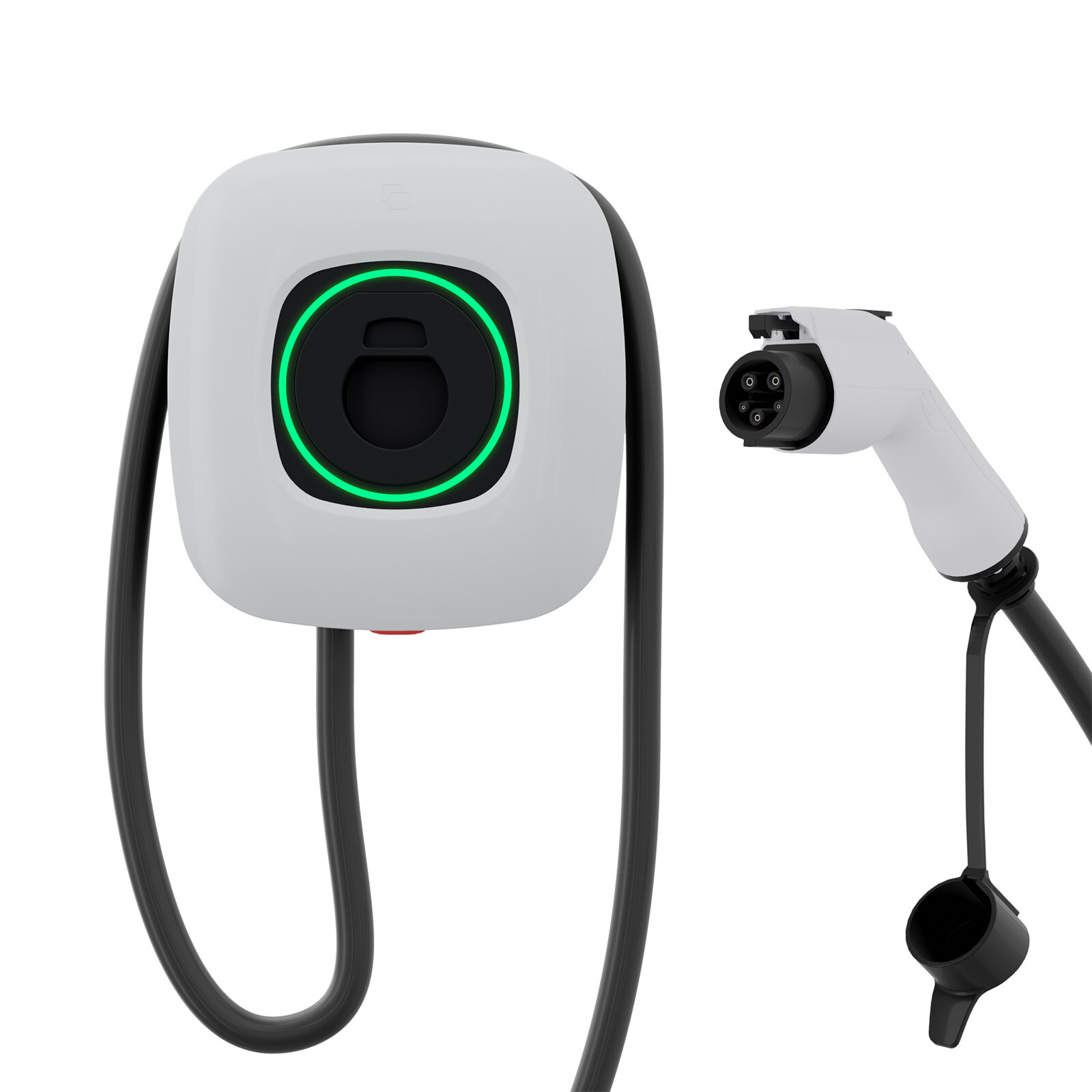

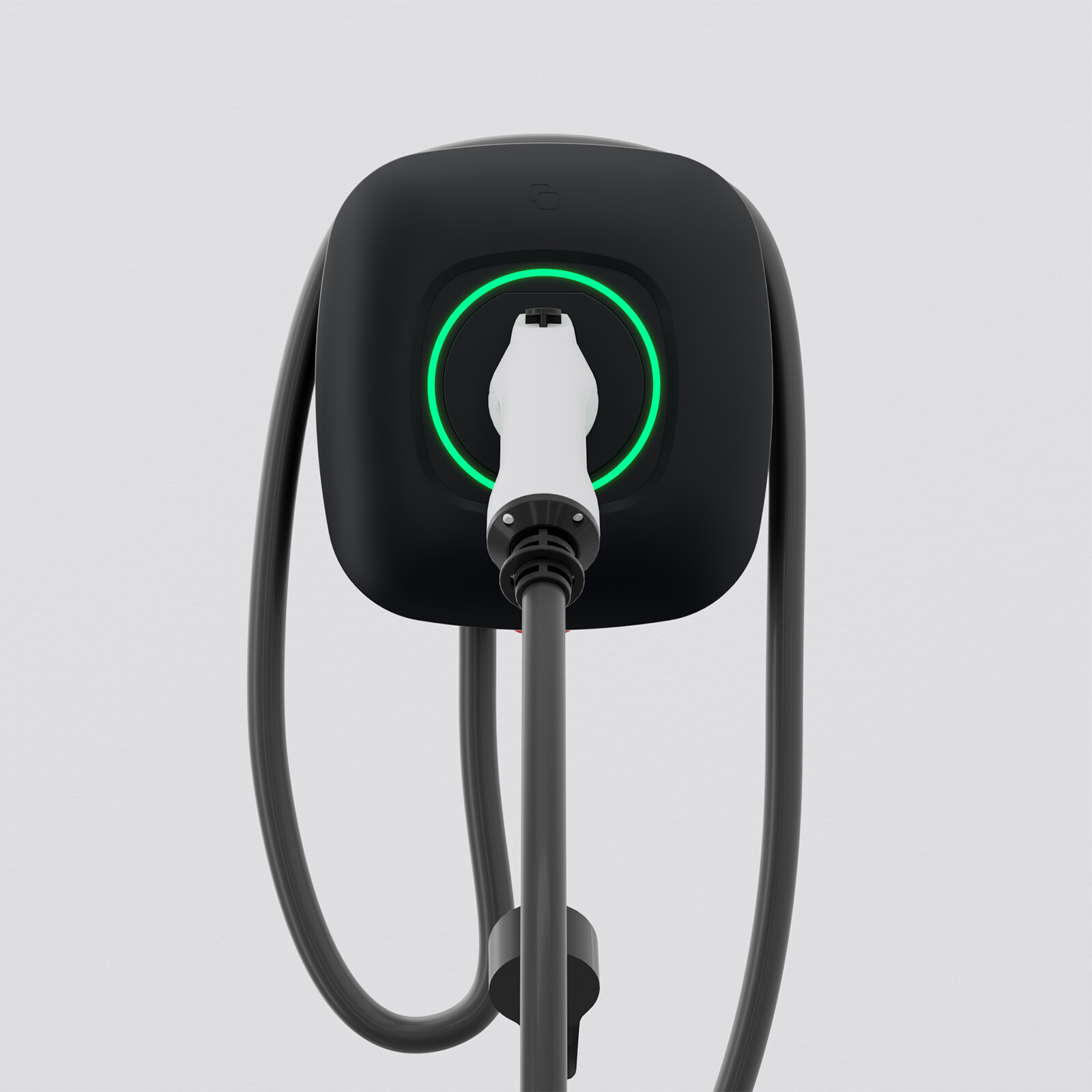

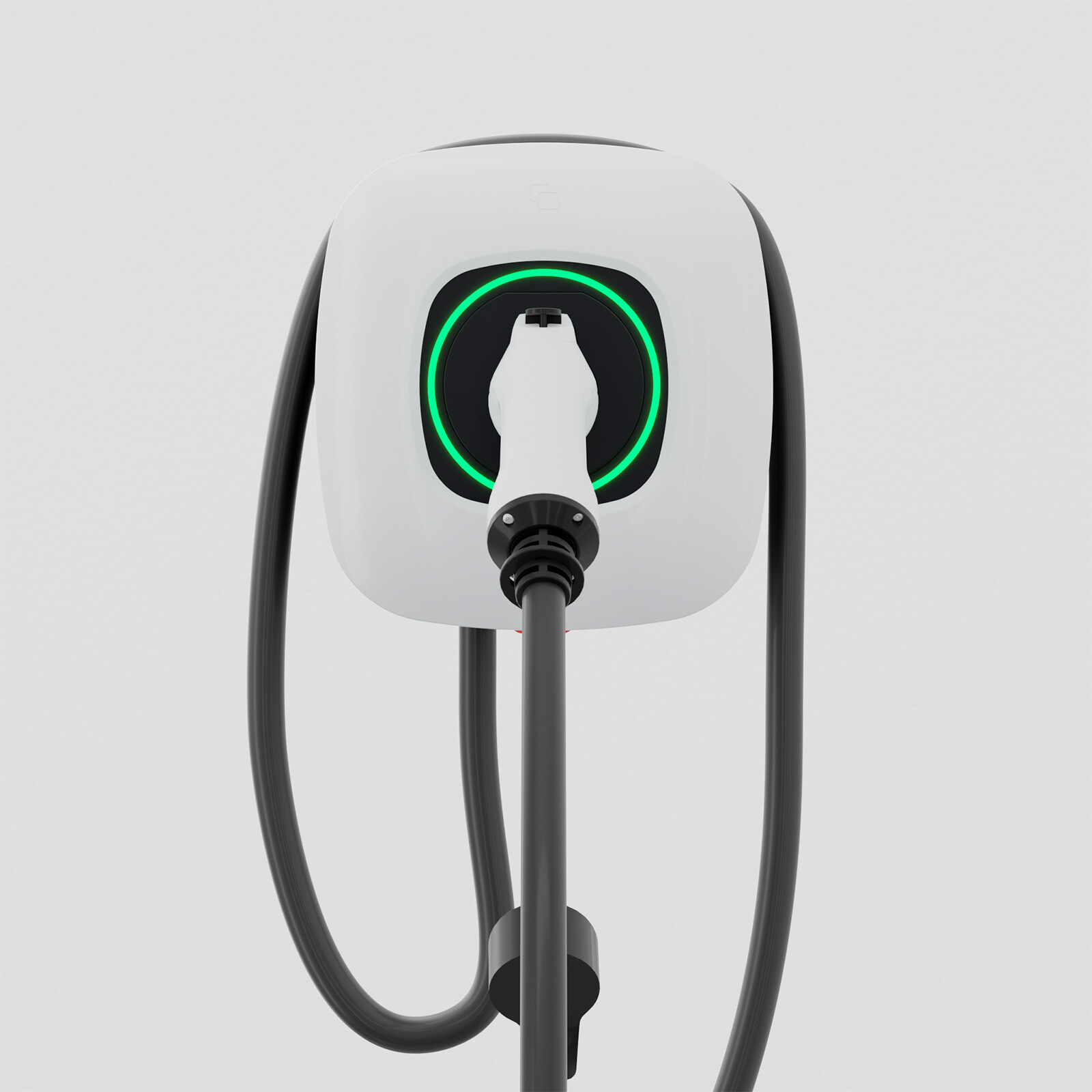

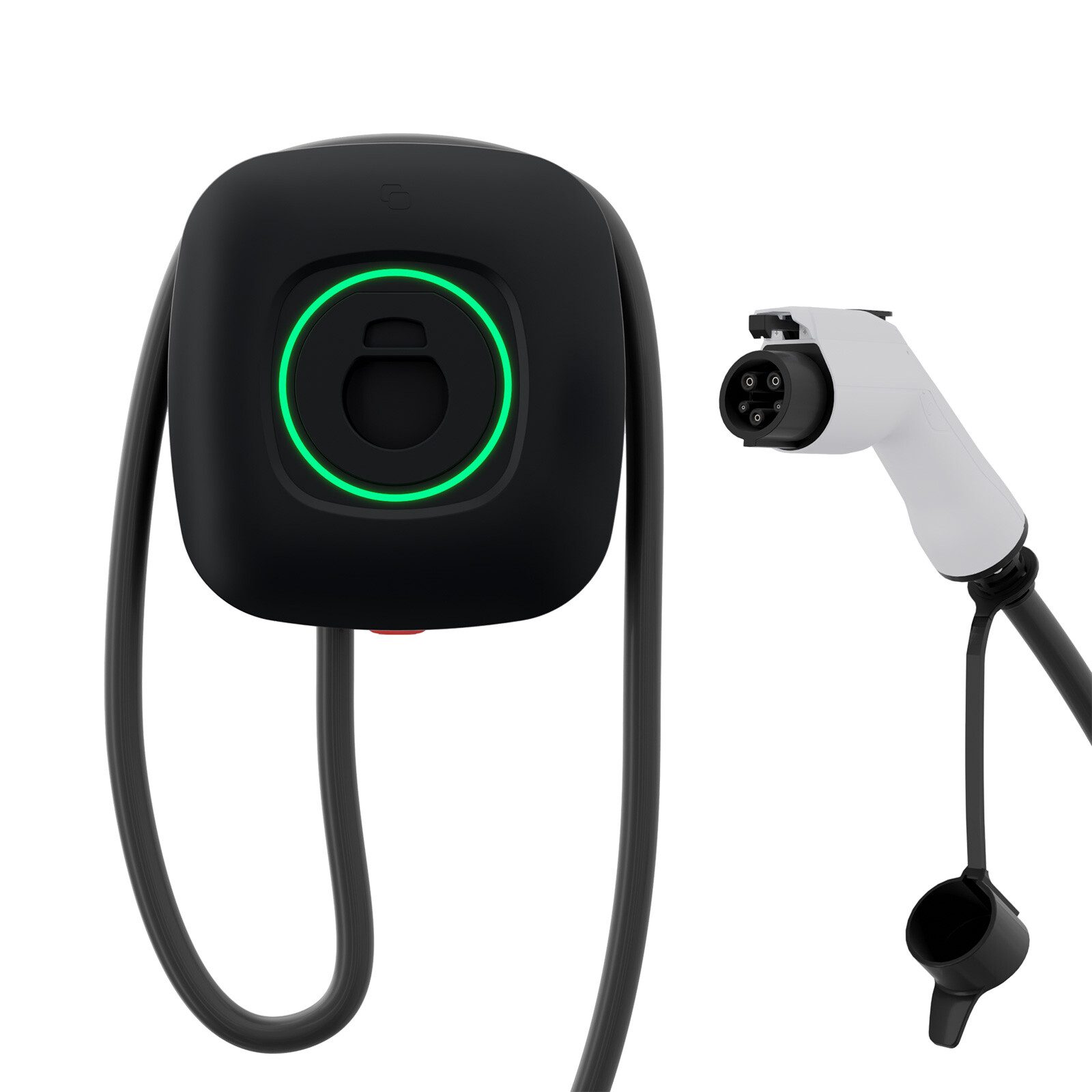

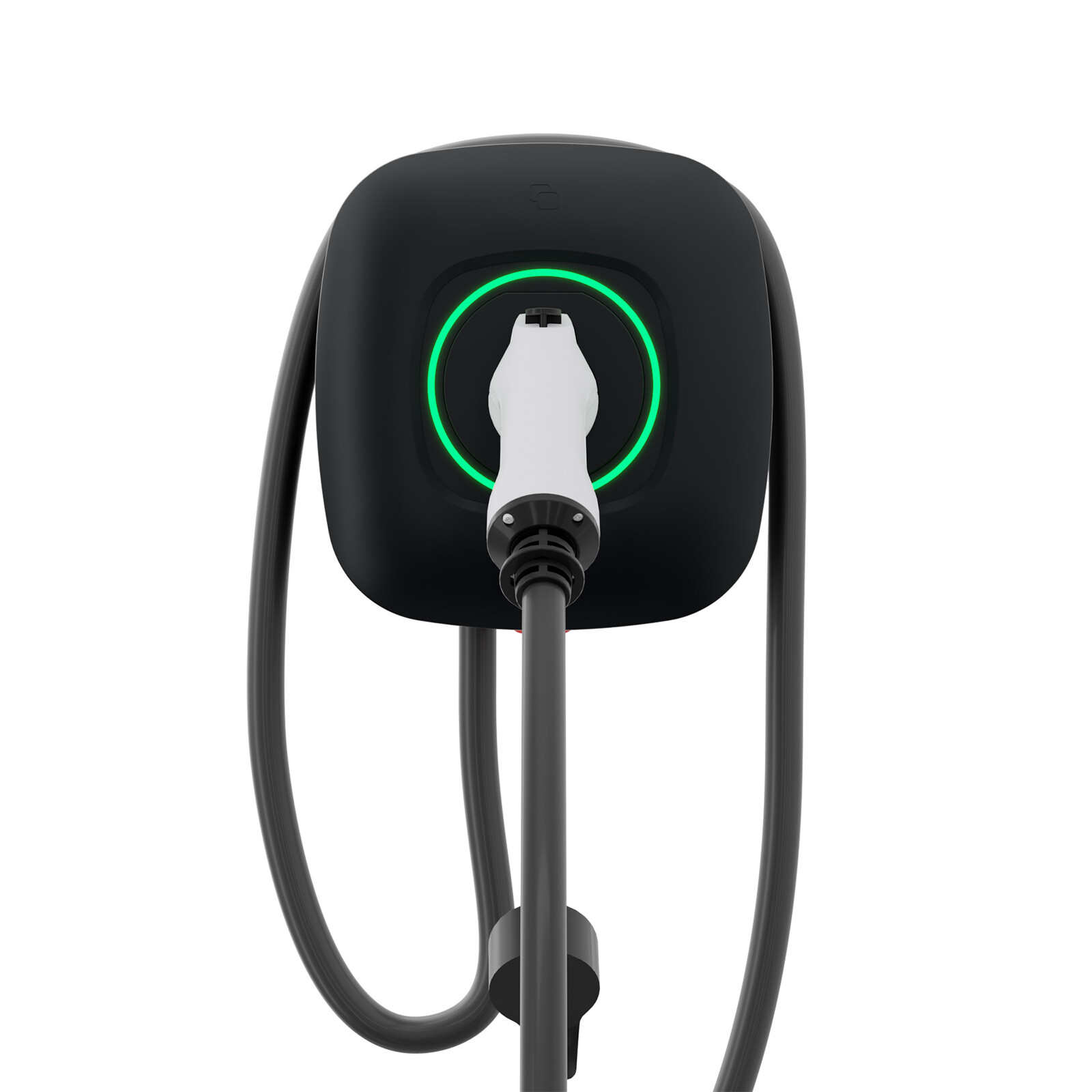

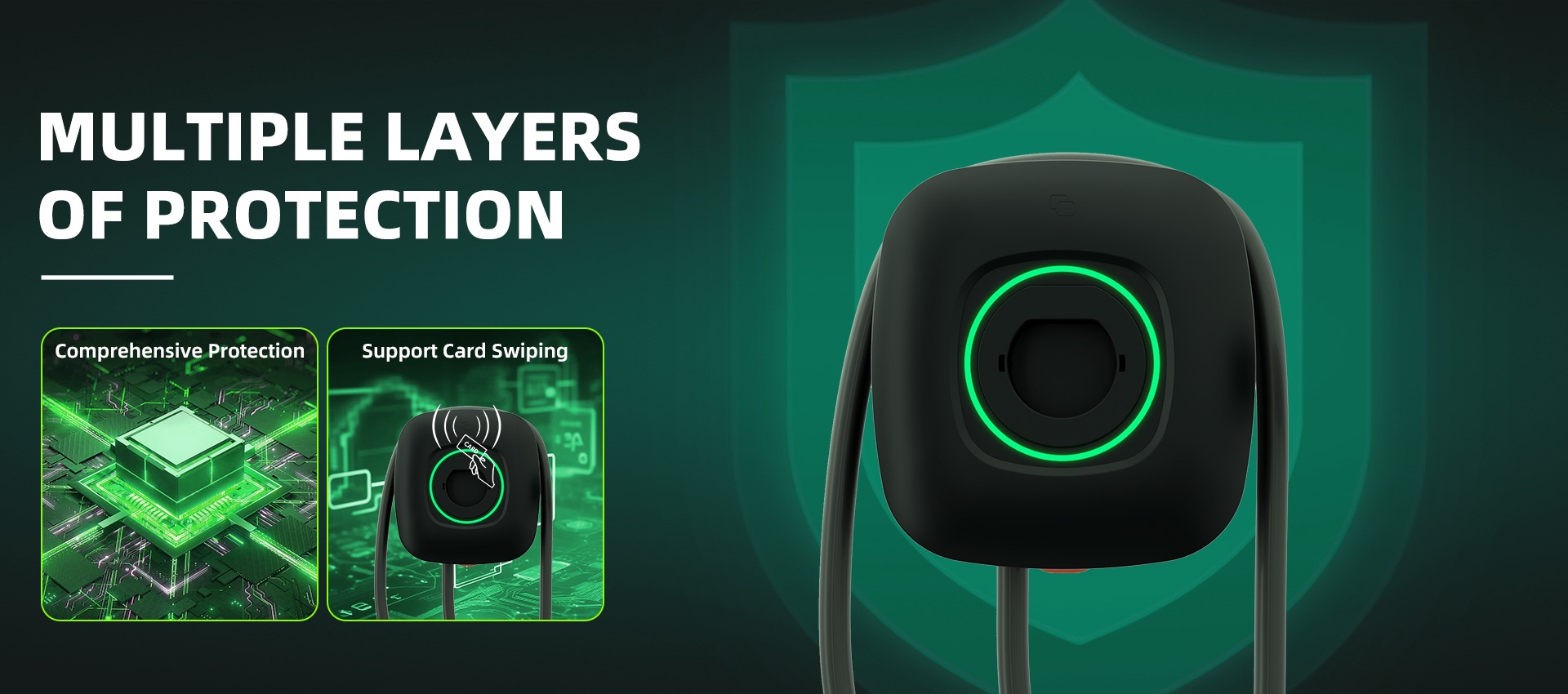

Type 1 EV Charger with 5 meters cable 48A 11kw

Product Introduction

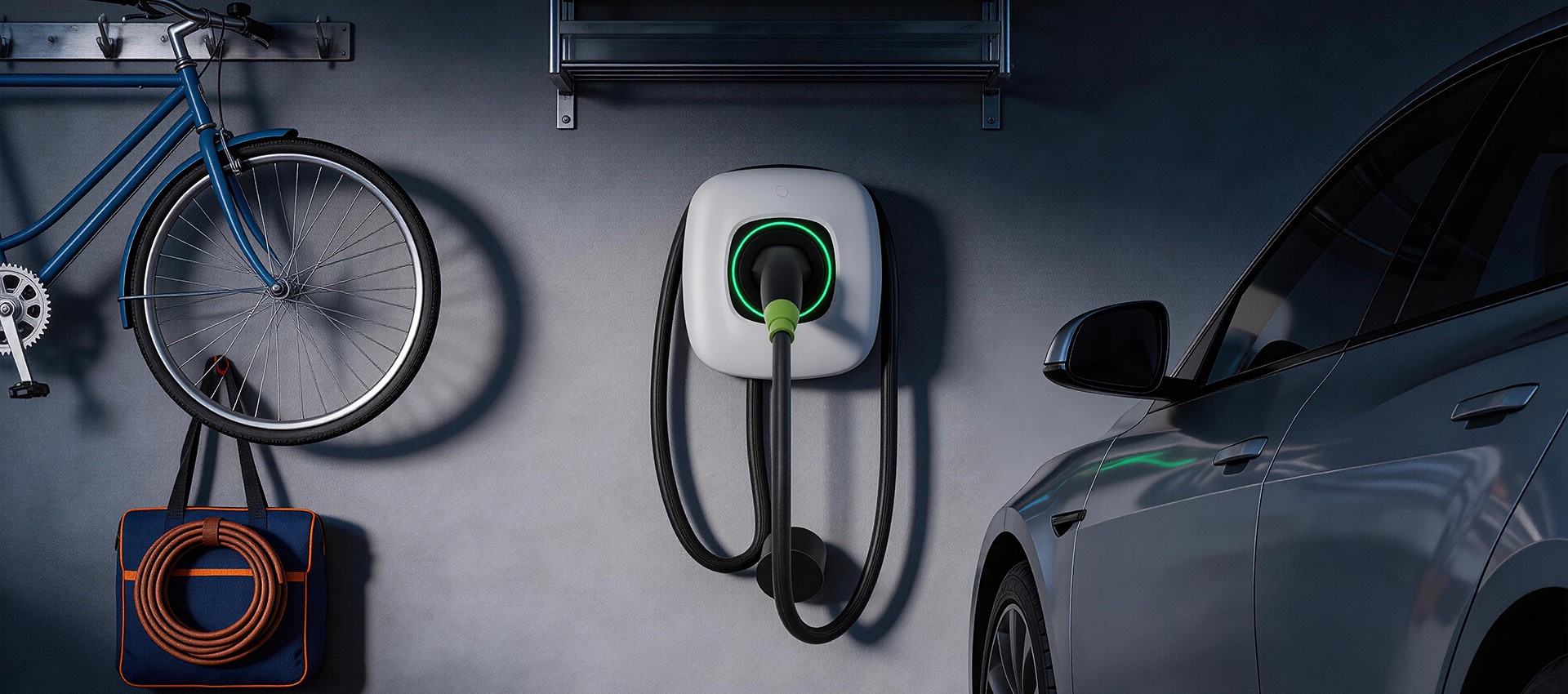

Design for home, workplace, free charging

Main Product	Max 9.6kW
Dimensions(mm)	L210 x W210 x D200max.
Weight	≤10kg
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +85℃
Material	PC
Certifications	CE
Charging Power	Up to 11kW
Charging Current	16A / 32A / 40A / 48A
Voltage	Single-phase 240VAC (85～276VAC, Rated at 230VAC)
Installation Network	IT, TT, TN-C-S
Charging Mode	Mode 3

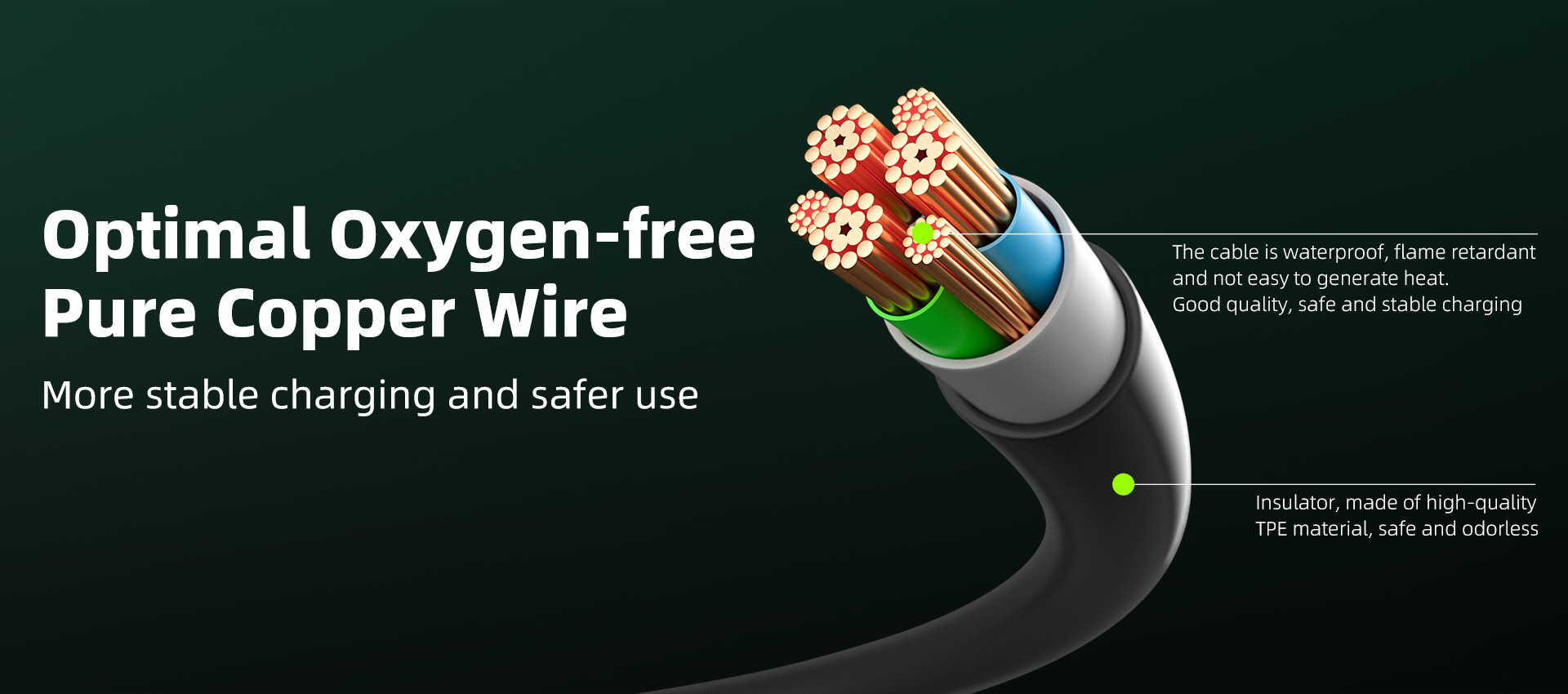

Charging Cable	5m
Charging Type	Type 1
Energy Metering	(±2 %) accuracy metering chip
Charging Status	Dynamic LED ring for charging status
Authentication	RFID/NFC reader or app
Cloud Connection/Network	N/A
OCPP	N/A
Installer App and Configuration	N/A
Input Cable length	20cm
Upstream RCD	Type A
Overvoltage Category	III
Insulation Class	I
Fire Classification	UL94
IP Rating	IP55
Impact Resistance	IK05
Temperature Monitoring	Internal sensors
O-PEN Detection	N/A
