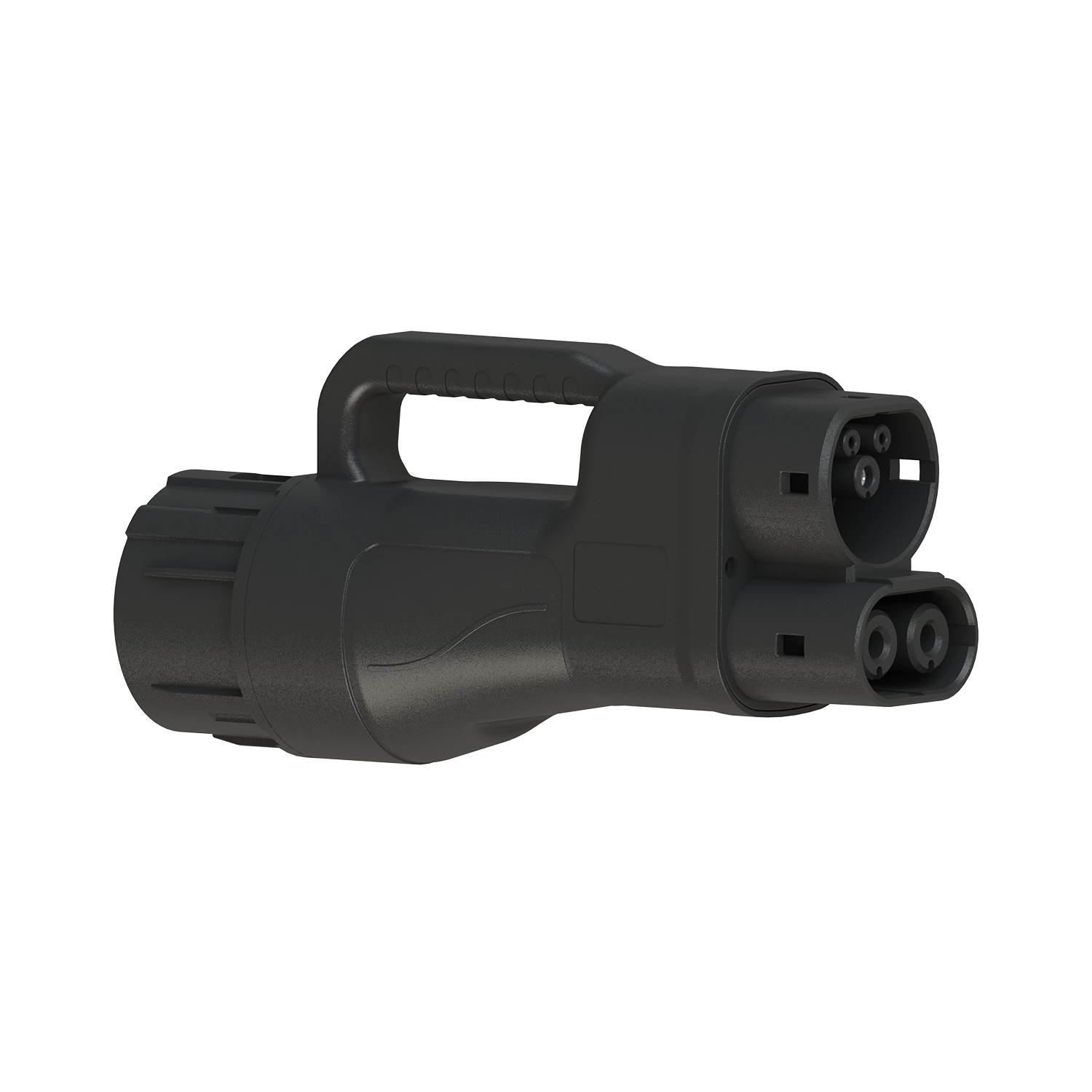

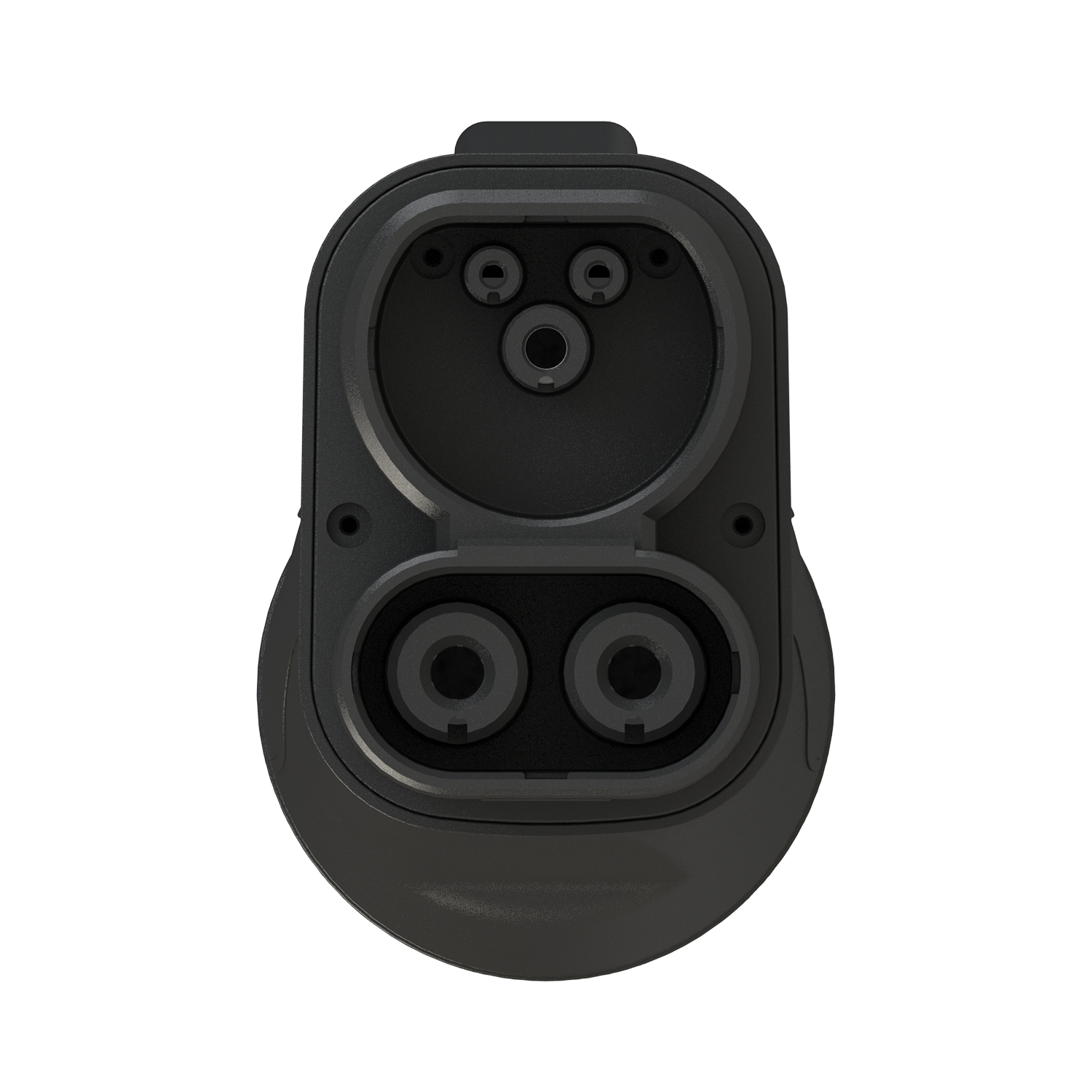

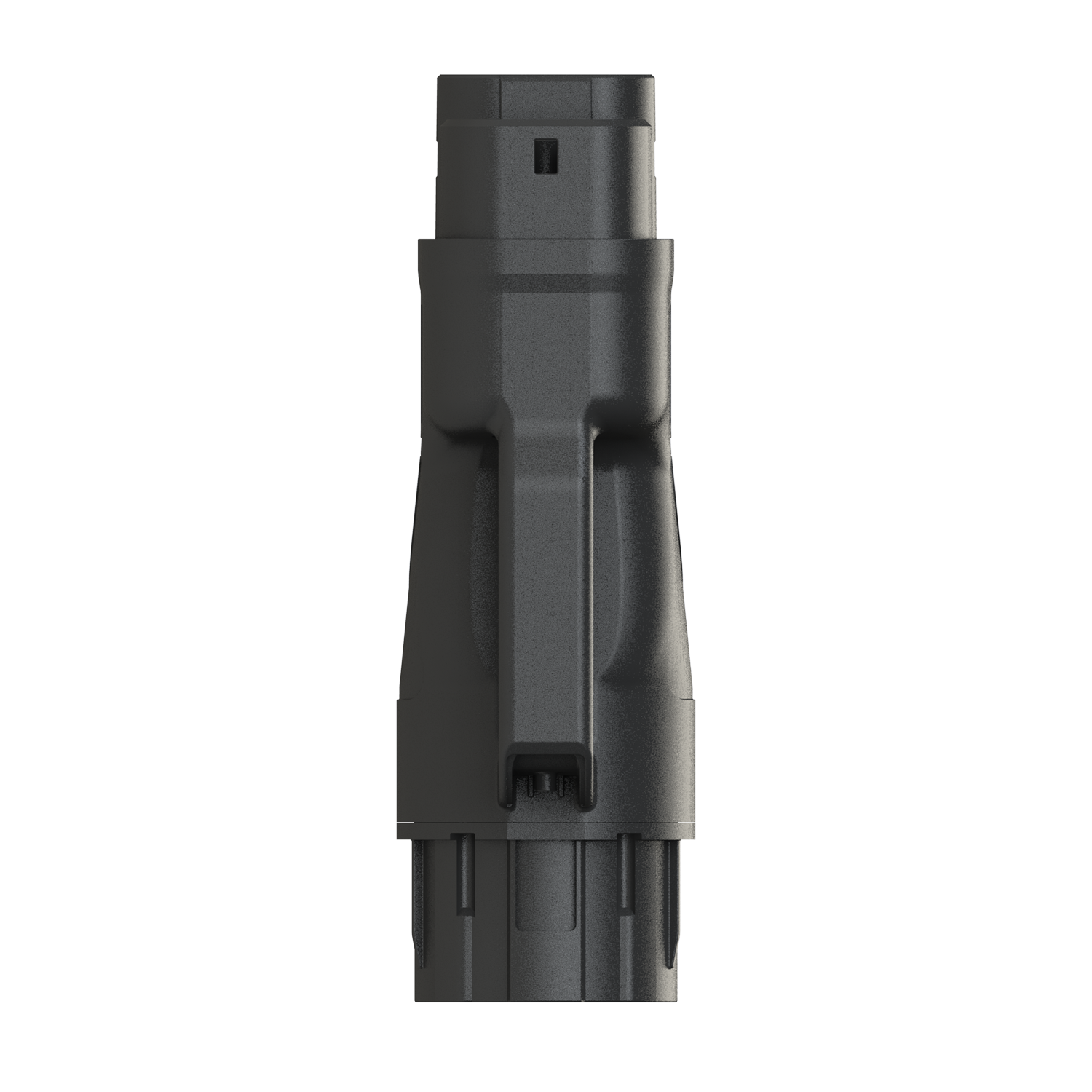

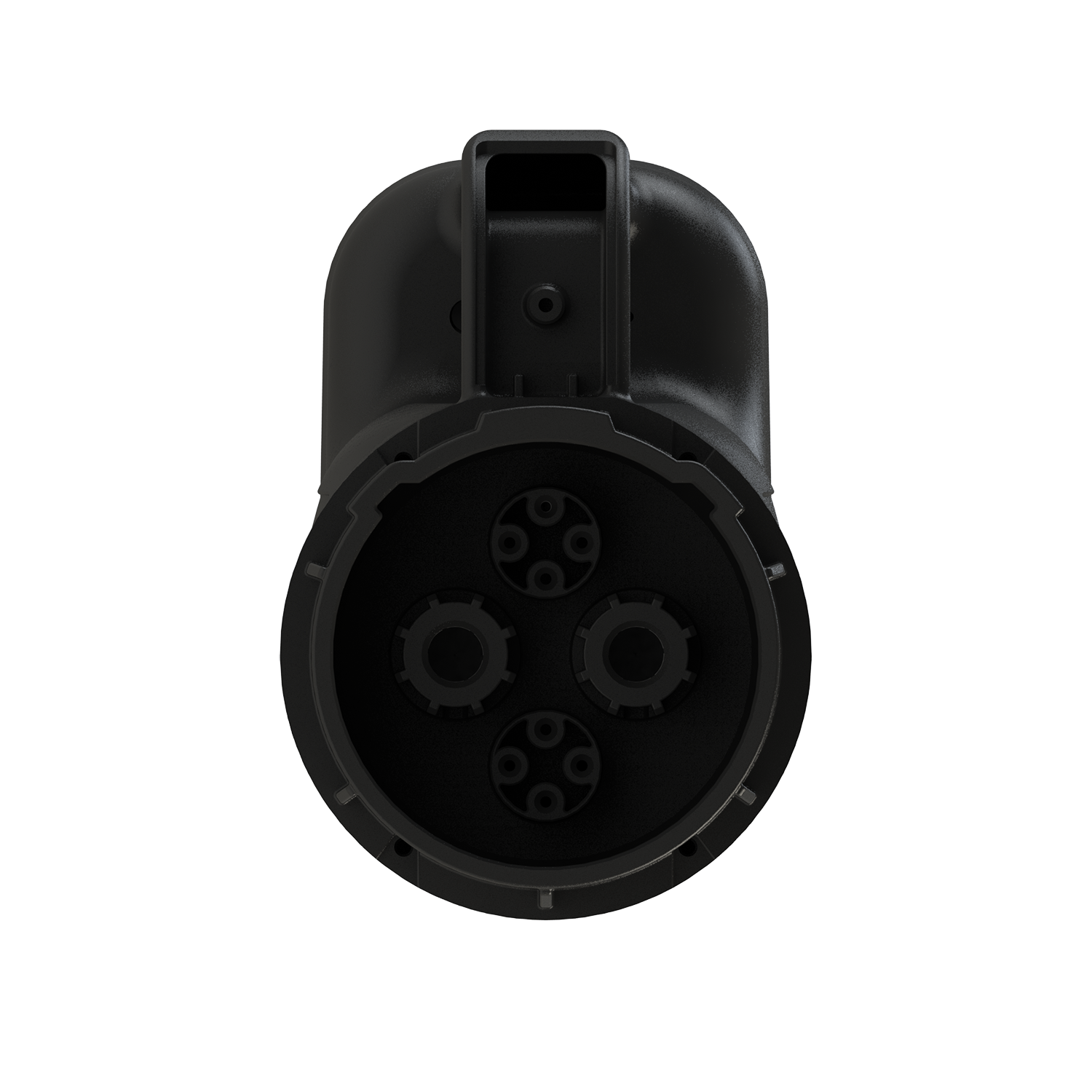

Chademo to CCS2

Chademo to CCS2

  • Product Introduction

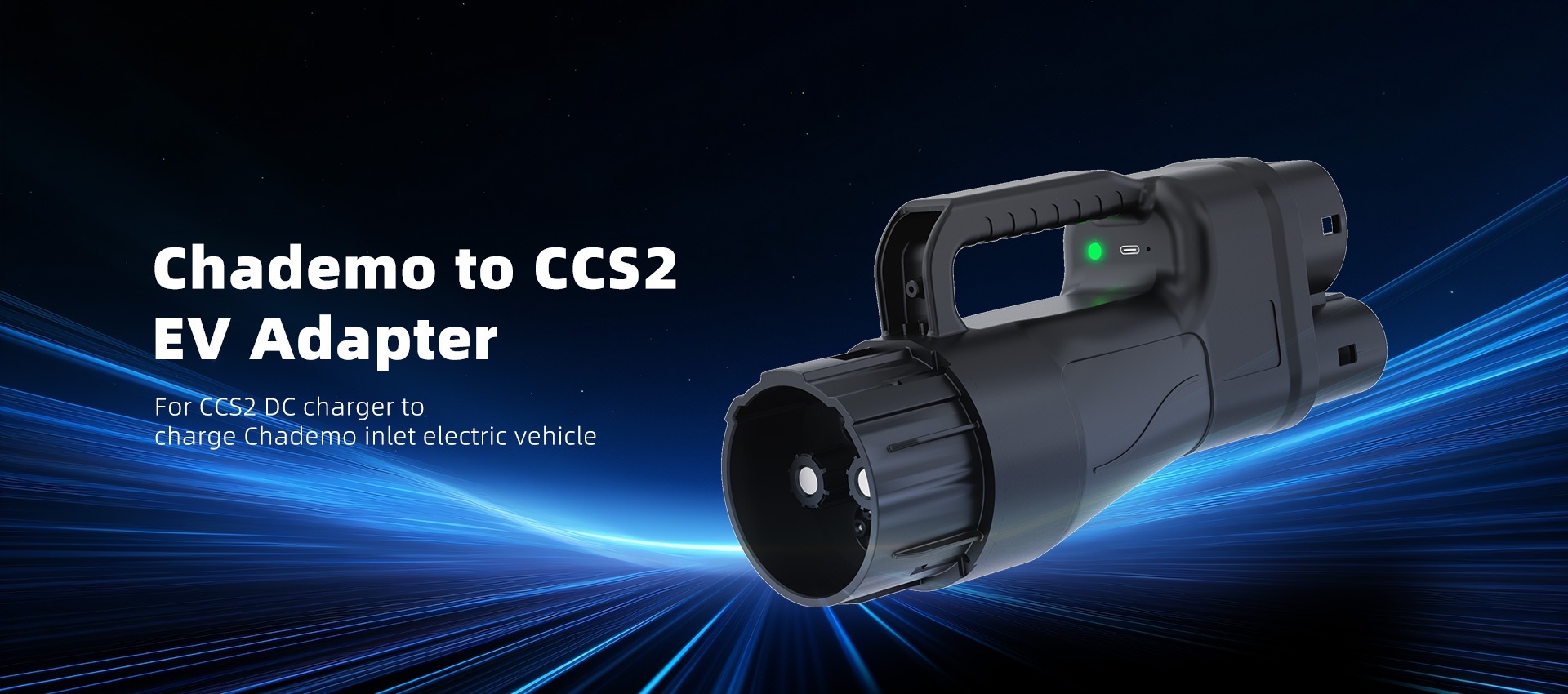

Modernize Your CHAdeMO Charging Infrastructure
Breathe new life into your existing CHAdeMO charging equipment with our CHAdeMO to CCS2 adapter. This solution future-proofs your investment by allowing the latest CCS2-compatible vehicles (which represent the majority of new European EV models) to charge from your CHAdeMO stations. It's a cost-effective strategy for station operators to increase footfall, enhance customer satisfaction, and stay relevant in the evolving EV landscape without a full equipment replacement.

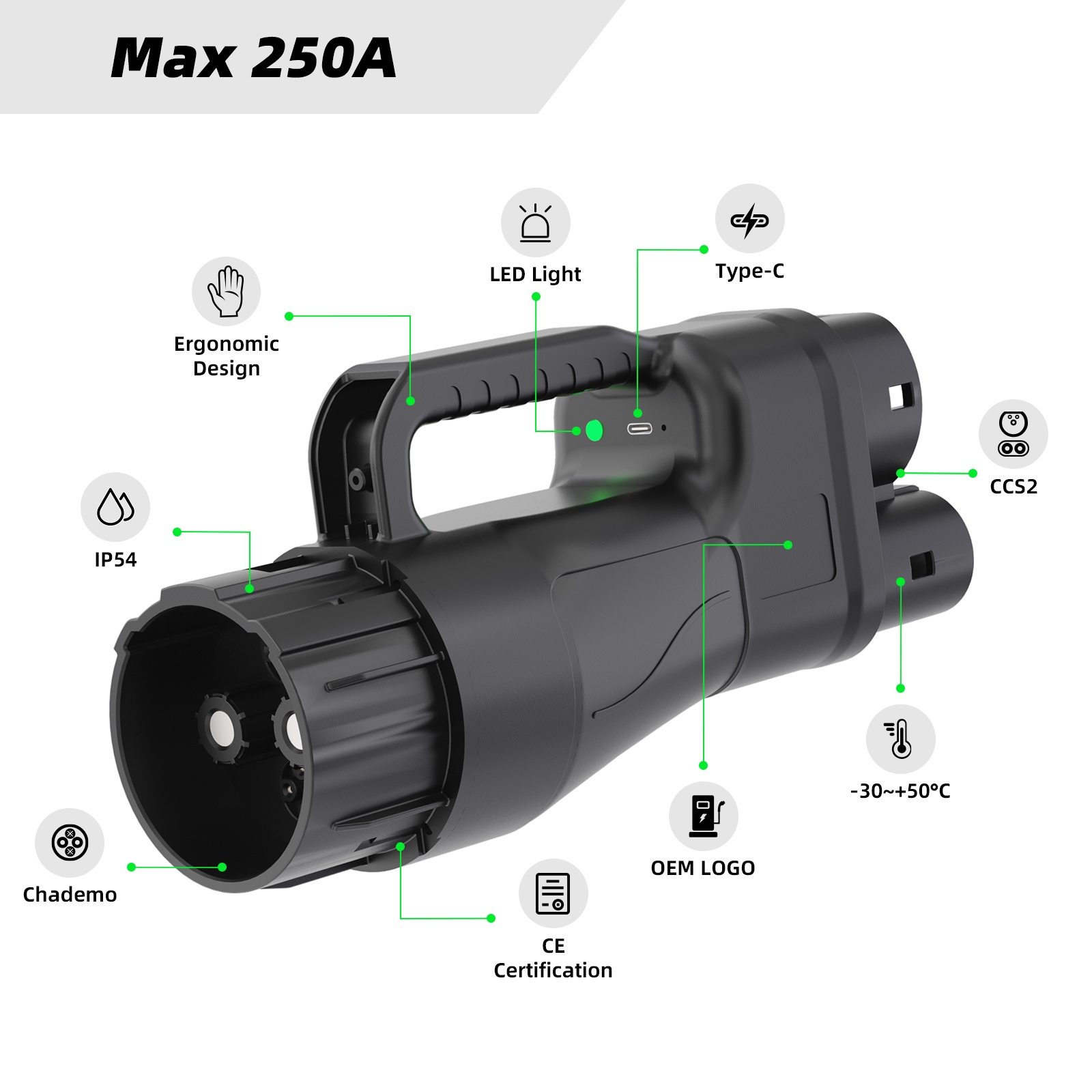

Product diagram and parameters

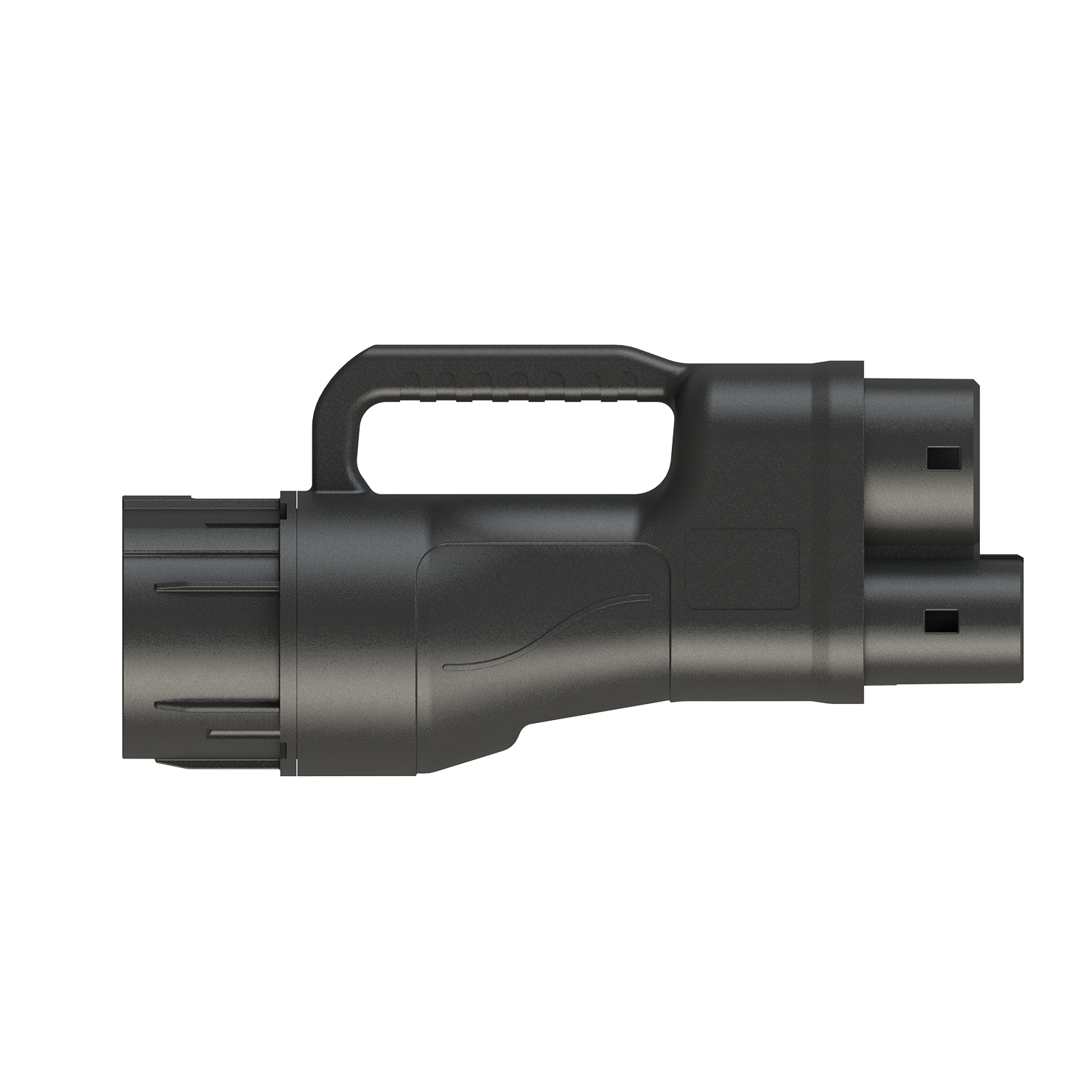

Product Size265.5mm(L)*96mm(W)*145.5mm(H)
Unit Net Weight1.5Kg
Unit Package Size30.5*18*11.5 cm
Gross Weight2Kg
Carton Size38*38*36.5
Carton Quantity6 PCS
Carton Weight13Kg
Rated Current:200A Max
Power200KW Max
Input Voltage AC100-1000V
StandardEN IEC 62196
Output DetectionOver Temperature Protection,Ground Protection
LEDOne LED indicator charging or malfunction.
USBOne type C for debug and update firmware.
Protection GradeIP65
Flame Retardant RatingUL94-V0
Working Temperature-30℃—+50℃

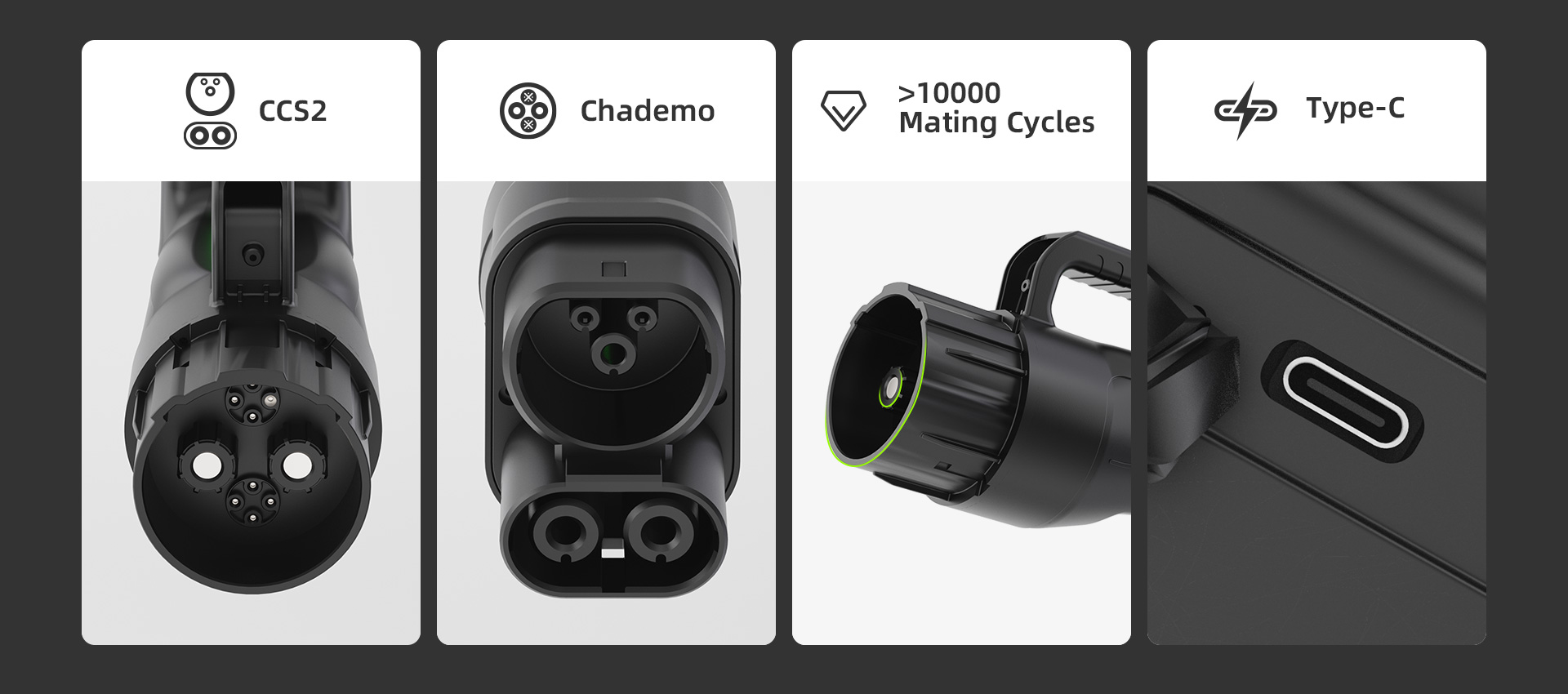

PinsCopper alloy, silver plated
Insertion & Withdrawal Force45N<F<100N
Insertion lifeUnload plug and unplug times >10000 times
Feature99.99% Adaptability,OTA upgrade


Product Highlights

Chademo to CCS2

  • 2 Years Warranty, Long service life.

  • OEM Logo.

  • Permanent free software update service.

Details

  • 直流枪-日转欧_01
  • 直流枪-日转欧_02
  • 直流枪-日转欧_03
  • 直流枪-日转欧_04
  • 直流枪-日转欧_05

Notice

The product is currently in the development and testing stage. If you need to know more, please contact us.
