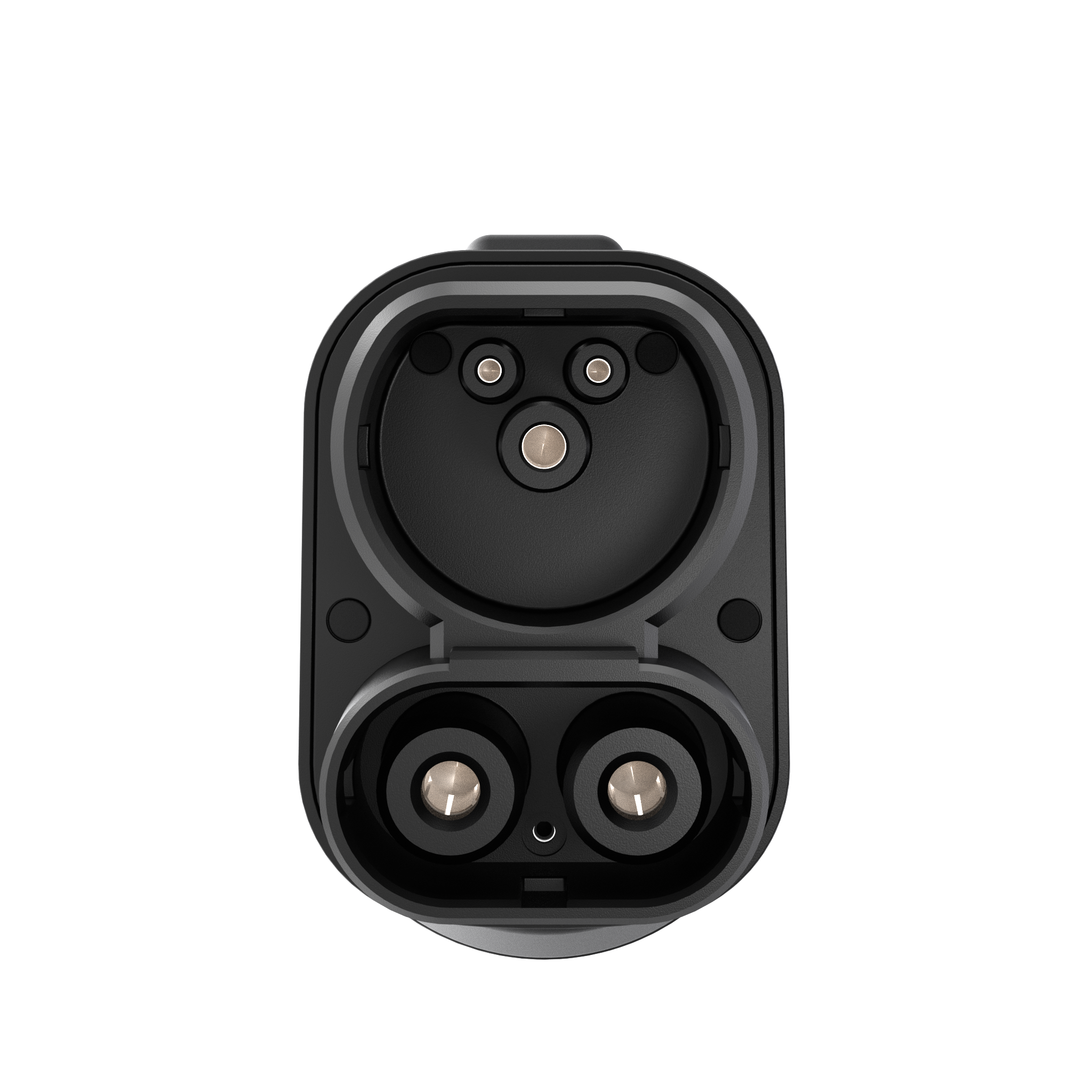

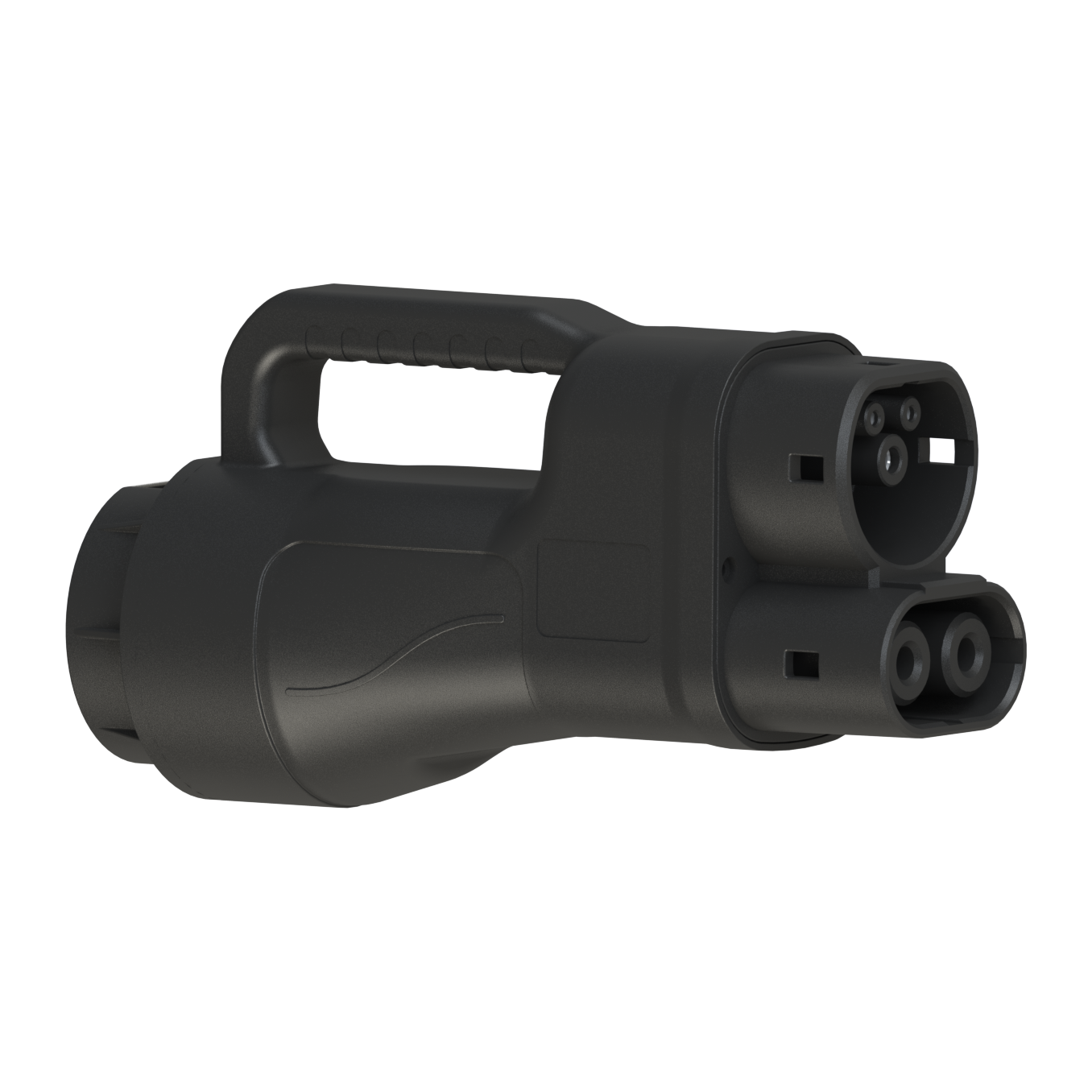

400A GB/T to CCS2 DC EV Adapter

Product Introduction

Empower European Charging Points for Chinese EVs
Expand your service and customer base with our Gb/T to CCS2 adapter. This innovative product allows charging station operators to offer compatibility to the vast number of Chinese-standard Gb/T electric vehicles. By simply attaching this adapter, your standard CCS2 charger becomes accessible to popular models like Xpeng or BYD, tapping into a growing market segment and maximizing your station's utilization and revenue.

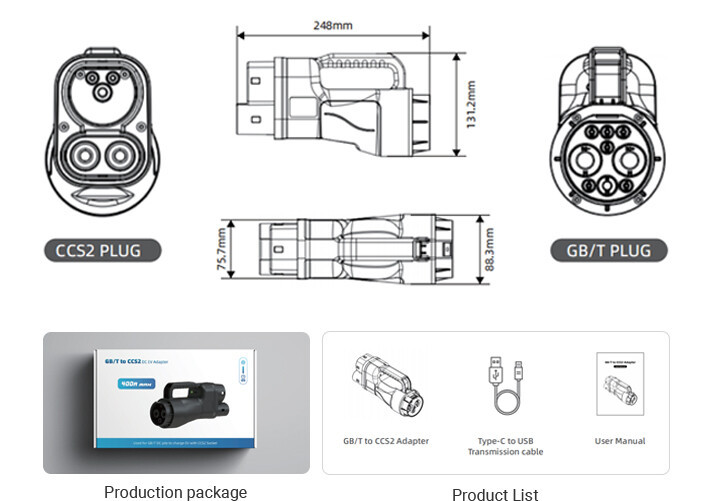

Product diagram and parameters

Product Size	265.5mm(L)96mm(W)145.5mm(H)
Unit Net Weight	1.5Kg
Unit Package Size	30.51811.5 cm
Gross Weight	2Kg
Carton Size	383836.5
Carton Quantity	6 PCS
Carton Weight	13Kg

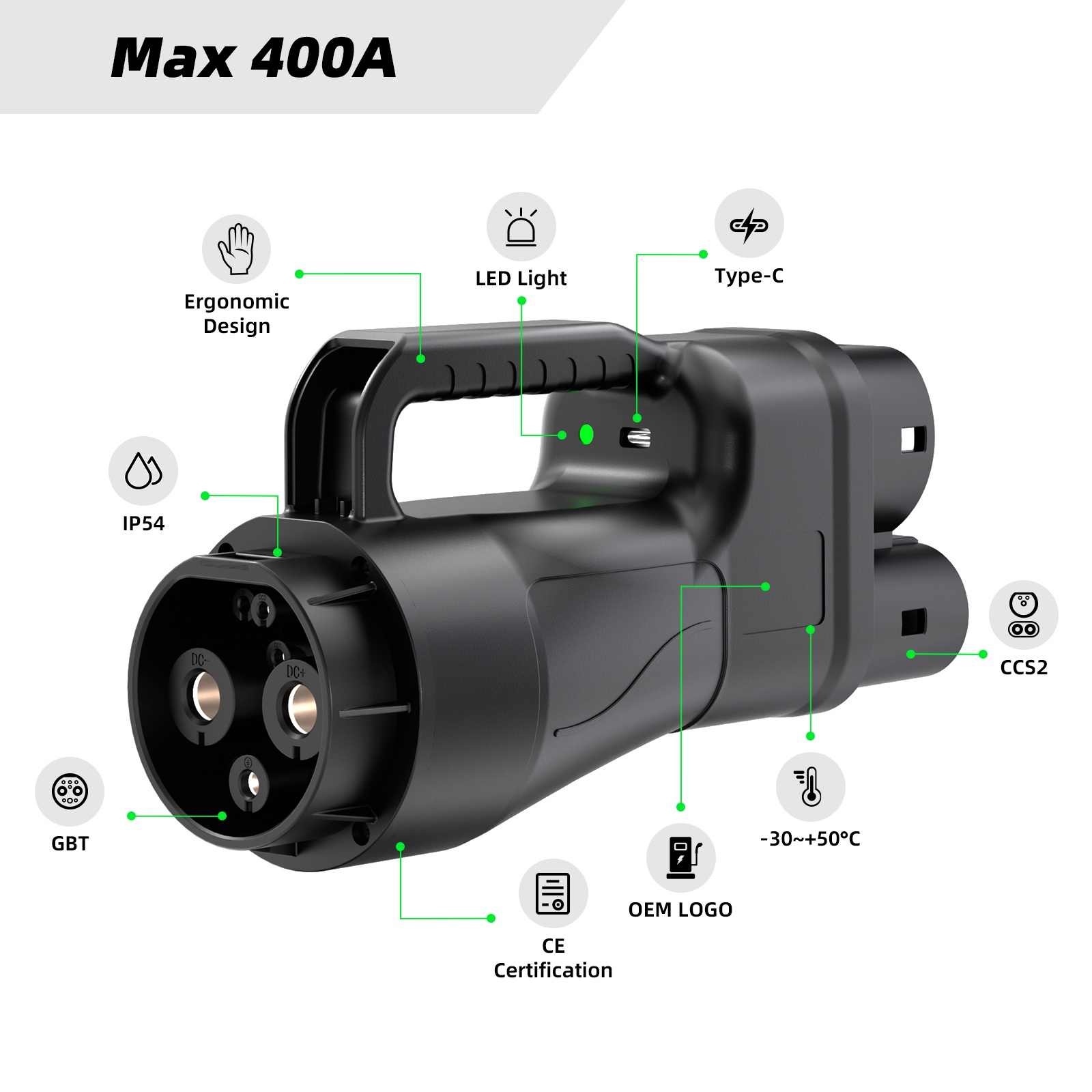

Rated Current	400A Max
Power	400KW Max
Input Voltage AC	100-1000V
Standard	EN IEC 62196
Output Detection	Over Temperature Protection，Ground Protection
LED	One LED indicator charging or malfunction.
USB	One type C for debug and update firmware.
Protection Grade	IP67
Flame Retardant Rating	UL94-V0
Working Temperature	-30℃—+50℃
Pins	Copper alloy, silver plated
Insertion & Withdrawal Force	45N<F<100N
Insertion life	Unload plug and unplug times >10000 times
Feature	Compatible with liquid cooling piles，99.99% Adaptability

Product Highlights

Fastest Charging
Maximum charging speed reaches 600kW (1000V x 600A Unleashed Potential Version), the only model that truly supports "Liquid-Cooled Supercharging"
The only model certified by car manufacturers
XPENG uses this product directly in its export vehicle production line, making it the only GBT to CCS2 adapter in the world directly designated by car manufacturers
Charging power truly meets the claimed specifications
Owner tests show charging speeds 50-200% faster than older models or other adapters
Highest car and charging station compatibility
This product requires no battery and instantly starts when powered by a charging station. Furthermore, it's the only GBT to CCS2 adapter on the market that supports "one software for all models," eliminating the need to flash different software for different models. Supports all GB 2015+ fast charging stations
No lock restrictions, no disclosure of customer personal information
No locks, no need to install an app, no risk of information leakage

Details

How to use

Before you begin charging, make sure your CCS2 (European) vehicle is in "P" (Stop) mode and the dashboard is off.

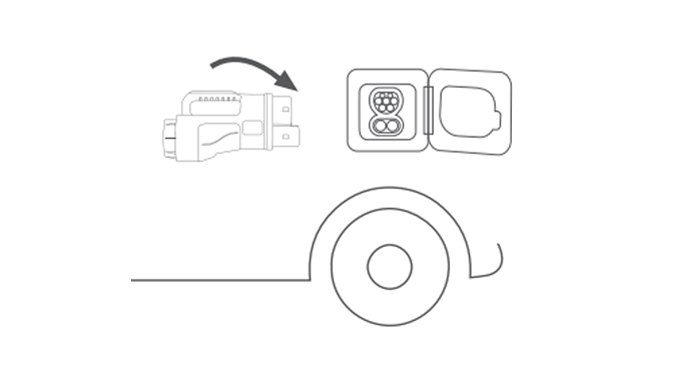

Open the charging port on the vehicle end and insert the CCS2 female plug end of the adapter into the CCS2 male plug on the vehicle end.

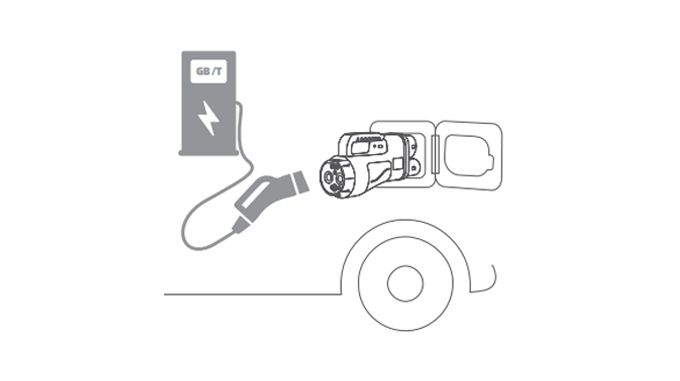

Connect the charging station's cable to the adap ter's GB/T connec tor, aligning and pushing until it clicks into place. Note: The adapter has a unique "keyway" designed to align with the corresponding tab on the cable.
