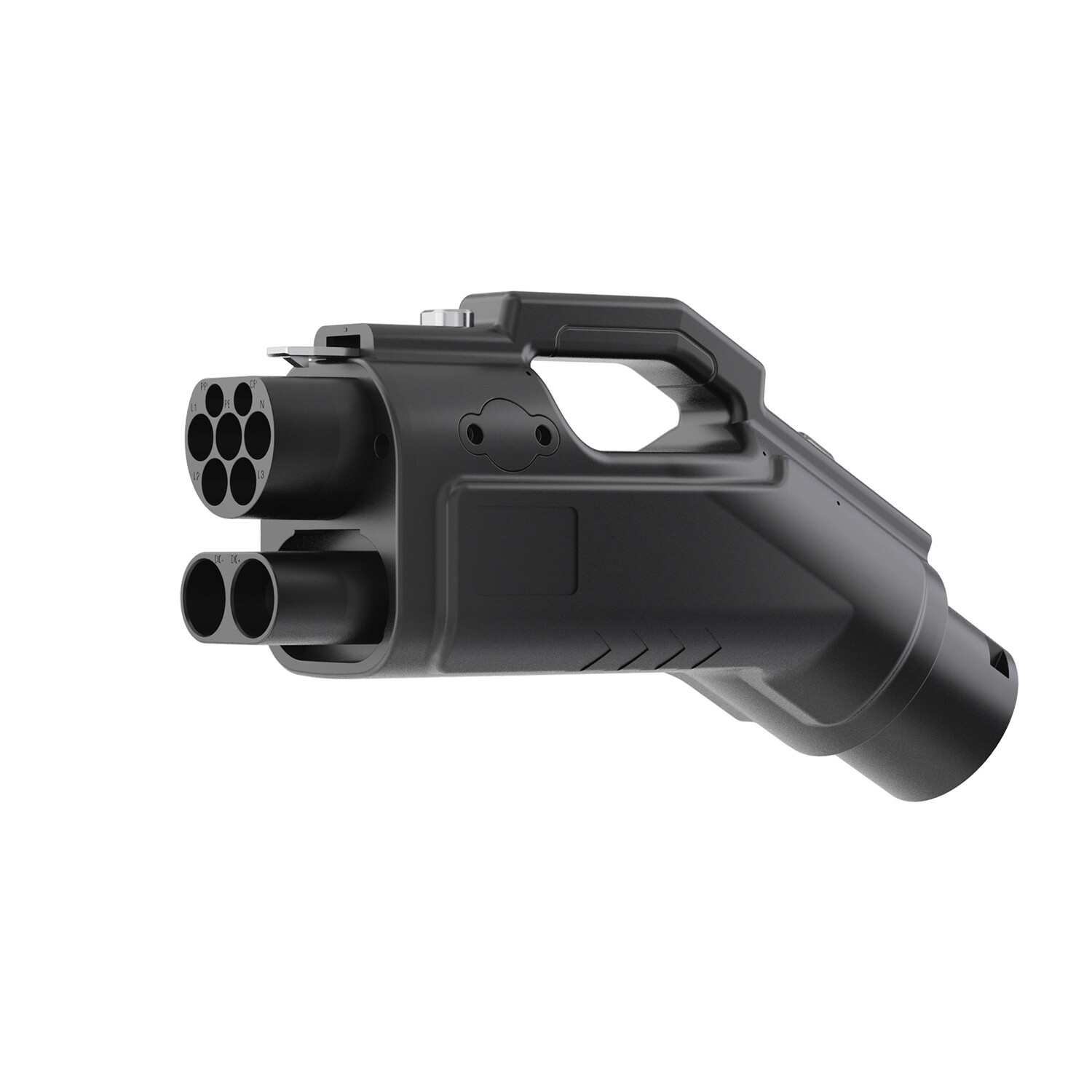

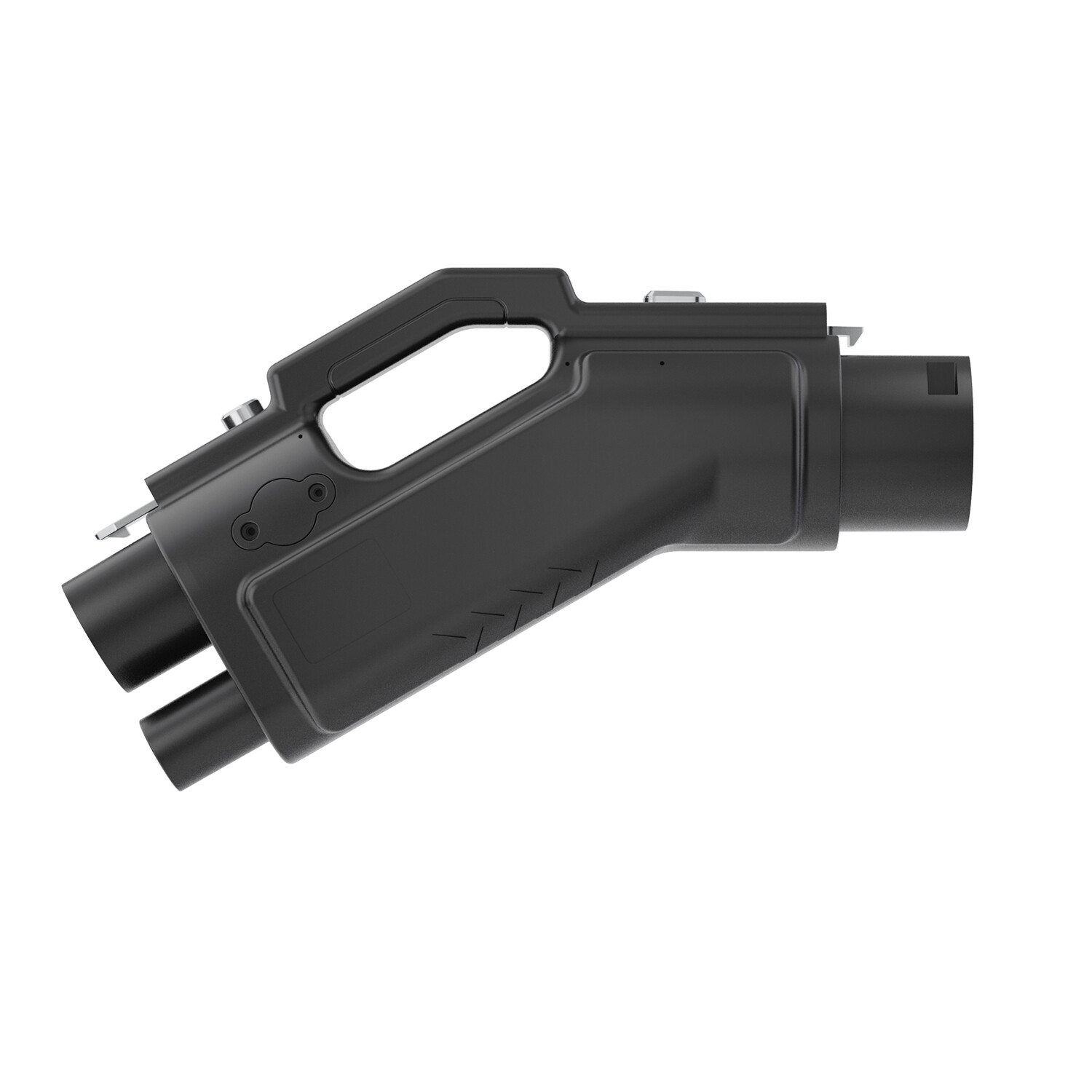

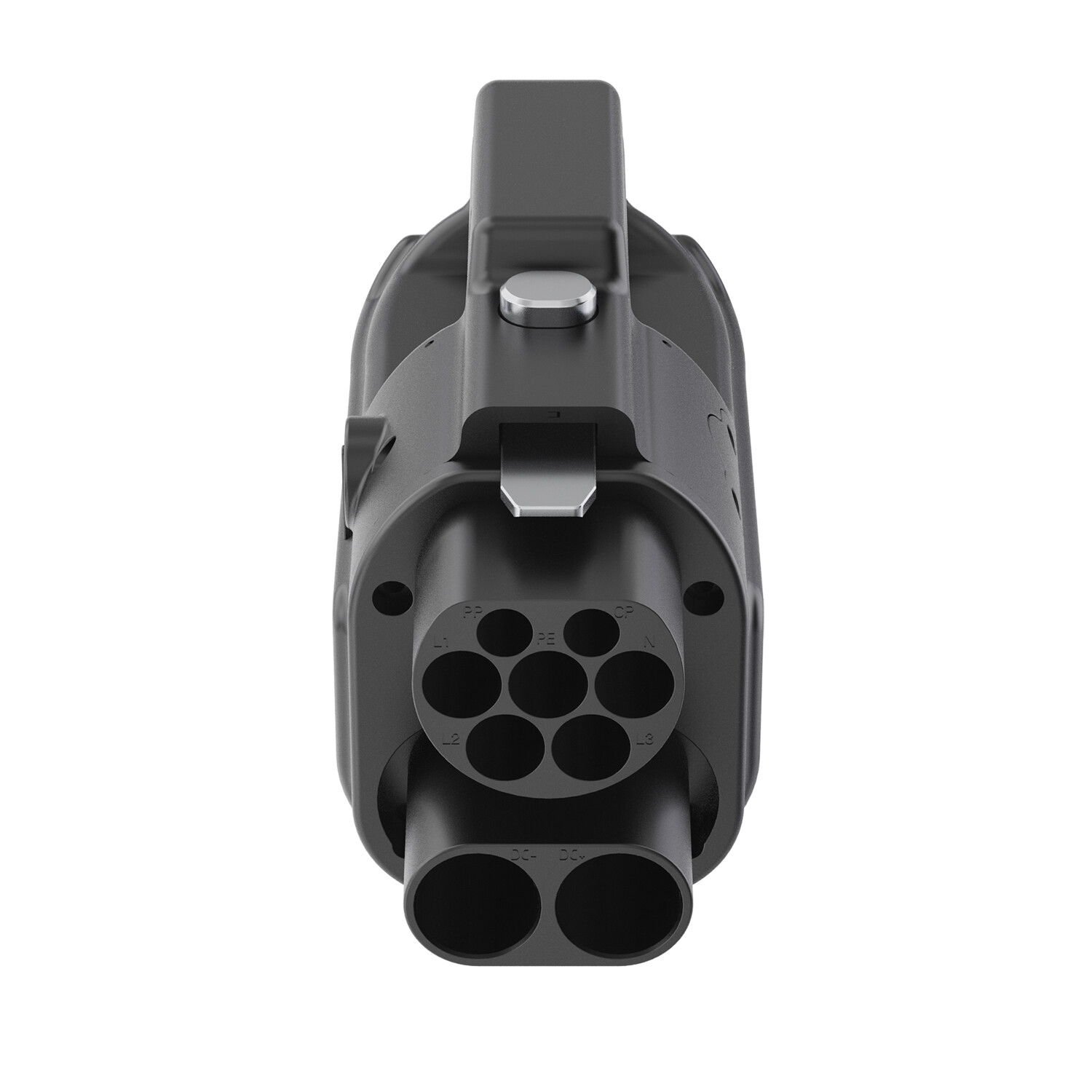

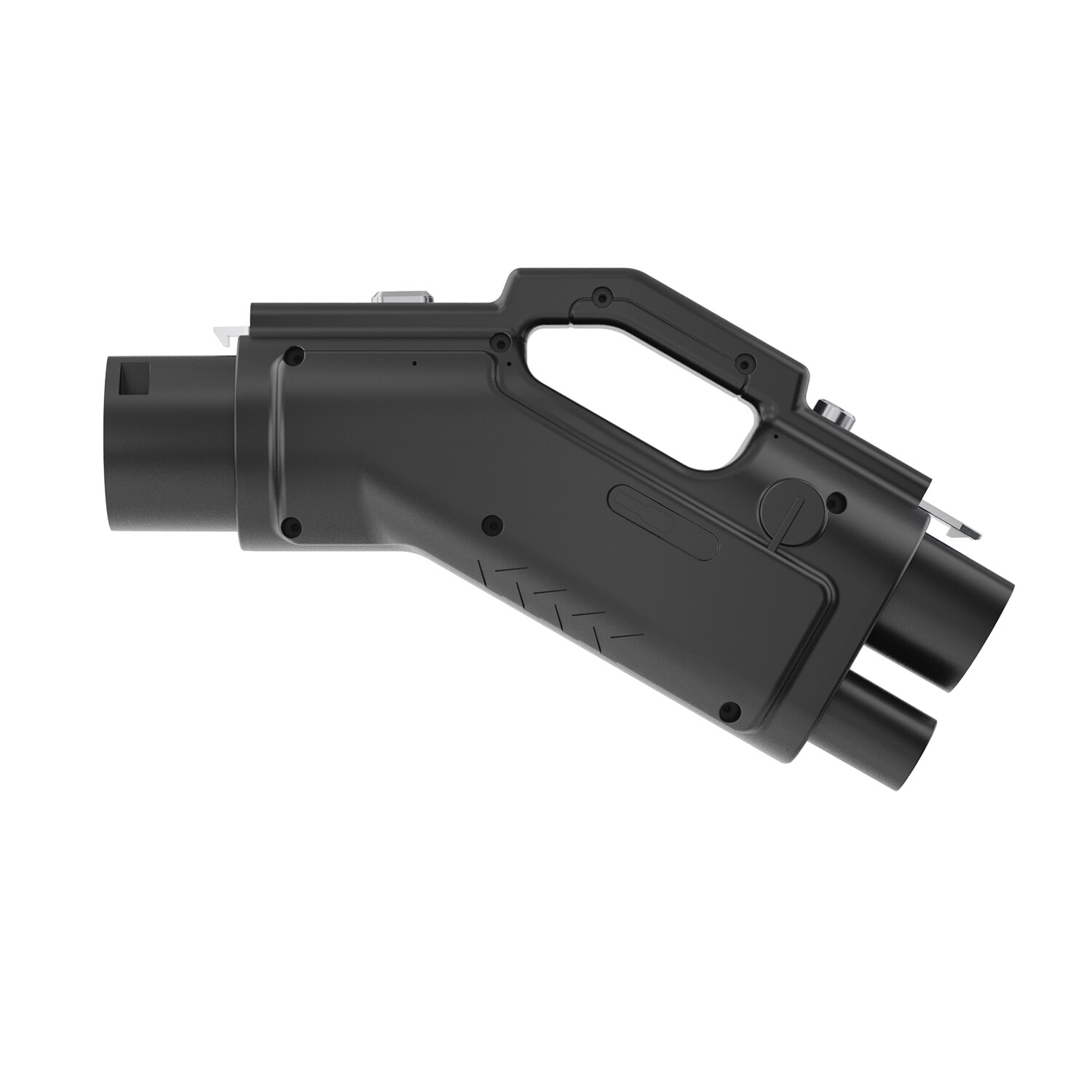

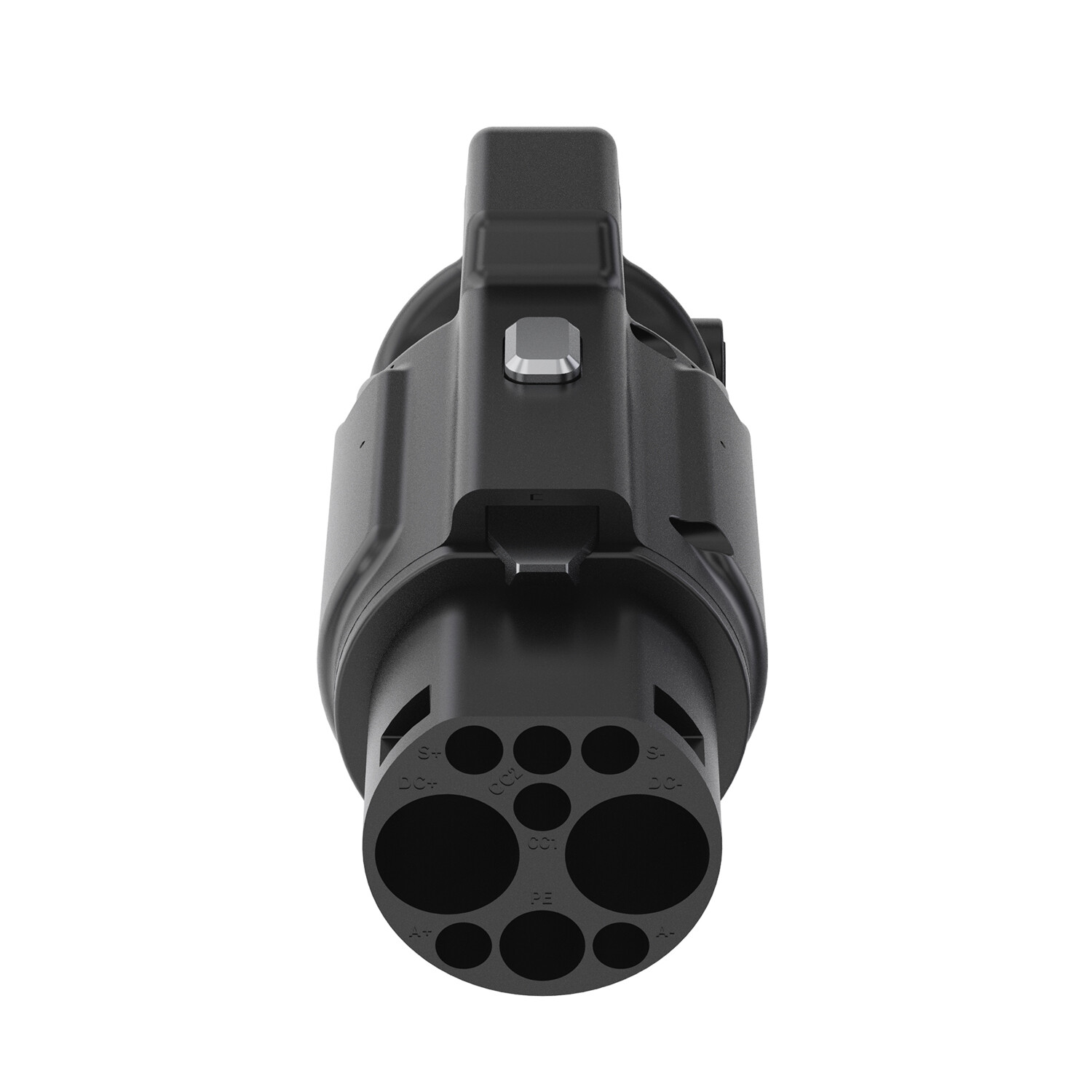

400A CCS2 to GB/T DC EV Adapter

400A CCS2 to GB/T DC EV Adapter

  • Product Introduction

Your Gateway for charging Chinese EVs

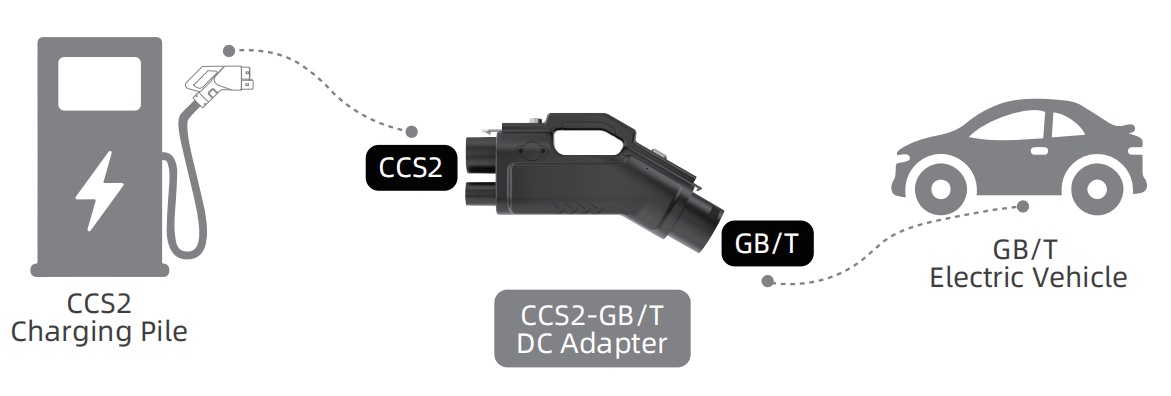

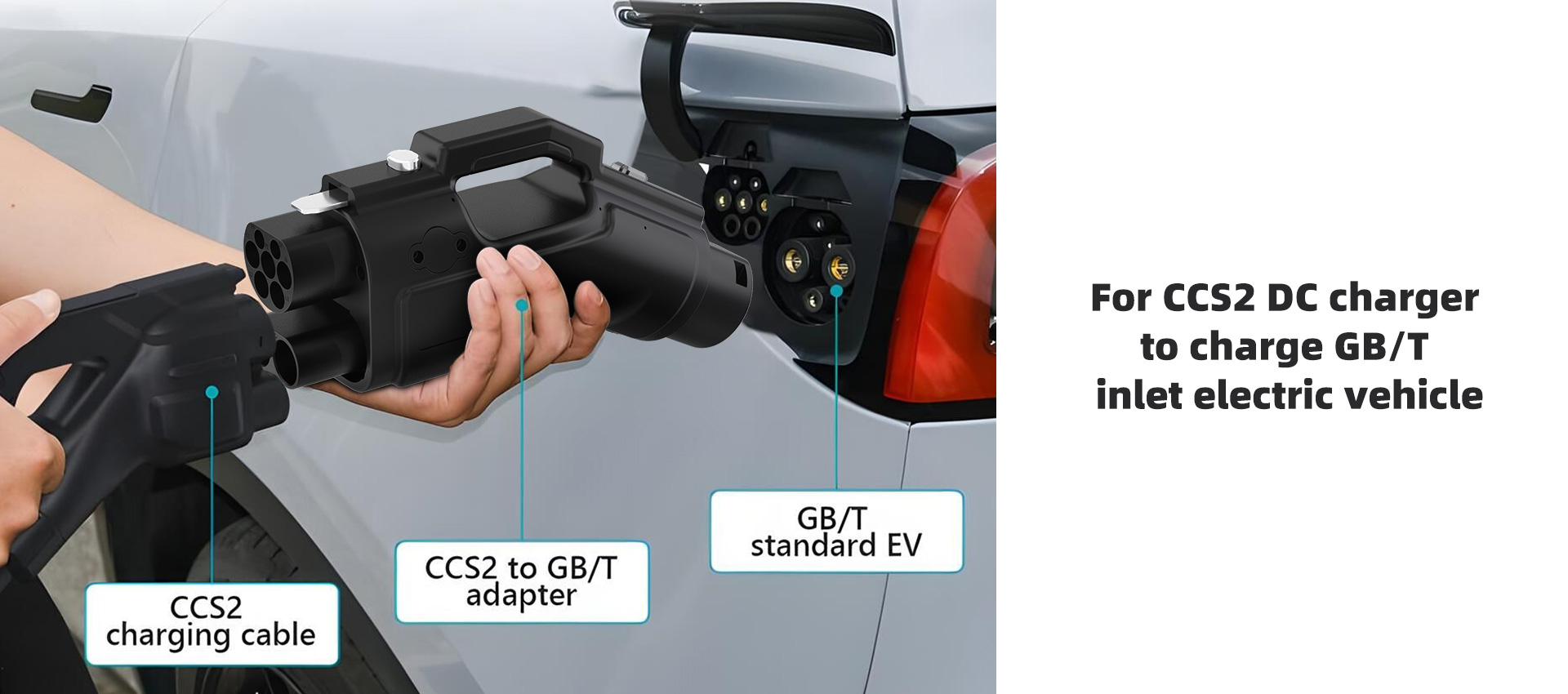

Seamlessly connect your Chinese-standard Gb/T electric vehicle to European CCS2 charging stations. And it supports Max 400kW charging power, which is the fast on the market.
Unique structural design and special materials allow it to have good temperature control,It features a compact, durable design and intelligent plug-and-charge operation, making electric travel smooth and worry-free.

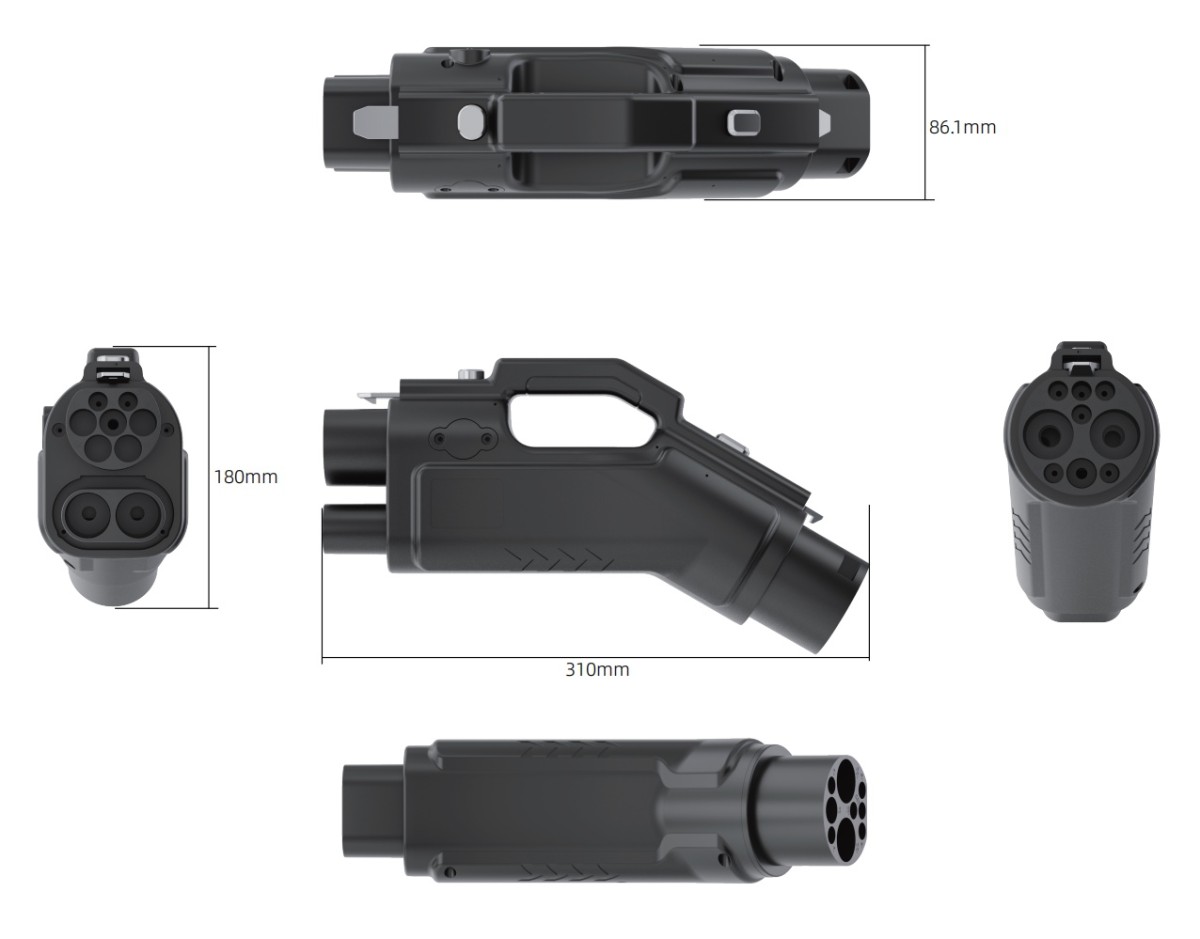

Product diagram and parameters

1768528246673

   Rated Voltage     1000VDC
   Rated Current     400A (MAX)
   Insulation Resistance     >100MΩ
   Contact Resistance     ≤0.5mΩ

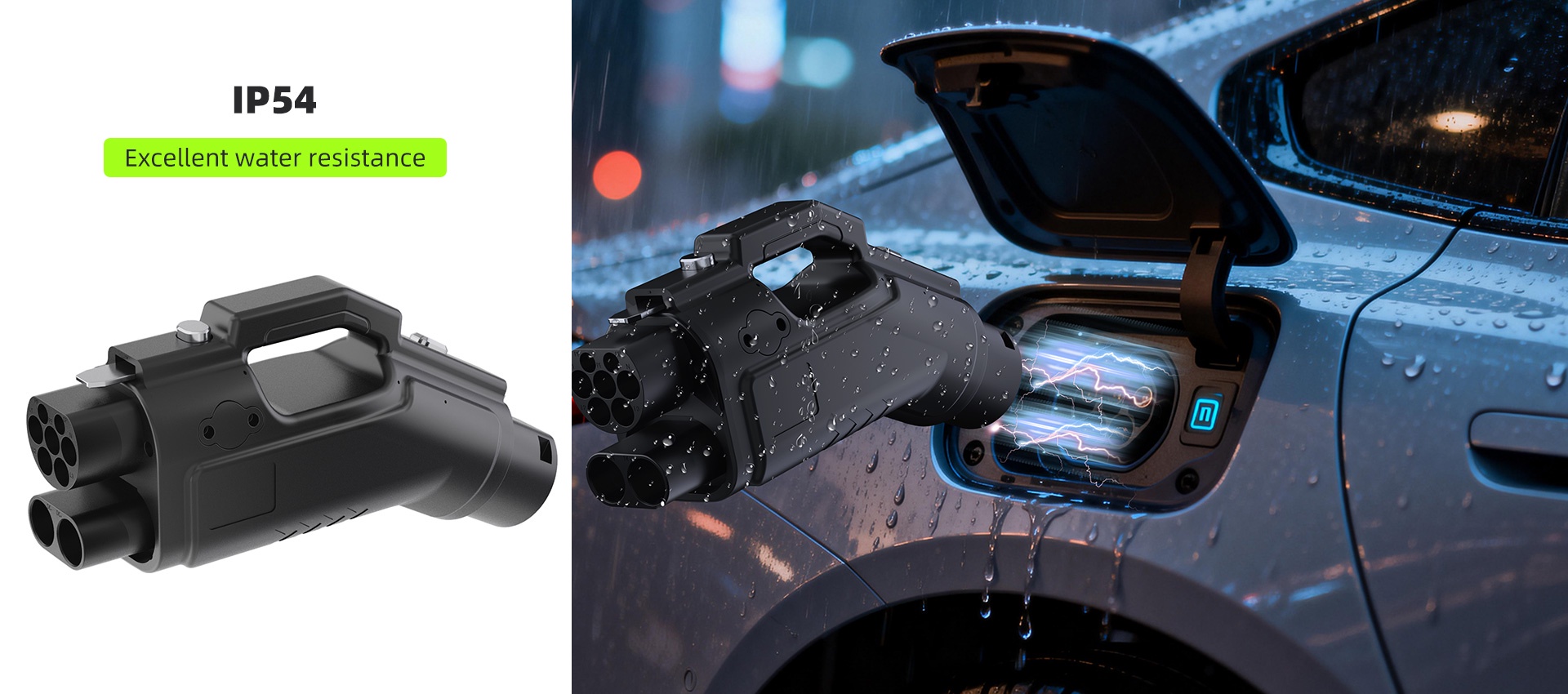

   Ingress Protection (IP)     IP54 (After coupling)
   Terminal Temperature Rise     <50K
   Coupling Insertion/Extraction Force     <140N

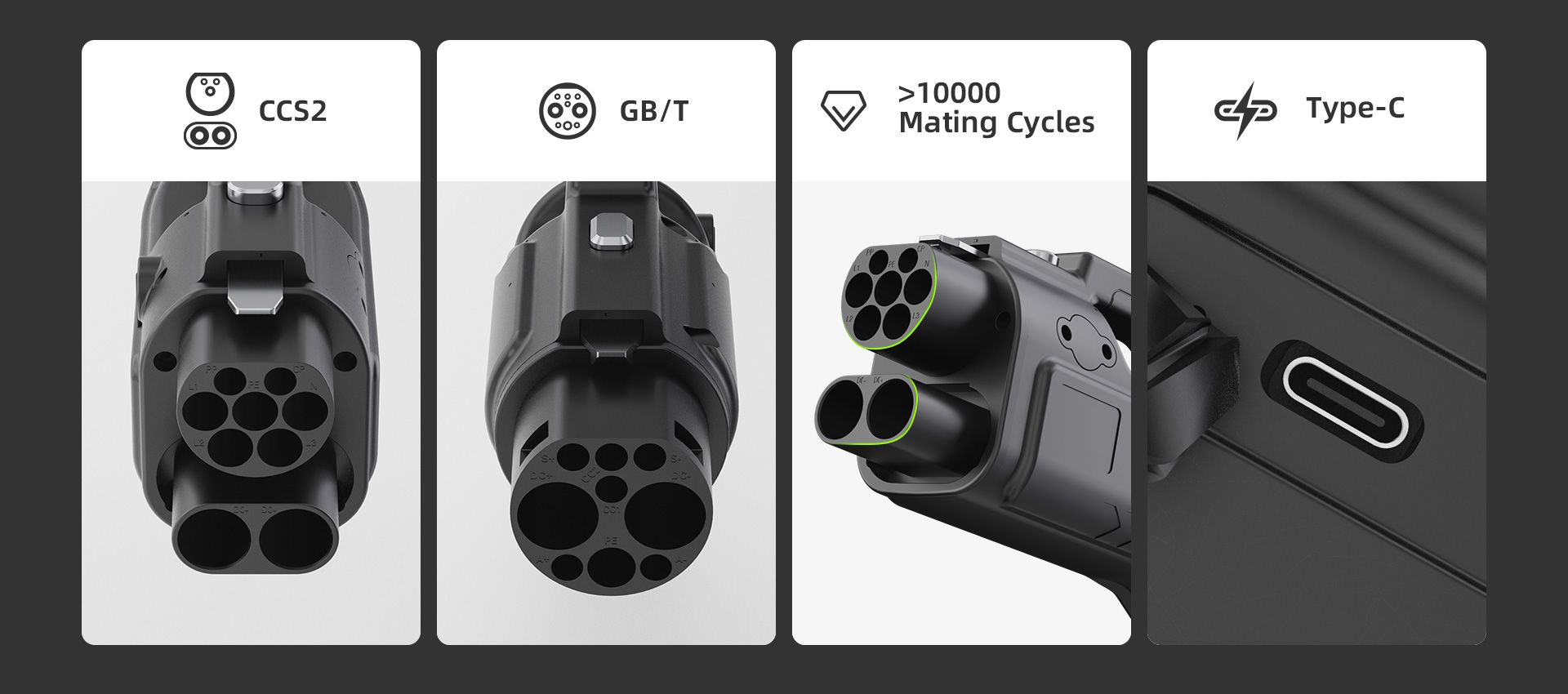

   Mechanical Durability     No-load mating cycles >10,000 times

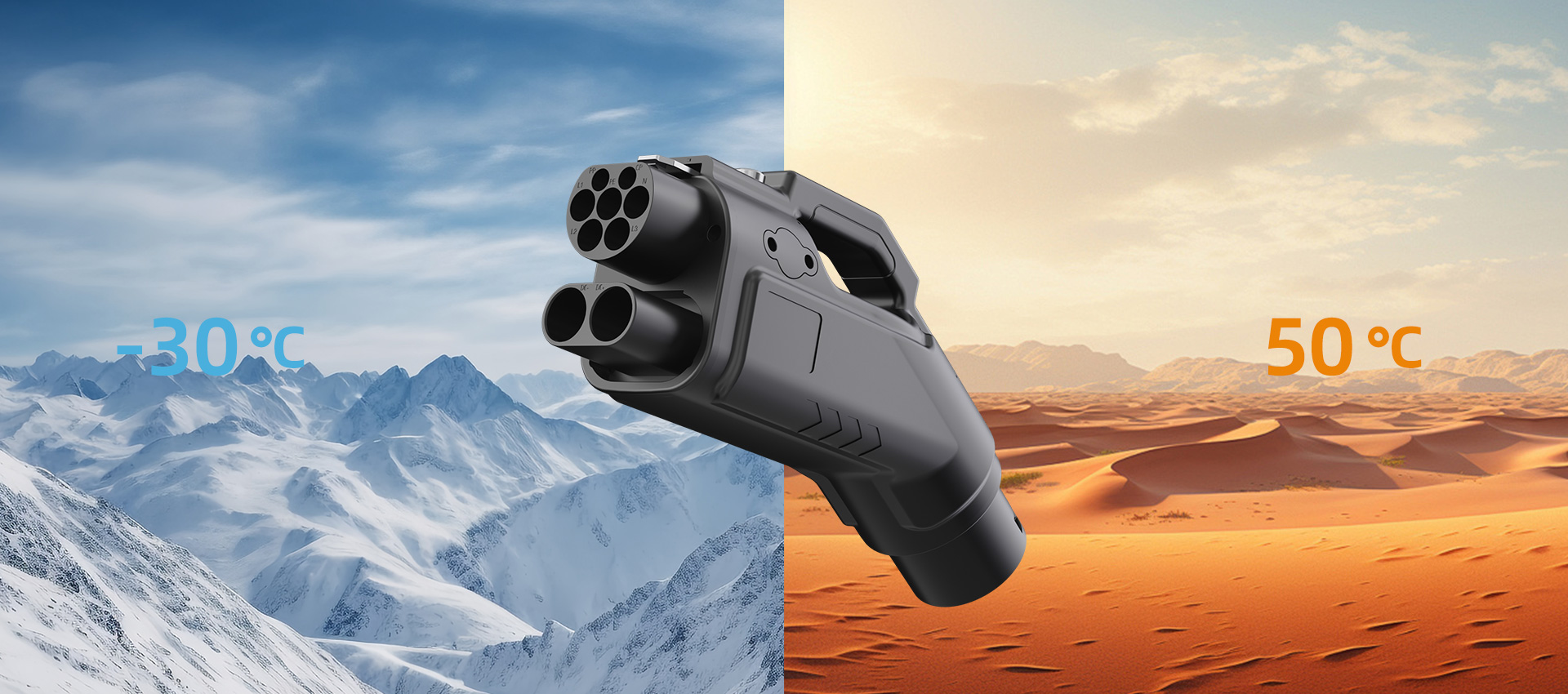

   Working enviroment Temperature     -30°C to +50°C
     (with built-in temperature protection: device automatically shuts down when adapter body reaching 85°C)
   Enclosure     Silicone PC / PA66 + 25% GF
   Conductor     Red copper C1100,Tellurium copper C14500,Silver-Plated
   Net Weight     2.1Kg
   Dimensions     31x9x18 cm(L×W×H)

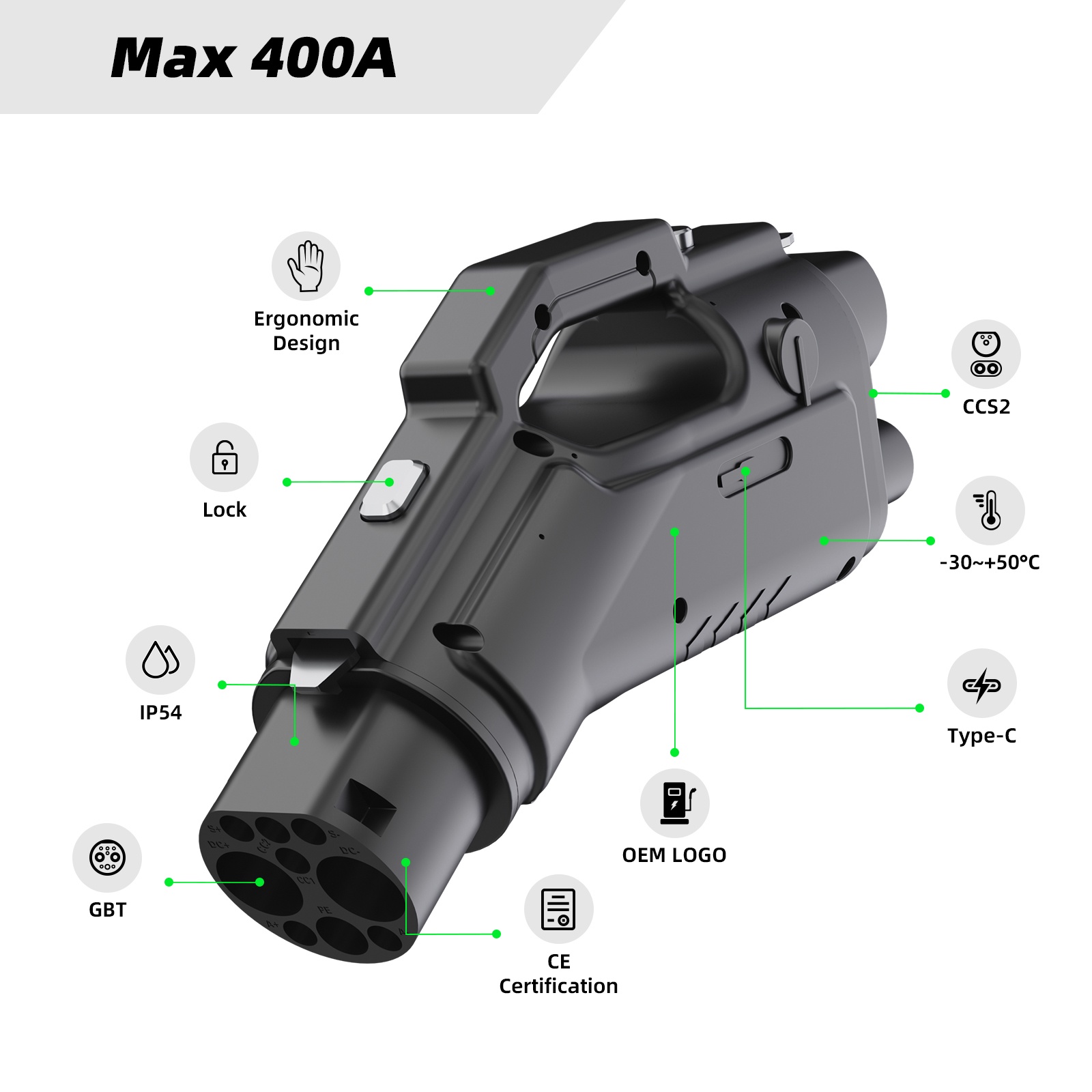

Product Highlights

400A CCS2 to GB/T DC EV Adapter

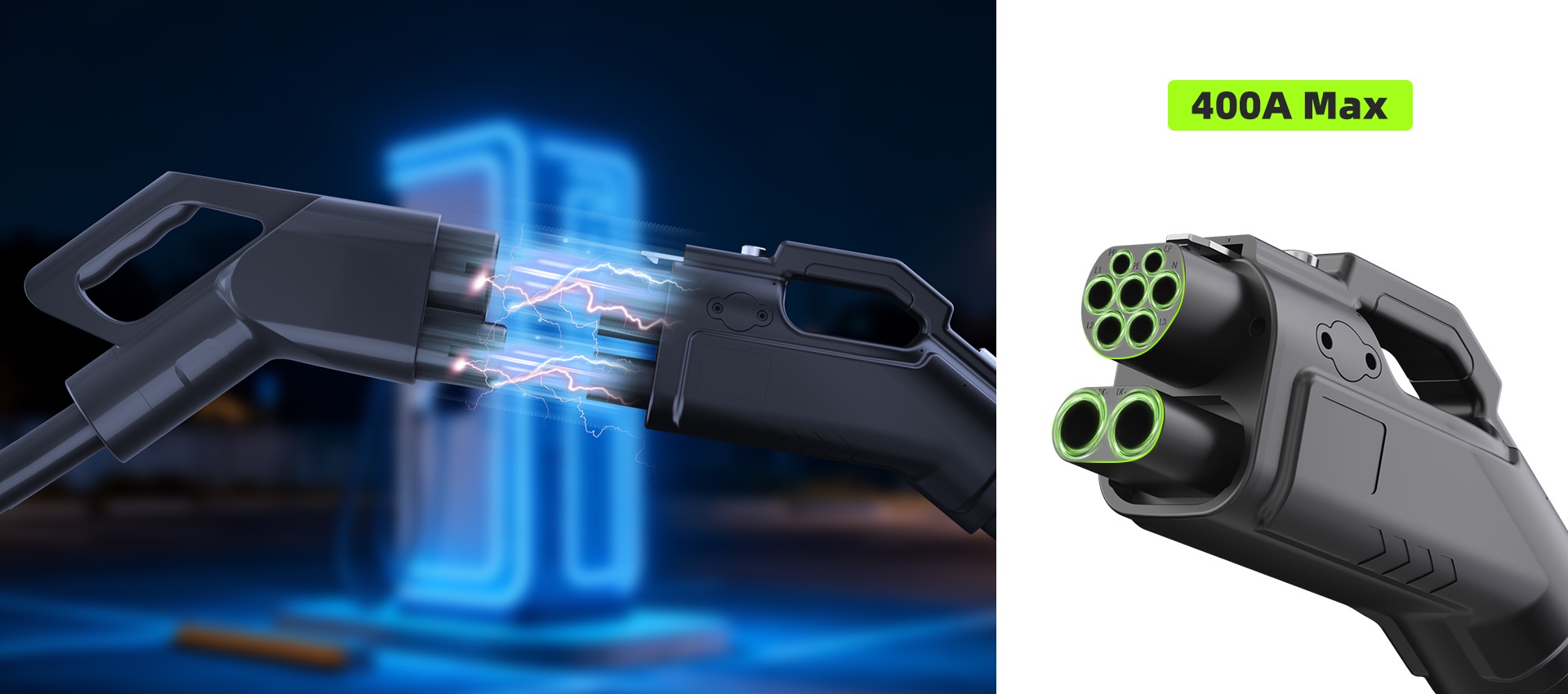

  • Max 400A, Ultra fast charging.

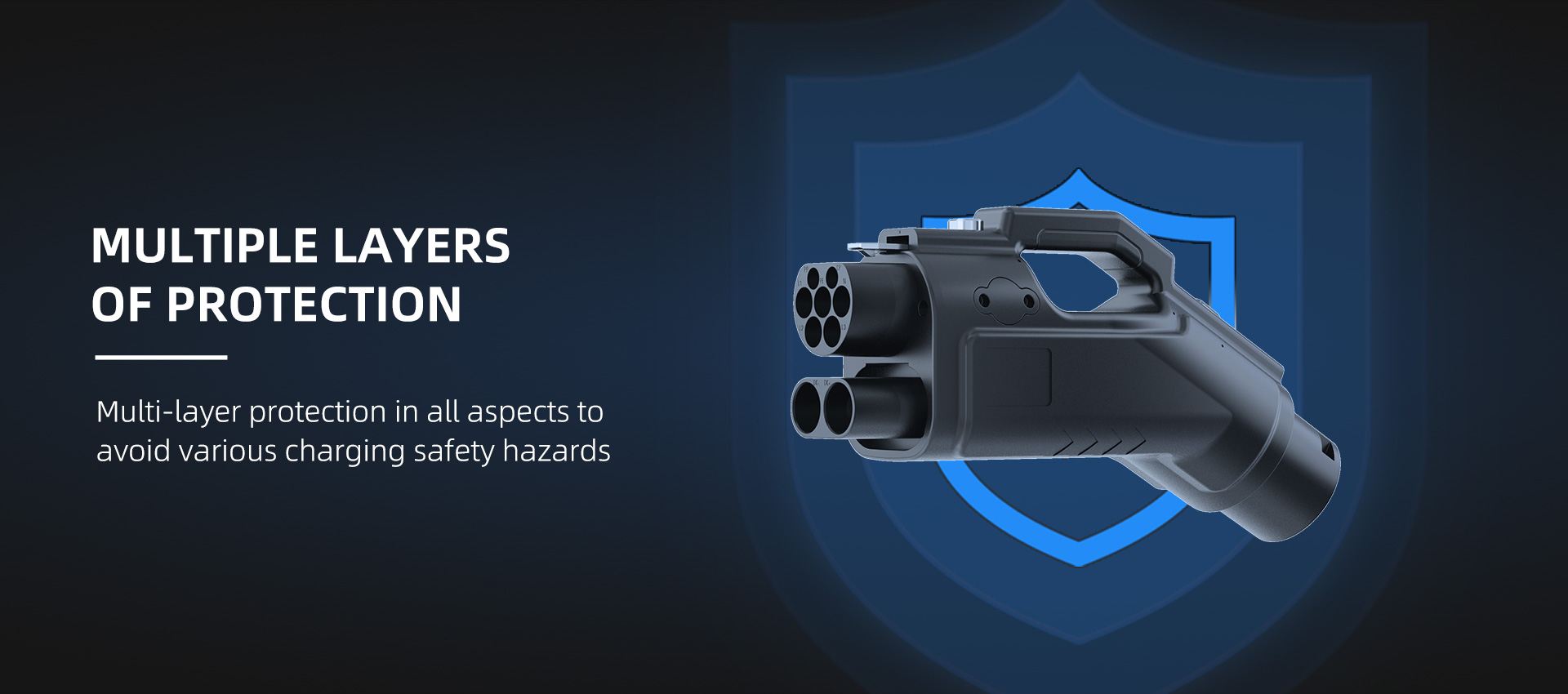

  • Over Temperature Protection.

  • OEM Logo.

  • 2 Years Warranty, Long service life.

Details

  • 1768528689438
  • 直流枪-欧转国_01
  • 直流枪-欧转国_02
  • 直流枪-欧转国_03
  • 直流枪-欧转国_04
  • 直流枪-欧转国_05
  • 直流枪-欧转国_06
  • 直流枪-欧转国_07
  • 直流枪-欧转国_08

Notice

  • Do not exceed maximum load capacity when using.

  • There are precise components inside, avoid falling from a height.

  • Keep both ends of the adapter clean and away from oil, water and other liquids.

  • This product is compatible with 99% GB/T electric vehicles.
