Safer mode 2 with built-in NTC in power plugs for UK and Schuko

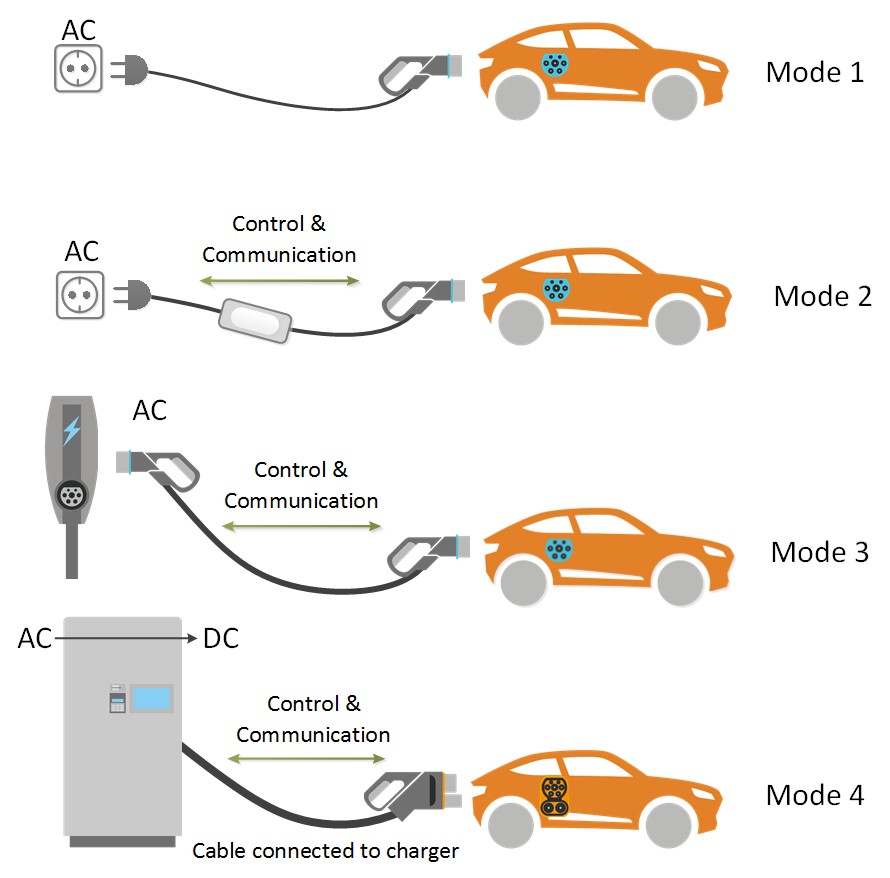

Mode 2

Mode 2 charging involves the use of a special cable with integrated shock protection against AC and DC currents. In Mode 2 charging, the charging cable is provided with the EV. Unlike Mode 1 charging, Mode 2 charging cables have built-in protection in the cables which protects against electric shock. Mode 2 charging is currently the most common mode of charging EVs.

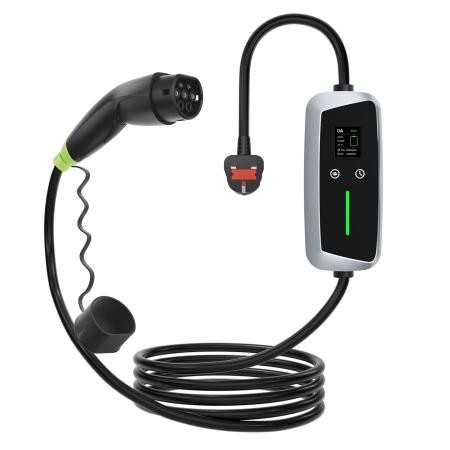

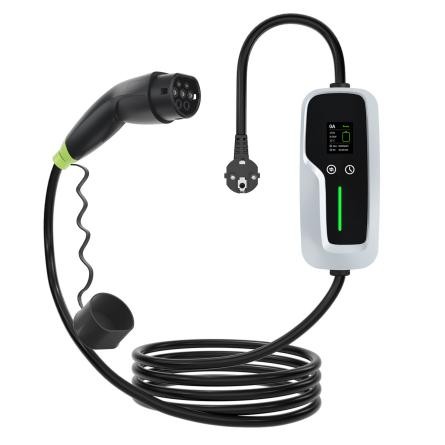

Now mode 2 is widely used for home charging because of lower charging fees, convenience and easy to access, for different home sockets, we can conclude like below,Type 2 to UK 3-pin portable EV charger, type 2 to Schuko portable EV charger, GB/T to Schuko portable EV charger,  with more and more mode 2 portable ev chargers sells overseas, now in developed countries, the traders are re-examining the new mode 2 with Safer temperature control, because some old sockets like the UK , the home socket is very weak for long time working and no replacement, for mode 2 portable ev charger with long time working , if it is working for long time, the socket gets hot and then easy to catch fire,

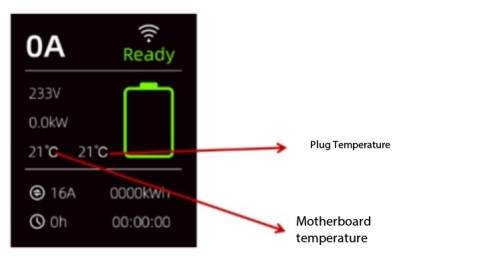

We start from this point and make it safe charging for every end user－power plug with NTC  temperature sensor and  the screen displays the plug temperature in real time

Power plug temperature can show a lot of charging data sheet, the screen displays the plug temperature in real time and APP bluetooth and Wifi for smart phone is also available (optional choice for our customers )

3 designs of function box for you to choose below:

Why choose us ？

Our Mode 2 EV portable charger passes strict CE / TUV / UKCA / CB electrical safety tests. The unique plug temperature sensing design prevents overheating risk at the power inlet, which is a big upgrade compared to ordinary portable chargers.the screen displays the plug temperature in real time. We support custom color on function box cover starting from 200 units, ideal for brand distributors who want private label. Stable production lead time and full test reports can be provided for customs clearance.

Q1: What certifications does this portable EV charger have? A: It has CE, TUV, UKCA and CB certificates, meets EU and UK safety requirements.

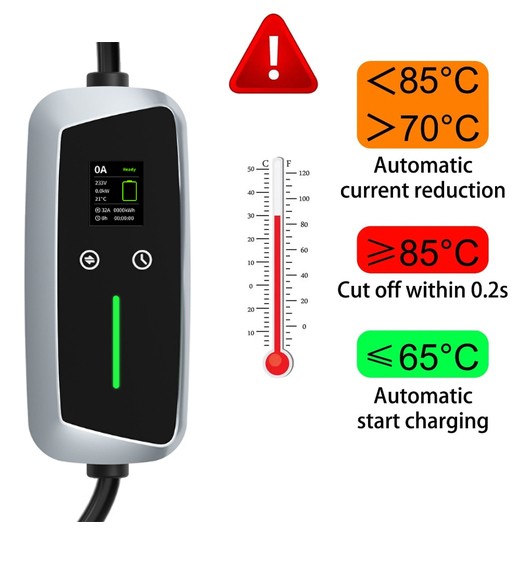

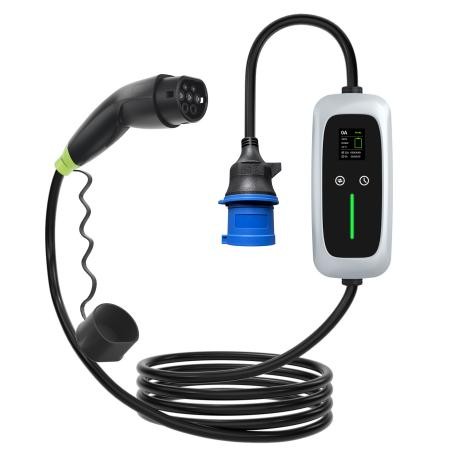

Q2: Does the charger detect plug temperature? A: Yes. The sensor is built inside Schuko/UK plug 32A Blue CEE power plug . It will automatically reduce charging current if plug temperature increases, and real-time temperature is shown on screen.

Q3: What is the MOQ for custom color of function box cover? A: MOQ is 200 PCS for custom top cover color of the function box.

Q4: Can I choose Schuko plug or UK plug? A: Yes, both types are available for selection.

Q5:Can I choose replaceable 13A UK plug,16A blue CEE and 32A blue CEE power plug, because different customers’ using scenarios are different

A: Yes ,we can do OEM for you and sample can finish in 5 days and for bulk order can finish within 15 days
