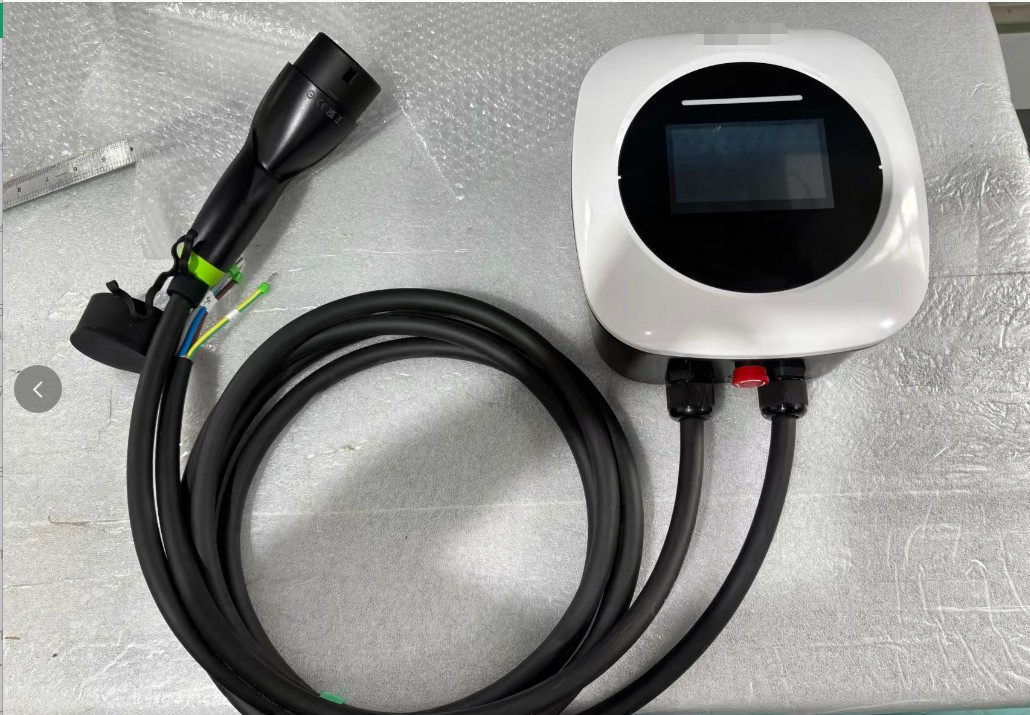

32A / 7 kW / 11 kW / 22 kW Type 2, GB/T WallBox EV Charging Station with Wi-Fi & App Control
32A / 7 kW / 11 kW / 22 kW Type 2, GB/T WallBox EV Charging Station with Wi-Fi & App Control
What is a Mode 3 AC wallbox charger?
A Mode 3 AC wallbox - also called a Level 2 charger - is the standard home and commercial charging solution in Europe and the Middle East. Connected to a 230 V single-phase or 400 V three-phase supply, it delivers 7 kW to 22 kW, typically adding 30-120 km of driving range per charging hour, and is up to ten times faster than charging from a household socket.
Wallboxes are installed in private homes, villas, apartment buildings, hotels, offices and retail car parks. RFID access control and energy monitoring let owners and site operators manage users and bill consumption accurately, which makes the wall-mounted water-resistant EV charger box suitable for both private and semi-public charging in many places
Depending on the market, this product is also called a wallbox, wall-mounted EV charger, AC charging station, EVSE or Mode 3 charging point.
Choosing the right EV charger starts with the local grid and climate. In Europe, wallboxes are normally installed on a 230 V single-phase or 400 V three-phase supply and must be protected by a Type B residual current device; in the Middle East, installations have to cope with ambient temperatures up to 50 °C, dusty and humid coastal air and 220-240 V grids. This wallbox is designed for both markets: IP65 outdoor-rated housing, an integrated Type B RCD (AC 30 mA + DC 6 mA), an emergency stop button and an operating range of -30 °C to +50 °C. Select your output - 7 kW, 11 kW or 22 kW - and the connector your market uses: Type 2 for Europe and the GCC, Type 1, GB/T or Tesla for other regions.
Key features of our wallbox:
l Flexible power and connector options - 7 kW (230 V, 1-phase, 32 A), 11 kW (400 V, 3-phase, 16 A) or 22 kW (400 V, 3-phase, 32 A), with Type 2, Type 1, GB/T or Tesla connectors. OEM/ODM branding, cable length and packaging are available.

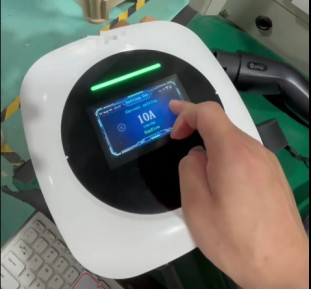

l 4.3-inch colour touchscreen - a large, phone-smooth touch display shows charging status, current, voltage and power at a glance, and stays readable in both indoor and outdoor installations.
l Smart control with Wi-Fi and mobile app - schedule charging for off-peak hours, set start and stop times, and follow real-time current, voltage, power and charging history from your phone. Ideal for time-of-use tariffs in Europe and for villa, hotel and fleet charging in the GCC.
l Safety and weather protection - integrated Type B residual current device (AC 30 mA + DC 6 mA), emergency stop button, IP65 outdoor-rated housing and a -30 °C to +50 °C operating range for European garages as well as hot, dusty Middle East sites.
l Simple status indication - different LED patterns show standby, EV connected, charging and emergency-stop states, so drivers and installers can read the charger at a glance:
Wallbox with Tuya app, APP is compatible with smart phone to operate

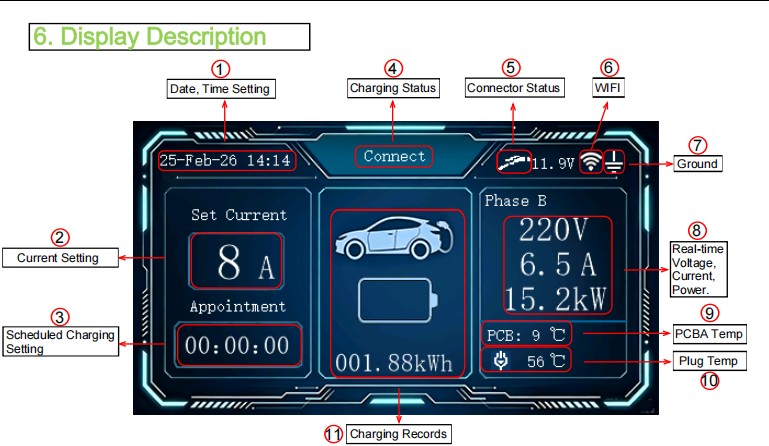

Touchscreen with all the data you need
Technical Specifications
Service, Delivery & Warranty
Beyond the product itself, we back every order with responsive service, predictable delivery and a solid warranty:
Customer Service
l Professional product advice and purchase options for every customer
l All emails answered within 24 hours on working days
l Online customer service in English, French, German and Spanish
l One-on-one service for all customers
Delivery Time
Table 4 — Standard lead times
Agency Policy
Please contact our sales department for more details about our agency policy.
Warranty & After-Sales Service
All our portable EV charger products carry a 2-year warranty. The specific after-sale plan includes free replacement, or spare parts can be sent to you for better local after-sales service. According to feedback from the market, after-sale problems are rare because strict product inspections are carried out before leaving the factory.
